WOODWARD 5464-643 Spare for MicroNet Automation

WOODWARD 5464-643 Maintenance-Ready Spare for MicroNet Automation

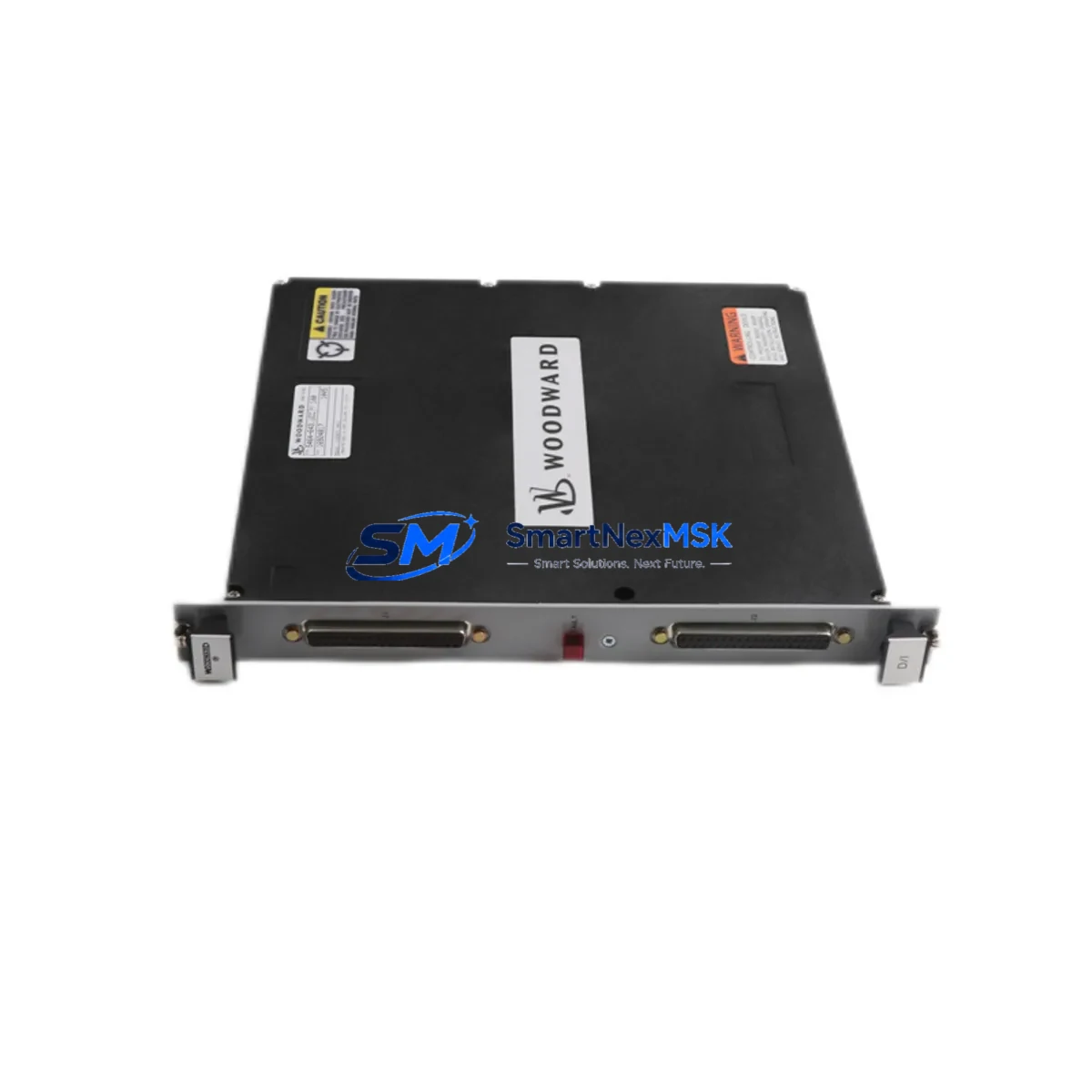

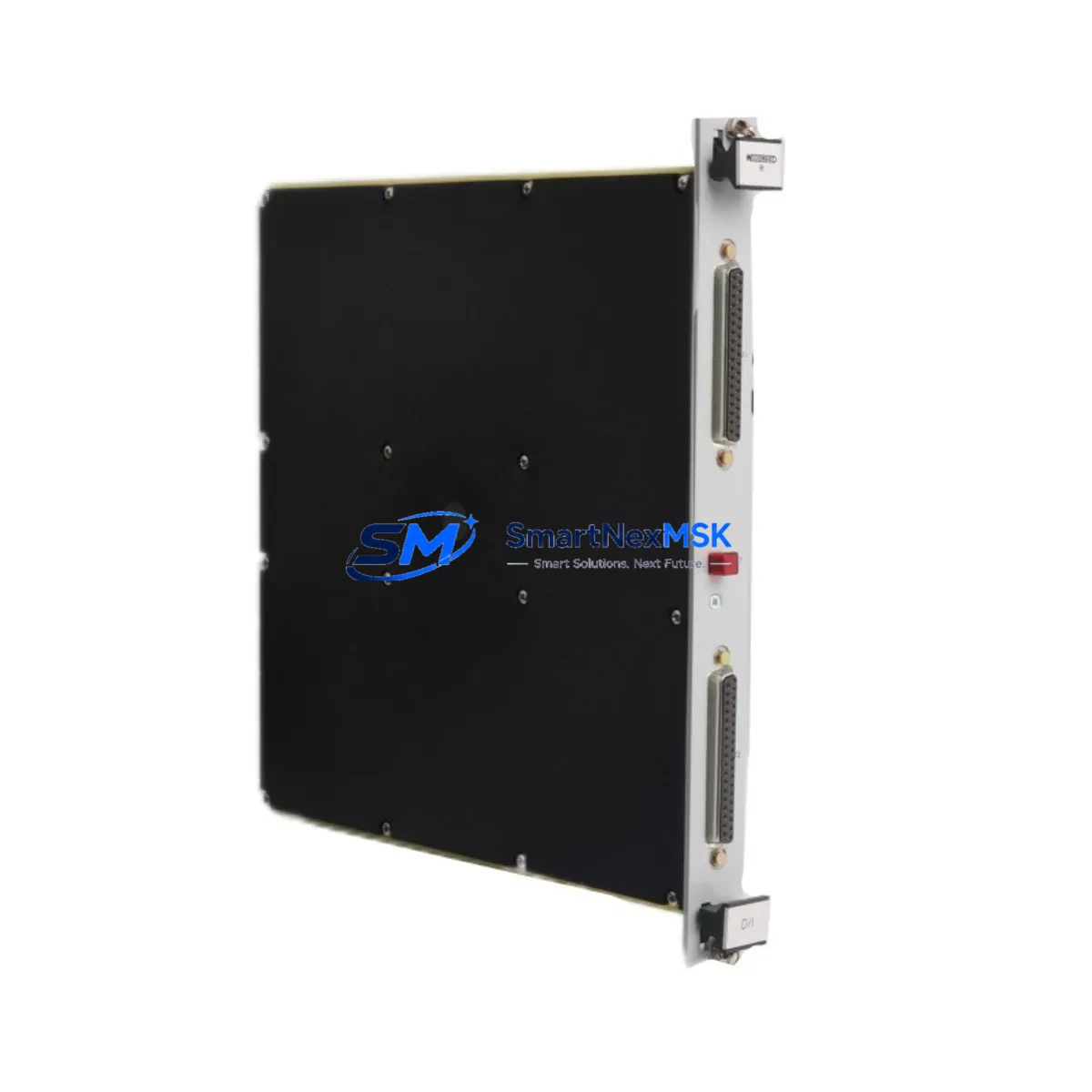

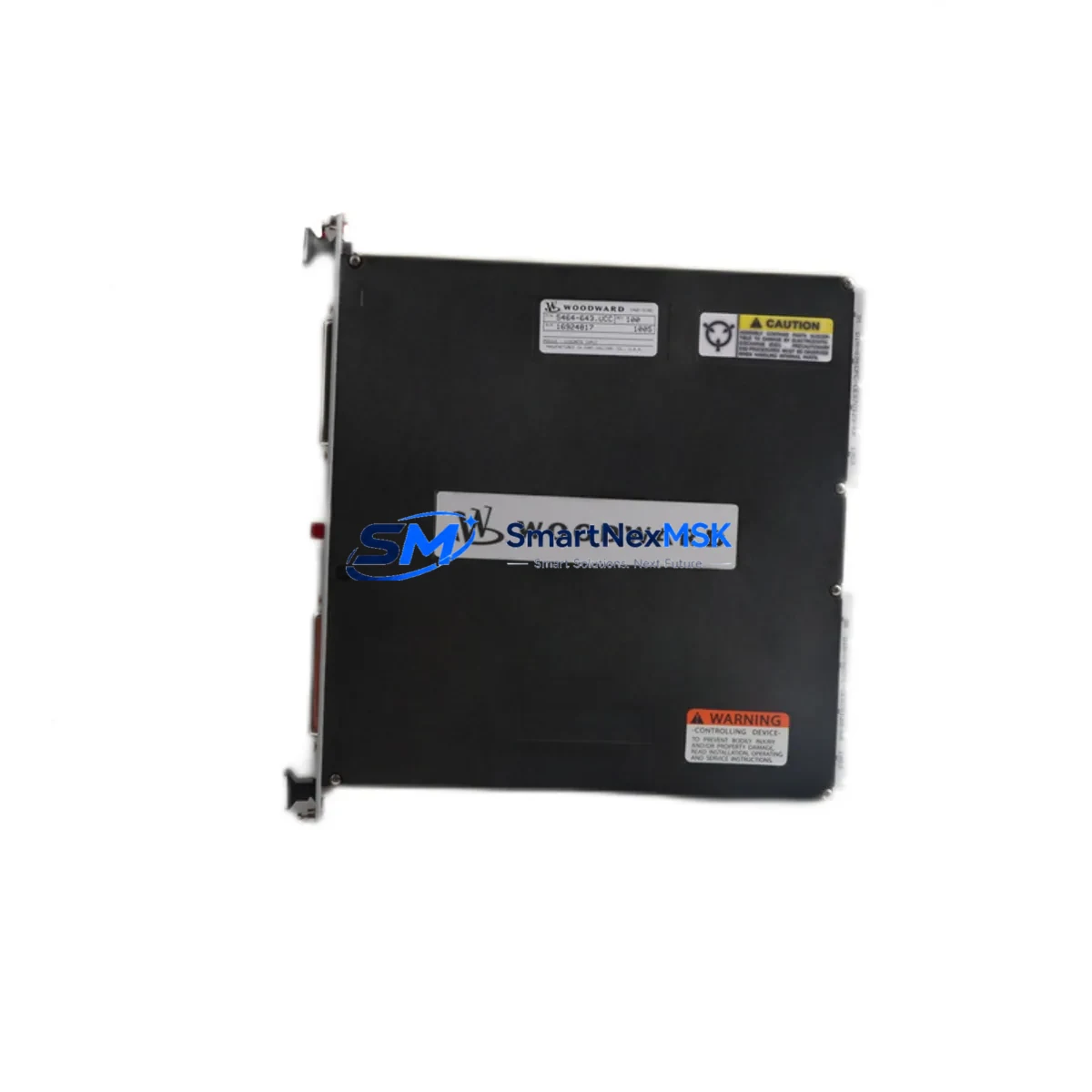

The WOODWARD 5464-643 is an original discrete input module designed for the MicroNet series turbine and industrial automation control systems. As a critical field-replaceable unit, this module handles digital signal acquisition from limit switches, proximity sensors, emergency shutdown contacts, and process interlock circuits. Maintaining a verified spare of the 5464-643 in your parts inventory is a proven strategy for minimizing unplanned downtime in turbine governor systems, compressor control panels, and power generation control cabinets.

For maintenance engineers managing aging MicroNet-based control architectures, the 5464-643 represents a high-priority spare. Its role in discrete signal conditioning means that a single failed channel can trigger a system fault, initiate a protective shutdown, or mask a critical process alarm. Sourcing an original WOODWARD replacement — rather than an unverified substitute — ensures full compatibility with the MicroNet backplane, firmware, and I/O addressing scheme without requiring software reconfiguration or channel remapping.

Procurement engineers should note that the 5464-643 is tested and shipped with a 12-month warranty, supported by pre-shipment functional verification. Long-term supply continuity is maintained through established distributor channels, making it suitable for both emergency replacement orders and planned annual spare parts budget cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the WOODWARD 5464-643 discrete input module during a planned or emergency maintenance event, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the 24 VDC field power supply feeding the discrete input circuits — a degraded or undersized power supply module is a common root cause of intermittent input faults that are incorrectly attributed to the I/O module itself.

Terminal blocks and field wiring terminations connected to the 5464-643 should be inspected for corrosion, loose crimps, and insulation breakdown, particularly in high-vibration or high-humidity environments. The MicroNet backplane connector and card-edge contacts should be cleaned and inspected for oxidation before inserting the replacement module. If the system uses a MicroNet TMR (Triple Modular Redundant) architecture, all three redundant discrete input channels should be verified simultaneously to confirm voting logic integrity.

During the same maintenance window, engineers should also inspect the MicroNet analog input modules handling 4–20 mA process signals, as these often share the same field junction box wiring and are subject to the same environmental stressors. The MicroNet communication module — responsible for Modbus or proprietary protocol data exchange with the HMI or DCS — should be checked for firmware version compatibility after any module replacement. Relay output modules in the same control cabinet that drive solenoid valves or motor starters based on discrete input logic should be tested for contact wear and coil resistance.

Signal isolators and surge protection devices installed on field signal cables entering the cabinet are frequently overlooked during spare part replacements but are critical for protecting the new 5464-643 from transient overvoltage events. Fuse holders and miniature circuit breakers protecting the discrete input field circuits should be tested for continuity and rated interrupting capacity. If the system includes a WOODWARD HMI panel or operator interface, verify that the I/O point mapping and alarm configuration correctly reflect the replaced module’s channel assignments. For older MicroNet installations, the system battery backup module should also be inspected to ensure configuration retention during power cycling associated with the module swap.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s part number as 5464-643 and cross-reference with the system’s I/O list and cabinet drawing. Verify that the replacement unit’s firmware label and hardware revision are compatible with the installed MicroNet system version.

Step 2 — Safe Isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. De-energize the field circuits connected to the module. For TMR systems, consult the WOODWARD MicroNet maintenance manual before removing any single module to avoid inadvertent system trips.

Step 3 — Module Removal and Inspection: Remove the 5464-643 from the backplane slot. Inspect the backplane connector pins for damage or contamination. Document the slot position and any DIP switch or jumper settings on the outgoing module.

Step 4 — Replacement Installation: Configure the replacement 5464-643 to match the documented settings. Seat the module firmly into the backplane slot. Reconnect field wiring to the terminal block, verifying wire labels against the I/O list.

Step 5 — Functional Test: Re-energize field circuits and perform a point-by-point input verification from the HMI or engineering workstation. Confirm all discrete inputs are reading correctly and that no system alarms are active. Document the replacement in the site maintenance log.

This workflow supports rapid restoration of system availability, reduces mean time to repair (MTTR), and ensures the replacement is fully validated before returning the system to automatic control mode.

Spare Parts Support FAQ

Q1: What is the shelf life of the WOODWARD 5464-643 when held in spare parts inventory?
When stored in ESD-safe packaging in a climate-controlled environment (15–25°C, relative humidity below 60%), the 5464-643 can be held in spare inventory for 3–5 years without degradation of electronic components. Annual visual inspection of the packaging seal and storage conditions is recommended. The 12-month warranty period begins from the date of shipment.

Q2: Is the 5464-643 compatible with both MicroNet TMR and MicroNet Plus systems?
The 5464-643 is designed for the WOODWARD MicroNet platform. Compatibility with specific system variants (TMR, Plus, or earlier MicroNet generations) should be confirmed against the system’s hardware configuration document and the module’s hardware revision. Contact our technical team with your system serial number for confirmation before ordering if you are uncertain.

Q3: What pre-shipment testing is performed on the 5464-643?
Each unit undergoes functional verification prior to dispatch, including discrete input channel continuity checks, backplane interface testing, and visual inspection for physical damage. Units are shipped in ESD-safe packaging with a test record. This process supports confidence in the replacement part before it reaches the maintenance site.

Q4: Can the 5464-643 be used as a direct drop-in replacement for a failed unit without software reconfiguration?
In most MicroNet installations, the 5464-643 is a direct hardware replacement that does not require software reconfiguration, provided the replacement unit matches the hardware revision and any DIP switch or jumper settings of the original module. However, for systems with custom I/O mapping or after a firmware update, verification through the WOODWARD engineering workstation is recommended before returning the system to automatic operation.
