WOODWARD 5464-648 Safety-Enhanced Analog Output Module for Harsh Industrial Sites

WOODWARD 5464-648 Safety-Enhanced Analog Output Module for Harsh Industrial Sites

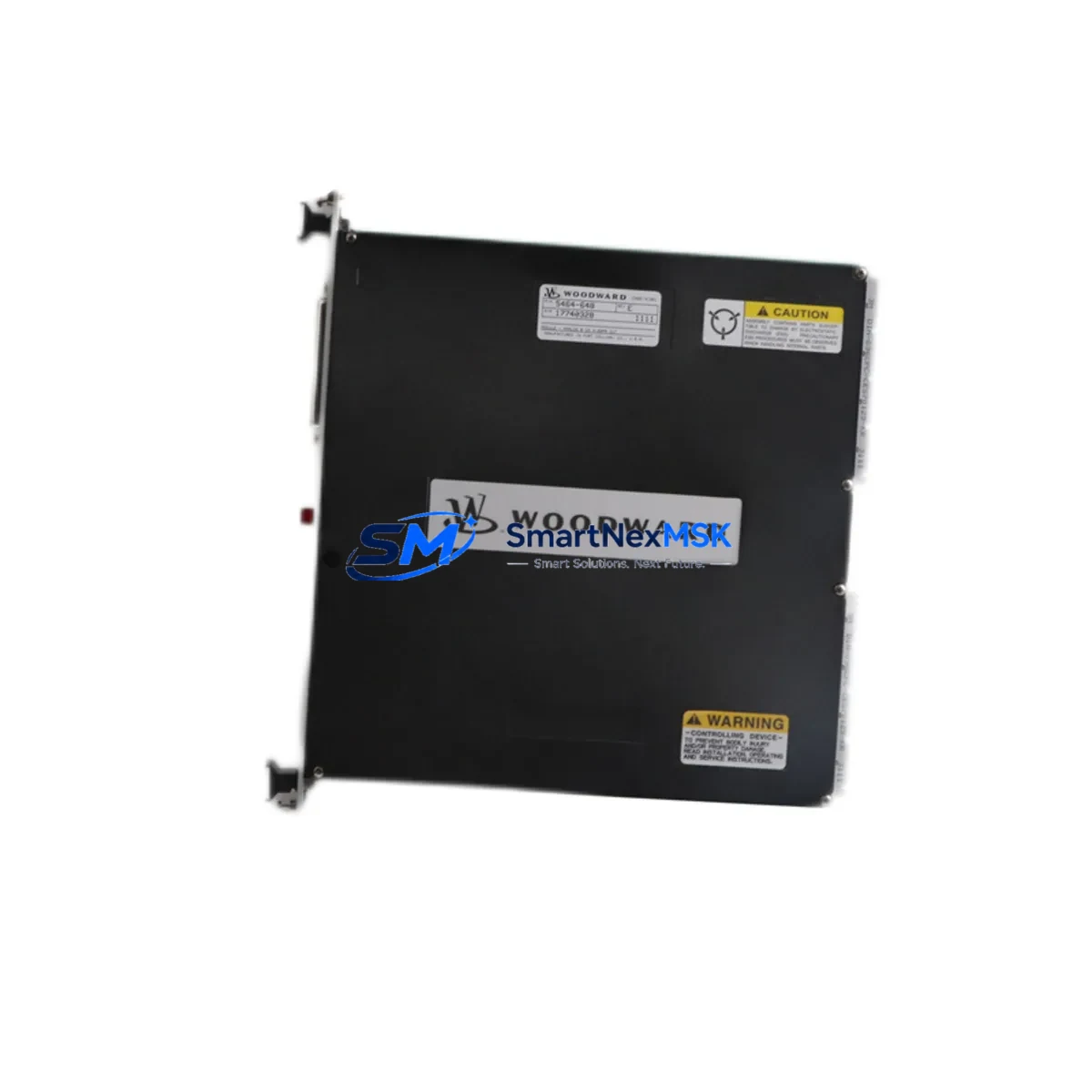

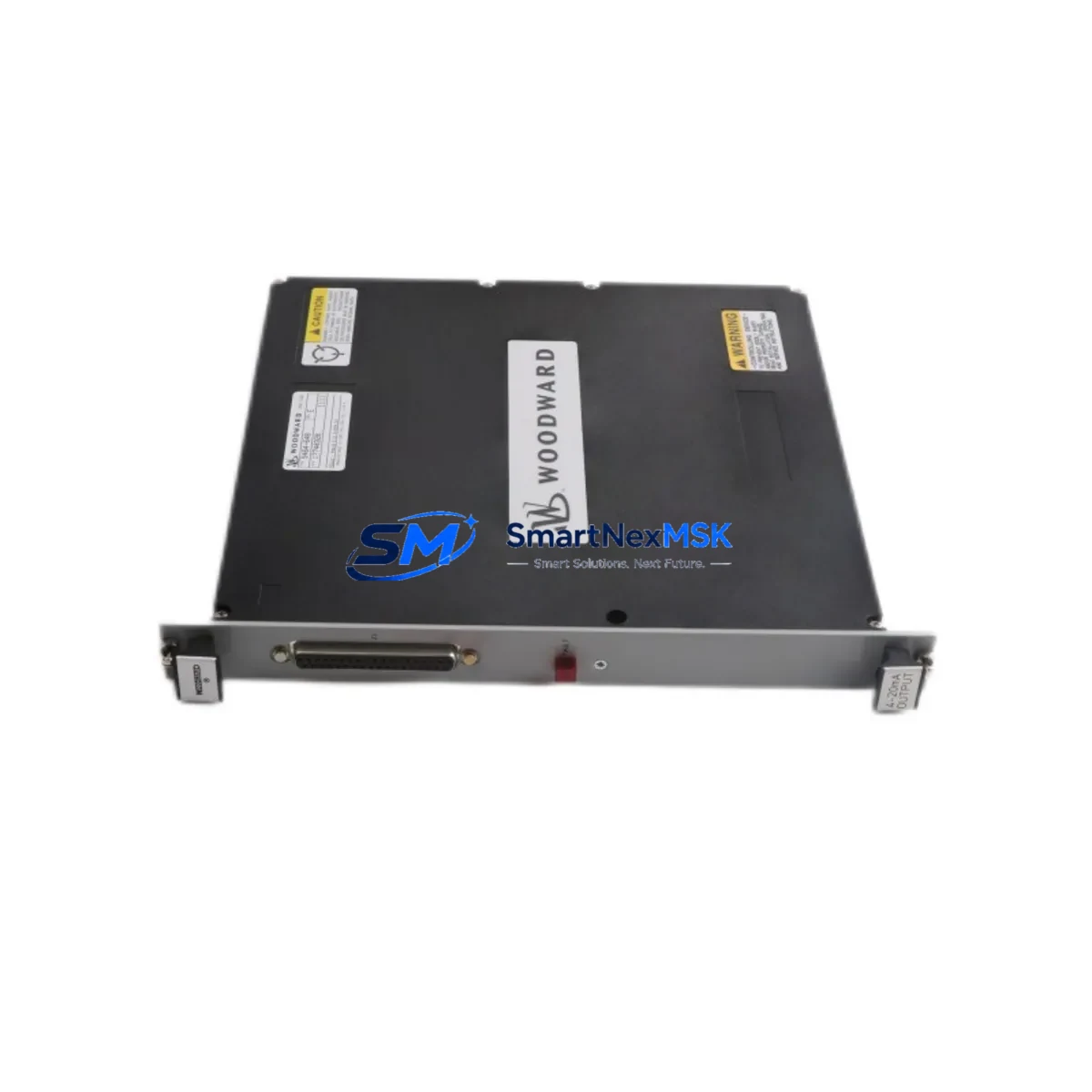

The WOODWARD 5464-648 is an 8-channel, 4–20 mA analog output module engineered for safety-critical and continuous-process control environments where signal integrity, electrical resilience, and uninterrupted operation are non-negotiable. Designed for integration within the WOODWARD MicroNet control platform, this module delivers precision analog output performance across all eight channels simultaneously, maintaining stable loop control even under the demanding conditions found in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port automation systems.

In high-load industrial control cabinets where multiple I/O modules, power supply units, and communication interfaces share a common backplane, the 5464-648 maintains output accuracy within tight tolerances. Its ruggedized design addresses the core failure modes that plague standard analog output modules in harsh environments: signal drift caused by thermal cycling, output instability from power supply fluctuations, and channel cross-talk induced by electromagnetic interference from variable frequency drives, high-current contactors, and switching power supplies mounted in the same enclosure.

Each output channel is individually isolated, providing a critical layer of protection against ground loops and common-mode noise that can corrupt 4–20 mA signals in long cable runs across large industrial facilities. When paired with the WOODWARD MicroNet TMR controller or the MicroNet Plus CPU module, the 5464-648 forms a tightly integrated control loop capable of sustaining safe output states during partial system faults, supporting the kind of fault-tolerant architecture required in safety instrumented systems and critical interlock circuits.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the WOODWARD 5464-648 within a well-engineered control cabinet architecture is the foundation of long-term operational safety. In a typical MicroNet-based control cabinet, the 5464-648 occupies a dedicated slot in the MicroNet rack chassis, drawing regulated power from the MicroNet 24 VDC power supply module. Proper power rail sizing is essential: engineers must account for the cumulative current draw of all installed modules — including the MicroNet CPU module, digital input modules, digital output modules, and communication interface cards — to ensure the power supply operates within its rated capacity with adequate derating margin for ambient temperature.

Signal wiring from the 5464-648’s output terminals to field devices such as electro-pneumatic positioners, control valves, and variable speed drive reference inputs must follow shielded twisted-pair cable practices. Shield grounding at a single point — typically at the cabinet’s instrument earth bus — prevents shield currents from introducing noise into the 4–20 mA loops. In installations where the 5464-648 drives actuators located hundreds of meters from the control room, loop resistance calculations must confirm that the total cable resistance remains within the module’s output compliance voltage specification.

For cabinets installed in zones with significant electromagnetic interference — such as those adjacent to large motor control centers, transformer rooms, or high-frequency welding equipment — additional surge protection devices on each analog output channel are recommended. Transient voltage suppressors or dedicated analog signal surge arresters installed at the cabinet’s field terminal blocks protect the 5464-648’s output circuitry from induced surges traveling back along field cables. The MicroNet analog input modules installed on the receiving end of control loops similarly benefit from coordinated surge protection, maintaining the integrity of the closed-loop control architecture.

Where the control system includes a WOODWARD MicroNet serial communication module or Ethernet gateway module connecting to a third-party SCADA or DCS interface, the analog output values driven by the 5464-648 are reflected in real-time process displays. Maintaining accurate HMI tag scaling — ensuring that the engineering unit range displayed on the operator screen corresponds precisely to the 4–20 mA output range — is a critical commissioning step that prevents operator misinterpretation during abnormal process conditions. Coordinating the 5464-648 with the WOODWARD MicroNet digital output module for discrete interlock actions and the MicroNet watchdog relay module for system health monitoring creates a layered protection strategy that significantly reduces the risk of undetected control failures.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the WOODWARD 5464-648 is deployed in turbine governor control systems and compressor anti-surge control loops where analog output accuracy directly affects process safety. A drift of even a fraction of a milliamp in a control valve positioning signal can translate into significant process deviation, triggering high-high pressure trips or emergency shutdown sequences. The module’s channel isolation and EMI resilience make it the preferred choice for these applications, where the cost of an unplanned shutdown far exceeds the cost of specifying premium-grade I/O hardware.

In power generation facilities — including gas turbine plants, hydroelectric stations, and combined heat and power installations — the 5464-648 provides the analog output backbone for fuel control, inlet guide vane positioning, and excitation system reference signals. These applications demand continuous, drift-free output over extended operating periods measured in months between scheduled maintenance outages. The module’s ruggedized construction supports this requirement, maintaining calibration stability across the full industrial temperature range.

Mining and mineral processing operations present some of the most challenging environments for control system hardware: high ambient dust levels, vibration from crushing and grinding equipment, and wide temperature swings between day and night shifts. The 5464-648’s robust mechanical design and conformal-coated circuit board construction provide the environmental protection needed to sustain reliable analog output performance in these conditions, supporting conveyor speed control, flotation cell level control, and crusher load management applications.

Water and wastewater treatment facilities rely on the 5464-648 for pump speed reference signals, chemical dosing pump control, and aeration blower modulation — all applications where precise, stable 4–20 mA outputs directly affect effluent quality and regulatory compliance. In metallurgical plants and port automation systems, the module supports furnace temperature control, crane positioning systems, and automated loading equipment, where control loop stability is directly linked to production throughput and personnel safety.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the WOODWARD 5464-648?
Every WOODWARD 5464-648 supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement or repair support throughout the warranty period, minimizing your exposure to unplanned maintenance costs.

Q2: What pre-shipment testing is performed on each unit?
Each 5464-648 module undergoes a comprehensive functional test prior to shipment. Testing includes verification of all 8 analog output channels across the full 4–20 mA range, backplane interface continuity checks, isolation resistance measurement between channels and between channels and chassis ground, and visual inspection for physical damage. A test record is maintained for each unit and is available upon request.

Q3: How is compatibility with existing MicroNet systems verified before installation?
The 5464-648 is designed for direct slot-compatible installation in standard MicroNet rack chassis. Compatibility verification involves confirming the MicroNet firmware version supports the module’s I/O map, checking that the backplane slot assignment in the MicroNet configuration software matches the physical installation position, and verifying that the system power supply has sufficient capacity for the additional module load. Our technical support team can assist with compatibility review based on your existing system configuration documentation.

Q4: Can SMARTNEXMSK guarantee long-term supply availability for the 5464-648?
SMARTNEXMSK maintains dedicated inventory of WOODWARD MicroNet series modules including the 5464-648, sourced through established industrial supply channels. We support long-term procurement planning for maintenance and spare parts programs, and can provide lead time commitments for volume orders. Customers operating aging MicroNet installations are encouraged to contact our sales team to discuss strategic spare parts stocking arrangements that protect against supply disruptions.
