WOODWARD 5464-653 Retrofit-Ready Discrete Output Module for MicroNet Control Systems

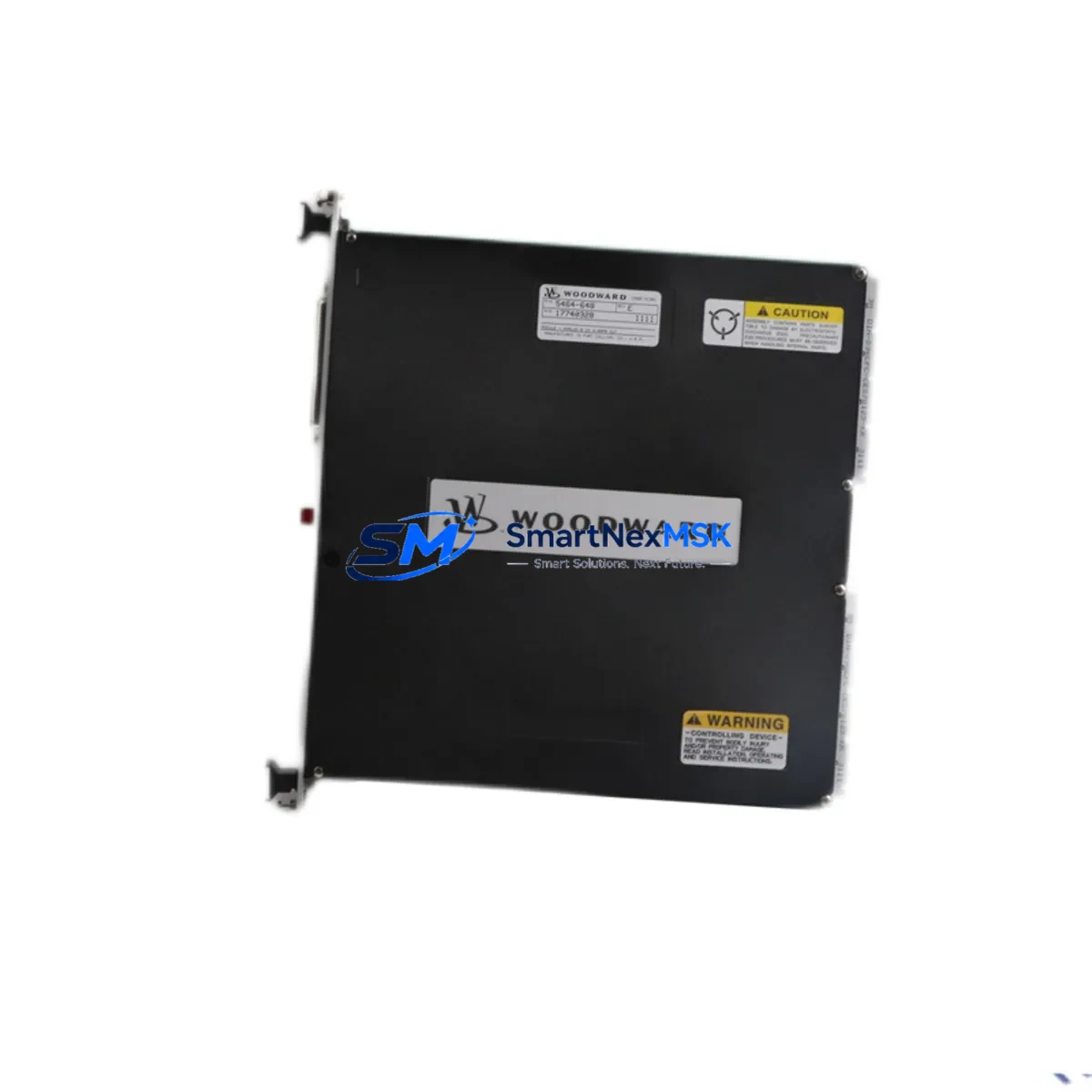

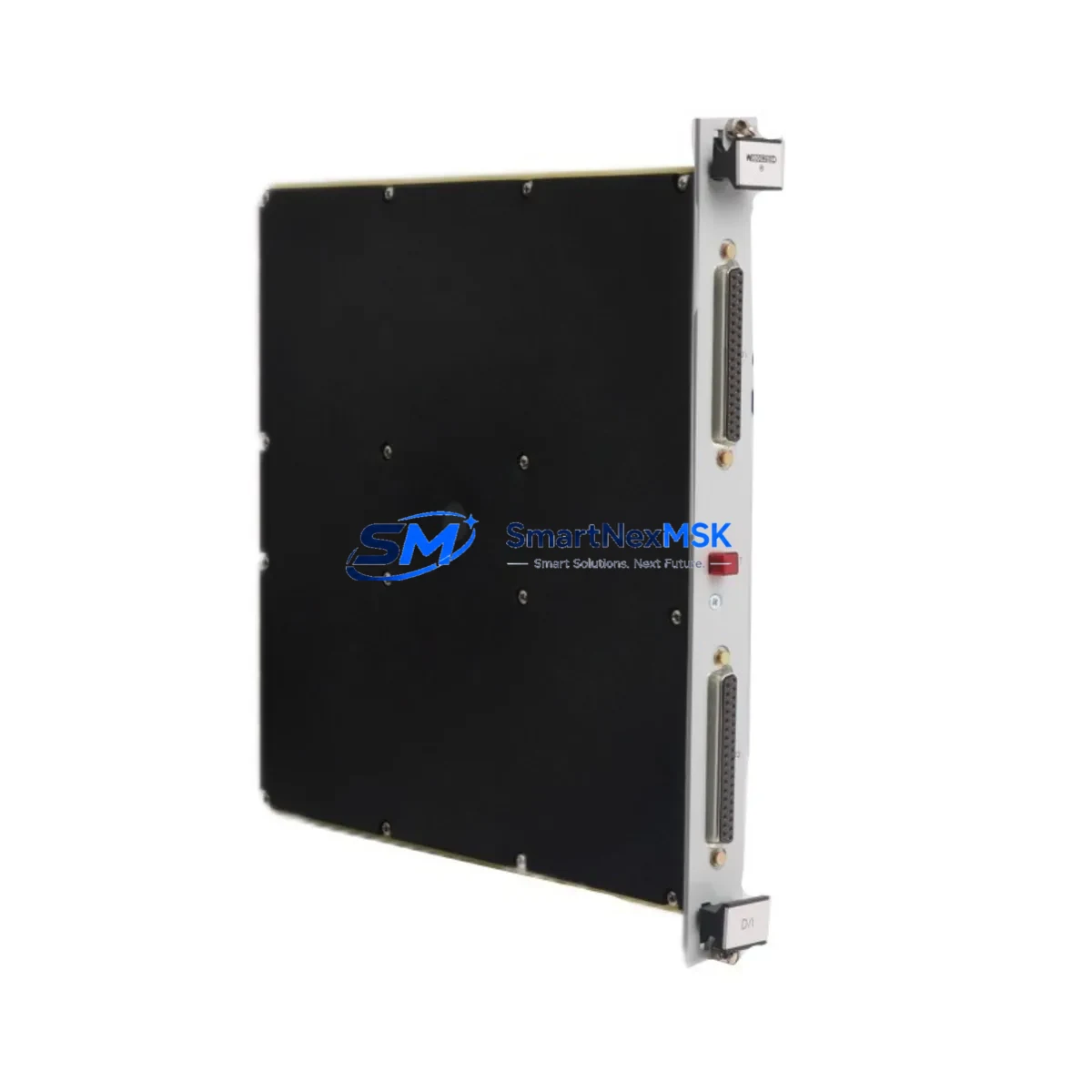

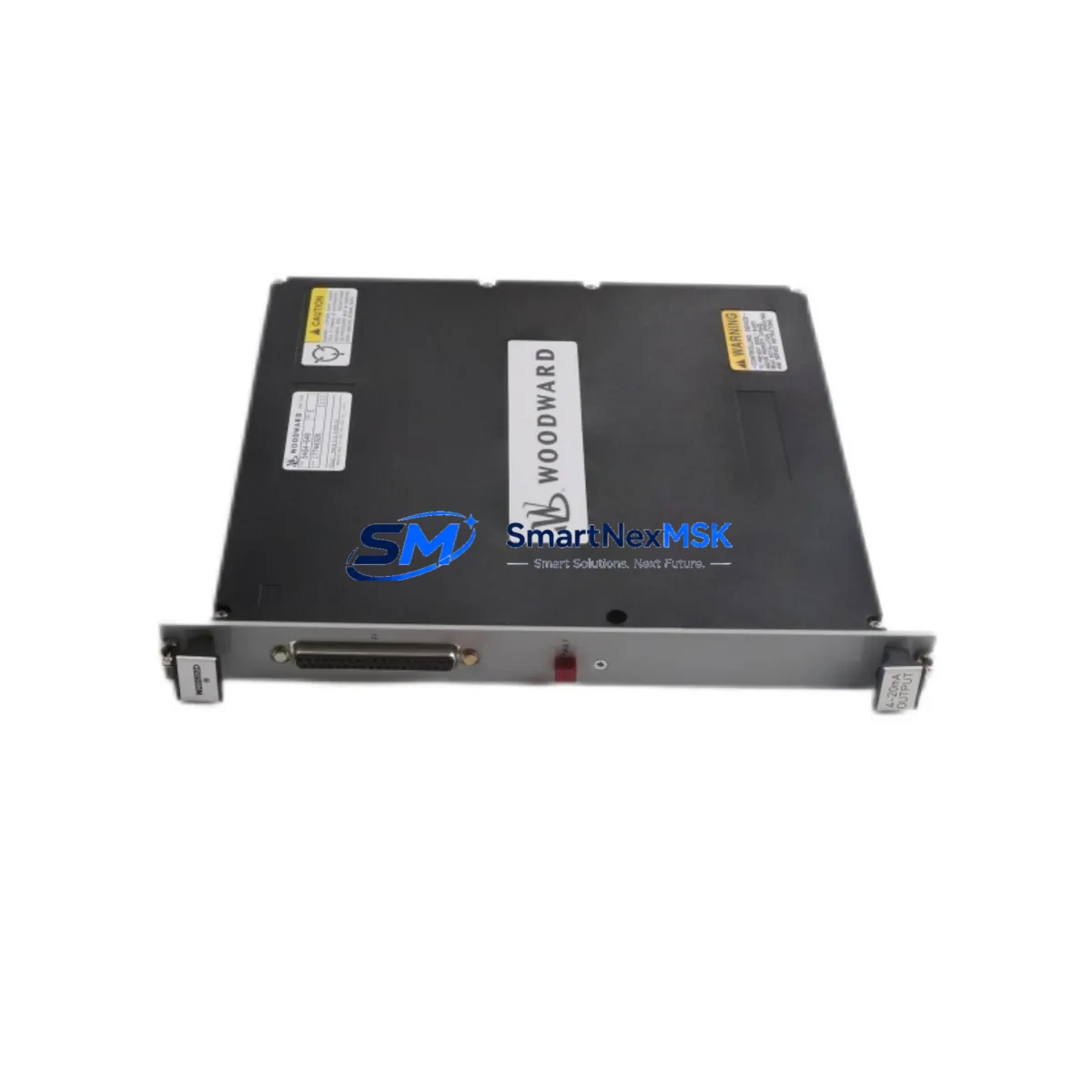

The WOODWARD 5464-653 is a 32-channel Discrete Output Module engineered for the MicroNet distributed control platform — one of the most widely deployed turbine and generator control architectures in power generation, oil & gas, and industrial process facilities. As legacy MicroNet systems approach end-of-support milestones, the 5464-653 has become a critical retrofit component for engineers tasked with extending operational life, replacing failed I/O cards, or executing phased control system upgrades without full DCS replacement.

Whether you are sourcing a direct drop-in replacement for a failed output card, consolidating spare parts inventory ahead of a planned outage, or executing a broader MicroNet modernization project, the 5464-653 delivers the wiring compatibility, backplane interface integrity, and firmware-level recognition required for seamless integration into existing control cabinets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the WOODWARD 5464-653 into an existing MicroNet control system requires a structured pre-replacement assessment. Before removing the failed module, engineers should document the current I/O mapping configuration within the MicroNet ToolKit software, capture all discrete output channel assignments, and verify the power supply capacity of the local I/O chassis. The MicroNet power supply module — typically a 5464-619 or equivalent — must be confirmed to support the additional load of a fully populated 32-channel output card, particularly in high-density control cabinets where multiple I/O modules share a common backplane rail.

Terminal block wiring should be photographed and labeled prior to removal. The 5464-653 uses a standard MicroNet I/O terminal interface, meaning field wiring connected to the original module can be transferred directly to the replacement unit without re-termination in most installations. However, engineers should inspect terminal torque values and conductor insulation condition during the swap, as aging field wiring in turbine control cabinets is a common source of intermittent faults after module replacement.

Backplane slot addressing is a critical commissioning step. The MicroNet controller — whether a MicroNet Plus CPU module or a MicroNet TMR triple-redundant controller — identifies each I/O module by its physical slot position on the I/O expansion rack or local chassis. After installing the 5464-653, the module address must be confirmed in the ToolKit configuration database. If the replacement module is installed in the same slot as the original, address recognition is typically automatic. If the slot position has changed due to rack reconfiguration, the I/O map must be updated and a full download performed to the controller.

For facilities running HMI systems connected to the MicroNet platform — including WOODWARD’s own operator interface panels or third-party SCADA systems communicating via Modbus RTU, Modbus TCP, or PROFIBUS — discrete output status tags mapped to the 5464-653 channels should be verified post-replacement. Tag names, addresses, and alarm setpoints in the HMI configuration should be cross-checked against the updated I/O map to prevent false alarms or missed trip signals during the first operational cycle after restart.

In multi-rack MicroNet installations, the 5464-653 may be installed alongside other I/O modules such as the 5464-654 Discrete Input Module, 5464-643 Analog Input Module, 5464-648 Analog Output Module, and 5464-618 RTD Input Module. Coordinating the replacement schedule across these modules — particularly when multiple cards show signs of aging simultaneously — allows maintenance teams to consolidate outage windows and reduce total downtime exposure. The MicroNet I/O expansion rack and associated backplane connectors should also be inspected for corrosion or mechanical damage during any planned module swap.

Communication link integrity between the MicroNet controller and upstream DCS or plant historian systems should be verified after any I/O module replacement. If the facility uses a 5464-680 or similar communication gateway module to bridge MicroNet data to a plant-wide network, confirm that the gateway’s tag database reflects the current I/O configuration after the 5464-653 replacement is complete.

Downtime Control During System Migration

Minimizing unplanned downtime during a MicroNet I/O module replacement requires advance preparation, spare parts pre-staging, and a clearly defined hot-swap or cold-swap procedure aligned with the site’s safety management system. For turbine and generator control applications, the 5464-653 replacement should be coordinated with the operations team to identify the shortest available maintenance window — typically during a scheduled load reduction or planned outage.

Before initiating the swap, the existing application program should be backed up from the MicroNet controller using ToolKit. This backup preserves all control logic, setpoints, tuning parameters, and I/O assignments, ensuring that the program can be restored immediately if the replacement module requires a full controller download. In most direct-replacement scenarios, the controller retains its program in non-volatile memory and the 5464-653 swap does not require a program reload — but having a verified backup eliminates risk.

Field control continuity during the swap can be maintained by placing the affected output channels in manual override or safe-state hold prior to module removal, depending on the process requirements and the MicroNet controller’s configured failsafe behavior. Discrete outputs controlling critical actuators — such as fuel valves, breaker trip coils, or cooling system contactors — should be placed in a defined safe state before the module is de-energized. After the replacement 5464-653 is installed and the backplane connection is confirmed, outputs should be restored to automatic control in a controlled sequence, with each channel verified against the expected process response before the next is released.

Post-replacement functional testing should include a full channel-by-channel output verification, confirmation of alarm and trip relay operation, and a review of the event log in the MicroNet controller to confirm that no unexpected faults were generated during the swap. Where site procedures permit, a brief supervised run at reduced load provides additional confidence before returning the unit to full automatic operation.

Retrofit Support FAQ

Q1: Is the WOODWARD 5464-653 a direct replacement for the original module without software changes?
In most cases, yes. When installed in the same backplane slot as the original 5464-653, the MicroNet controller recognizes the replacement module automatically using the existing I/O configuration. No ToolKit download is required unless the slot position has changed or the I/O map has been modified. Always verify module recognition in the ToolKit diagnostics screen before returning the system to automatic control.

Q2: What wiring checks are required before installing the replacement module?
Inspect all field wiring terminations for correct torque, insulation integrity, and correct channel assignment. The 5464-653 uses the standard MicroNet I/O terminal interface, so existing field wiring can typically be transferred directly. Photograph the terminal block layout before removal and verify each conductor against the as-built wiring diagram after reinstallation.

Q3: How is the 5464-653 tested before shipment?
Each unit supplied by SMARTNEXMSK undergoes functional verification prior to dispatch, including backplane interface continuity checks and output channel activation testing. Units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Test reports are available upon request for critical applications.

Q4: Can the 5464-653 be used in MicroNet TMR (Triple Modular Redundant) configurations?
The 5464-653 is compatible with MicroNet TMR architectures. In TMR installations, I/O modules are typically installed in voted I/O configurations where three independent channels are compared for fault detection. Replacement of a single module in a TMR rack should be performed according to the site’s TMR maintenance procedure, which typically requires the affected channel to be placed in bypass mode before removal and verified against the other two channels after reinstallation before bypass is released.
