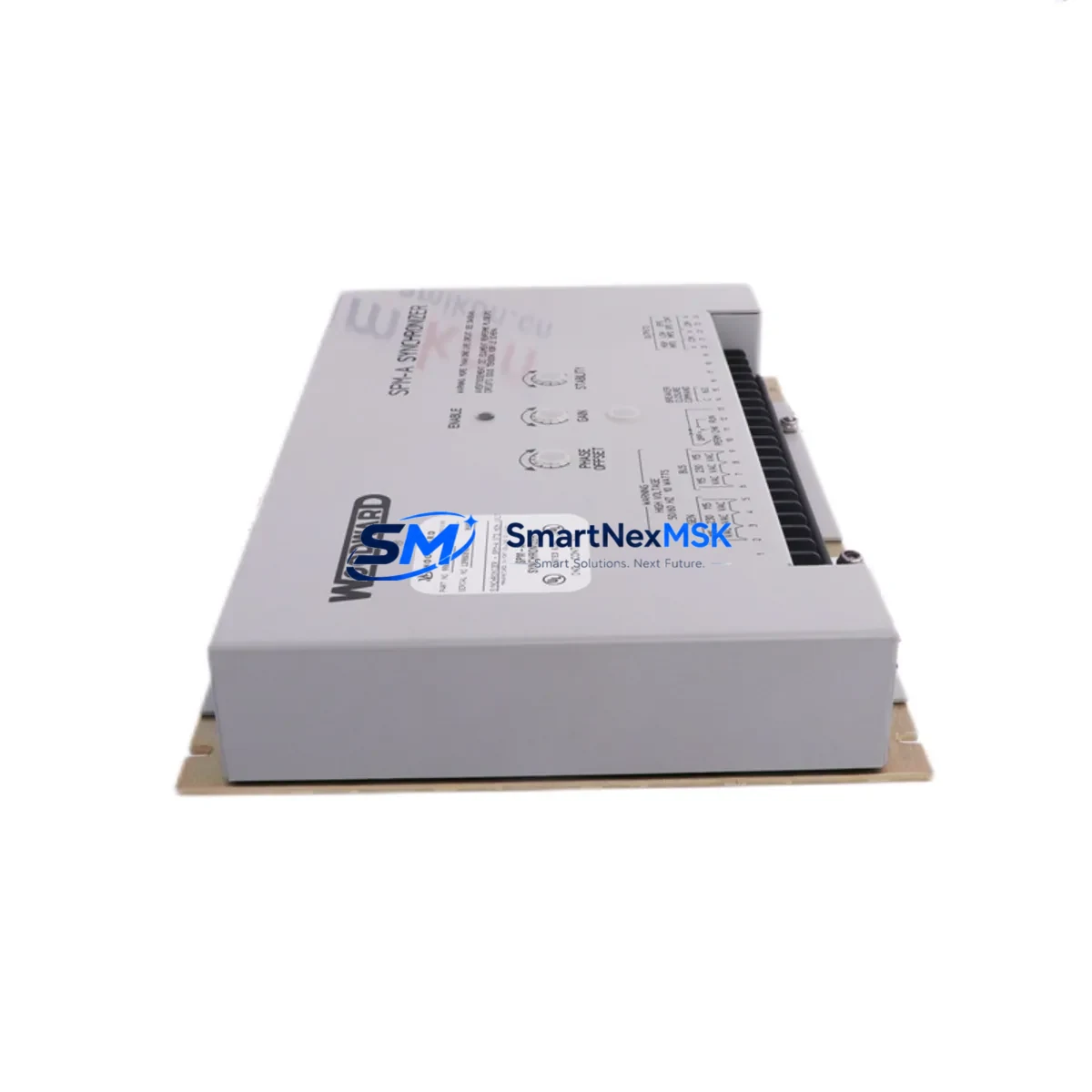

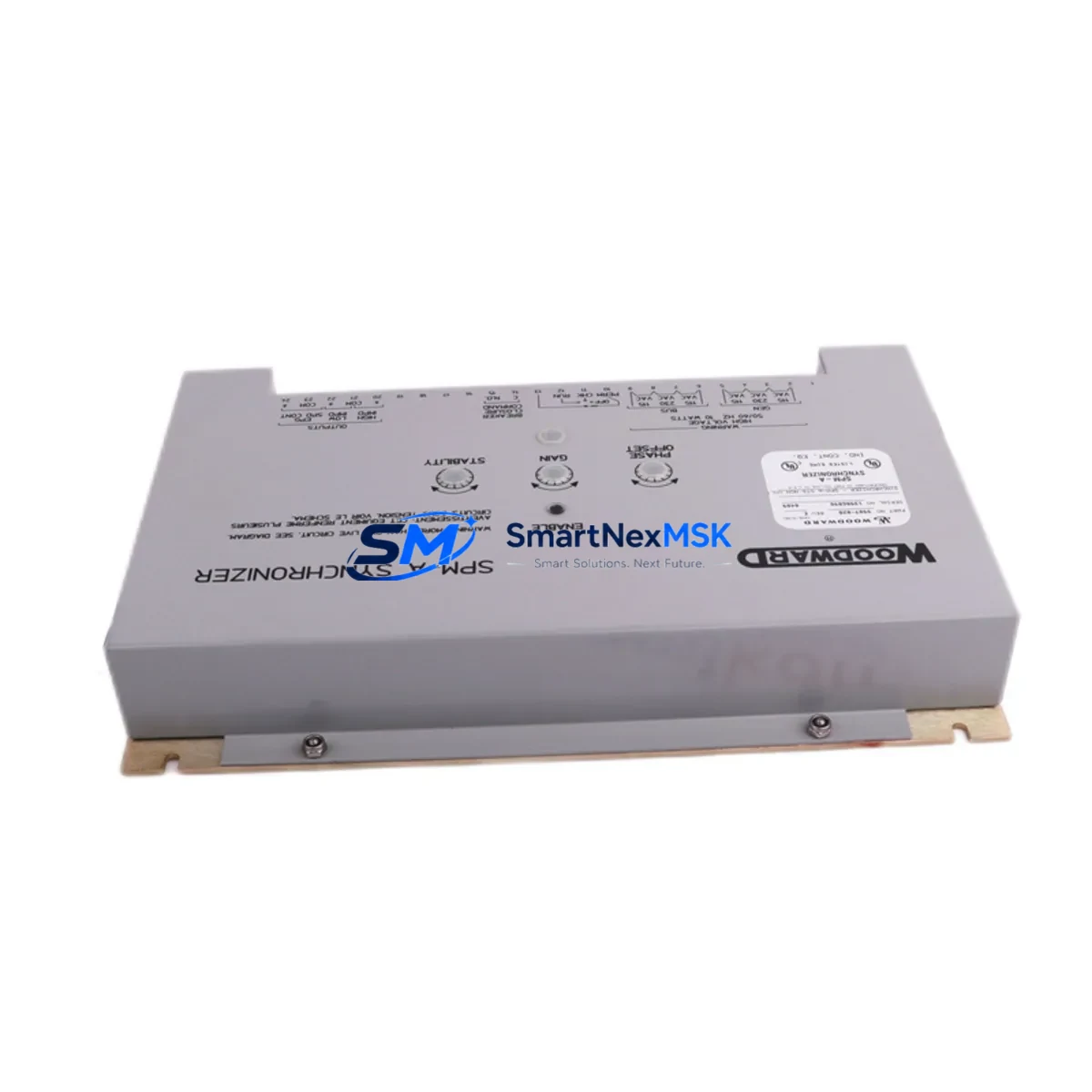

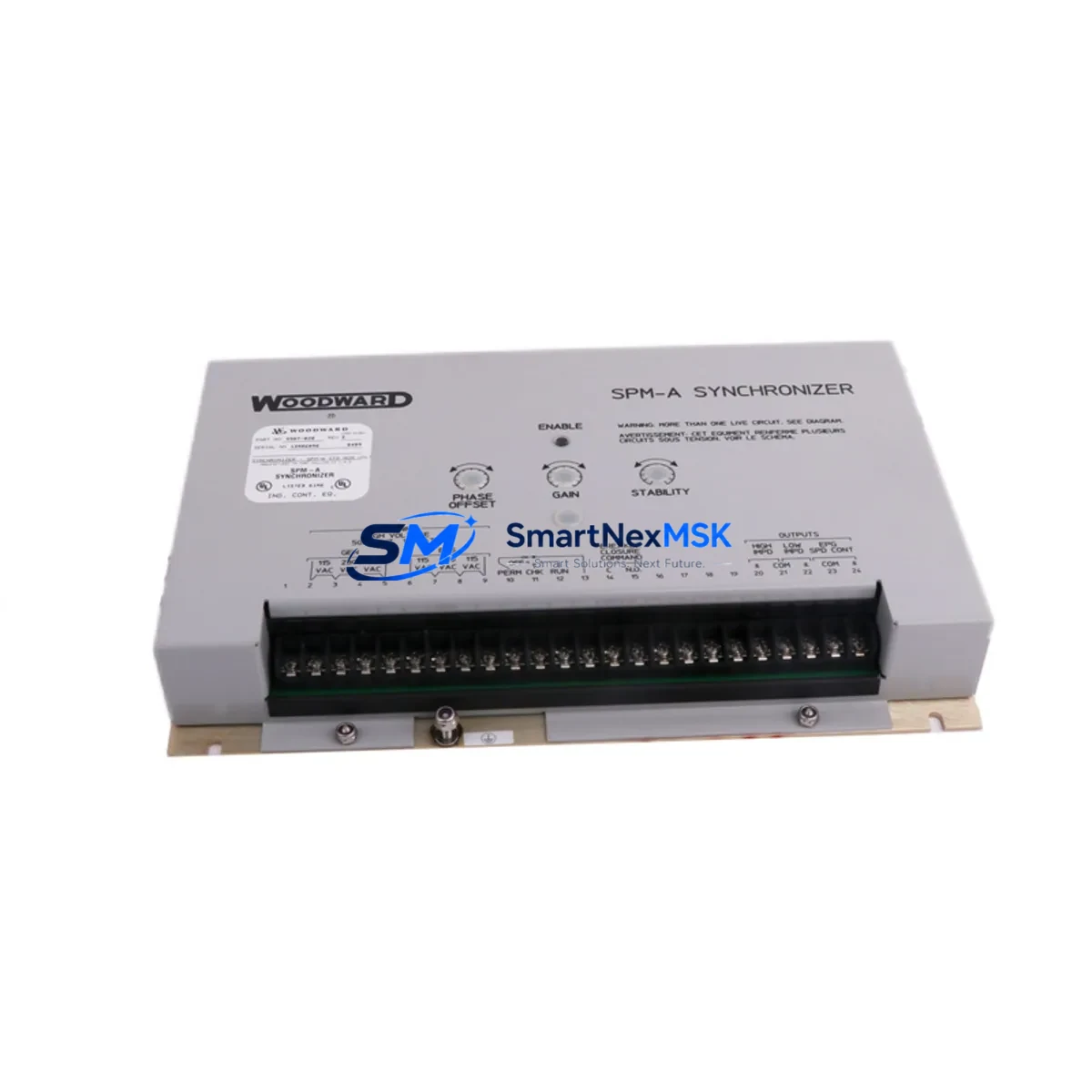

The WOODWARD 9907-028 is an original governor control module engineered for the 2301A Speed Synchronizer and Load Sharing Control series — one of the most extensively deployed turbine and engine governor platforms across industrial power generation, oil & gas processing, marine propulsion, and continuous-process automation facilities worldwide. When this module degrades or fails, the consequences extend far beyond a single control loop: unplanned turbine trips, loss of load-sharing synchronization, and cascading downtime can halt an entire plant. Sourcing a verified, original-specification replacement is the fastest and safest path to restoring stable, controlled operation.

This listing provides a maintenance-ready, pre-shipment tested spare of the WOODWARD 9907-028, held in stock for immediate dispatch. Every unit undergoes functional verification covering power supply response, actuator output signal integrity, and discrete I/O operation before it leaves our facility. Each spare is backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions. Whether you are executing a planned overhaul, responding to an emergency turbine trip, or building a critical-spare inventory for a remote or offshore site, this module ships in ESD-safe packaging with full documentation and is ready for direct installation into your 2301A control panel.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A governor control module does not operate in isolation. The WOODWARD 9907-028 sits at the center of a tightly coupled speed and load control loop, and a thorough maintenance strategy demands that every interacting component be inspected and verified at the same time. Replacing only the module while leaving degraded peripheral components in place is one of the most common causes of repeat failures and unnecessary repeat downtime.

Begin with the 2301A power supply module: measure output voltage under load and check for ripple or transient spikes. Supply instability is a leading cause of premature governor module failure and will damage a new 9907-028 within hours of commissioning if left unaddressed. Next, inspect the magnetic pickup unit (MPU) and its signal cable — verify continuity, correct air gap, and signal amplitude. A degraded or intermittent speed signal will cause the replacement module to hunt or trip from the moment it is energized.

Inspect all terminal blocks, wiring harnesses, and connector pins within the governor control cabinet. Loose or corroded terminals on the actuator output circuit are frequently overlooked during emergency replacements. The electrohydraulic or electric actuator driven by the 9907-028 should be stroked through its full range and tested for smooth, stiction-free response before the new module is closed into the loop. If the actuator shows sluggish or non-linear response, resolve it before commissioning the replacement.

For sites running parallel or load-sharing configurations, check the load sharing lines and load sharing bias circuitry for correct voltage and impedance. A faulty load sharing circuit produces instability that is easily misdiagnosed as a governor module fault — and will cause the replacement 9907-028 to be condemned unnecessarily. Review all discrete I/O wiring: start/stop permissives, remote speed reference inputs, and raise/lower signals must all be within specification before the replacement unit is energized.

Older 2301A panels should also have their panel fusing and circuit protection inspected — verify fuse ratings match the original design and that no nuisance blowing has occurred on the actuator output circuit. Where signal isolators are installed between the governor and a DCS or SCADA system, confirm that isolator output ranges are correctly calibrated to the 9907-028 input specifications. Finally, if an operator HMI or remote speed reference panel is connected, verify communication integrity and confirm that displayed speed and load values match actual governor output after the replacement is complete and the unit is returned to service.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all current parameter settings, potentiometer positions, jumper configurations, and gain/droop settings on the existing 9907-028 before removal. Photograph the wiring layout and label every terminal connection. Cross-reference against the original WOODWARD 2301A wiring diagram for your panel revision.

Step 2 — Safe isolation: Follow your site lockout/tagout (LOTO) procedure. De-energize the governor panel and confirm zero voltage at all module terminals before proceeding. Notify the control room and coordinate with operations to ensure the prime mover is in a safe, secured state.

Step 3 — Module removal: Disconnect all wiring in the documented sequence. Remove the 9907-028 from its mounting position. Inspect connector pins, sockets, and the panel backplane for corrosion, mechanical damage, or heat discoloration that may indicate a root cause beyond the module itself.

Step 4 — New module installation: Install the replacement WOODWARD 9907-028. Transfer all parameter settings, jumper positions, and potentiometer adjustments from your pre-removal documentation. Reconnect wiring in reverse order and verify each terminal against the wiring diagram before proceeding.

Step 5 — Pre-commissioning checks: Verify supply voltage level and stability, actuator wiring continuity, and MPU signal amplitude before energizing. Confirm no short circuits or open circuits on the actuator output loop. Check that all discrete I/O permissives are in the correct state for a controlled start.

Step 6 — Commissioning and tuning: Energize the panel and perform a controlled no-load speed run. Verify speed stability, actuator response linearity, and — where applicable — load sharing behavior across parallel units. Fine-tune gain, stability, and droop settings as required to match pre-failure performance. Document all final settings.

Step 7 — Return to service and inventory update: Document the replacement event in your CMMS with part number, serial number, date, and technician. Update your spare parts inventory record and initiate a reorder for a replacement 9907-028 to restore your critical-spare buffer before the next planned maintenance window.

Spare Parts Support FAQ

Q1: Is the WOODWARD 9907-028 a direct drop-in replacement for all 2301A panels?
Yes. The 9907-028 is the original module for the WOODWARD 2301A Speed Synchronizer and Load Sharing Control series and is a direct replacement for worn or failed units in existing 2301A panels. No wiring modifications are required, provided the panel wiring and actuator type conform to the standard 2301A design. Always verify jumper positions and potentiometer settings against your original configuration documentation before commissioning the replacement.

Q2: How is each unit tested and verified before shipment?
Every WOODWARD 9907-028 spare undergoes functional verification prior to dispatch. Testing confirms power supply response, actuator output signal integrity, and discrete I/O operation across the full operating range. Units are packed in ESD-safe anti-static materials. A test report is available on request. The 12-month warranty covers any failure attributable to manufacturing defects or component quality under normal operating conditions from the date of shipment.

Q3: What is the recommended spare parts strategy for 2301A governor systems?
For critical turbine or engine applications, we recommend holding a minimum of one 9907-028 module on-site as a cold spare at all times. Sites operating multiple 2301A-controlled units should consider a 1:3 or 1:5 spare ratio. Pair the governor module spare with a backup MPU sensor, a set of correctly rated panel fuses, and a spare actuator feedback potentiometer to cover the most common failure modes within a single maintenance kit — reducing mean time to repair (MTTR) to under two hours for most sites.

Q4: What is the lead time, shipping coverage, and warranty period?
In-stock units ship within 1–3 business days via express courier to destinations worldwide. The warranty period is 12 months from the date of shipment, covering manufacturing defects and operational failure under normal service conditions. Warranty claims are supported with replacement or refund subject to failure analysis confirmation. Long-term supply agreements and blanket orders for multi-site spare parts programs are available — contact our team to discuss volume pricing and dedicated stock allocation.
