Woodward 9907-135 Maintenance-Ready Spare for EG3P Automation

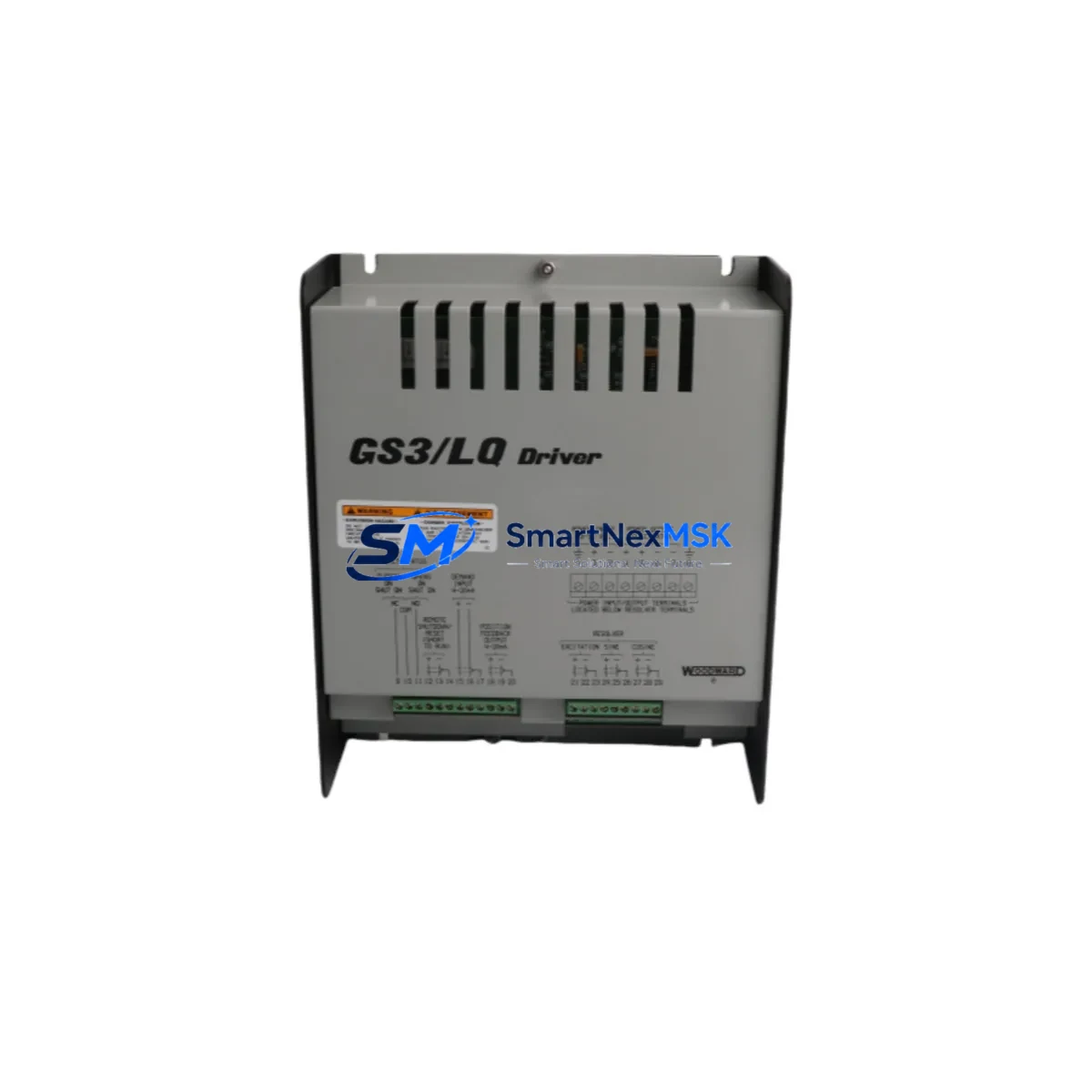

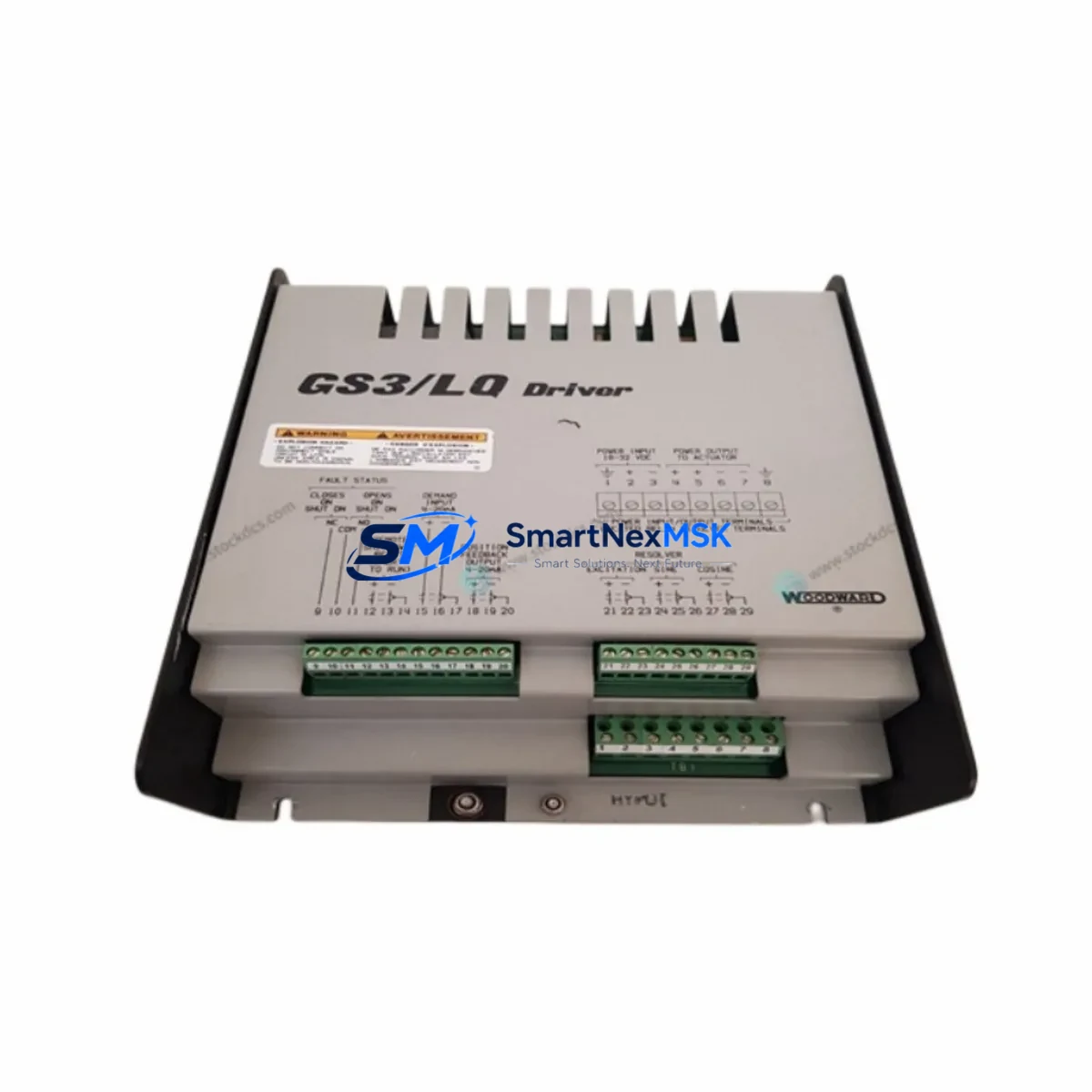

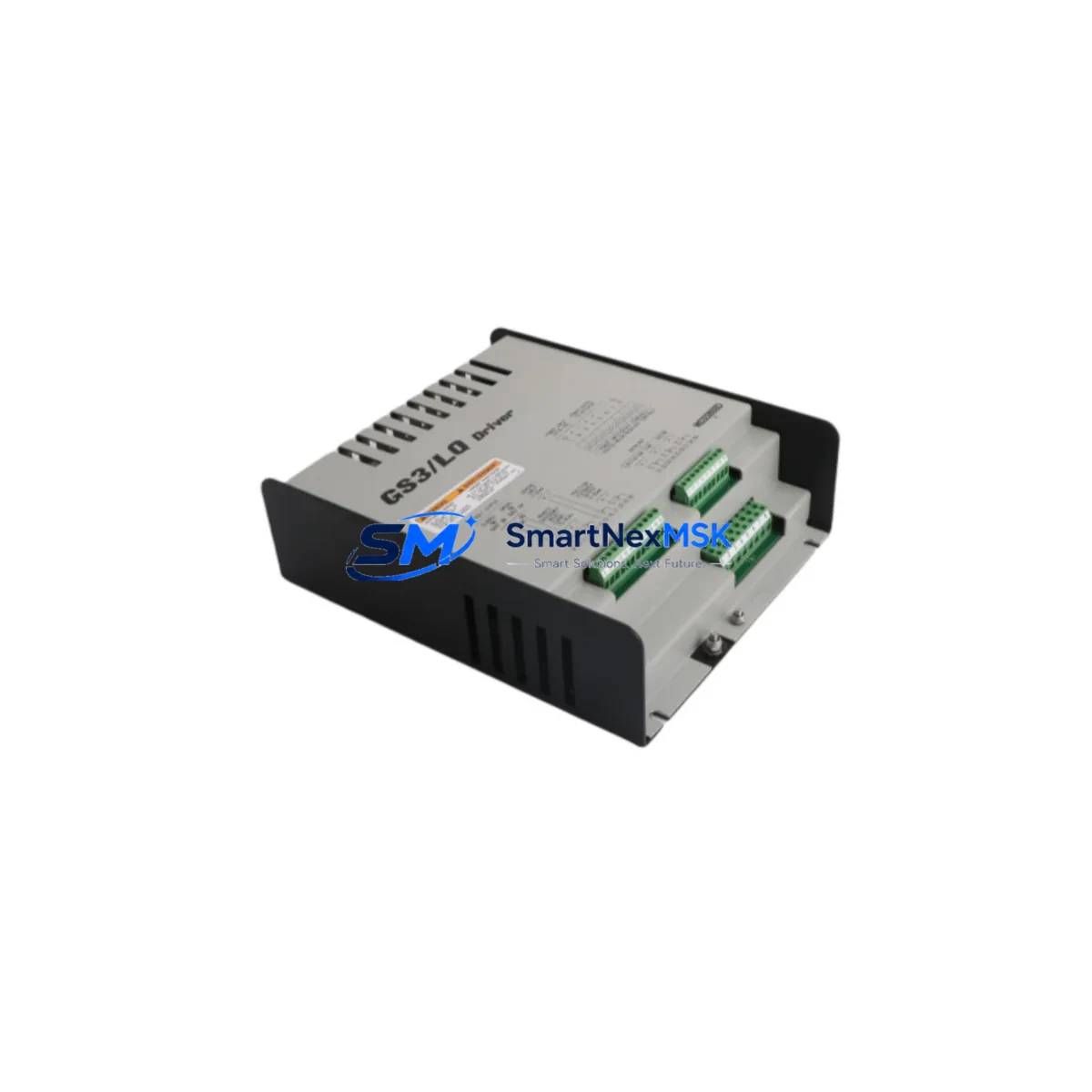

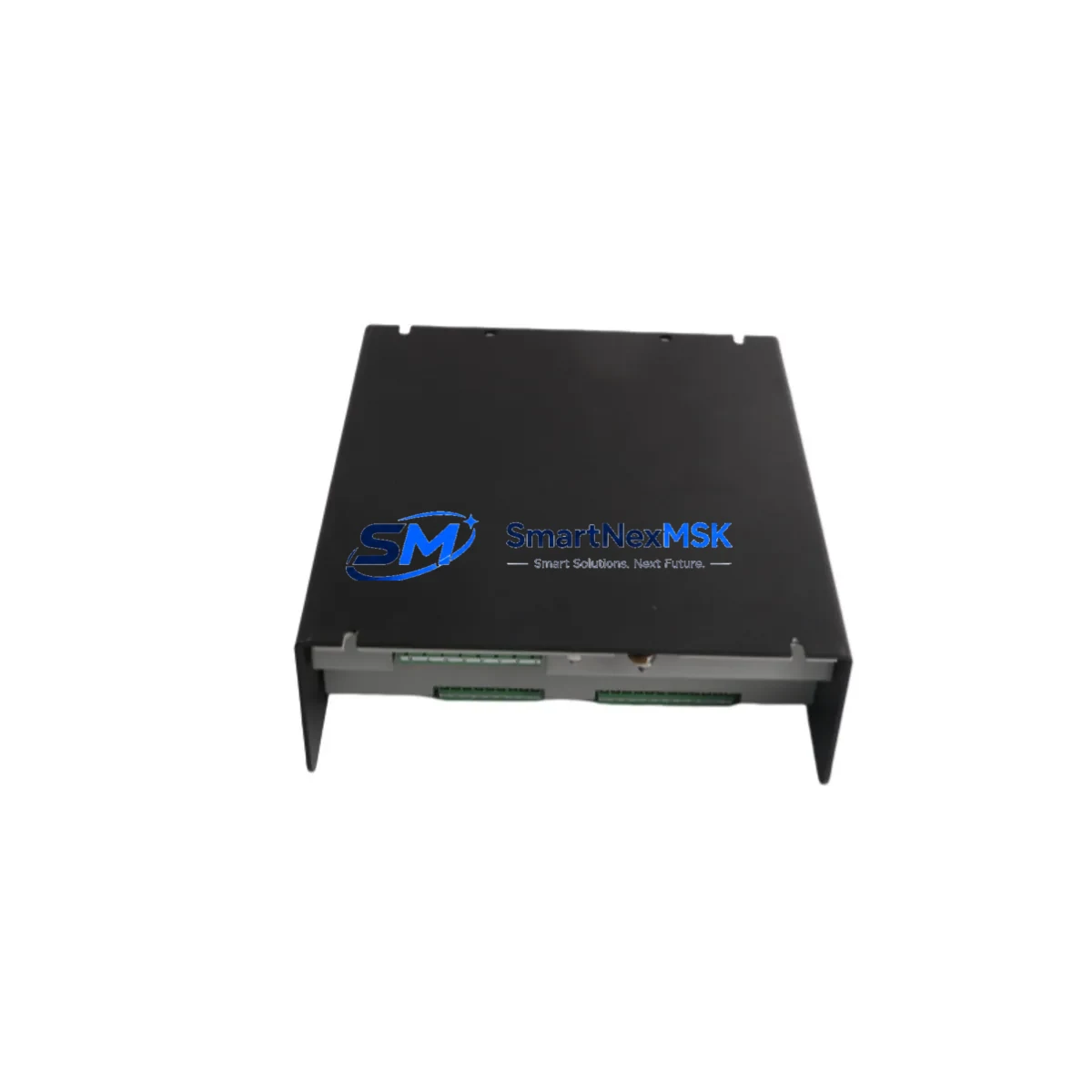

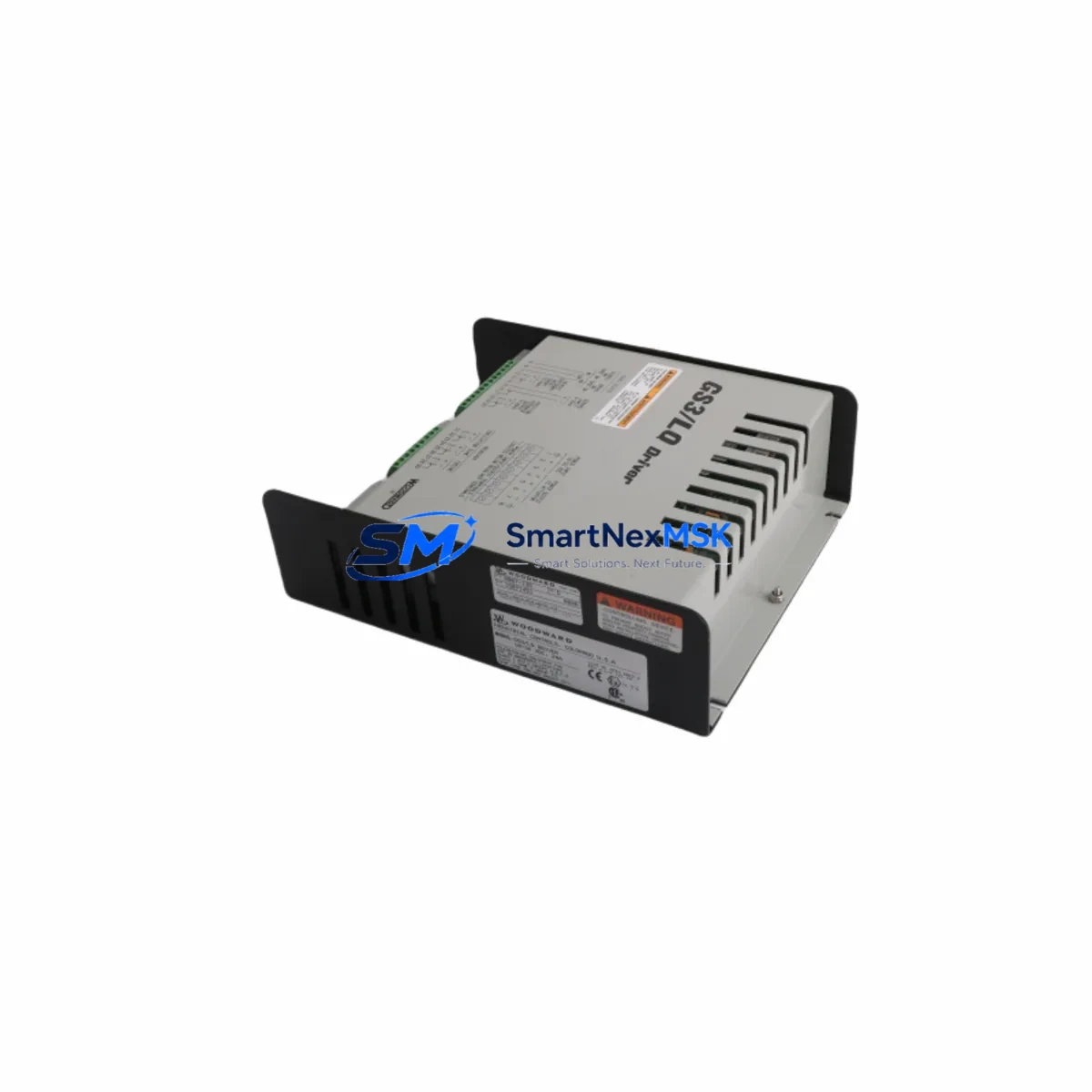

The Woodward 9907-135 is an original Governor Driver Module engineered for the EG3P actuator series in industrial turbine and engine control systems. For maintenance engineers managing gas turbines, diesel gensets, or compressor trains, this module sits at the heart of speed and load regulation — making it one of the highest-priority spare parts in any control cabinet inventory. Unplanned failure of the 9907-135 results in immediate unit shutdown, and without a verified replacement on the shelf, downtime can extend from hours into days. Stocking a tested, original Woodward 9907-135 is the single most effective step toward rapid downtime recovery and continuous operation assurance.
At SMARTNEXMSK, every 9907-135 unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a 12-month warranty. We support maintenance teams and procurement engineers across power generation, oil & gas, marine propulsion, and industrial process control with long-term spare parts availability — including legacy and discontinued Woodward models.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | 9907-135 |
| Brand | Woodward |
| Series / Application | EG3P Actuator Series — Turbine & Engine Governor Control |
| Product Type | Governor Driver Module |
| Origin | United States (OEM) |
| Input Signal | 4–20 mA / 0–200 mA actuator drive output (series-dependent) |
| Power Supply Compatibility | 24 VDC nominal (refer to EG3P system power spec) |
| Mounting / Form Factor | Panel-mount / DIN-rail compatible enclosure |
| Operating Temperature | -40°C to +70°C |
| Compatibility | Woodward EG3P, EG-3P actuator variants; drop-in replacement for legacy 9907-135 installations |
| Condition | Original spare — new or reconditioned to OEM specification |
| Pre-Shipment Testing | Functional output test, signal integrity verification |
| Warranty | 12 Months from date of shipment |
| Delivery | Express global shipping available; lead time confirmed at order |
| Maintenance Recommendation | Inspect every 12–18 months; replace immediately on output drift or actuator hunting |
Maintenance Planning for Continuous Operation
When a Woodward 9907-135 Governor Driver Module is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers know that the module rarely fails in isolation. A thorough control cabinet inspection should accompany every 9907-135 swap to prevent repeat failures and ensure the restored system operates reliably through the next maintenance interval.
Begin by verifying the 24 VDC power supply module feeding the governor control loop — voltage sag or ripple is a common root cause of driver module degradation. Check the EG3P actuator wiring harness and terminal blocks for insulation breakdown, loose crimps, or corrosion, particularly in high-vibration or high-humidity environments. The Woodward 2301A or 2301D Load Sharing and Speed Control units that typically command the 9907-135 should be inspected for firmware integrity and calibration drift; a miscalibrated speed reference will stress the replacement module immediately after installation.
Inspect the I/O signal conditioning cards in the same rack — 4–20 mA signal isolators and loop-powered transmitters feeding speed and load signals into the governor system are frequent silent failure points. If the cabinet includes a Woodward 505 or 505E Digital Governor, verify its analog output channel that drives the 9907-135 input; a faulty DAC output will damage a new module within hours. Check fuse blocks and circuit breakers on the 24 VDC bus — a blown fuse that caused the original failure must be replaced and root-cause investigated before energizing the new module.
For systems using Modbus RTU or CAN-based communication between the governor controller and the plant DCS, verify communication module integrity and cable shielding continuity. Electromagnetic interference from adjacent VFDs or motor starters is a known cause of governor instability. Surge protection devices on the actuator output lines should be tested and replaced if their indicator shows activation. Finally, review the HMI alarm history — repeated actuator fault alarms in the weeks preceding failure often indicate a developing power quality or wiring issue that must be resolved before the replacement 9907-135 is commissioned.
Maintaining a minimum stock of one 9907-135 per critical unit, alongside a spare EG3P actuator position feedback sensor and a set of terminal block connectors for the governor I/O panel, is the baseline spare parts strategy recommended for sites with no-break availability requirements.
Site Replacement Workflow
Step 1 — Isolation & Documentation: Initiate a controlled shutdown per site procedure. Photograph the existing 9907-135 wiring, DIP switch settings, and potentiometer positions before removal. Label all connectors.
Step 2 — Compatibility Verification: Confirm the replacement 9907-135 matches the original part number suffix and hardware revision. Cross-reference the Woodward service bulletin for the EG3P series to identify any field modification requirements for older installations.
Step 3 — Physical Installation: Mount the replacement module, reconnect all wiring per the documented configuration, and verify terminal torque to specification. Inspect the actuator cable for continuity before energizing.
Step 4 — Power-Up & Calibration: Apply 24 VDC supply and verify the module’s LED status indicators. Perform actuator stroke calibration per Woodward manual 82510 or the applicable EG3P commissioning procedure. Confirm minimum and maximum actuator positions match pre-failure baseline.
Step 5 — Functional Test & Handover: Run the unit at no-load, verify speed stability and governor response, then transfer to normal load. Log the replacement in the maintenance management system with the new module’s serial number and warranty start date.
This workflow minimizes restart time to under four hours for a prepared maintenance team and eliminates the most common re-failure modes associated with rushed emergency replacements.
Spare Parts Support FAQ
Q1: How do I confirm the 9907-135 is compatible with my specific EG3P actuator variant?
The 9907-135 is the standard driver module for the Woodward EG3P actuator family. Provide your actuator nameplate data and existing module part number suffix to our technical team at sales@smartnexmsk.com — we will confirm compatibility before shipment at no charge.
Q2: What testing is performed before the 9907-135 ships?
Every unit undergoes functional output verification, signal integrity testing, and visual inspection for component condition. A test report is available upon request. Units that do not meet OEM performance parameters are not shipped.
Q3: What does the 12-month warranty cover?
The warranty covers functional failure under normal operating conditions from the date of shipment. It includes free replacement or full refund. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the specified operating environment.
Q4: Can you support long-term or repeat procurement of the 9907-135 for multi-site maintenance programs?
Yes. SMARTNEXMSK maintains ongoing sourcing relationships for Woodward spare parts including legacy and discontinued models. We support blanket order agreements, consignment stock programs, and priority allocation for critical infrastructure operators. Contact us to discuss a tailored supply arrangement.
