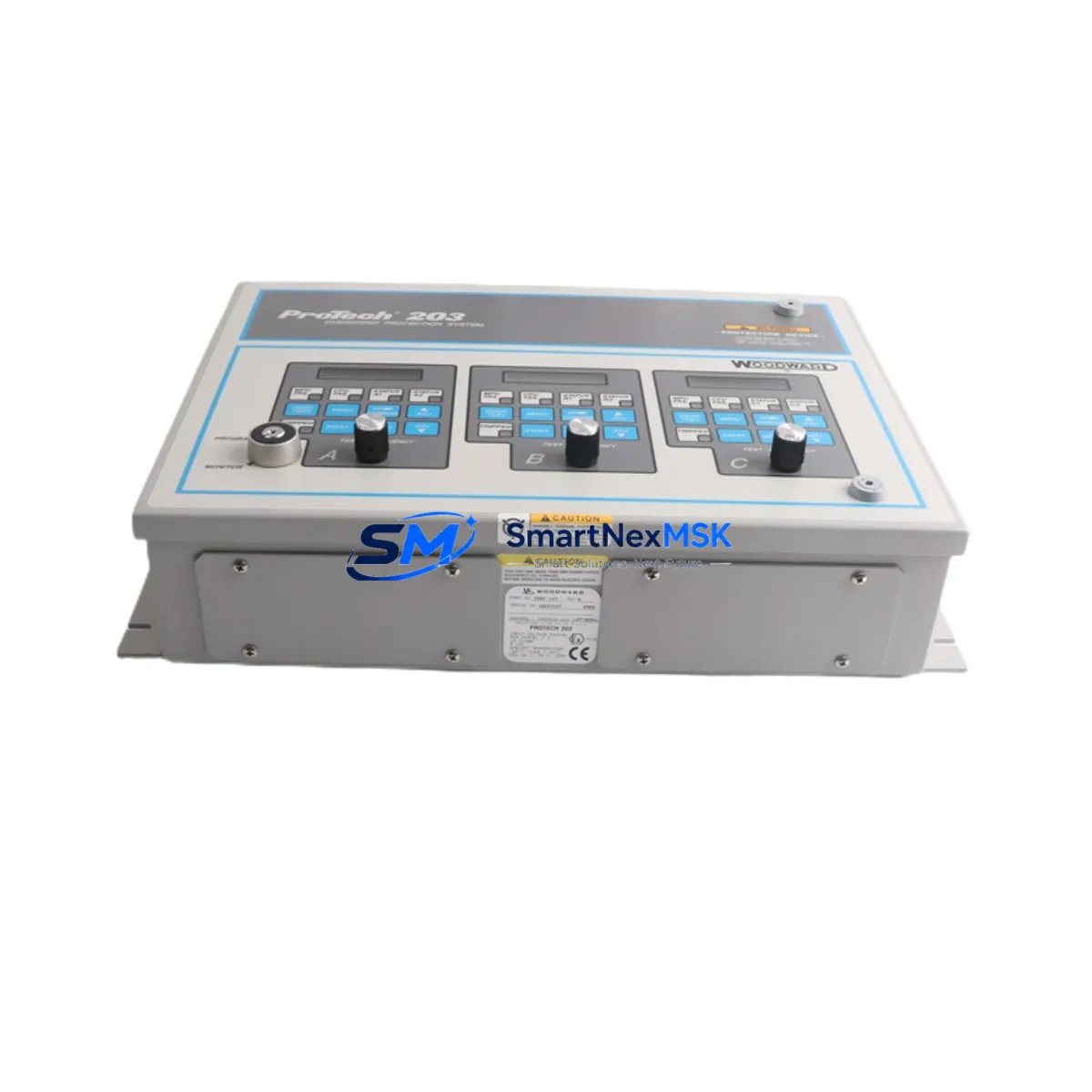

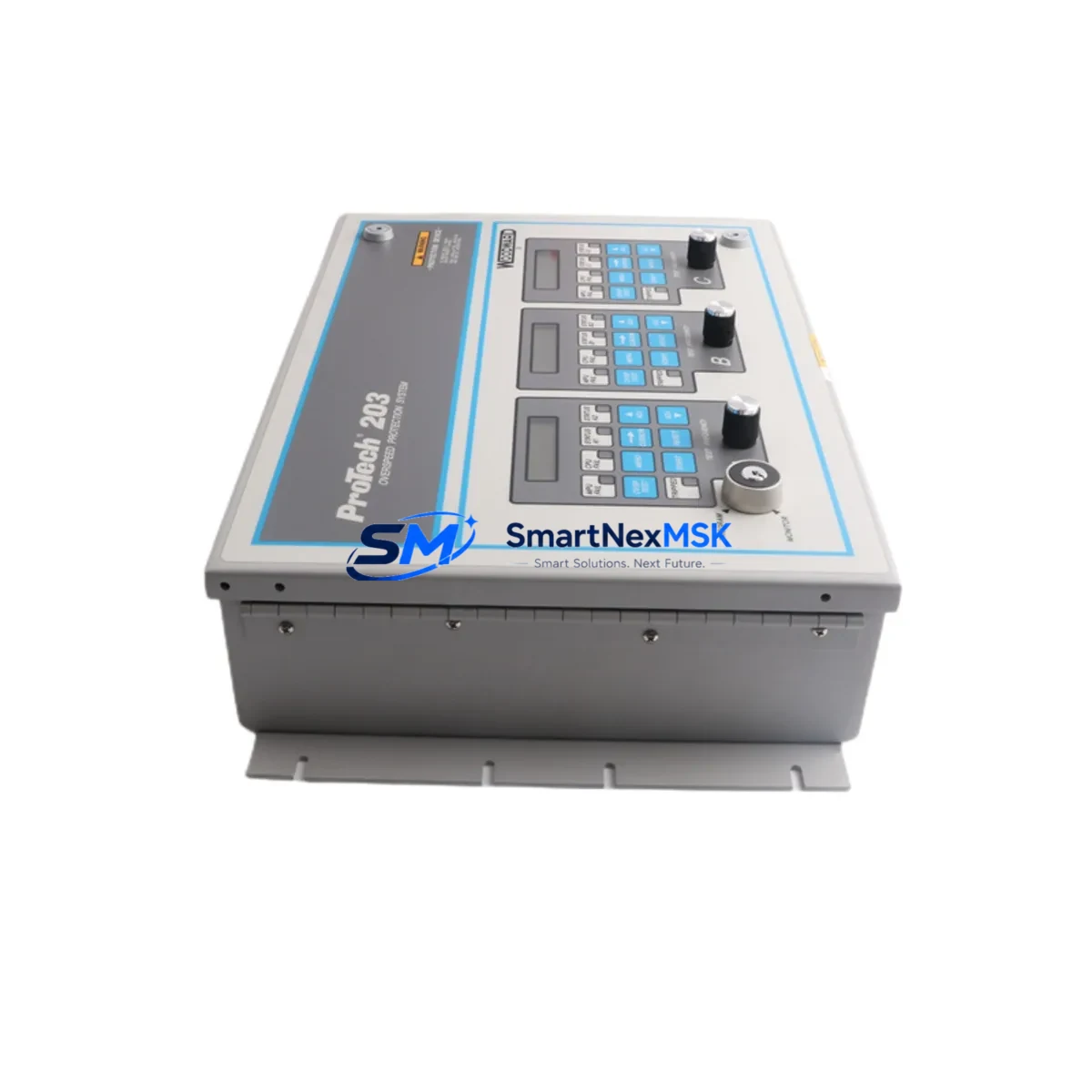

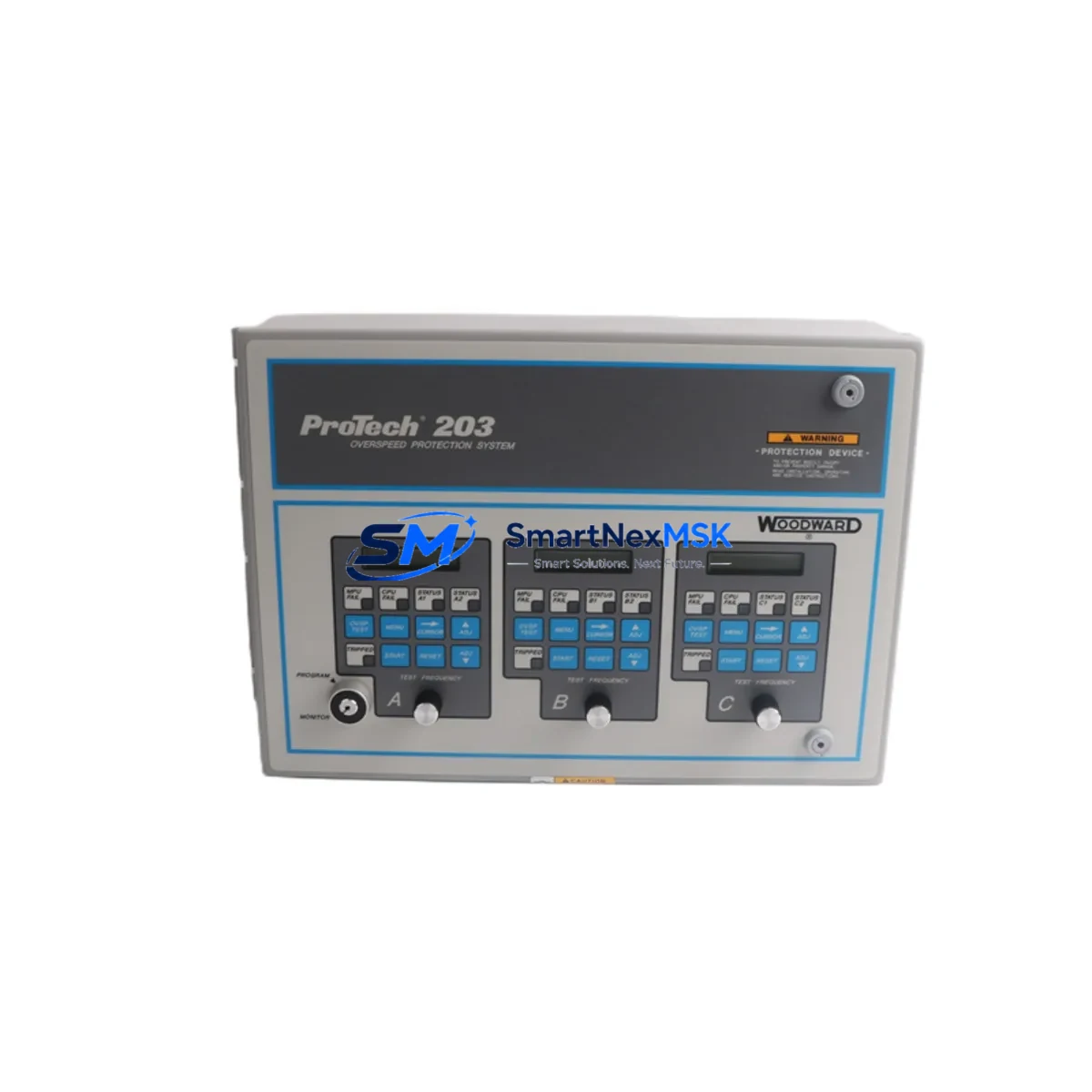

The Woodward 9907-147 is an original overspeed protection controller from the PROTECH 203 series, engineered for continuous-duty turbine and power generation control systems. For maintenance engineers managing aging turbine control cabinets, unplanned overspeed trips represent one of the highest-risk failure modes in rotating machinery. Stocking a verified, tested replacement unit of the 9907-147 is a fundamental element of any responsible spare parts strategy for facilities operating Woodward PROTECH 203 or compatible overspeed protection architectures.

This unit ships fully tested and inspected, backed by a 12-month warranty from date of delivery. Each unit undergoes functional verification prior to dispatch to ensure drop-in readiness for emergency replacement scenarios. Whether you are executing a planned outage, responding to an unscheduled trip, or building out your critical spare inventory, the 9907-147 provides the confidence of an original-specification component with documented compatibility across the PROTECH 203 platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 9907-147 PROTECH 203 controller is flagged for replacement during a scheduled outage or following an unplanned trip event, experienced maintenance engineers know that the controller itself is rarely the only component requiring attention. A thorough inspection of the surrounding control cabinet and associated electrical circuits is essential to prevent repeat failures and ensure the replacement unit operates within its rated parameters from the moment it is energized.

Begin with the 24 VDC power supply module feeding the PROTECH 203 rack. Verify output voltage stability under load and check for ripple that could cause nuisance trips or erratic speed signal processing. If the power supply is original to the installation and has accumulated significant operating hours, treat it as a co-replacement candidate alongside the 9907-147. Next, inspect the magnetic pickup units (MPUs) connected to the speed sensing inputs — worn or misaligned MPUs are a leading cause of false overspeed trips and will compromise the performance of any replacement controller.

Check all terminal blocks and wiring harnesses in the trip circuit. Loose or corroded terminals on the relay output wiring can cause intermittent trip actuation or failure to trip, both of which are unacceptable in overspeed protection applications. Inspect the emergency shutdown relay and its associated wiring for contact wear, coil resistance, and response time. If the installation includes a signal isolator or signal conditioner between the MPU and the controller input, verify its output range and calibration — a drifted isolator will present incorrect speed data to the new 9907-147.

For systems integrated with a broader Woodward turbine control platform, also review the communication interface module or serial link connecting the PROTECH 203 to the supervisory PLC or DCS. Confirm that communication parameters (baud rate, protocol, address) are correctly configured after the controller swap. Where an HMI panel or operator interface is used to display speed and trip status, verify that the display updates correctly following the replacement and that alarm setpoints are retained or re-entered per the site-specific configuration record.

Finally, inspect the fuse holders and circuit protection on the power input and relay output circuits. Blown or degraded fuses are frequently overlooked during emergency replacements and can cause the new controller to appear faulty on first energization. A complete cabinet inspection checklist — covering the power supply, MPUs, terminal blocks, trip relays, signal isolators, communication modules, HMI, and fusing — should accompany every 9907-147 replacement to maximize uptime and protect the investment in the new spare.

Site Replacement Workflow

Replacing the Woodward 9907-147 in a live turbine control cabinet requires a structured approach to minimize downtime and avoid introducing new faults during the changeover. Before beginning, obtain the site-specific configuration record for the PROTECH 203 installation, including trip setpoints, time delays, and any custom relay output assignments. If no configuration record exists, record all settings from the outgoing unit before de-energizing the panel.

Isolate the panel from its 24 VDC supply and lock out / tag out per site safety procedures. Photograph all wiring connections before disconnection — this is especially important for the MPU input terminals and the trip relay output wiring, where incorrect reconnection can result in either a failed trip or an unintended shutdown. Remove the 9907-147 from its mounting position, noting any mechanical alignment features specific to the PROTECH 203 enclosure.

Install the replacement 9907-147, reconnect all wiring per the original configuration, and restore power. Perform a bench-level functional check using a speed signal simulator if available, verifying that the controller responds correctly at the programmed trip setpoint before returning the turbine to service. Document the replacement in the site maintenance log, including the serial number of the outgoing and incoming units, the date, and the name of the technician performing the work.

This workflow is applicable whether the 9907-147 is replacing a failed unit on an emergency basis or is being installed as part of a planned life-extension program for an aging PROTECH 203 system. The structured approach reduces the risk of commissioning errors, protects the 12-month warranty on the replacement unit, and ensures that the turbine returns to service with a fully verified overspeed protection system.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Woodward 9907-147 supplied by SMARTNEXMSK?
All 9907-147 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of delivery. Each unit is functionally tested and documented before shipment. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. We will arrange for evaluation and replacement or repair at no additional cost within the warranty period.

Q2: How do I confirm compatibility between the 9907-147 and my existing PROTECH 203 installation?
Compatibility is confirmed by matching the full part number (9907-147) against your existing unit’s nameplate and the site configuration record. If your installation uses a variant or revision suffix, share the full nameplate data with our technical team at sales@smartnexmsk.com before ordering. We can cross-reference against known PROTECH 203 hardware revisions and advise on any configuration differences that may require attention during installation.

Q3: Can the 9907-147 be used as a long-term inventory spare for legacy PROTECH 203 systems?
Yes. The 9907-147 is well-suited for long-term spare inventory in facilities operating legacy PROTECH 203 overspeed protection systems, particularly where the original equipment is no longer in active production. SMARTNEXMSK maintains ongoing sourcing for this part to support customers with multi-year maintenance contracts and life-extension programs. Units are stored in controlled conditions and re-tested prior to shipment regardless of storage duration.

Q4: What pre-shipment checks are performed on each 9907-147 unit?
Each unit undergoes a full functional test covering power-up self-diagnostics, speed input signal processing, trip relay output actuation, and communication interface verification where applicable. Test results are documented and available upon request. Units that do not pass all functional checks are not shipped. This process ensures that every 9907-147 delivered by SMARTNEXMSK is ready for immediate installation without requiring additional bench testing on the customer’s side.
