WOODWARD 9907-205 Maintenance-Ready Spare for Governor Automation

WOODWARD 9907-205 Maintenance-Ready Spare for Governor Automation

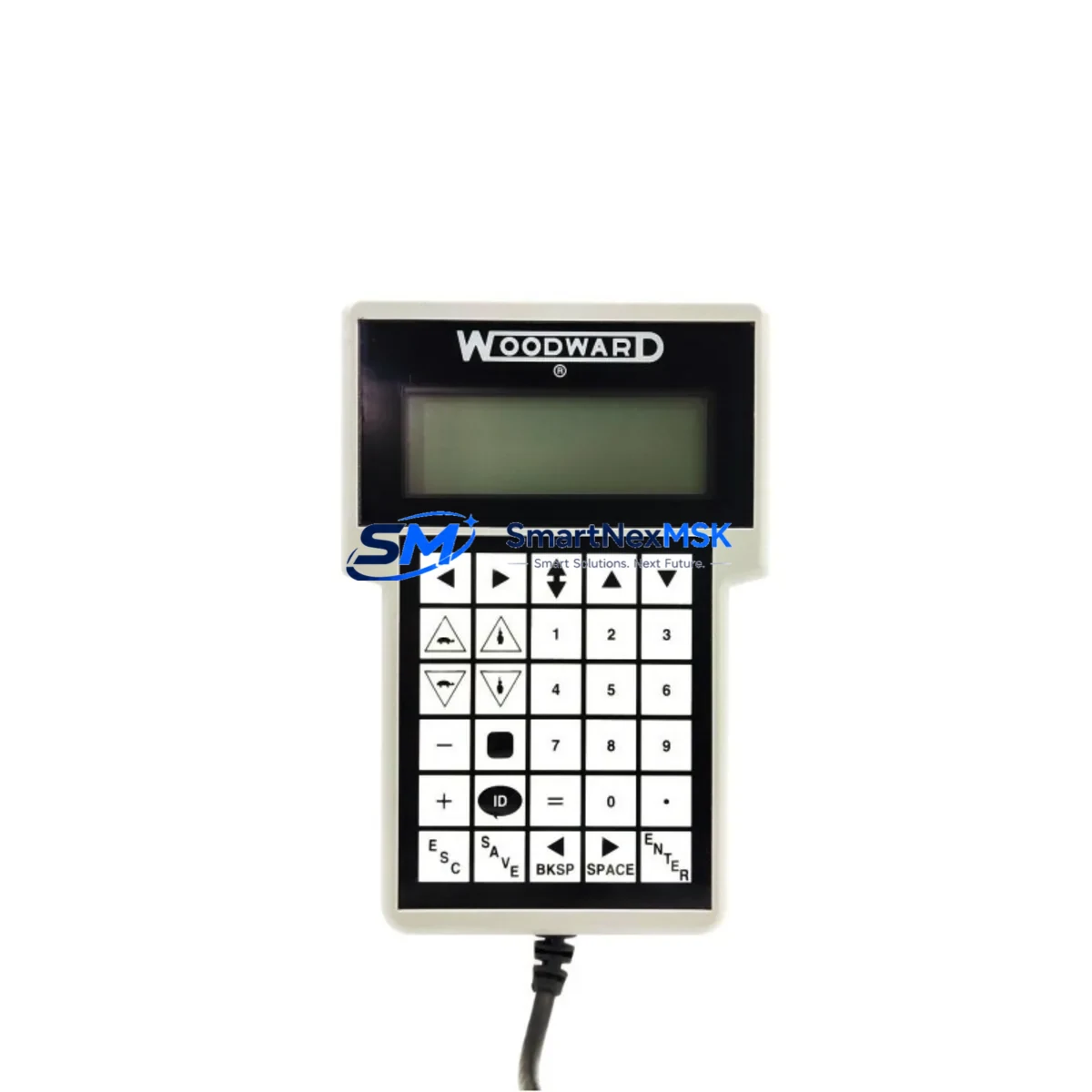

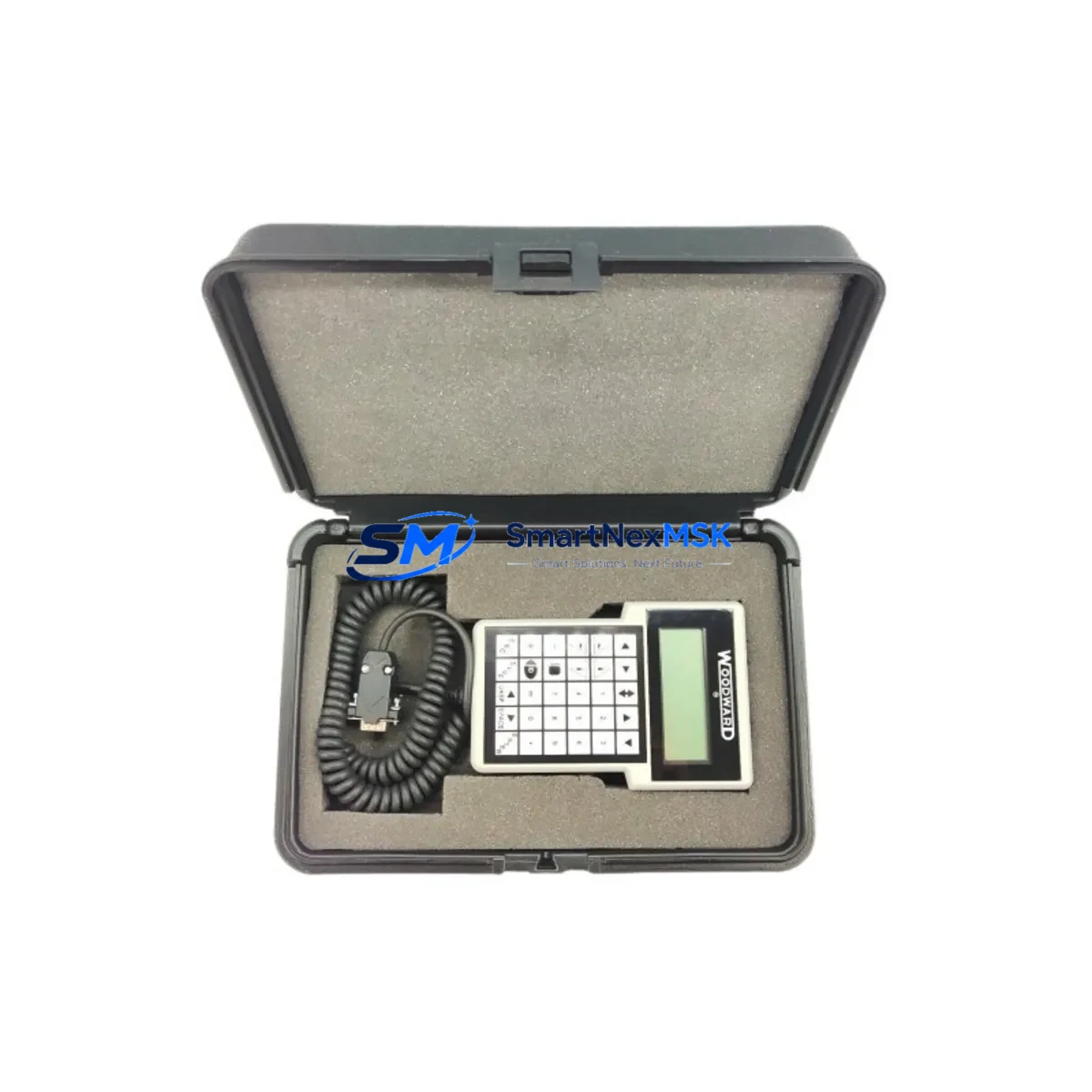

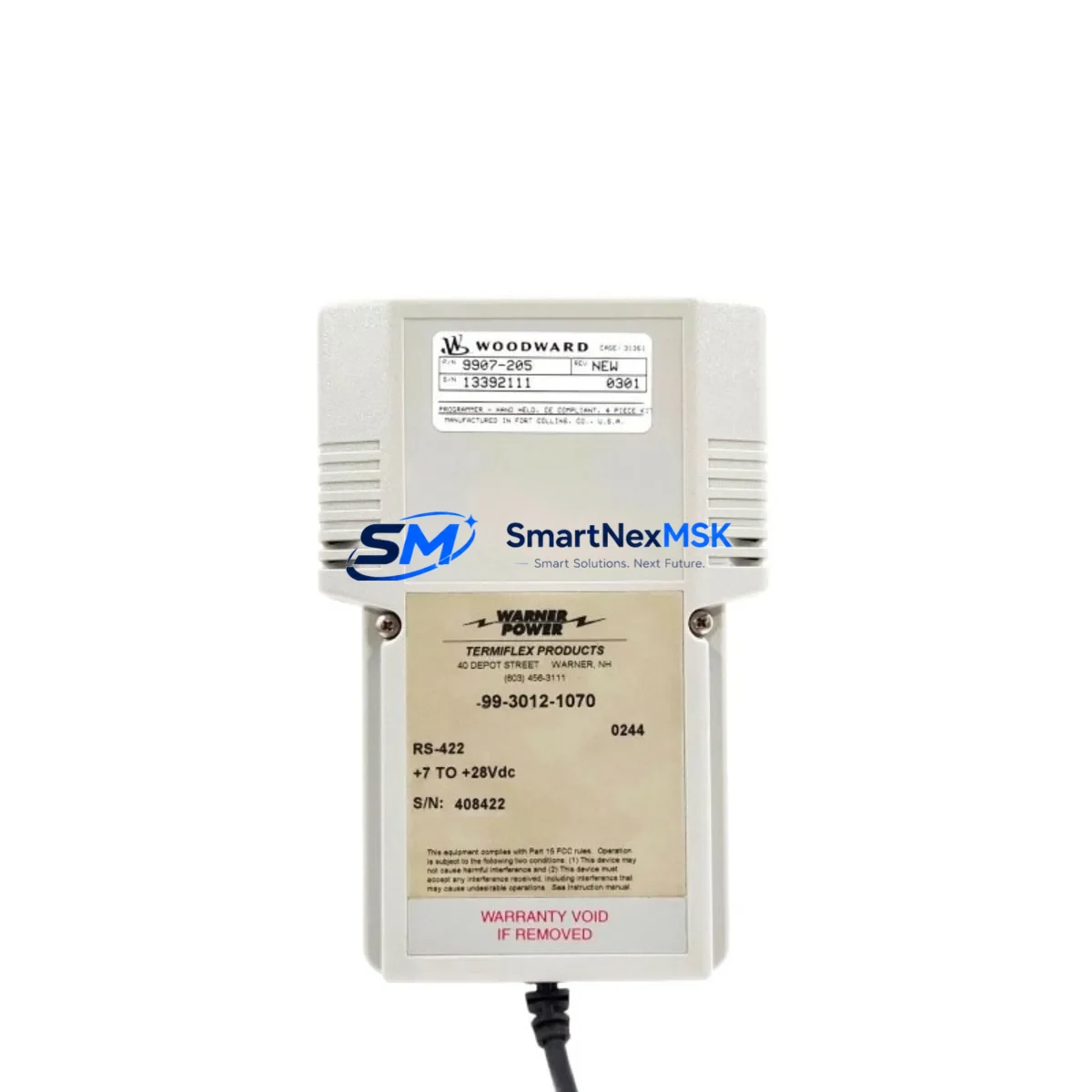

The WOODWARD 9907-205 Hand Held Programmer is a critical field-service tool for maintenance engineers managing turbine governor and engine control systems. When a governor control unit requires reconfiguration, parameter adjustment, or fault diagnostics on-site, the 9907-205 is the designated interface device for the WOODWARD Governor Control Series. Downtime in governor-controlled turbine or compressor applications carries significant operational and safety risk. Holding a verified, tested spare 9907-205 in your maintenance inventory is a proven strategy for rapid fault recovery and planned inspection cycles.

For maintenance and procurement engineers responsible for rotating equipment, the 9907-205 is not a peripheral accessory — it is a primary diagnostic and commissioning tool. Loss of this device during a scheduled outage or emergency shutdown event can extend downtime by hours or days if a replacement is not immediately available. SMARTNEXMSK supplies the WOODWARD 9907-205 as an original spare, fully tested prior to shipment, with a 12-month warranty covering functional integrity under normal industrial operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the 9907-205 Hand Held Programmer is deployed during a planned inspection or emergency fault-isolation event, maintenance engineers should treat the exercise as an opportunity to audit the broader governor control loop. The programmer interfaces directly with the governor controller — typically a WOODWARD EG-3P, EG-10P, or 505 Digital Governor — and any parameter changes made during a maintenance window should be cross-referenced against the current control loop configuration.

During the same maintenance window, engineers should inspect the governor actuator wiring harness and terminal block connections for corrosion or loose terminations, as signal integrity between the programmer and the controller depends on clean, low-resistance connections. The 24 VDC or 12 VDC power supply feeding the governor controller should be load-tested; a degraded power supply can cause erratic programmer communication and false fault codes. If the installation includes a WOODWARD 2301A or 2301D Load Sharing and Speed Control module, its setpoint parameters should be verified in parallel, as governor and load-sharing settings are interdependent.

For systems using a WOODWARD 723 Digital Speed Control or 723PLUS controller, the 9907-205 programmer is also compatible for parameter access, making it a versatile tool across multiple controller generations in the same facility. Maintenance teams should also check the serial communication cable connecting the programmer to the controller — cable degradation is a common cause of intermittent communication failures that are misdiagnosed as controller faults.

In control cabinets housing governor systems, the inspection checklist should extend to the input/output terminal strips, fuse holders protecting the governor power circuit, and any signal isolators conditioning the speed pickup or actuator feedback signals. A failed signal isolator between the magnetic pickup and the governor controller can produce speed signal errors that appear as governor faults, requiring the programmer to read and clear fault logs. Relay output modules used for governor trip and alarm functions should also be tested for contact integrity during the same outage window.

For facilities operating older WOODWARD governor systems approaching end-of-support, the 9907-205 programmer is an essential tool for system life extension. It allows engineers to document current parameter sets, back up configurations before hardware replacement, and verify restored settings after a controller swap — all without requiring a laptop or proprietary software interface in the field.

Site Replacement Workflow

Step 1 — Verify Compatibility: Confirm the target governor controller model (EG series, UG series, 505, 723, 2301 series) is supported by the 9907-205. SMARTNEXMSK technical support can assist with compatibility confirmation prior to order.

Step 2 — Document Existing Parameters: Before replacing a failed programmer or performing a controller swap, use the 9907-205 to read and record all current setpoints, gain settings, droop values, and fault history from the existing controller. This step is critical for restoring system behavior after maintenance.

Step 3 — Physical Inspection: Inspect the communication port on both the programmer and the controller for pin damage or contamination. Clean contacts with appropriate electrical contact cleaner before connecting.

Step 4 — Connect and Communicate: Connect the 9907-205 to the governor controller using the correct serial cable. Verify communication is established before making any parameter changes. If communication fails, check cable integrity, power supply voltage, and controller status LEDs.

Step 5 — Parameter Restore and Verify: Upload or re-enter the documented parameter set. Verify all critical setpoints — rated speed, droop percentage, actuator gain, and protection thresholds — before returning the system to service.

Step 6 — Functional Test: Perform a no-load speed run or controlled load test to confirm governor response matches pre-maintenance behavior. Log the test results for maintenance records.

This workflow minimizes downtime, eliminates configuration errors during emergency replacements, and ensures system compatibility is maintained across controller generations. The 9907-205 supports legacy system continuity without requiring costly controller upgrades.

Spare Parts Support FAQ

Q1: Is the WOODWARD 9907-205 supplied as an original spare or a compatible replacement?
The 9907-205 supplied by SMARTNEXMSK is an original WOODWARD spare part. Each unit is sourced through verified industrial supply channels and undergoes pre-shipment functional testing — including communication verification and parameter read/write testing — before dispatch. A 12-month warranty is included with every unit.

Q2: How should the 9907-205 be managed in a spare parts inventory strategy?
The 9907-205 is classified as a critical maintenance spare for any facility operating WOODWARD governor-controlled turbines, compressors, or generators. We recommend holding at least one unit per site, with a second unit designated for multi-unit installations or facilities with extended lead times for emergency procurement. The programmer has no consumable components and has a long shelf life when stored in a dry, temperature-controlled environment.

Q3: Can the 9907-205 be used across multiple WOODWARD controller models at the same facility?
Yes. The 9907-205 is compatible with multiple WOODWARD governor controller series, including EG, UG, 505, 723, and 2301 series controllers, making it a versatile tool for facilities with mixed governor system generations. Compatibility should be confirmed against the specific controller firmware version for older installations. SMARTNEXMSK technical support can assist with compatibility verification.

Q4: What pre-shipment testing is performed on the 9907-205 before delivery?
Every 9907-205 unit shipped by SMARTNEXMSK is tested for communication port functionality, display operation, keypad response, and parameter read/write capability against a compatible WOODWARD controller interface. Units that do not pass full functional testing are not dispatched. Test records are available upon request for quality-critical procurement requirements.
