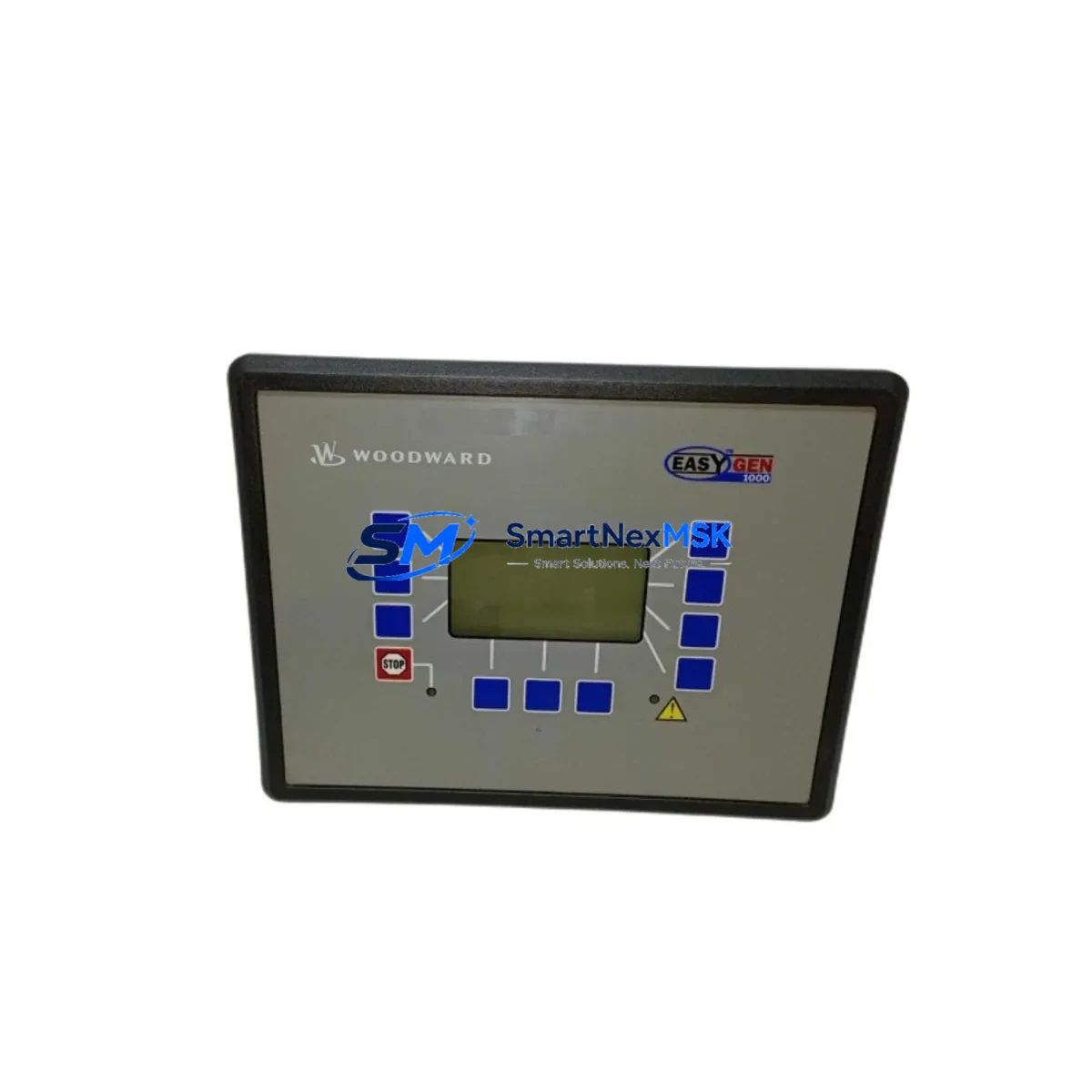

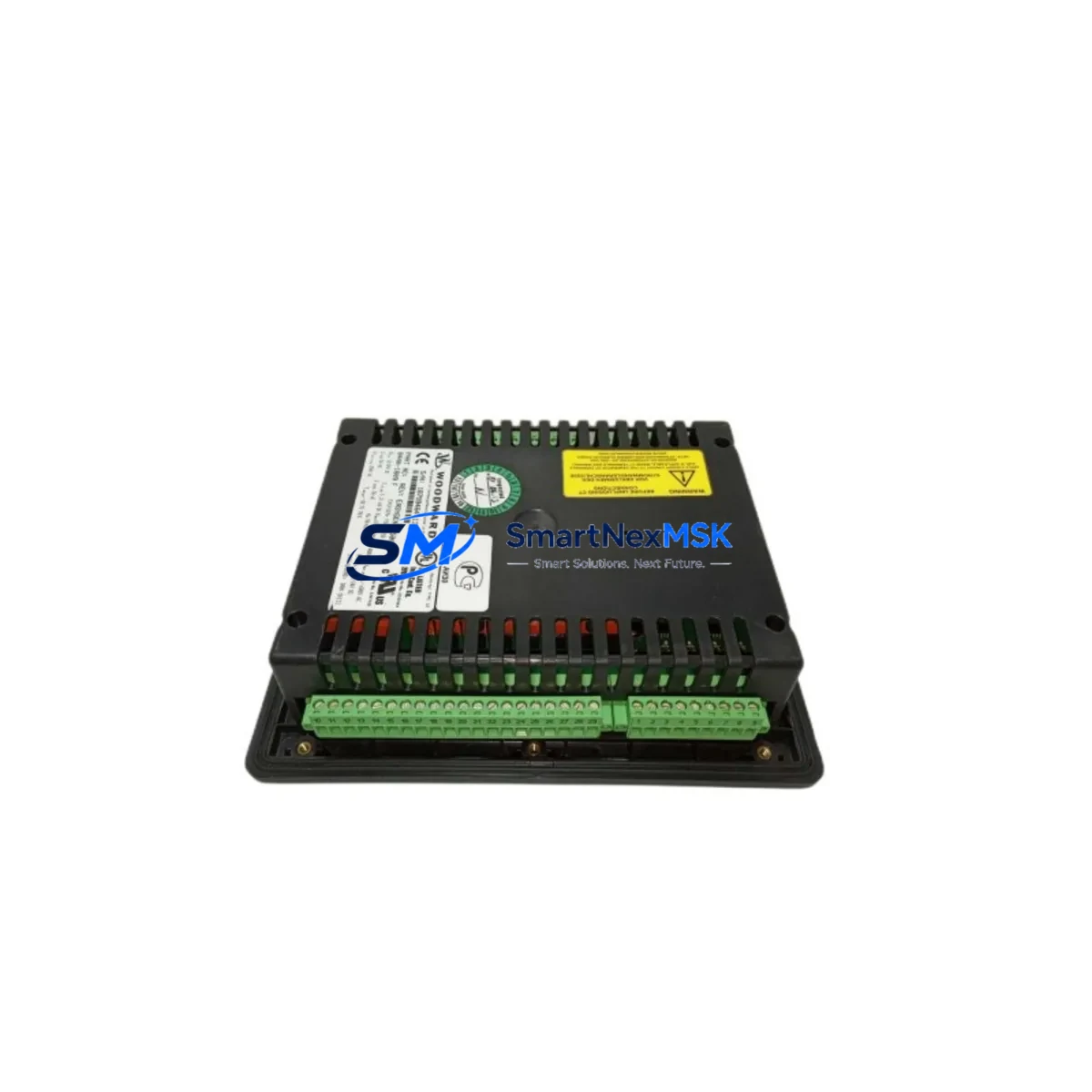

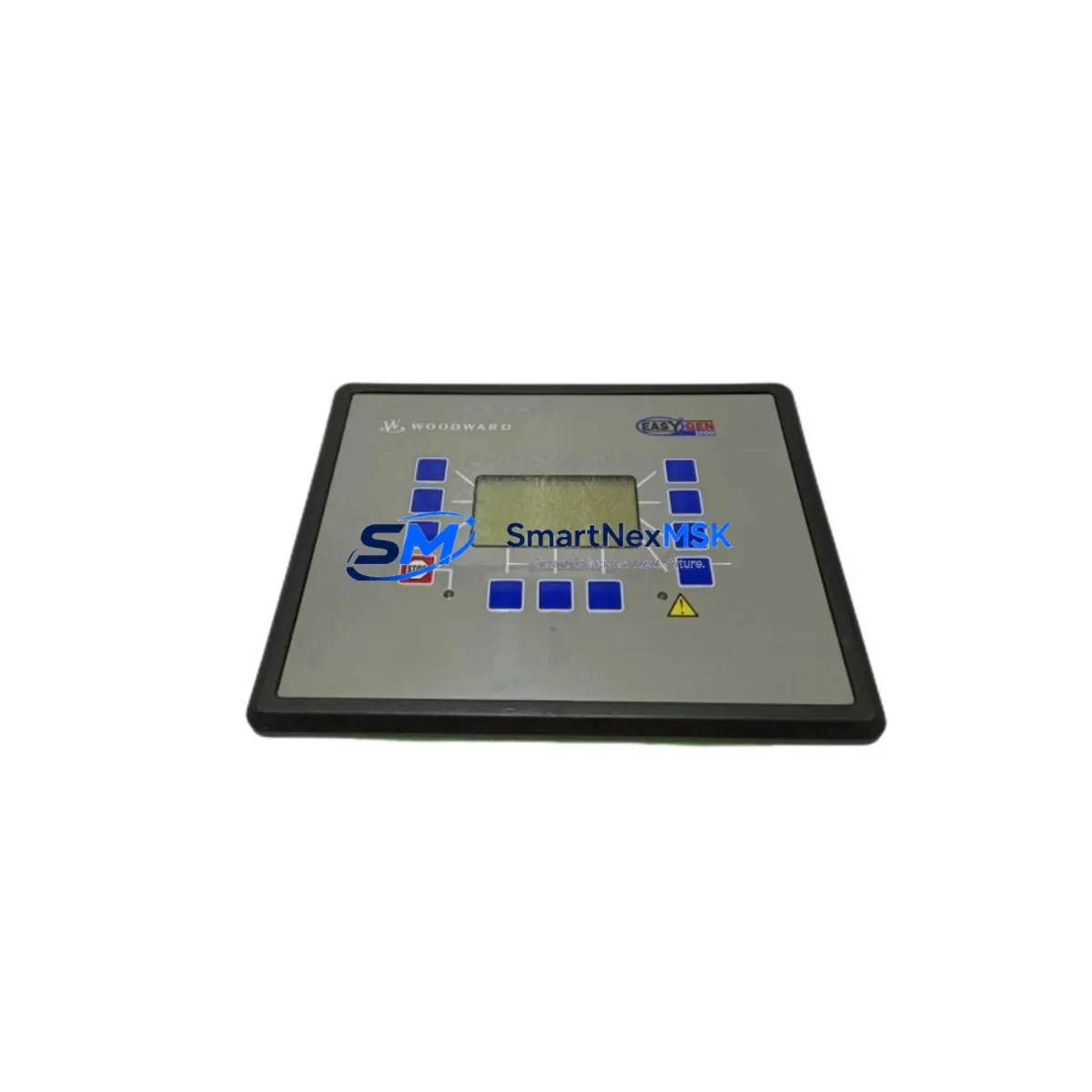

WOODWARD EASYGEN-1000 8440-1809 Maintenance-Ready Spare EasyGen

WOODWARD EASYGEN-1000 8440-1809 Maintenance-Ready Spare EasyGen

When a genset control system goes offline, every minute of downtime translates directly into operational loss. The WOODWARD EASYGEN-1000 8440-1809 is a purpose-built genset controller designed for continuous-duty industrial power generation environments. As a maintenance-ready spare, this unit enables rapid field replacement, minimizing the risk of extended outages in critical facilities such as data centers, oil and gas platforms, marine vessels, hospitals, and heavy manufacturing plants.

Maintenance engineers and procurement teams working with WOODWARD EasyGen-series control systems recognize the 8440-1809 as a cornerstone component of the genset control cabinet. Its integrated LCD display, configurable I/O architecture, and support for both 12 VDC and 24 VDC power supply inputs make it a versatile and field-proven solution for both planned maintenance cycles and emergency replacement scenarios. Holding a verified spare in your parts inventory eliminates lead-time risk and ensures your maintenance team can execute a same-day swap without waiting on international logistics.

This unit is supplied as an original WOODWARD spare, fully tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-dispatch functional verification to confirm relay outputs, analog input calibration, communication port integrity, and display operation before leaving our facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance strategy for genset control systems extends well beyond the controller itself. When replacing or inspecting the WOODWARD EASYGEN-1000 8440-1809, experienced maintenance engineers typically conduct a concurrent inspection of all interdependent components within the same control cabinet to prevent repeat failures and ensure system-wide reliability.

The 24 VDC or 12 VDC power supply module feeding the controller should be load-tested and verified for output stability, as voltage ripple or dropout events are a leading cause of controller resets and false alarms. The battery charger module and DC bus fuses within the genset panel should be inspected alongside the controller swap. Terminal blocks and wiring harnesses connected to the EasyGen’s analog and digital I/O terminals should be checked for corrosion, loose crimps, and insulation degradation — particularly in high-vibration or high-humidity environments.

The magnetic pickup sensor (MPU) supplying engine speed signal to the controller is a frequent companion fault item; a worn or misaligned MPU can cause erratic speed readings and nuisance trips even after a controller replacement. Similarly, the current transformers (CTs) and voltage transformers (PTs) feeding the generator metering inputs should be verified for correct ratio and wiring polarity before commissioning the replacement unit.

For systems using the EasyGen’s communication capabilities, the RS-485 communication cable, termination resistors, and any Modbus gateway or SCADA interface module should be inspected and re-terminated if necessary. If the installation includes a remote annunciator panel or HMI display connected to the EasyGen, verify the communication link and display functionality after controller replacement. Relay output wiring to the automatic transfer switch (ATS), contactor coils, and engine start/stop circuits should be continuity-tested before energizing the system.

In aging genset installations, it is also advisable to inspect the engine protection relay module, overspeed relay, and any external signal isolators used to interface third-party sensors with the EasyGen’s analog inputs. Surge protection devices on the controller’s power supply input and I/O terminals are often overlooked during routine maintenance but are critical for long-term controller reliability in sites with poor power quality.

Site Replacement Workflow

Replacing the WOODWARD EASYGEN-1000 8440-1809 in the field follows a structured sequence to minimize downtime and ensure system compatibility. Begin by documenting the existing controller configuration — parameter settings, relay output assignments, analog input scaling, and communication addresses — using the EasyGen configuration software or a manual parameter printout before powering down the unit.

Isolate the genset control panel from all power sources, including the DC supply and any battery-backed circuits. Remove the existing controller, noting the wiring layout for each terminal. Install the replacement 8440-1809 unit, reconnecting all terminals according to the original wiring diagram. Restore power and upload the saved configuration file, or manually re-enter parameters if a backup is unavailable.

Perform a no-load functional test: verify engine start/stop sequences, speed measurement, voltage and frequency metering, relay output operation, and communication link status. Confirm that all alarm and protection thresholds are correctly set before returning the genset to automatic standby mode. This systematic approach ensures the replacement unit is fully commissioned and the system is restored to its original operational state with minimal risk of repeat faults.

For sites operating legacy EasyGen-1000 installations where the original part number is discontinued or difficult to source, the 8440-1809 serves as a direct functional replacement, maintaining full compatibility with existing wiring, configuration software, and communication infrastructure. This eliminates the need for costly panel redesigns or software re-engineering, extending the operational life of the existing genset control system by years.

Spare Parts Support FAQ

Q1: Is the WOODWARD 8440-1809 compatible with my existing EasyGen-1000 installation?
The 8440-1809 is the standard part number for the EasyGen-1000 genset controller. It is designed as a direct replacement for existing EasyGen-1000 installations and is compatible with the original wiring, configuration software, and communication setup. For cross-series compatibility with EasyGen-1500 or other variants, please confirm your existing panel wiring and software version before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. Each unit is fully tested prior to shipment, including relay output verification, analog input calibration, communication port integrity, and display operation. Warranty claims are supported with direct technical assistance and replacement dispatch.

Q3: How quickly can the unit be shipped, and what is the recommended spare inventory strategy?
Units are available for immediate dispatch from verified stock. For critical genset installations, we recommend holding at least one spare 8440-1809 controller on-site, particularly for facilities where genset availability is essential for regulatory compliance or operational continuity. Long lead times from OEM channels make local spare inventory a cost-effective risk mitigation strategy.

Q4: Can I use my existing configuration file with the replacement unit?
Yes. The EasyGen-1000 configuration software supports parameter backup and restore. A configuration file saved from the original unit can be uploaded directly to the replacement 8440-1809, restoring all parameter settings, relay assignments, and communication addresses without manual re-entry. Always verify the software version compatibility between the original and replacement unit before uploading the configuration file.
