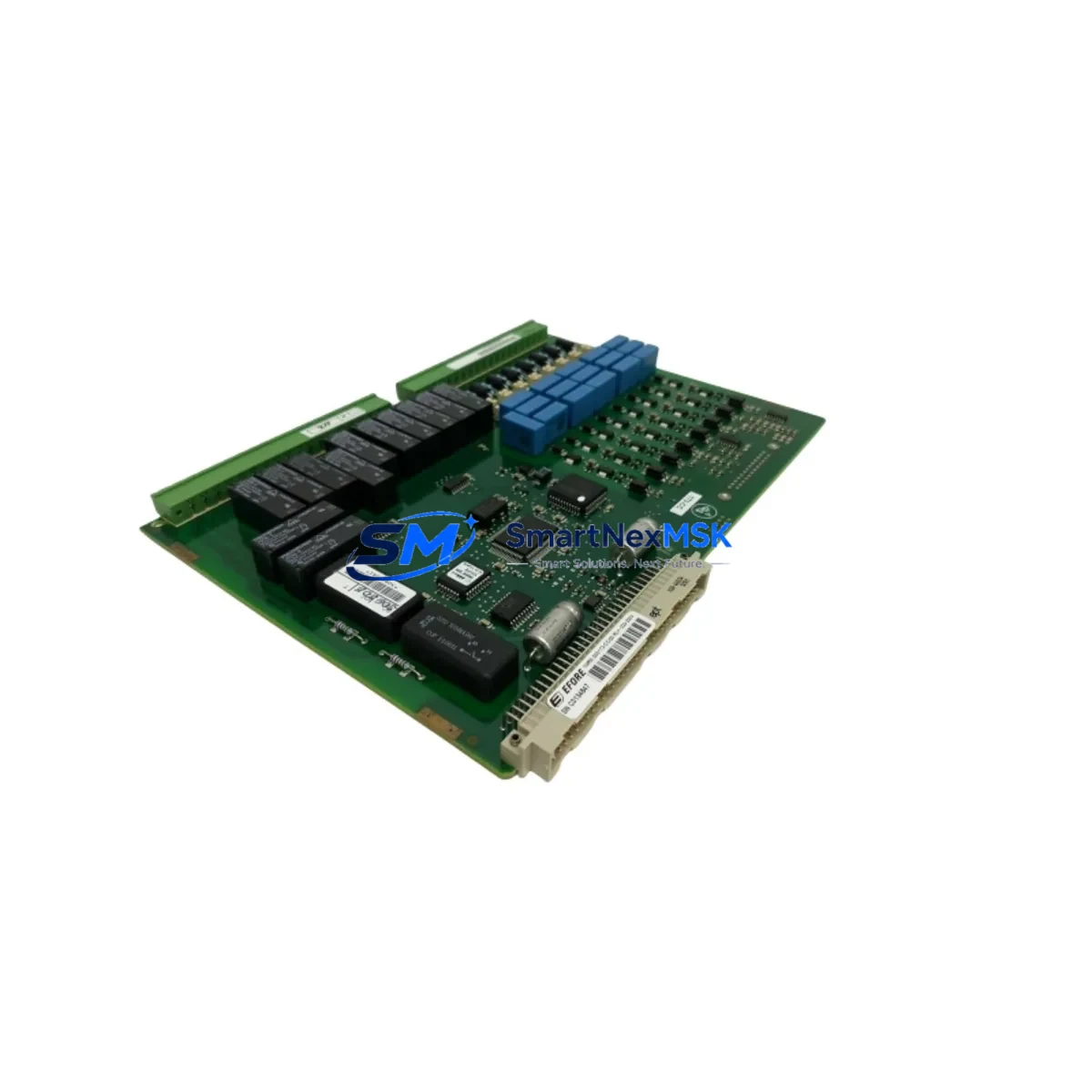

The ABB 1MRK000173-BEr03 is a Binary I/O Module engineered for the REB500 series of numerical busbar protection systems. As aging REB500 installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified replacement modules like the 1MRK000173-BEr03 to sustain protection relay performance without committing to a full panel replacement. This module provides a direct, compatible upgrade path for facilities operating legacy REB500 cabinets, enabling controlled modernization while preserving existing wiring infrastructure, terminal layouts, and protection logic.

Whether your facility is executing a planned busbar protection upgrade, recovering from an unplanned module failure, or consolidating spare-parts inventory ahead of a scheduled outage, the 1MRK000173-BEr03 offers a reliable, in-stock solution backed by a 12-month warranty and pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a REB500 busbar protection panel requires careful sequencing to avoid protection gaps and unplanned outages. The 1MRK000173-BEr03 Binary I/O Module sits at the heart of the REB500’s signal acquisition architecture, receiving binary status inputs from circuit breakers, disconnectors, and auxiliary contacts, and issuing trip or alarm outputs to downstream protection and control equipment.

Before removing the existing module, engineers should document the current binary input wiring using the panel’s as-built drawings, noting the voltage level (typically 24 VDC or 110 VDC) and polarity of each input channel. The REB500 CPU module — often the REB500 central processing unit housed in the same 19-inch rack — retains the protection configuration and logic, so the I/O module swap does not require reprogramming the protection functions, provided the replacement module carries the same hardware revision.

In panels where the REB500 communicates upstream via IEC 60870-5-103 or LON-based station bus protocols, the communication module (such as the REB500 COM module or an associated SPA bus interface) remains unaffected by the Binary I/O replacement. However, engineers should confirm that the station SCADA or substation automation system (SAS) continues to receive correct binary status signals after the swap by performing a point-to-point check against the signal list.

For facilities that have already migrated part of their protection infrastructure to IEC 61850-based platforms — for example, integrating ABB REF615 or RET615 feeder protection relays alongside the legacy REB500 — the 1MRK000173-BEr03 replacement allows the REB500 busbar protection to remain operational during the phased migration, avoiding the need to simultaneously replace the entire protection scheme.

The REB500 rack and backplane assembly should be inspected during the retrofit for signs of connector wear or oxidation, particularly on the backplane edge connectors that interface with the Binary I/O module. If the rack houses additional modules such as the REB500 analog input module or the REB500 power supply module, their status should be verified as part of the same maintenance window to avoid repeat outages.

For sites using ABB’s MicroSCADA or Relion-series engineering tools, the binary I/O signal database and mimic diagrams in the HMI should be validated post-replacement to confirm that all binary status points — breaker open/close, protection operated, alarm active — are correctly reflected. If the panel includes an ABB RTU560 or similar remote terminal unit for telecontrol, the RTU’s binary input mapping should also be cross-checked against the restored I/O module’s channel assignments.

Spare-parts planning for REB500 panels should also account for associated consumables and interface components: terminal block inserts, module extraction tools, and any REB500-specific programming cables required to access the configuration interface during commissioning. Having these items on-site before the maintenance window begins is essential for keeping downtime within the planned outage window.

Downtime Control During System Migration

Minimizing protection system downtime during a Binary I/O module replacement on a live REB500 panel requires a structured approach. The recommended sequence begins with a pre-outage configuration backup: using the REB500 configuration software, export the full protection settings file and binary I/O mapping to a secure engineering workstation. This backup ensures that if any configuration discrepancy is detected after the module swap, the original settings can be restored without relying on paper records.

During the outage window, the replacement 1MRK000173-BEr03 module should be inserted into the correct backplane slot with the panel de-energized. After re-energization, the REB500 self-diagnostic routine will verify module recognition. Engineers should confirm that the module address — assigned either by hardware DIP switch or software configuration depending on the REB500 variant — matches the address expected by the CPU module. A mismatch will generate a system fault alarm and prevent the protection functions from operating correctly.

Binary input and output functional tests should be performed channel by channel using a portable test set or the substation’s existing test facilities, simulating breaker auxiliary contact states and verifying that the REB500 correctly registers each input and issues the expected output signals. This step is critical for confirming that the replacement module has not introduced any wiring or channel-mapping discrepancies.

Once functional testing is complete and the protection engineer has signed off on the commissioning record, the REB500 busbar protection can be returned to service. The total planned outage for a like-for-like 1MRK000173-BEr03 replacement, including pre-outage preparation and post-replacement testing, typically falls within a two-to-four-hour window for experienced protection engineers familiar with the REB500 platform.

Retrofit Support FAQ

Q1: Is the 1MRK000173-BEr03 a direct drop-in replacement for the original ABB REB500 Binary I/O Module?
Yes. The 1MRK000173-BEr03 is designed as a direct replacement for the same part number in REB500 panels. It uses the same backplane connector, occupies the same rack slot, and is compatible with the REB500’s internal communication bus. No hardware modifications to the panel are required for a like-for-like swap.

Q2: Do I need to reprogram the REB500 protection logic after replacing the Binary I/O Module?
In most cases, no. The protection configuration and logic reside in the REB500 CPU module, not in the Binary I/O module itself. However, you should verify the module address assignment and confirm that the binary I/O channel mapping in the configuration matches your panel’s wiring after the replacement. A configuration backup before the swap is strongly recommended.

Q3: What wiring checks are required before installing the replacement module?
Before installation, verify the binary input voltage level (24 VDC, 48 VDC, or 110 VDC depending on your panel design) and confirm that all input and output wiring is correctly documented against the as-built drawings. Check terminal block connections for tightness and inspect the backplane connector on the replacement module for any shipping damage before insertion.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every 1MRK000173-BEr03 unit shipped by SMARTNEXMSK undergoes a full functional test prior to dispatch, verifying binary input and output channel operation under simulated load conditions. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
