ABB 3HAC041443-003 Spare for IRC5 Automation: Spare Replacement & Downtime Risk Control

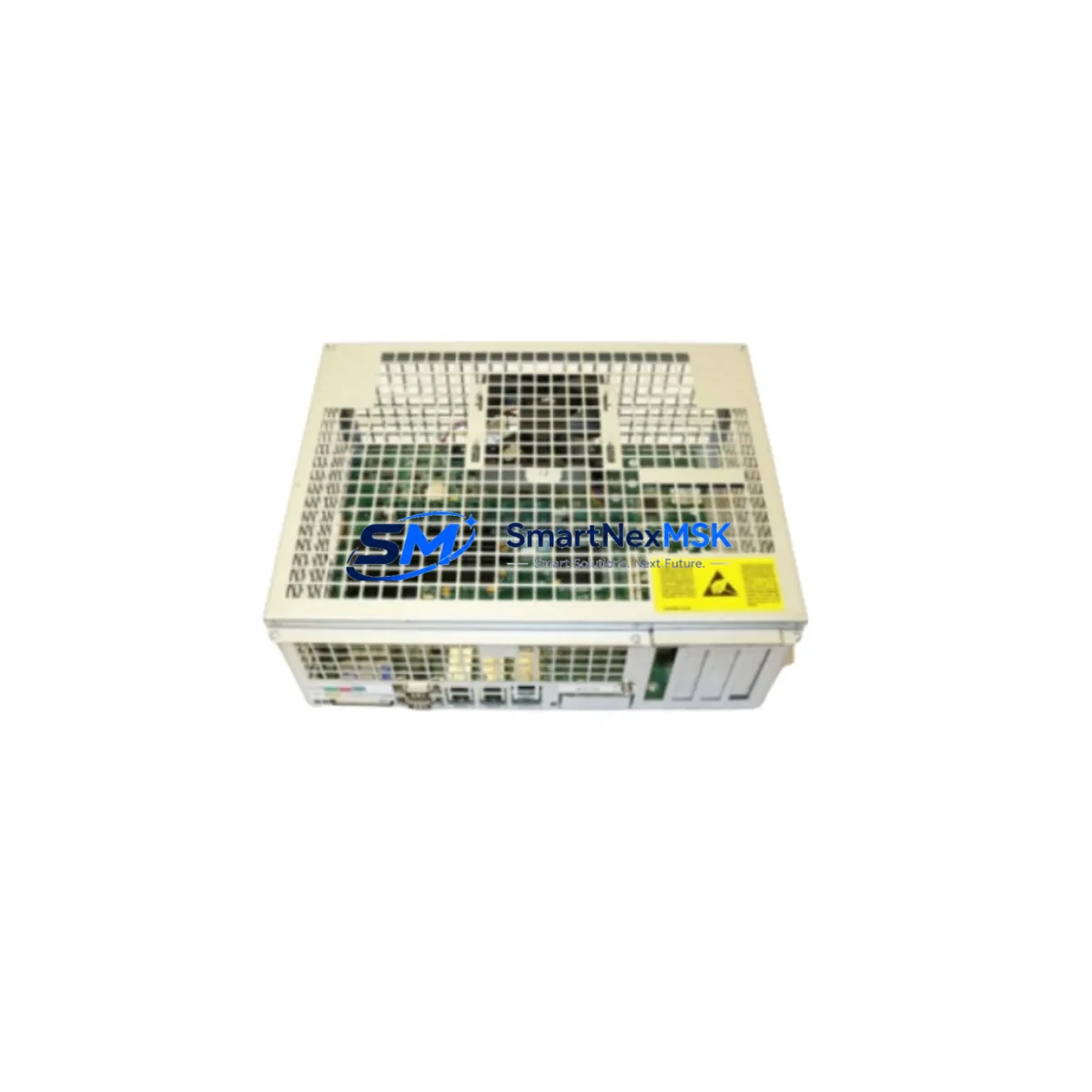

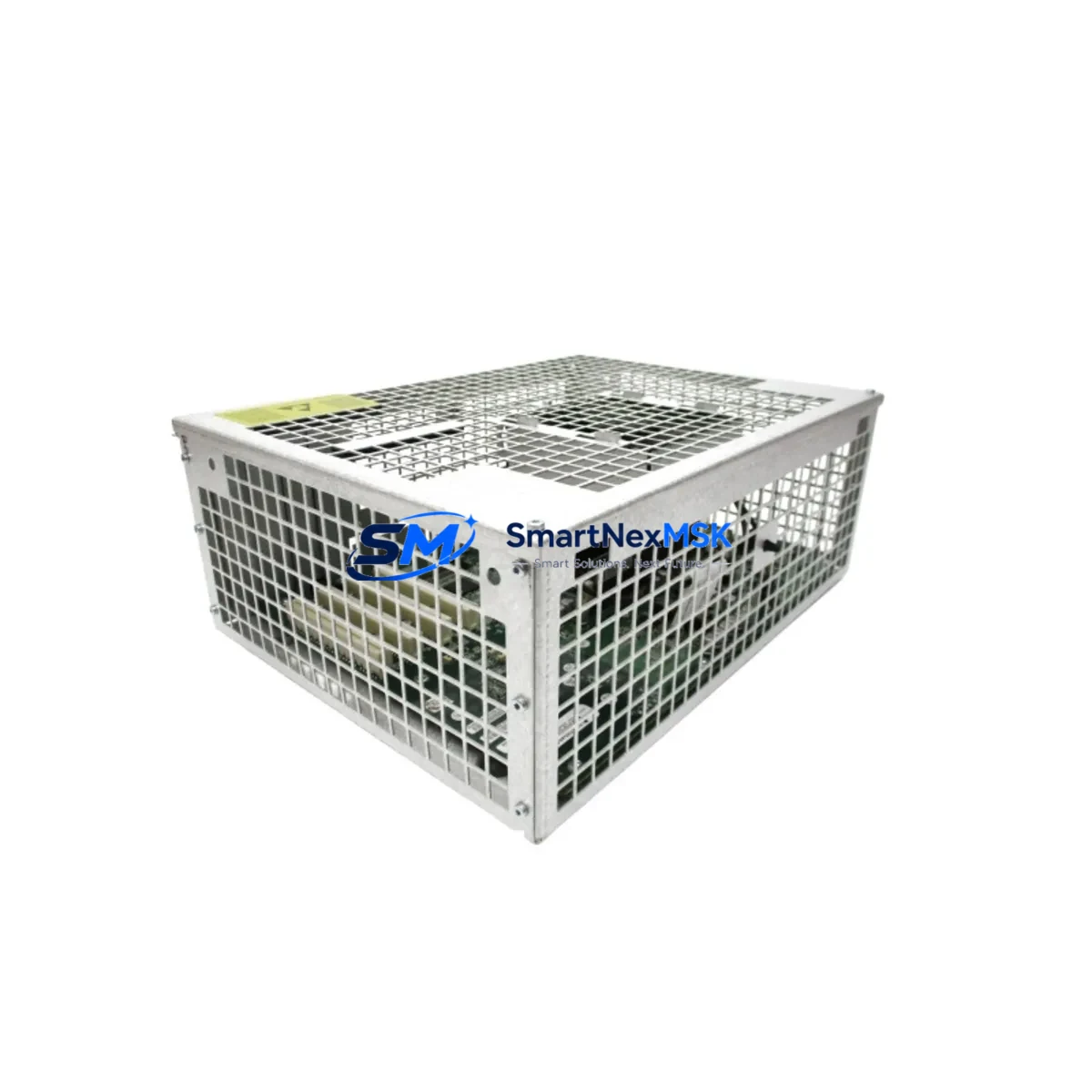

The ABB 3HAC041443-003 (DSQC639) is the Main Computer Unit for ABB IRC5 robot controllers — the central processing core responsible for motion control, I/O coordination, program execution, and real-time communication across the entire robot system. When this module fails, the robot cell stops completely. Sourcing a verified, tested replacement unit is the fastest path to restoring production uptime.
This listing provides an original ABB 3HAC041443-003 spare unit, fully tested prior to shipment, backed by a 12-month warranty, and available for immediate dispatch. Whether you are managing a planned overhaul, responding to an unscheduled fault, or building a critical spare inventory for a multi-robot facility, this unit is ready to support your maintenance strategy.
Maintenance engineers working on IRC5 cabinets know that the DSQC639 sits at the heart of the controller backplane. It interfaces directly with the axis computer (DSQC668 or DSQC673), the I/O modules (DSQC651, DSQC652), the safety controller (DSQC400), and the teach pendant (FlexPendant) via the SMB and service port connections. A fault in the main computer typically manifests as a complete controller lockout, repeated boot failures, or persistent system error codes that cannot be cleared by a standard restart.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 3HAC041443-003 |
| Module Designation | DSQC639 |
| Compatible System | ABB IRC5 Robot Controller (Single & MultiMove) |
| Function | Main Computer Unit — motion control, I/O, program execution |
| Backplane Interface | IRC5 standard backplane connector |
| Operating Voltage | 24 VDC (supplied via IRC5 power distribution) |
| Communication Ports | Ethernet (LAN/WAN), Service Port, USB |
| Operating Temperature | 0°C to +55°C (controller cabinet ambient) |
| Origin | Sweden (Original ABB manufacture) |
| Weight | Approx. 380 g |
| Compatibility Note | Verify IRC5 firmware version before installation; RobotWare 5.x / 6.x compatible |
| Maintenance Recommendation | Replace as complete unit; do not attempt board-level repair in field |
| Pre-shipment Testing | Power-on, boot sequence, and communication verification |
| Warranty | 12 Months from date of shipment |
Maintenance Planning for Continuous Operation
Replacing the 3HAC041443-003 is rarely an isolated task. A thorough IRC5 cabinet inspection during the same maintenance window significantly reduces the risk of repeat downtime. Maintenance and procurement engineers should evaluate the following components as part of any DSQC639 replacement event:
The IRC5 power supply unit (DSQC609) should be load-tested before the new main computer is installed — an unstable 24 VDC rail is a common root cause of repeated main computer failures. Inspect the axis computer module (DSQC668 or DSQC673) for firmware compatibility with the replacement DSQC639, as mismatched RobotWare versions can prevent the system from completing its boot sequence.
The I/O modules (DSQC651 for digital I/O and DSQC652 for digital output) should be checked for loose DeviceNet or EtherNet/IP connections, as communication faults on these modules are frequently misdiagnosed as main computer failures. The safety controller (DSQC400) and its associated safety relay board should be inspected for contact wear and correct configuration backup, since safety parameter data is stored separately from the main computer and must be verified after any controller swap.
The SMB (Serial Measurement Board, DSQC633) retains robot calibration data and axis resolver offsets — confirm that calibration data is backed up before removing the main computer, as some IRC5 configurations store a calibration reference on the main computer’s CompactFlash. The FlexPendant (teach pendant) connection cable and TPU connector should be inspected for pin damage, as a faulty pendant connection can cause false main computer fault codes.
For facilities running multiple IRC5 cells, consider stocking one spare DSQC639 main computer per four to six robots, alongside a spare DSQC609 power supply and at least one set of DSQC651/DSQC652 I/O modules. Terminal blocks, fuse holders, and 24 VDC branch circuit fuses within the cabinet should also be part of the annual inspection checklist. Signal isolators on analog I/O channels and any PROFIBUS or EtherNet/IP communication adapters (DSQC688) installed in the system should be verified for correct termination and address settings after the controller is restored to service.
Site Replacement Workflow
Step 1 — Backup: Before powering down the IRC5 controller, perform a full system backup using RobotStudio or the FlexPendant backup function. Save the backup to an external USB drive or network share. Confirm that the backup includes system parameters, RAPID programs, I/O configuration, and safety parameters.
Step 2 — Power isolation: Isolate the controller from mains power using the main disconnect switch. Follow LOTO (Lockout/Tagout) procedures. Allow the capacitor bank in the drive unit to discharge for a minimum of 5 minutes before opening the cabinet.
Step 3 — Module removal: Disconnect the Ethernet cables, USB devices, and the FlexPendant cable from the DSQC639. Release the backplane retention clips and slide the module out. Note the orientation and cable routing for reinstallation reference.
Step 4 — Replacement installation: Install the 3HAC041443-003 replacement unit into the backplane slot. Reconnect all cables in the original configuration. Verify that the CompactFlash card (if applicable) is correctly seated.
Step 5 — Restore and verify: Power on the controller and allow the boot sequence to complete. Restore the system backup via the FlexPendant. Verify I/O status, axis calibration, and safety controller configuration. Run a slow-speed test cycle before returning the robot to production speed.
This workflow minimizes downtime and ensures system compatibility is maintained. The 3HAC041443-003 is a direct replacement for the original DSQC639 and does not require hardware modification to the IRC5 cabinet.
Spare Parts Support FAQ
Q: Is the 3HAC041443-003 compatible with all IRC5 controller variants?
A: The DSQC639 is compatible with standard IRC5 Single Cabinet and MultiMove configurations running RobotWare 5.x and 6.x. Confirm your controller’s RobotWare version and hardware generation (M2004 or later) before ordering. Contact us with your controller serial number if you need compatibility verification.
Q: How is the unit tested before shipment?
A: Each 3HAC041443-003 unit undergoes power-on testing, boot sequence verification, and communication port checks prior to dispatch. Units that do not pass all test stages are not shipped. A test report is available upon request.
Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. Warranty claims are supported with return shipping and replacement or refund at our discretion.
Q: Can you support long-term or blanket spare parts orders for multi-robot facilities?
A: Yes. We support scheduled spare parts programs for facilities managing multiple IRC5 robots. Contact our sales team to discuss volume pricing, reserved stock agreements, and lead time commitments for critical spare modules including DSQC639, DSQC609, DSQC668, and associated I/O modules.
