ABB HIEE401238R1 XVB363 AE Spare for XVB Series Automation

ABB HIEE401238R1 XVB363 AE Spare for XVB Series Automation: Spare Replacement & Industrial Downtime Risk Control

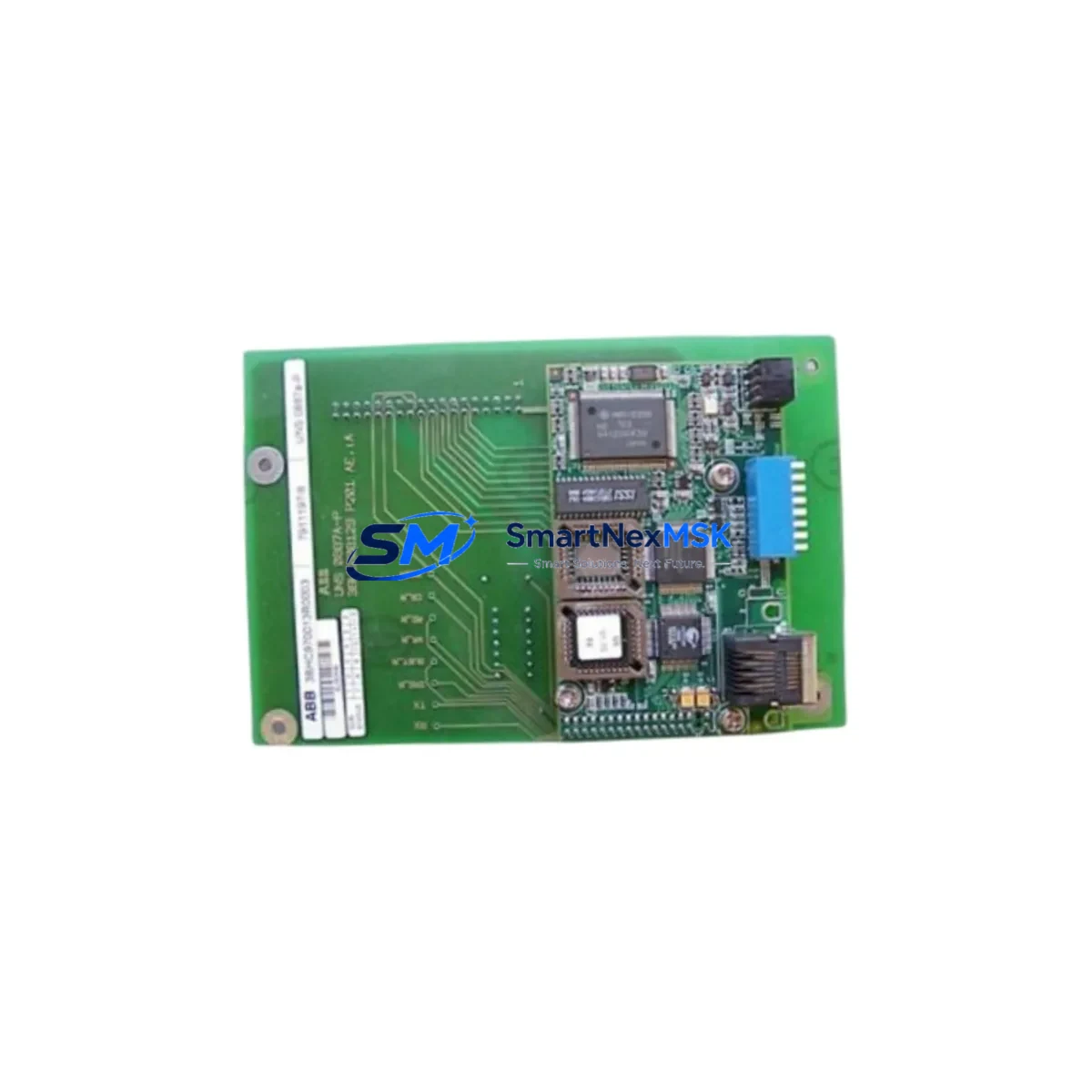

The ABB HIEE401238R1 XVB363 AE is an original DCS board module designed for continuous-duty industrial automation environments. As a maintenance-ready spare, this unit supports rapid field replacement within ABB’s XVB series control architecture, enabling maintenance engineers to restore system availability with minimal disruption. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, the HIEE401238R1 XVB363 AE delivers the compatibility, reliability, and traceability that industrial operations demand.

For procurement and maintenance teams operating ABB DCS platforms, sourcing a verified original spare is the first step in a sound downtime-recovery strategy. This module ships fully tested, with function verification completed prior to dispatch, and is backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HIEE401238R1 XVB363 AE in the field, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure system stability. Maintenance engineers should treat this replacement as an opportunity to audit the full electrical loop.

Begin with the power supply module feeding the XVB rack — verify output voltage stability and check for ripple or thermal stress indicators. Inspect the backplane bus connector and rack chassis for oxidation or mechanical damage that could cause intermittent communication faults after the new board is installed. Review the I/O terminal blocks and field wiring connected to this module’s signal channels; loose terminations or corroded contacts are a common root cause of board-level faults that are misdiagnosed as module failure.

Check the communication module (such as the ABB CI840 or equivalent PROFIBUS/Modbus interface card) that coordinates with this board in the DCS network — a degraded communication card can cause the replacement module to report faults immediately after installation. Inspect signal isolators and barriers on analog input/output channels; these components protect the board from field-side transients and should be replaced on a scheduled basis in high-noise environments.

Review the relay output modules and digital I/O cards in the same cabinet section — if the HIEE401238R1 XVB363 AE failure was caused by an upstream electrical event, adjacent relay modules may have sustained latent damage. Inspect fuse holders and circuit protection devices on the 24 VDC distribution rail; a blown or weakened fuse is often the first indicator of an overload condition that contributed to the board failure.

For systems with an HMI panel (such as an ABB CP600 series or equivalent operator interface), verify that the HMI communication link to the DCS is re-established and that all process variable displays are reading correctly after the replacement. Finally, confirm that the system configuration and parameter settings are correctly loaded to the new module — in some XVB series architectures, board-specific parameters are stored locally and must be re-commissioned after a hardware swap.

Maintaining a minimum stock of one spare HIEE401238R1 XVB363 AE, alongside critical companion components such as the relevant power supply module, communication card, and I/O terminal assemblies, is a best practice for facilities operating continuous-process or safety-critical systems where unplanned downtime carries significant operational cost.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the affected DCS rack from field power and confirm de-energization before handling the board.

Step 2 — Documentation: Record the current slot position, any DIP switch or jumper settings, and the firmware or configuration version associated with the outgoing HIEE401238R1 XVB363 AE. Photograph the wiring and connector orientation before disconnection.

Step 3 — Module Removal: Release the board retention latch and carefully extract the module from the backplane. Avoid flexing the board or applying lateral force to the bus connector.

Step 4 — Inspection and Preparation: Inspect the backplane slot contacts and the replacement module’s edge connector for contamination. Clean with appropriate contact cleaner if required. Verify that the replacement unit’s hardware revision is compatible with your system’s firmware version.

Step 5 — Installation: Seat the HIEE401238R1 XVB363 AE replacement firmly into the backplane slot. Confirm the retention latch engages fully. Reconnect any field wiring or front-panel connectors per your documentation.

Step 6 — Commissioning and Verification: Restore power to the rack. Monitor the module’s status indicators during startup. Confirm that the DCS controller recognizes the new module, that all I/O channels are reporting correctly, and that no fault alarms are active. Perform a functional test of connected field devices before returning the system to normal operation.

This workflow is designed to minimize mean time to repair (MTTR) and reduce the risk of secondary faults caused by improper installation. Using a pre-tested, original spare such as the HIEE401238R1 XVB363 AE eliminates the uncertainty associated with refurbished or unverified replacement parts.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the HIEE401238R1 XVB363 AE?
This unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and operational failure under normal service conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or unauthorized modification. Warranty claims are supported with return merchandise authorization (RMA) and replacement or repair at our discretion.

Q2: How do I verify compatibility with my existing ABB XVB series system before ordering?
Compatibility is determined by the hardware revision of your existing system, the firmware version running on the DCS controller, and the slot assignment within the XVB rack. We recommend providing your system’s full configuration details — including the rack type, controller model, and any existing board revision markings — when placing your order. Our technical team can assist with compatibility confirmation prior to shipment.

Q3: What pre-shipment testing is performed on this module?
Every HIEE401238R1 XVB363 AE unit undergoes functional verification testing before dispatch. This includes power-on testing, communication interface checks, and I/O channel verification where applicable. A test report is available upon request. Units that do not pass testing are not shipped.

Q4: Can I source this part for long-term inventory stocking, and what is the recommended stock quantity?
Yes, we support long-term supply agreements and bulk stocking orders for the HIEE401238R1 XVB363 AE. For facilities operating multiple XVB series racks or running continuous-process systems, we recommend maintaining a minimum of one spare unit per rack, with additional units held for systems where the module is a single point of failure. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stocking arrangements.
