ABB IIRM02 Retrofit-Ready RCCB for IRM Series Systems

ABB IIRM02 Retrofit-Ready RCCB for IRM Series Control Systems

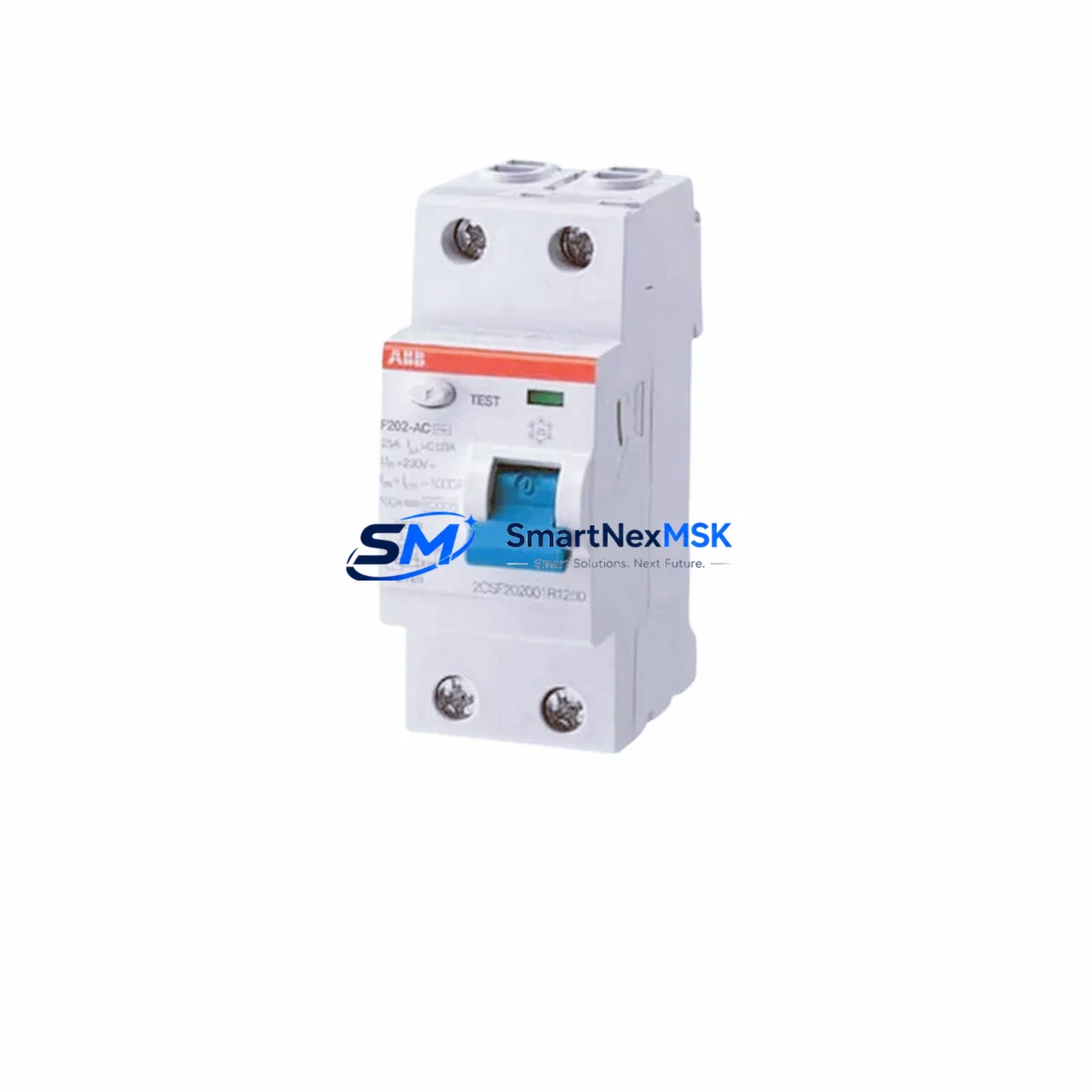

The ABB IIRM02 is a 2-pole Residual Current Circuit Breaker (RCCB) from ABB’s IRM Series, rated at 25A with a 30mA residual current sensitivity. Designed for seamless integration into legacy and modern low-voltage distribution panels, the IIRM02 is a proven retrofit solution for facilities transitioning away from discontinued or end-of-life protective devices. Whether you are upgrading an aging control cabinet, replacing a failed RCCB in a running production line, or standardizing protection across multiple distribution boards, the IIRM02 delivers the reliability and compliance that industrial and commercial installations demand.

The IIRM02 mounts on standard 35mm DIN rail, making it mechanically compatible with the vast majority of existing enclosures and switchgear assemblies. Its compact 2-pole footprint allows direct substitution in panels where space is constrained, and its terminal block accepts conductor cross-sections consistent with legacy wiring practices — eliminating the need for re-termination or busbar modification in most retrofit scenarios. When replacing an older ABB F200 Series or DS200 Series RCCB, engineers should verify the incoming terminal pitch and outgoing neutral routing before energizing, as minor dimensional differences between generations can affect busbar alignment.

For facilities running ABB SACE Tmax or Emax series main circuit breakers upstream, the IIRM02 integrates cleanly into the downstream protection hierarchy. Coordination studies should confirm that the 30mA trip threshold does not conflict with upstream earth-fault relay settings, particularly in installations where ABB REF615 or REF630 feeder protection relays are deployed. In such configurations, the IIRM02 acts as the final-stage personnel protection device, and its selectivity with upstream devices must be validated during commissioning.

In retrofit projects involving older ABB S200 Series miniature circuit breakers (MCBs) or legacy ABB ELCB units, the IIRM02 is frequently specified as the replacement RCD element. Installers should confirm that the existing cable insulation resistance is within acceptable limits before installation, as degraded insulation in aging wiring can cause nuisance tripping at the 30mA sensitivity level. A pre-installation insulation resistance test using a 500V DC megohmmeter is strongly recommended.

When the IIRM02 is deployed in control cabinets alongside ABB PSR or PSE series soft starters, or ABB ACS series variable frequency drives (VFDs), particular attention must be paid to leakage current management. VFDs inherently generate high-frequency earth leakage currents through EMC filter capacitors; in such installations, a Type A or Type B RCCB with appropriate frequency response characteristics should be selected. The IIRM02’s trip characteristics should be cross-referenced against the drive manufacturer’s leakage current specifications to ensure stable operation without spurious trips during motor start sequences.

For panel builders integrating the IIRM02 into new or upgraded distribution boards, the device pairs naturally with ABB System pro M compact® modular accessories, including auxiliary contacts, remote trip coils, and door-coupling rotary handles. These accessories enable remote monitoring and manual isolation without opening the panel door — a significant advantage in unmanned substations or hazardous area installations where access is restricted.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IIRM02 retrofit begins with a thorough audit of the existing panel layout. Document the current RCCB model, its terminal labeling, the conductor sizes in use, and the available DIN rail space. In many legacy installations, the outgoing neutral conductor is routed through a separate neutral link bar rather than through the RCCB body — confirm whether the replacement device must handle the neutral internally or externally.

Where the existing panel includes an ABB OT series isolator or ABB E200 series enclosure, the IIRM02 can typically be installed without structural modification. If the panel also houses an ABB CP series 24VDC power supply module for PLC or relay logic, ensure that the RCCB’s load-side terminals are positioned to avoid interference with the DC power rail routing. In panels with tight cable management, consider using ABB’s SZ series cable duct accessories to maintain separation between power and control wiring after the retrofit.

For installations where the legacy RCCB was connected to an ABB Modbus RTU or PROFIBUS DP communication network via an auxiliary contact module, the IIRM02 supports equivalent auxiliary accessories that can be wired into the existing communication harness. Verify the auxiliary contact rating against the PLC input module specifications — ABB AC500 series PLC digital input modules, for example, typically require a minimum contact rating of 24VDC/10mA, which the IIRM02 auxiliary contact satisfies.

In multi-panel installations, where the IIRM02 is one of several RCCBs being replaced as part of a broader switchgear upgrade, coordinate the replacement sequence to maintain partial system availability. Replace devices panel by panel, testing each IIRM02 with the built-in test button before restoring load. This approach minimizes total system downtime and allows the maintenance team to identify any wiring discrepancies before they affect production.

Downtime Control During System Migration

Minimizing downtime during an RCCB replacement requires preparation, sequencing, and verification. Before beginning work, obtain a complete single-line diagram of the affected distribution board and identify all loads connected downstream of the device being replaced. Notify operations of the planned outage window and confirm that any safety-critical loads — such as emergency lighting circuits, fire alarm panels, or UPS-backed control systems — are either transferred to an alternate supply or isolated in a controlled manner.

During the physical swap, label all conductors before disconnection to prevent re-termination errors. The IIRM02’s terminal markings follow standard IEC conventions (L1, N, load-side L1′, N’), which are consistent with the labeling used on most legacy ABB RCCBs. After installation, perform a functional test using the built-in test button to verify mechanical trip operation before reconnecting the load. Follow this with a live earth leakage test using a calibrated RCD tester to confirm the 30mA trip threshold is met within the IEC 61008 response time requirement.

For sites where even brief outages are unacceptable, consider pre-staging the IIRM02 on a temporary DIN rail section with all conductors pre-terminated and tested off-line. This “hot-swap staging” approach reduces the live working time to the minimum required for the final busbar connection, typically under 10 minutes for a single 2-pole device. All pre-staged assemblies should be tested and tagged before the outage window begins.

After restoration, monitor the IIRM02 for the first 24 hours of operation to confirm stable performance under actual load conditions. Log any nuisance trips and investigate root causes — common causes include degraded cable insulation, high VFD leakage current, or incorrect neutral routing — before concluding the retrofit project.

Retrofit Support FAQ

Q1: Is the ABB IIRM02 a direct drop-in replacement for discontinued ABB IRM Series RCCBs?
A: In most cases, yes. The IIRM02 shares the same DIN rail mounting standard, pole configuration, and terminal layout as earlier IRM Series devices. However, always verify the terminal pitch and conductor entry direction against your existing wiring before installation, as minor revisions between production batches may require minor cable re-routing.

Q2: What commissioning steps are required after installing the IIRM02?
A: After mechanical installation and conductor termination, perform an insulation resistance test on the downstream circuit, then conduct a functional trip test using the built-in test button. Follow with a calibrated RCD tester verification of the 30mA trip threshold and response time per IEC 61008. Document all test results before returning the circuit to service.

Q3: Can the IIRM02 be used in installations with ABB variable frequency drives or soft starters?
A: Yes, but leakage current management is essential. VFDs and soft starters generate earth leakage currents through their EMC filters. Measure the total leakage current of all connected drives before selecting the RCCB sensitivity. If total leakage exceeds one-third of the RCCB’s rated sensitivity (i.e., 10mA for a 30mA device), consider a higher-sensitivity device or install individual RCCBs per drive circuit.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including mechanical trip mechanism failure and contact welding under rated current. It does not cover damage resulting from installation errors, overvoltage events, or operation outside the device’s rated parameters. All warranty claims require the original purchase documentation and a completed fault report.
