ABB OT125F3 Retrofit-Ready Rotary Disconnect for OT Series

ABB OT125F3 Retrofit-Ready Rotary Disconnect for OT Series Control Systems

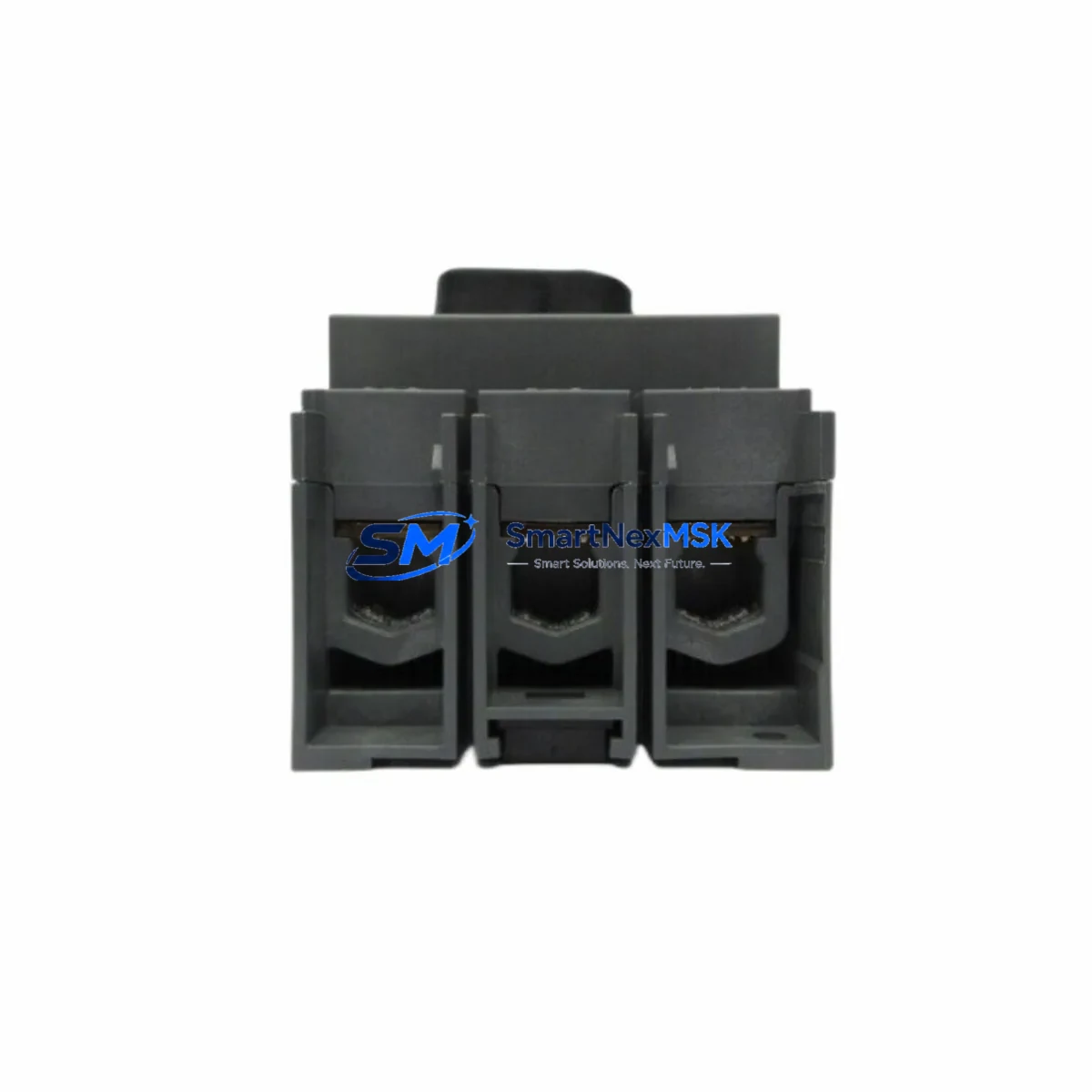

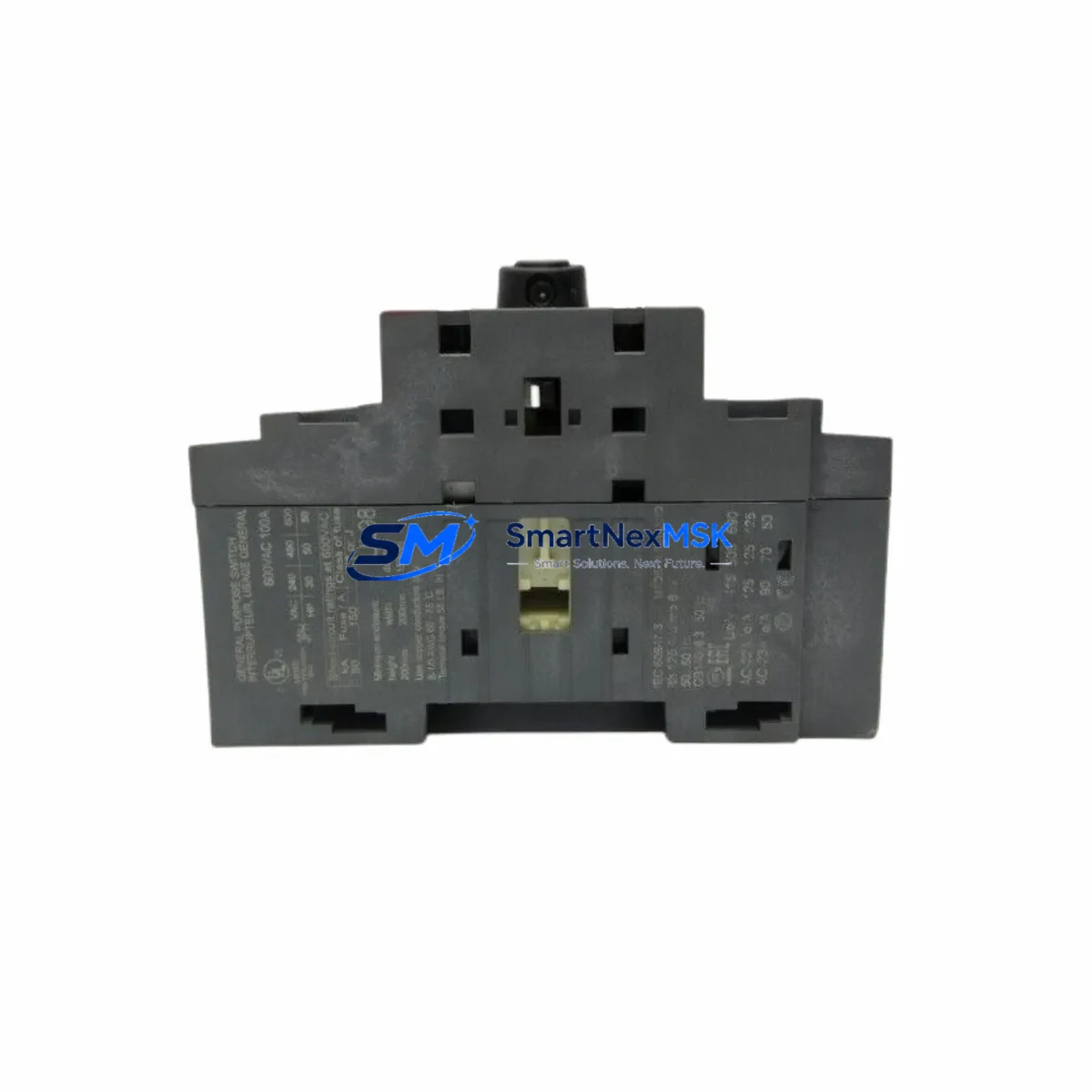

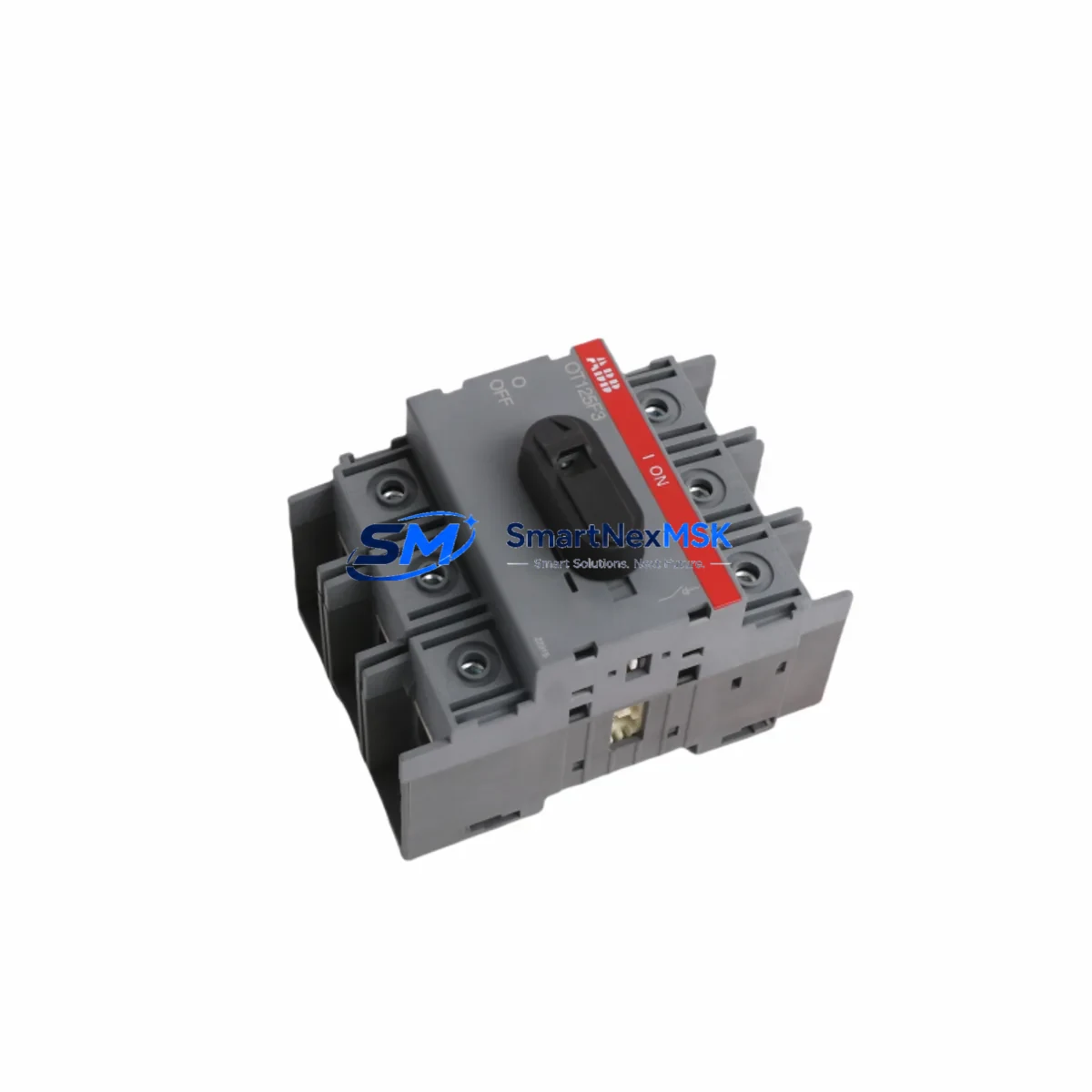

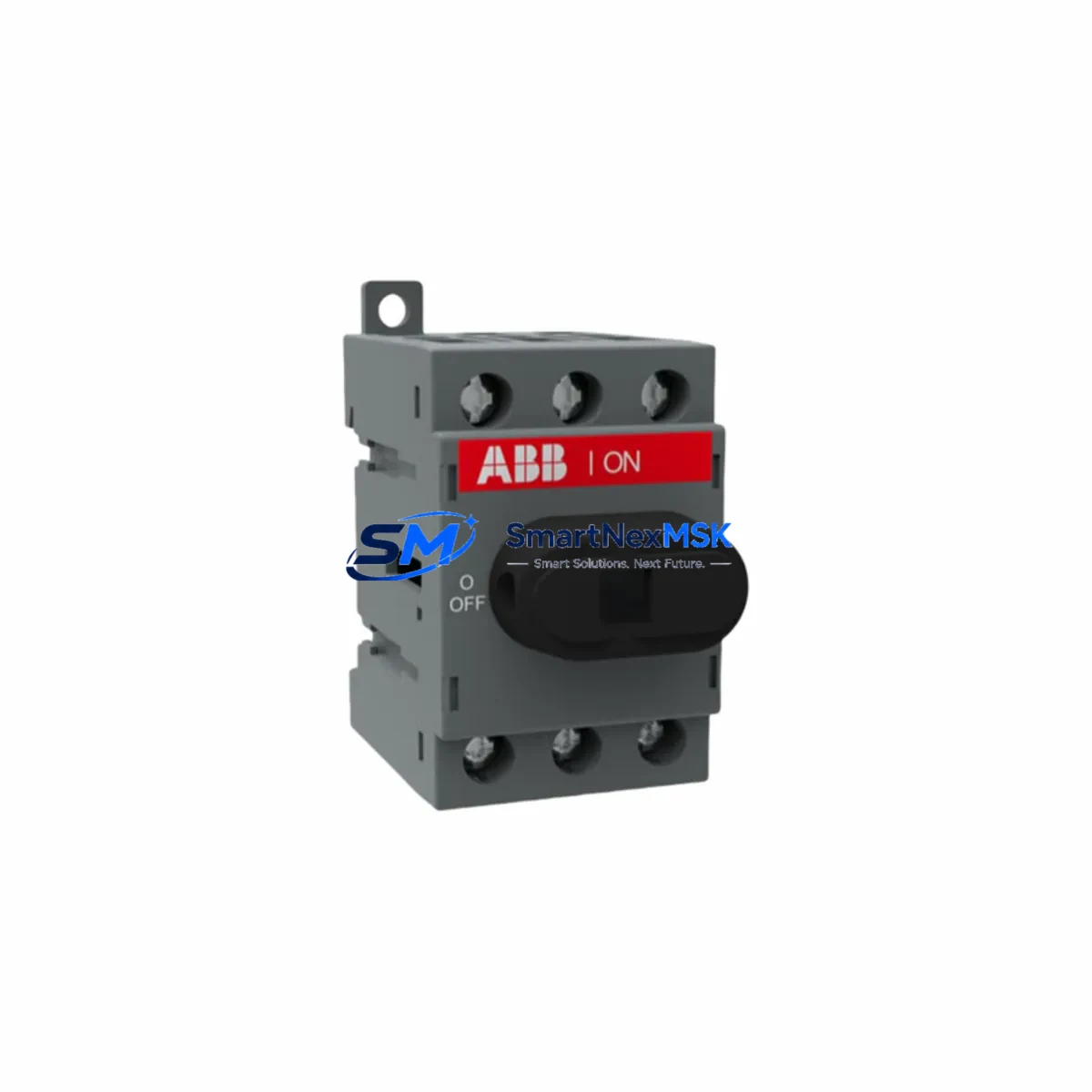

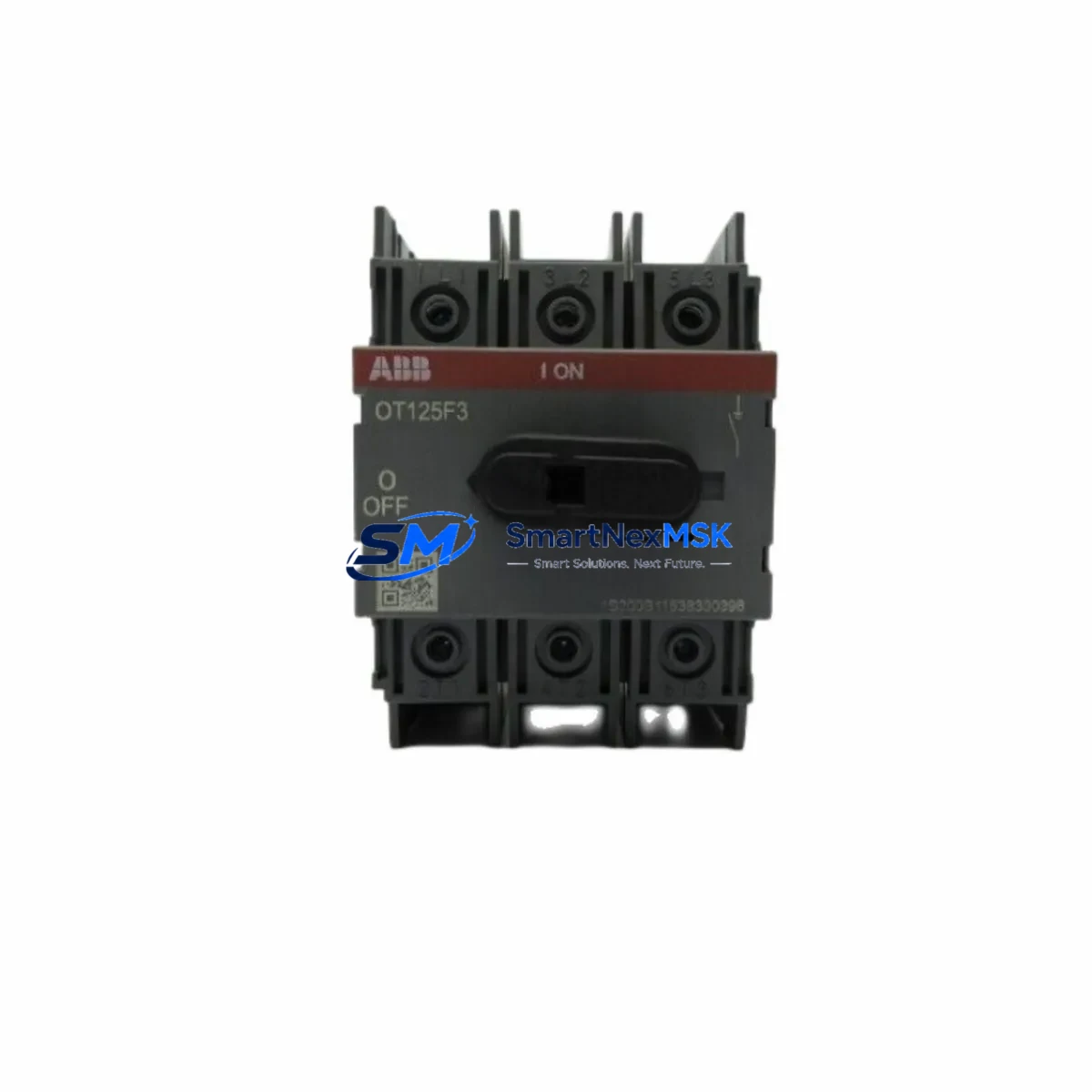

The ABB OT125F3 is a 125A, 3-pole rotary disconnect switch engineered for seamless integration into legacy and modern control panel architectures. As industrial facilities face increasing pressure to modernize aging electrical infrastructure without full system overhauls, the OT125F3 has become a preferred solution for engineers executing controlled retrofits of OT Series switchgear, motor control centers (MCCs), and distribution panels. Its compact DIN-rail and door-coupling compatibility makes it a direct mechanical and electrical replacement for discontinued OT Series variants, enabling panel builders and maintenance teams to restore full operational capacity with minimal rewiring and zero software changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the OT125F3 into an existing control system requires a structured pre-installation audit. Begin by reviewing the original panel drawings to confirm the busbar rating, cable cross-section, and terminal block type — ABB’s SNK or SAK series terminal blocks are commonly found alongside OT Series disconnects and remain fully compatible. In motor control center applications, the OT125F3 is frequently installed upstream of ABB A-Series contactors (such as the A75 or A95) and paired with thermal overload relays to form a complete motor protection chain.

For panels incorporating ABB’s AC500 or AC31 PLC platforms, the auxiliary contact block (OT-AUX) fitted to the OT125F3 provides a hardwired feedback signal to the PLC’s digital input module — typically a DI524 or DI572 card — confirming open/closed status without requiring any program modification. Engineers migrating from older S200 or S800 I/O architectures should map the auxiliary contact output to the equivalent input channel in the new I/O assignment table before commissioning.

In distributed control system (DCS) environments using ABB’s System 800xA or Freelance platforms, the OT125F3 is commonly installed as a field-level isolation device within marshalling cabinets. Its status signal is wired back through the field junction box to the AI/DI module cluster, and the loop check should be completed before the DCS controller is brought online. Where the original panel used an OT63F3 or OT80F3 at a lower current rating, upgrading to the OT125F3 requires verifying that the upstream cable and busbar can support the higher rated current — a step that is often overlooked during rapid replacement scenarios.

Panel builders executing MCC upgrades should also account for the door-coupling handle and shaft extension kit (OT-HANDLE series), which must be selected based on panel door thickness. The OT125F3 is compatible with ABB’s standard grey and yellow handle sets, and the shaft length can be adjusted using extension kits available for door depths from 2mm to 75mm. Confirm the handle color coding complies with local electrical safety standards — yellow handles are typically reserved for main isolators in IEC-compliant installations.

Where the retrofit involves replacing a failed or obsolete unit in an energized panel, coordinate with the site safety officer to implement a lockout/tagout (LOTO) procedure. The OT125F3 supports padlocking in the OFF position, which is essential for compliance with IEC 60947-3 isolation requirements. After installation, perform an insulation resistance test between poles and between poles and earth before re-energizing the circuit.

Downtime Control During System Migration

Minimizing production downtime during a disconnect switch replacement requires advance preparation and a clear sequence of operations. Before the maintenance window opens, pre-assemble the OT125F3 with its auxiliary contact block, door-coupling shaft, and handle — bench-test the mechanical operation and verify the auxiliary contact switching action using a continuity tester. Label all incoming and outgoing cables with their original terminal designations before disconnection; photograph the existing wiring layout as a reference.

During the swap, transfer cables one phase at a time to the new OT125F3 terminals, maintaining the original phase sequence (L1/L2/L3). Tighten terminals to the manufacturer’s specified torque (typically 10–12 Nm for 125A connections) to prevent thermal issues under load. Reconnect the auxiliary contact wiring to the PLC digital input module, referencing the pre-documented channel assignment. Once mechanical installation is complete, perform a functional test: close the disconnect, verify the PLC input registers the ON state, then open and confirm the OFF state is correctly reported.

For systems where the OT125F3 feeds a downstream variable frequency drive (VFD) or soft starter, confirm that the drive’s input power terminals are de-energized before closing the new disconnect for the first time. This prevents inrush current spikes that could trip upstream protection devices. Where the original control logic included an interlock between the disconnect status and the drive enable signal, verify this interlock remains functional after the auxiliary contact rewiring. The entire replacement sequence — from LOTO application to final functional test — can typically be completed within a two-hour planned maintenance window when all components and documentation are prepared in advance.

Retrofit Support FAQ

Q1: Is the OT125F3 a direct drop-in replacement for the OT100F3 or OT80F3?
The OT125F3 shares the same mounting footprint and door-coupling interface as the OT100F3 and OT80F3, making it mechanically interchangeable in most panel layouts. The higher current rating (125A vs. 100A or 80A) is an upgrade, not a limitation — provided the upstream cable and busbar are rated accordingly. No modifications to the panel cutout or door handle shaft are required in standard installations.

Q2: Will the auxiliary contact wiring need to be changed when replacing an older OT Series unit?
The OT-AUX auxiliary contact block used with the OT125F3 is pin-compatible with those used on earlier OT Series models. In most cases, the existing auxiliary contact wiring can be transferred directly to the new unit without re-termination. However, verify the contact rating (typically 6A / 240V AC) against the PLC input module’s specifications before reconnecting.

Q3: What commissioning checks are required after installation?
After mechanical installation, perform the following: (1) insulation resistance test between all poles and earth; (2) functional test of the auxiliary contact signal at the PLC input module; (3) torque verification on all power terminals; (4) door-coupling operation check through the full ON/OFF travel. Document all test results and retain for the site maintenance record.

Q4: What warranty coverage is provided, and what does it include?
All OT125F3 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and premature failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault; replacement or refund will be arranged promptly.
