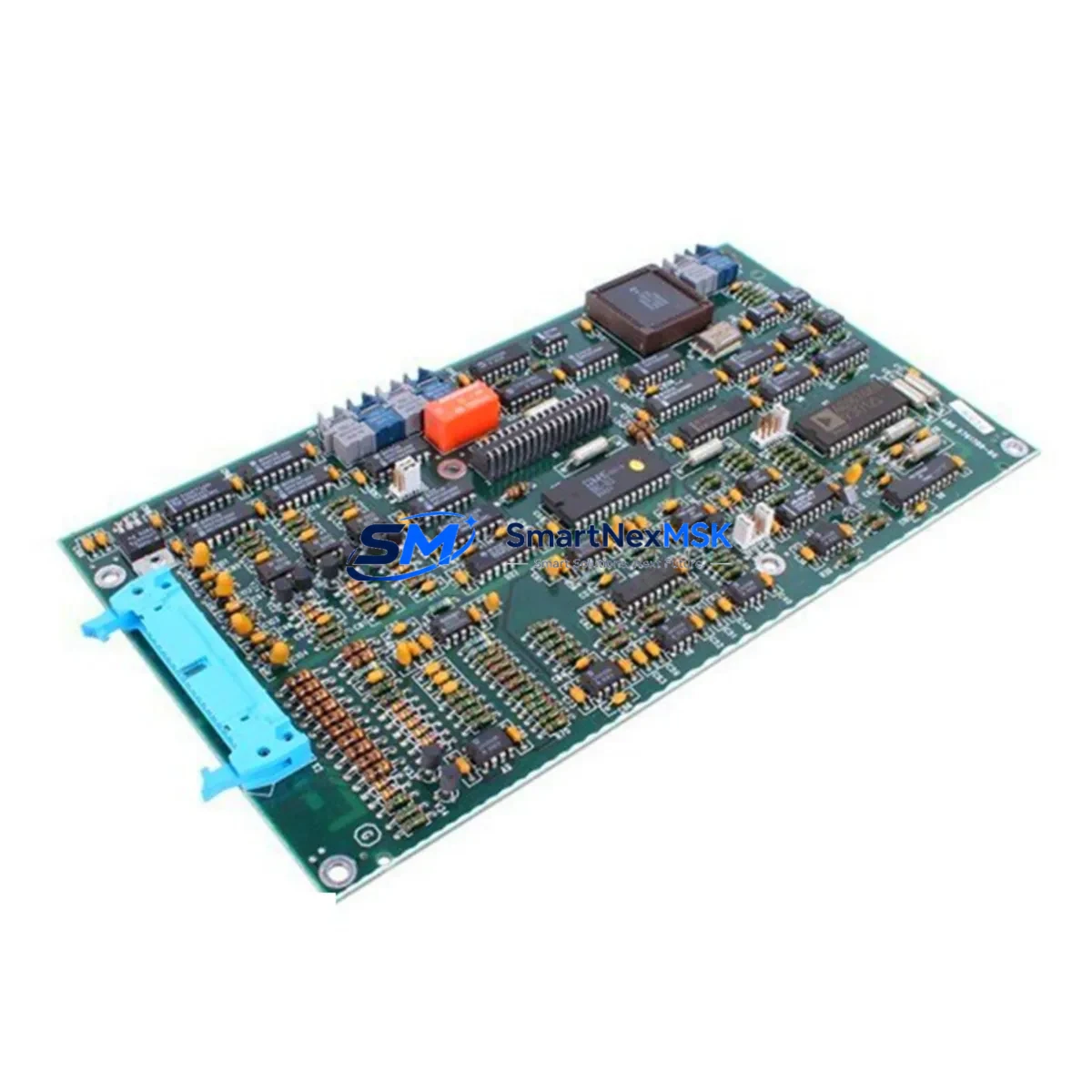

ABB SNAT601TAI Retrofit-Ready Thyristor Power Unit for SNAT Control Systems

ABB SNAT601TAI Retrofit-Ready Thyristor Power Unit for SNAT Control Systems

When a legacy DC drive control system reaches end-of-life or a critical thyristor power stage fails on the production floor, unplanned downtime becomes the most expensive outcome an operations team can face. The ABB SNAT601TAI Thyristor Power Unit is engineered as a direct retrofit replacement for the SNAT series DC drive platform, enabling maintenance engineers and system integrators to restore full drive functionality with minimal disruption to existing wiring, control logic, and commissioning records. Whether you are managing a scheduled upgrade of aging drive cabinets or responding to an emergency breakdown, the SNAT601TAI provides a verified, drop-in compatible solution backed by 12 months of warranty coverage and pre-shipment functional testing.

The SNAT601TAI occupies the thyristor bridge position within the SNAT drive architecture, converting AC supply into controlled DC output for motor armature circuits. Its gate firing circuits are designed to interface directly with the existing SDCS-CON-2 or SDCS-CON-4 control boards without requiring firmware changes or parameter re-mapping, which significantly reduces the risk of introducing new faults during the replacement process. Engineers who have previously worked with the SNAT series will recognize the familiar terminal layout, allowing armature and field wiring to be reconnected to the original torque specifications without adapter harnesses or custom cable assemblies.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SNAT601TAI retrofit begins well before the unit arrives on site. The first step is a thorough audit of the existing drive cabinet, starting with the SNAT power supply module that feeds the control electronics. If the auxiliary 24 VDC rail shows voltage ripple or thermal stress, it should be replaced alongside the thyristor unit to prevent the new power stage from being exposed to an unstable control supply. Similarly, the SDCS-CON-2 control board — which manages speed reference, current regulation, and firing angle calculation — should be inspected for capacitor aging and EPROM integrity before the new thyristor unit is commissioned.

On the I/O side, the SDCS-IOB-3 I/O extension board handles analog speed references, digital run/stop commands, and fault relay outputs. During a retrofit, engineers should verify that all terminal assignments on the IOB-3 match the existing field wiring schedule, since any mismatch will cause unexpected behavior during the first test run. The SDCS-FEX-2 field excitation module, which controls motor field current, should also be checked for output stability, as a degraded field supply will cause armature current regulation errors that are easily misattributed to the new thyristor unit.

For drives that communicate with a supervisory PLC or DCS, the RDCO-02 DDCS communication module or RPBA-01 PROFIBUS adapter fitted to the drive must remain undisturbed during the thyristor replacement. Communication parameters stored in the adapter should be documented before any power-down, and the fieldbus master should be placed in manual mode to prevent spurious start commands during the changeover window. If the site uses a Siemens S7-300 PLC or similar controller as the drive master, the PLC program’s drive status word mapping should be verified against the SNAT parameter list after recommissioning to confirm that fault codes and ready signals are correctly interpreted.

The motor itself — particularly its armature winding insulation and brush gear condition — should be assessed during the planned outage, since a thyristor replacement provides a natural opportunity to address motor-side issues that would otherwise cause premature failure of the new power unit. Tachogenerator feedback cables and encoder signal cables should be re-terminated with fresh ferrules to eliminate contact resistance that can cause speed regulation instability.

Downtime Control During System Migration

Minimizing production interruption during a SNAT601TAI replacement requires a structured changeover plan. Before the outage window opens, the existing drive parameters should be uploaded using the DriveWindow Light software tool or recorded manually from the drive keypad, covering all speed controller gains, current limits, ramp times, and field weakening breakpoints. This parameter backup is the single most important step in protecting the original control logic, since it allows the drive to be restored to its pre-failure tuning state within minutes of the new thyristor unit being energized.

During the physical swap, the AC input fuses and DC output busbars should be isolated and discharge-verified before any connections are disturbed. The thyristor unit’s snubber circuits and gate pulse cables should be transferred carefully, with each connection photographed before removal to serve as a reference during reassembly. Once the SNAT601TAI is installed and all connections are torqued to specification, a no-load firing test should be performed at reduced voltage to confirm that all six thyristor gates are responding correctly before the motor is reconnected.

After motor reconnection, the drive should be brought up in current-limit mode at 20–30% of rated speed to verify that armature current feedback, speed feedback, and field current are all reading correctly before releasing the drive to full-speed automatic control. This staged recommissioning approach typically allows a SNAT series drive to be returned to production within a single shift, even when the replacement is being performed for the first time on a given machine.

Retrofit Support FAQ

Q1: Is the SNAT601TAI a direct drop-in replacement for the original thyristor bridge in my SNAT drive?
A: Yes. The SNAT601TAI is designed as a form-fit-function replacement for the thyristor power stage in the SNAT DC drive series. Terminal positions, mounting dimensions, and gate firing interface are compatible with the original chassis. Minor differences in snubber component values between production batches are normal and do not affect interchangeability.

Q2: What pre-shipment testing is performed on each SNAT601TAI unit?
A: Every unit is tested for gate firing response across all six thyristor positions, insulation resistance between power terminals and chassis, and forward voltage drop consistency before packaging. A test record is available upon request and can be included with the shipment documentation.

Q3: What is covered under the 12-month warranty, and how is a warranty claim handled?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact sales@smartnexmsk.com with the order reference and a description of the fault. A replacement unit will be dispatched after fault verification, and the defective unit should be returned for inspection.

Q4: Can you supply other SNAT series components if I need to replace additional modules during the same outage?
A: Yes. SMARTNEXMSK maintains stock of SNAT series components including control boards, field excitation modules, I/O extension boards, and power supply units. Providing your full drive nameplate data and a list of required part numbers allows us to confirm availability and prepare a consolidated shipment to minimize the number of separate deliveries to your site.
