ABB TU810V1 3BSE013230R1 Spare for S800 Automation

ABB TU810V1 3BSE013230R1 Spare for S800 Automation: Spare Replacement & Industrial Downtime Risk Control

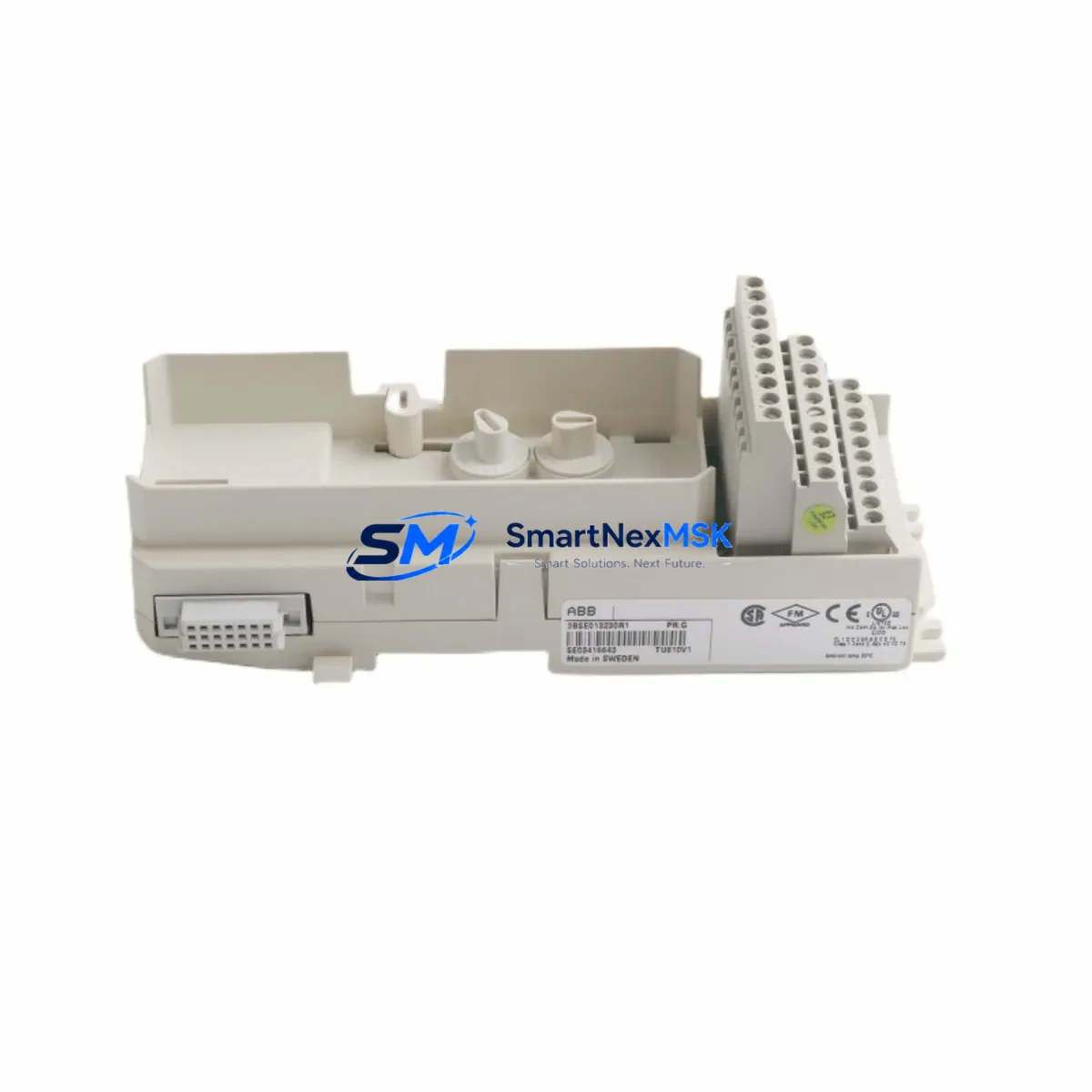

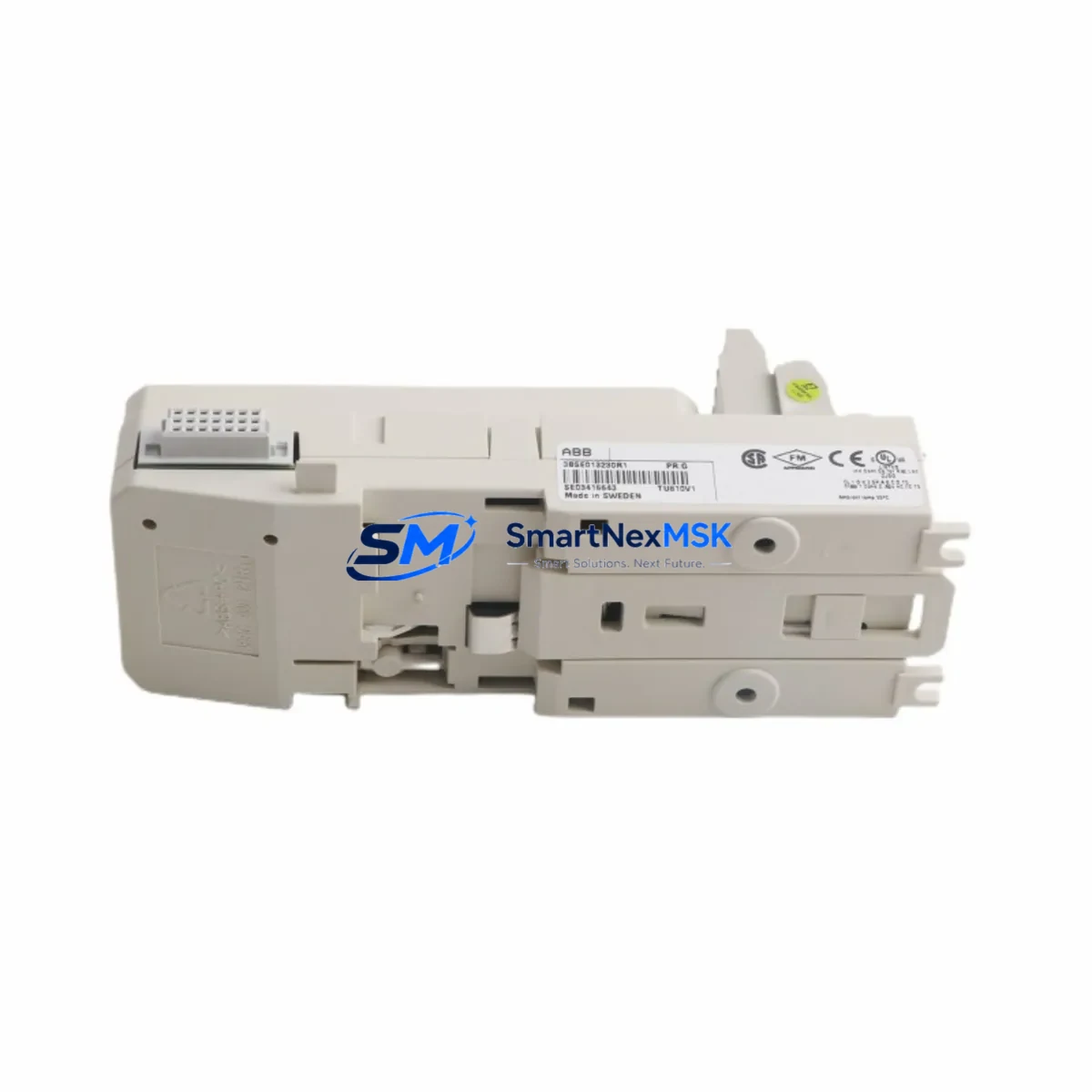

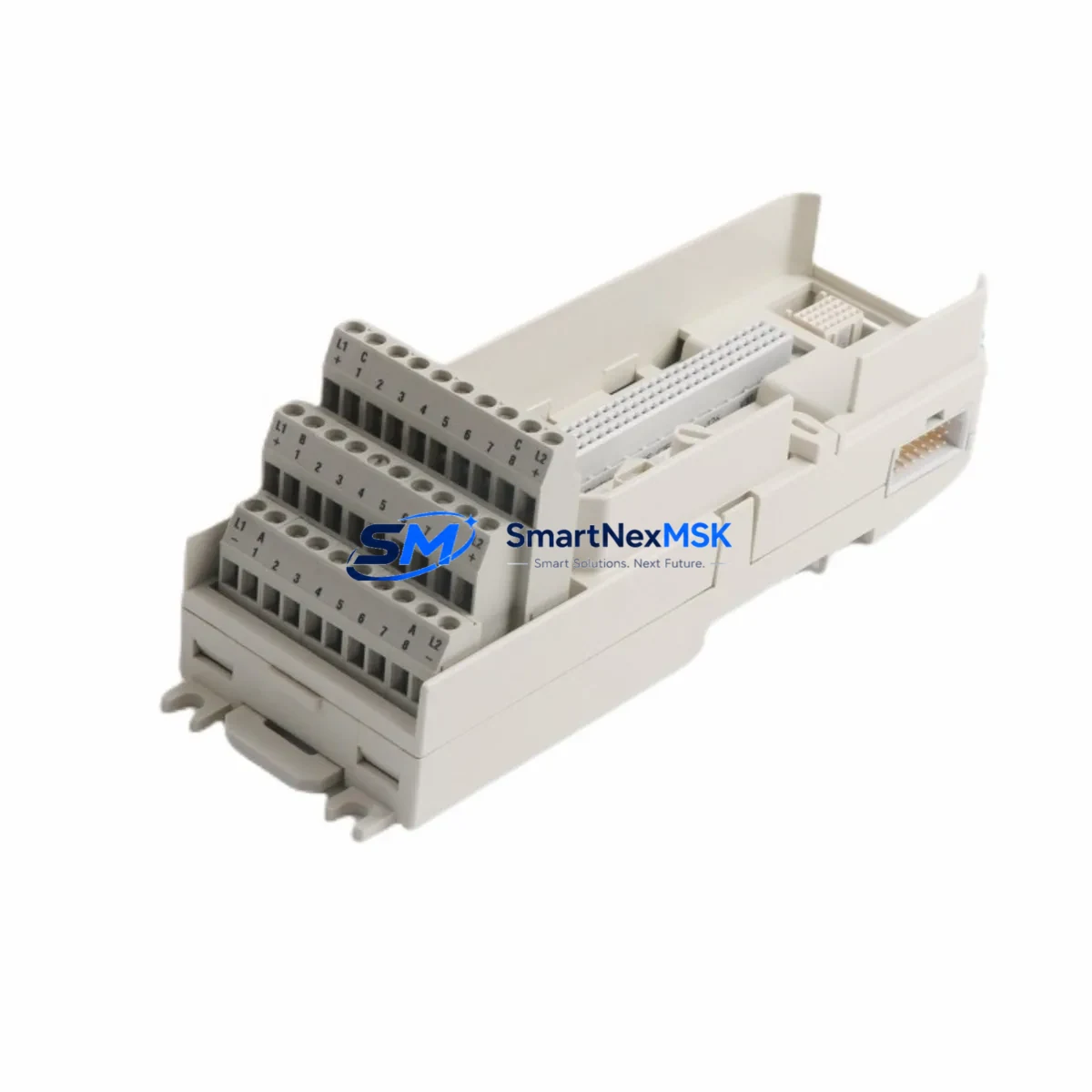

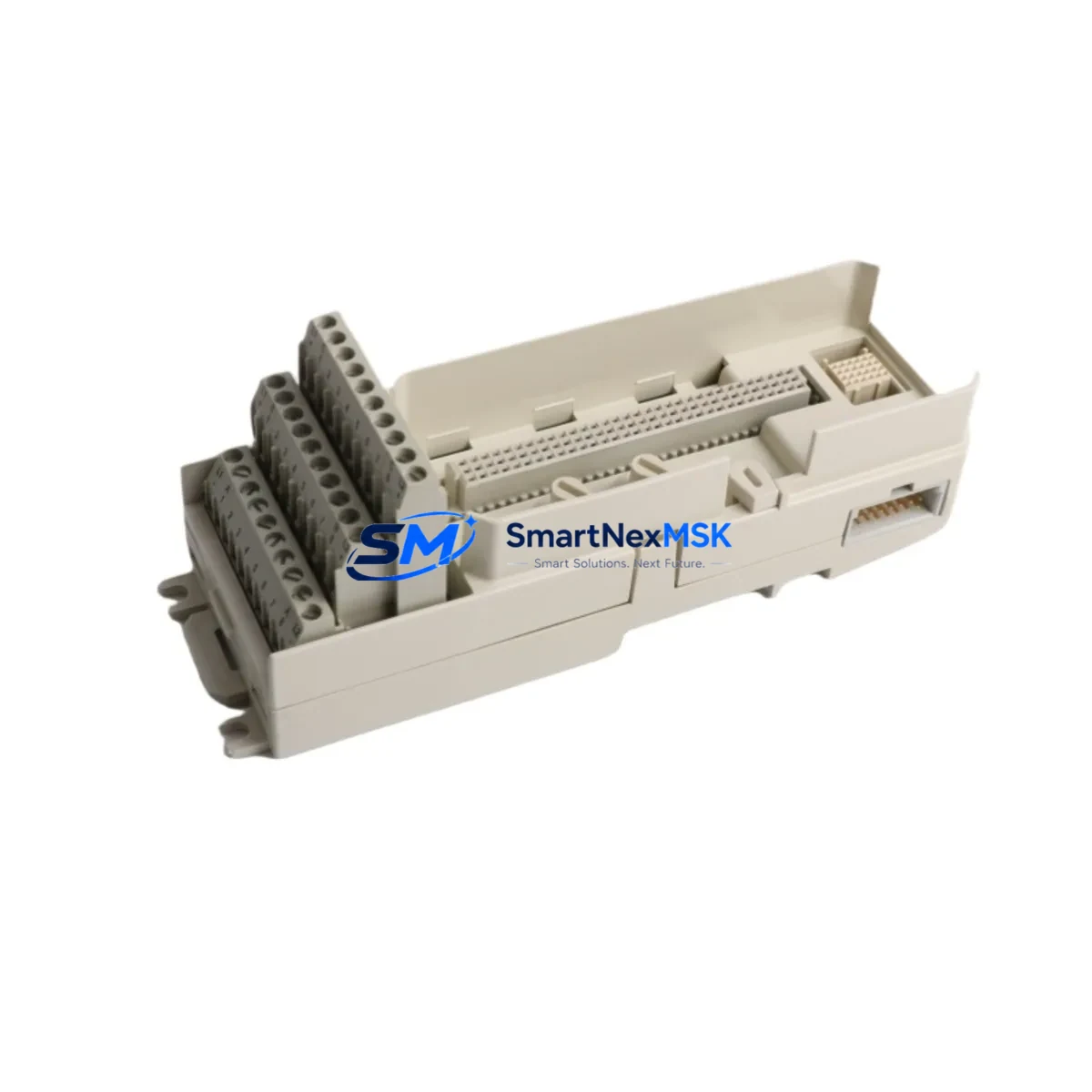

The ABB TU810V1 (part number 3BSE013230R1) is an original S800 I/O module termination unit designed for use within ABB’s S800 distributed I/O system — one of the most widely deployed I/O architectures in process automation, power generation, and continuous manufacturing environments. As a field-proven termination unit, the TU810V1 provides the physical and electrical interface between the S800 I/O modules and field wiring, making it a critical component in any control cabinet that relies on ABB’s Freelance or System 800xA DCS platforms.

When a TU810V1 fails or degrades, the consequences extend beyond a single I/O channel. The entire module slot becomes unavailable, potentially disabling a full group of analog or digital signals. For maintenance engineers managing continuous processes, this means unplanned downtime, emergency procurement pressure, and the risk of cascading faults if the termination unit is not replaced promptly. Stocking a verified original spare — tested, serialized, and shipped with a 12-month warranty — is the most reliable way to protect against this scenario.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a TU810V1 termination unit is rarely an isolated task. In a well-structured maintenance plan, the replacement of this component should trigger a broader inspection of the surrounding I/O cluster and control cabinet. Maintenance engineers should verify the condition of the S800 I/O modules seated on the termination unit — including the AI810 analog input module and DO810 digital output module — as mechanical stress or vibration that damages the termination unit may also affect module connectors and backplane contacts.

Field wiring integrity is equally important. During a TU810V1 replacement, technicians should inspect all screw-terminal connections for looseness, oxidation, or insulation damage. If the cabinet has been in service for more than five years, it is advisable to also check the condition of the CI810B communication interface module and the TB820V2 Modulebus optical port unit, as these components share the same I/O cluster and are subject to the same environmental stressors.

Power supply health should not be overlooked. The SD821 and SD822 power supply modules that feed the S800 I/O system should be checked for output voltage stability and capacitor aging. A degraded power supply can cause intermittent faults that are misdiagnosed as termination unit failures. Similarly, the SS822 redundant power supply switch should be inspected if the system is configured for redundant power.

For cabinets that include signal conditioning, the AI895 HART multiplexer or any installed signal isolators between field transmitters and the S800 I/O should be verified for correct loop current and isolation resistance. Fuse holders and miniature circuit breakers protecting individual I/O loops should also be tested during the same maintenance window to avoid repeat call-outs. If the system includes an TP830 test panel or local HMI interface, confirm that all indicators and communication links remain functional after the termination unit swap.

Site Replacement Workflow

The TU810V1 is designed for straightforward field replacement without requiring specialized tools, making it well-suited for planned maintenance windows and emergency interventions alike. The following workflow is recommended for site engineers:

1. Pre-replacement verification: Confirm the replacement unit’s part number (3BSE013230R1) and firmware compatibility with the installed S800 I/O modules. Cross-reference the system’s I/O list to identify all signals routed through the affected termination unit and notify the control room of the planned interruption.

2. Safe isolation: Place the associated controller channel in manual or safe state via the System 800xA or Freelance engineering workstation. De-energize the field wiring loop at the relevant MCB or fuse terminal before disconnecting any wiring from the termination unit.

3. Module removal and wiring transfer: Remove the S800 I/O module from the existing TU810V1 by releasing the module latch. Document or photograph the existing field wiring layout before disconnecting terminals. Transfer field cables to the replacement TU810V1 in the same terminal sequence, tightening each screw terminal to the specified torque.

4. Module re-seating and power-up: Seat the S800 I/O module onto the new TU810V1 and confirm the module latch is fully engaged. Re-energize the field wiring and restore the controller channel to automatic. Verify signal values in the DCS faceplate match expected field readings before releasing the loop to normal operation.

5. Post-replacement documentation: Record the replacement in the plant maintenance management system (CMMS), including the old unit’s serial number, replacement date, and any observations about the failed component’s condition. This data supports future spare parts planning and lifecycle analysis for the S800 I/O population.

This workflow minimizes downtime, preserves system compatibility, and ensures that the replacement is traceable — a requirement in regulated industries such as pharmaceuticals, oil & gas, and power generation.

Spare Parts Support FAQ

Q1: Is the TU810V1 (3BSE013230R1) compatible with all S800 I/O modules?
The TU810V1 is compatible with the standard S800 I/O module range, including AI810, AO810, DI810, DO810, DI811, DI814, DO814, AI820, and AO820. It is not interchangeable with termination units designed for the S800 I/O Compact or S800L series. Always verify the module type against the termination unit variant before ordering.

Q2: How is the spare unit tested before shipment?
Each TU810V1 unit is functionally tested prior to dispatch, including terminal continuity verification and mechanical inspection of the module connector and DIN rail mounting clip. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for TU810V1 in a large S800 installation?
For installations with more than 20 TU810V1 units, a minimum stock of 2–3 spare units is recommended to cover both emergency replacements and planned maintenance. Given that ABB has transitioned some S800 components to limited availability, maintaining a buffer stock reduces exposure to lead-time risk. Procurement engineers should review spare parts holdings annually against the installed base count.

Q4: Can the TU810V1 be used to extend the life of an aging S800 system?
Yes. Replacing worn or corroded TU810V1 units is one of the most cost-effective strategies for extending the operational life of an S800 I/O system without requiring a full controller migration. Combined with periodic replacement of aging power supply modules and communication interfaces, a proactive termination unit replacement program can add 5–10 years to the useful life of an existing DCS installation.
