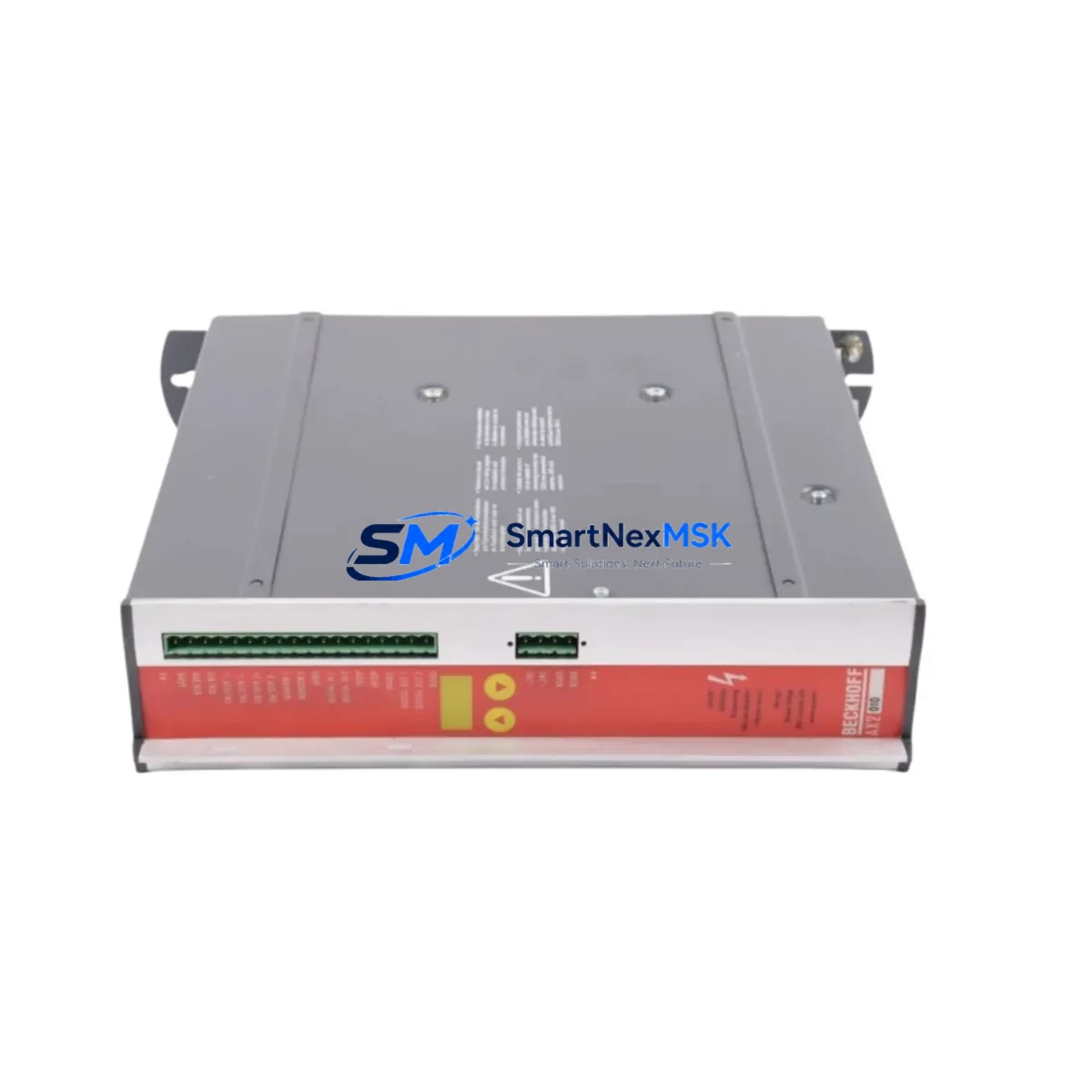

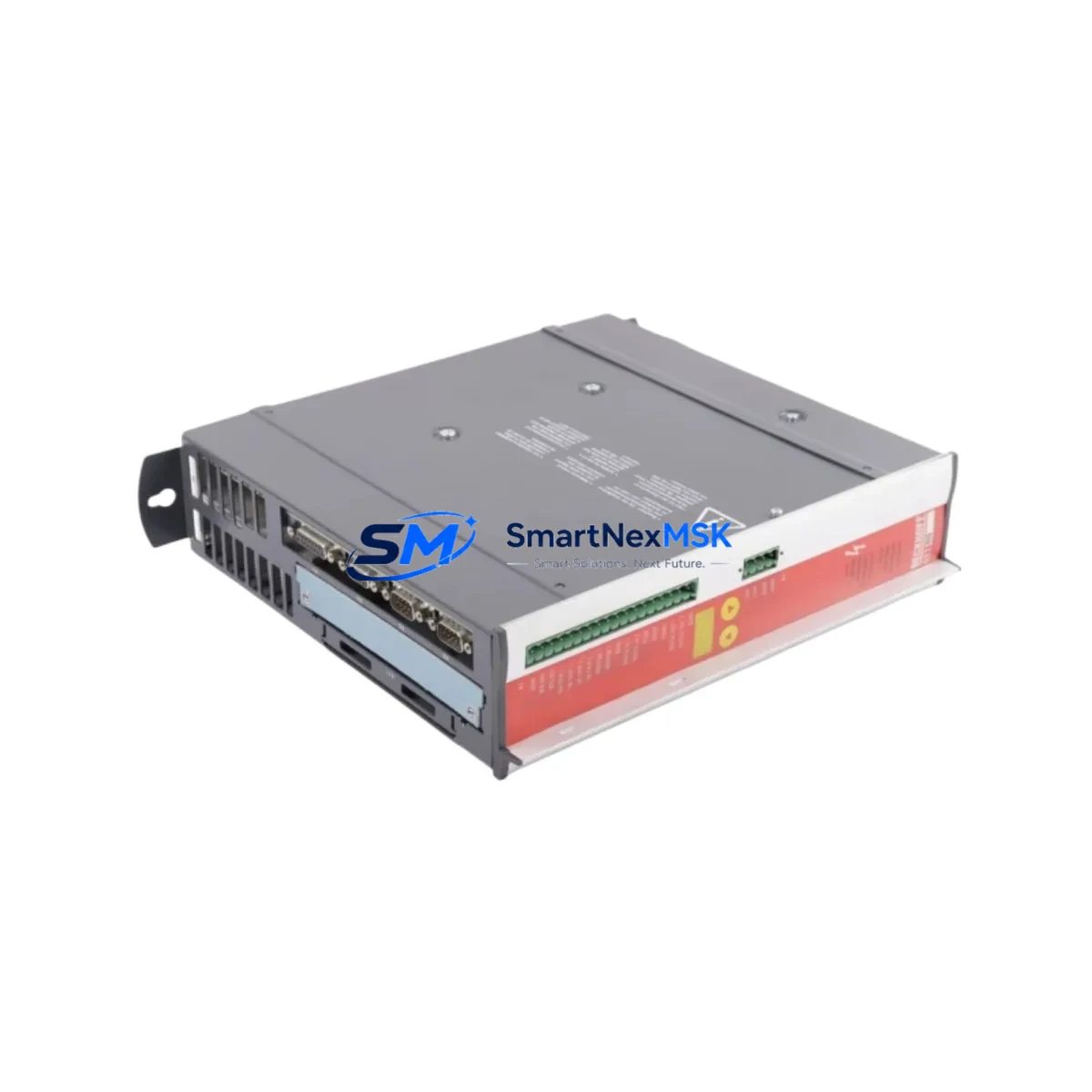

BECKHOFF AX2010-S61000-520 Safety-Enhanced Servo Drive

BECKHOFF AX2010-S61000-520: Safety-Enhanced Servo Drive for Harsh Industrial Control

The BECKHOFF AX2010-S61000-520 is a high-performance digital servo drive from the AX2000 Series, rated at 7 kVA and engineered for continuous, safety-critical motion control in demanding industrial environments. Designed to operate reliably inside high-density control cabinets, critical interlock loops, and heavy-load automation systems, this drive delivers the signal integrity, surge tolerance, and thermal stability that modern industrial safety architectures demand.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port crane systems, and continuous manufacturing cells, servo drive failures are not merely productivity events — they are safety events. The AX2010-S61000-520 addresses this reality through robust hardware design, wide operating temperature tolerance, and compatibility with BECKHOFF’s TwinCAT motion control ecosystem, enabling deterministic axis control even under high electrical noise, voltage fluctuation, and mechanical vibration.

This unit is available from stock, has passed pre-shipment functional testing, and is backed by a 12-month warranty. It is suitable for direct replacement of failed AX2010-S61000-520 units in existing AX2000 installations without requiring firmware reconfiguration in most standard deployments.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the AX2010-S61000-520 within a safety-rated control cabinet requires a layered protection strategy that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously.

On the power supply side, pairing this drive with a BECKHOFF CX2040 Embedded PC or a dedicated BECKHOFF CP6201 Panel PC as the motion controller ensures deterministic EtherCAT cycle times that prevent axis desynchronization under load transients. The drive’s DC bus should be protected by appropriately rated line reactors and EMI line filters — typically a 3-phase choke rated for the drive’s input current — to suppress conducted interference from adjacent variable-frequency drives or large contactors sharing the same cabinet bus.

For safe torque off (STO) wiring, the AX2010-S61000-520 integrates directly with PILZ PNOZ safety relays or equivalent IEC 62061-compliant safety relay modules, enabling hardware-level axis inhibit without requiring software intervention. This is critical in applications where a single axis fault must not propagate to adjacent servo axes — for example, in a multi-axis gantry system or a synchronized winding line.

Signal drift and encoder feedback corruption are among the most common causes of nuisance trips in servo systems operating near high-current switchgear. The AX2010-S61000-520’s differential encoder input stage provides strong common-mode rejection, but additional shielding of EnDat 2.2 or Hiperface DSL feedback cables is recommended for cable runs exceeding 10 meters in electrically noisy environments. Grounding the cable shield at the drive end only — following BECKHOFF’s AX2000 installation guidelines — minimizes ground loop currents that can corrupt position data.

For communication redundancy in SERCOS II topologies, the drive should be positioned in the ring with a BECKHOFF FC7501 SERCOS II PCI card or equivalent master interface, with fiber-optic ring integrity monitored by the TwinCAT NC/PTP axis configuration. In EtherCAT-based upgrades, the AX2000 series can be interfaced via the BECKHOFF AX2000-B900 EtherCAT option card, enabling integration into modern TwinCAT 3 motion projects without replacing the drive hardware.

Thermal management within the cabinet is equally important. The AX2010-S61000-520 requires forced-air cooling with a minimum airflow of 150 m³/h across the heatsink. Cabinet-level thermal protection using bimetallic thermostat switches or PT100 temperature sensors connected to the PLC’s analog input module — such as a BECKHOFF EL3204 4-channel RTD input terminal — allows the control system to issue pre-fault warnings before thermal shutdown occurs, preventing unplanned production stops.

For applications requiring UPS-backed control power, integrating a 24 VDC UPS module on the control voltage rail ensures that the drive’s STO logic, encoder supply, and fieldbus communication remain active during brief mains interruptions, allowing the axis to perform a controlled deceleration rather than an uncontrolled coast-to-stop.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous-area control systems, the AX2010-S61000-520 drives precision positioning of valve actuators, compressor inlet guide vanes, and agitator drives in classified zones. Its STO function satisfies the hardware safety requirements of IEC 61511 process safety instrumented systems when integrated with an approved safety PLC. The drive’s surge-hardened input stage tolerates the voltage spikes common in plants where large motor starters and capacitor banks share the same MCC bus.

Power Generation and Utilities: Turbine auxiliary systems, boiler feed pump drives, and cooling tower fan controls in power stations demand continuous, uninterrupted operation. The AX2010-S61000-520’s wide supply voltage tolerance (±10%) accommodates the voltage fluctuations typical of generator-fed island grids, while its deterministic SERCOS II communication ensures that speed reference updates from the DCS are executed within the required cycle time.

Mining and Mineral Processing: Conveyor positioning drives, crusher feed control, and flotation cell agitators in underground and open-cut mining environments expose servo drives to high vibration, dust ingress, and wide ambient temperature swings. Cabinet-mounted AX2010-S61000-520 units, when installed in IP54 or higher enclosures with filtered ventilation, provide the mechanical and electrical robustness required for 24/7 continuous operation in these conditions.

Water and Wastewater Treatment: Pump speed control, sluice gate positioning, and UV disinfection system drives in water treatment facilities require drives that can operate reliably in high-humidity environments with minimal maintenance access. The AX2010-S61000-520’s 12-month warranty and pre-shipment testing protocol reduce the risk of infant-mortality failures in remote or unmanned pump stations.

Metallurgy and Steel Mills: Rolling mill main drives, coiler tension control, and ladle transfer car positioning in steel plants impose extreme demands on servo drive robustness. The AX2010-S61000-520’s ability to handle regenerative braking loads — returning energy to the DC bus during deceleration — reduces thermal stress on braking resistors and improves overall energy efficiency in high-inertia applications.

Port and Crane Systems: Ship-to-shore crane hoisting drives, rubber-tyred gantry (RTG) trolley drives, and automated stacking crane systems require servo drives capable of handling asymmetric load profiles, frequent acceleration/deceleration cycles, and outdoor temperature extremes. The AX2010-S61000-520’s robust mechanical construction and wide operating temperature range make it a reliable choice for these high-duty-cycle applications.

Safety and Quality FAQ

Q: What warranty coverage is provided for the AX2010-S61000-520?
A: Every unit is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options to minimize your downtime.

Q: How is each unit tested before shipment?
A: Each AX2010-S61000-520 undergoes a full functional pre-shipment test that verifies power stage operation, feedback interface integrity, communication port functionality, and STO channel response. Units that do not pass all test criteria are not shipped. A test record is available upon request.

Q: Is the AX2010-S61000-520 compatible with my existing AX2000 installation?
A: Yes. The AX2010-S61000-520 is a direct form-fit-function replacement for existing AX2010-S61000-520 units in AX2000 Series installations. It is compatible with SERCOS II ring topologies, standard BECKHOFF motor feedback cables, and TwinCAT NC/PTP axis configurations. No firmware changes are required in most standard deployments. For non-standard configurations, our technical team can advise on compatibility before shipment.

Q: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
A: Yes. We maintain stock of AX2010-S61000-520 units and related AX2000 Series components to support ongoing spare parts programs for industrial facilities with long equipment lifecycles. We can provide volume pricing, reserved stock agreements, and scheduled delivery programs for customers requiring guaranteed supply continuity over multi-year maintenance contracts.
