Beckhoff CP6500-1006-0020 Maintenance-Ready Spare for CP6500 Automation

Beckhoff CP6500-1006-0020 Maintenance-Ready Spare for CP6500 Automation

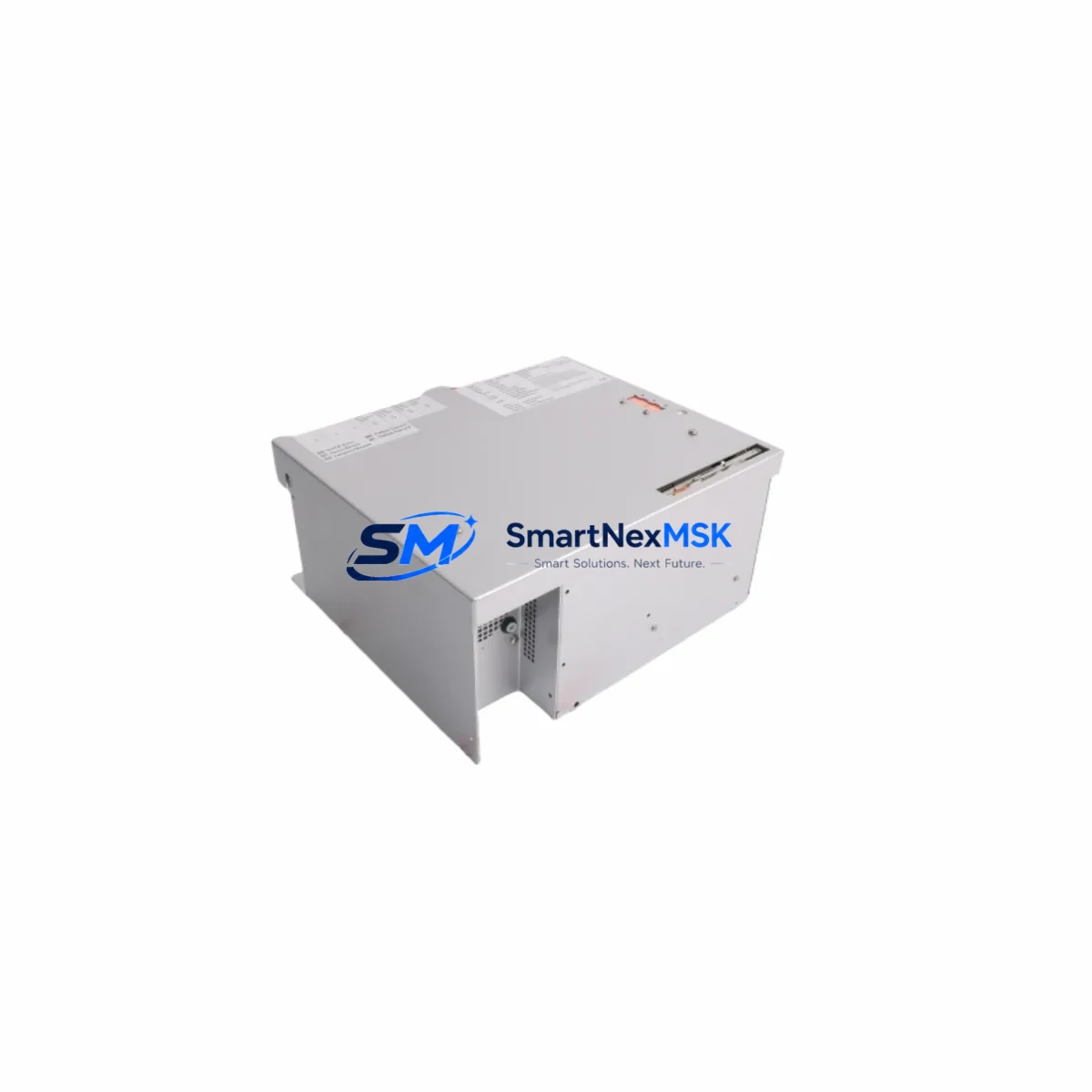

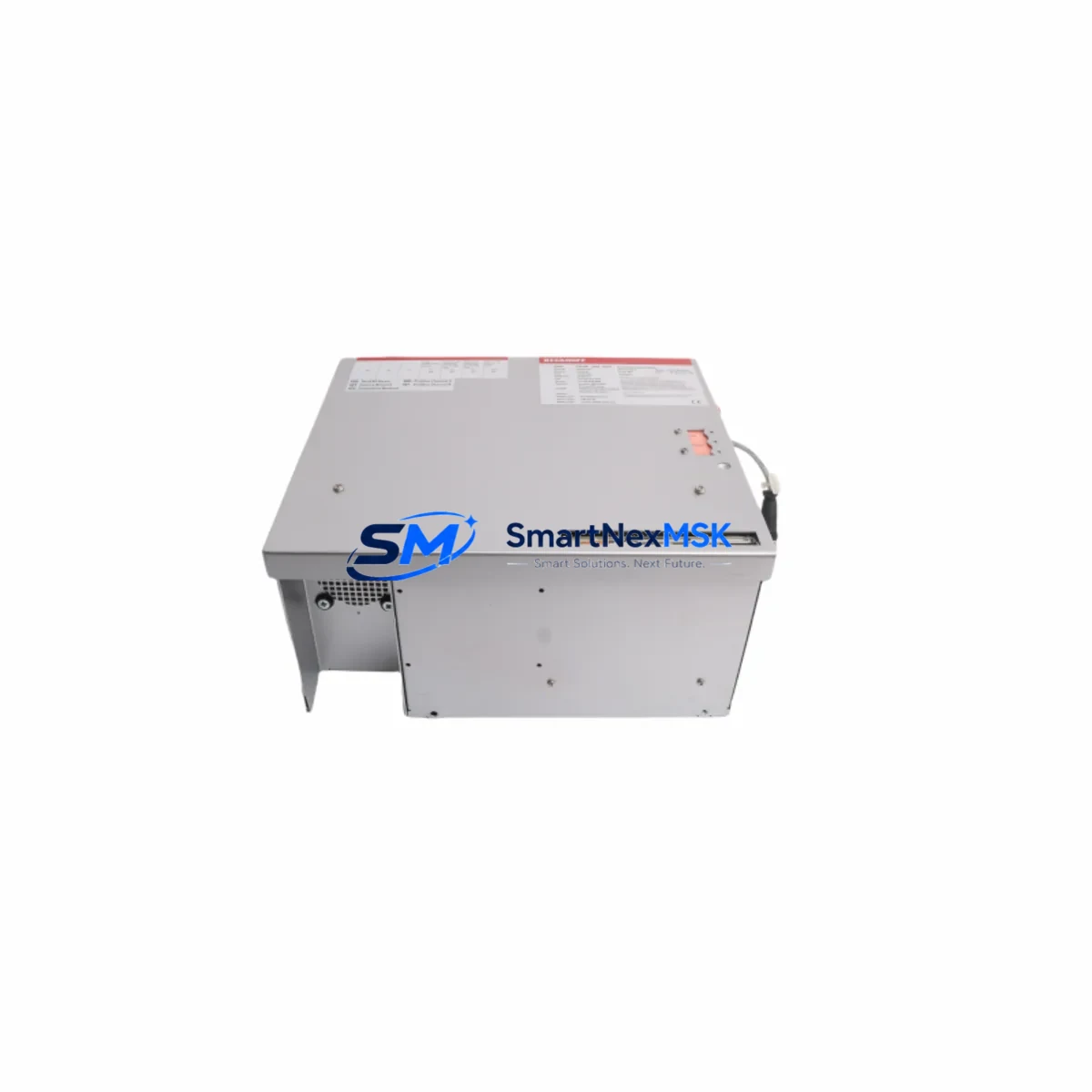

The Beckhoff CP6500-1006-0020 is a fanless Industrial Panel PC from the CP6500 Series, engineered for demanding HMI and visualization tasks in continuous industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and dispatched to support rapid downtime recovery in PLC-based and PC-based control architectures. Whether you are managing a scheduled overhaul, responding to an unplanned HMI failure, or building a strategic spare parts buffer for aging Beckhoff CP6500 installations, the CP6500-1006-0020 delivers verified compatibility, reliable performance, and a 12-month warranty backed by pre-shipment functional testing.

Maintenance engineers working with Beckhoff TwinCAT-based systems understand that an HMI failure at the operator station can cascade into full line stoppage. The CP6500-1006-0020 is designed to slot directly into existing CP6500 Series mounting cutouts, preserving panel wiring, DVI/USB interface routing, and TwinCAT runtime continuity without requiring software reconfiguration. Its fanless thermal design eliminates the most common mechanical failure mode in industrial panel PCs — bearing wear in cooling fans — making it a preferred choice for high-ambient-temperature enclosures and sealed control cabinets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CP6500-1006-0020 Panel PC is flagged for replacement during a control cabinet inspection or after an HMI fault alarm, experienced maintenance engineers treat the event as a trigger for a broader system health review. The Panel PC sits at the operator interface layer of the control architecture, but its failure often exposes underlying issues in adjacent components that share the same 24 VDC power rail or communication backbone.

Start by verifying the 24 VDC panel power supply — units such as the Beckhoff PS2000 series or equivalent DIN-rail PSUs — since voltage sag or ripple is a leading cause of premature Panel PC failure. Inspect the CP6500 power connector and wiring harness for signs of thermal stress or loose terminations at the terminal block. If the cabinet includes a Beckhoff CX series Embedded PC (e.g., CX5130 or CX2040) acting as the TwinCAT runtime host, confirm that the EtherCAT or DVI signal cable between the IPC and the CP6500-1006-0020 is undamaged and properly seated.

For systems using Beckhoff EL1xxx or EL2xxx digital I/O terminals on the same EtherCAT segment, run a terminal diagnostic scan after Panel PC replacement to confirm no I/O mapping errors were introduced during the swap. If the installation includes EL3xxx analog input terminals for process signal monitoring, verify signal integrity and scaling after the HMI is restored. In cabinets where EL6xxx communication terminals (Profibus, CANopen, or serial) bridge legacy field devices to the TwinCAT runtime, check communication status LEDs and re-establish any dropped links.

Inspect fuse holders and circuit protection on the 24 VDC branch feeding the Panel PC — a blown fuse or tripped miniature circuit breaker is often the first symptom of an upstream short that damaged the original unit. Review the UPS module (if installed, such as a Beckhoff CU8110 or third-party DIN-rail UPS) to ensure it can sustain a clean shutdown cycle for the replacement unit. Finally, if the system uses Beckhoff TwinSAFE EL6900 or AX5000 safety terminals, confirm that safety logic and PROFIsafe addresses are unaffected by the Panel PC replacement before re-enabling machine guarding.

Site Replacement Workflow

Replacing the CP6500-1006-0020 on-site follows a structured sequence designed to minimize total downtime and eliminate re-commissioning errors. Begin by exporting the current TwinCAT project backup from the runtime host (CX or IPC) before powering down the panel — this protects the HMI configuration and PLC program independently of the Panel PC hardware. Power down the cabinet via the main isolator, then disconnect the DVI-I signal cable, USB peripherals, and 24 VDC power connector from the rear of the CP6500-1006-0020.

Release the panel mounting clamps from the front bezel and extract the unit from the cutout. Install the replacement CP6500-1006-0020, reconnect all cables in reverse order, and restore power. The fanless design means there is no fan connector to manage. On first boot, verify that the Windows Embedded or TwinCAT runtime loads correctly and that the DVI signal is detected by the host IPC. Restore the TwinCAT project if required, confirm I/O mapping, and perform a short functional test cycle before returning the machine to production.

This workflow typically achieves full restoration in under two hours for a prepared maintenance team holding the spare unit on-site — compared to days or weeks of lead time if the spare must be sourced reactively after failure. Stocking the CP6500-1006-0020 as a designated shelf spare is the single most effective downtime-reduction measure for facilities running multiple Beckhoff CP6500 HMI stations.

Spare Parts Support FAQ

Q1: Is the CP6500-1006-0020 a direct drop-in replacement for older CP6500 Series units?
Yes. The CP6500-1006-0020 maintains the same panel cutout dimensions, mounting clamp system, and rear connector layout as other CP6500 Series variants, making it a direct mechanical and electrical replacement. Software compatibility with TwinCAT 2 and TwinCAT 3 runtimes is preserved, though we recommend verifying the OS image version matches your existing installation before deployment.

Q2: What pre-shipment testing is performed on this spare?
Each CP6500-1006-0020 unit undergoes power-on functional verification, display output confirmation, and interface connectivity checks prior to dispatch. Units are shipped with protective packaging to prevent transit damage. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of receipt.

Q3: How should I manage CP6500-1006-0020 inventory for a multi-site facility?
For facilities operating three or more CP6500 HMI stations, we recommend maintaining at least one CP6500-1006-0020 spare per site. For critical production lines with no redundancy, a 1:2 spare ratio (one spare per two installed units) is a common industry benchmark. Rotate shelf spares into service on a planned basis and replace them to maintain a fresh stock with active warranty coverage.

Q4: Can this unit be used to extend the life of a legacy Beckhoff CP6500 installation?
Absolutely. The CP6500-1006-0020 is one of the most effective tools for extending the operational life of existing CP6500-based control systems without requiring a full panel or PLC upgrade. By replacing worn or failed HMI hardware with a tested original spare, facilities can defer costly system migrations while maintaining full TwinCAT compatibility and operator familiarity.
