Bently Nevada 102048-00-28-15-02 Spare 3300 XL Automation

Bently Nevada 102048-00-28-15-02 Maintenance-Ready Spare for 3300 XL Automation

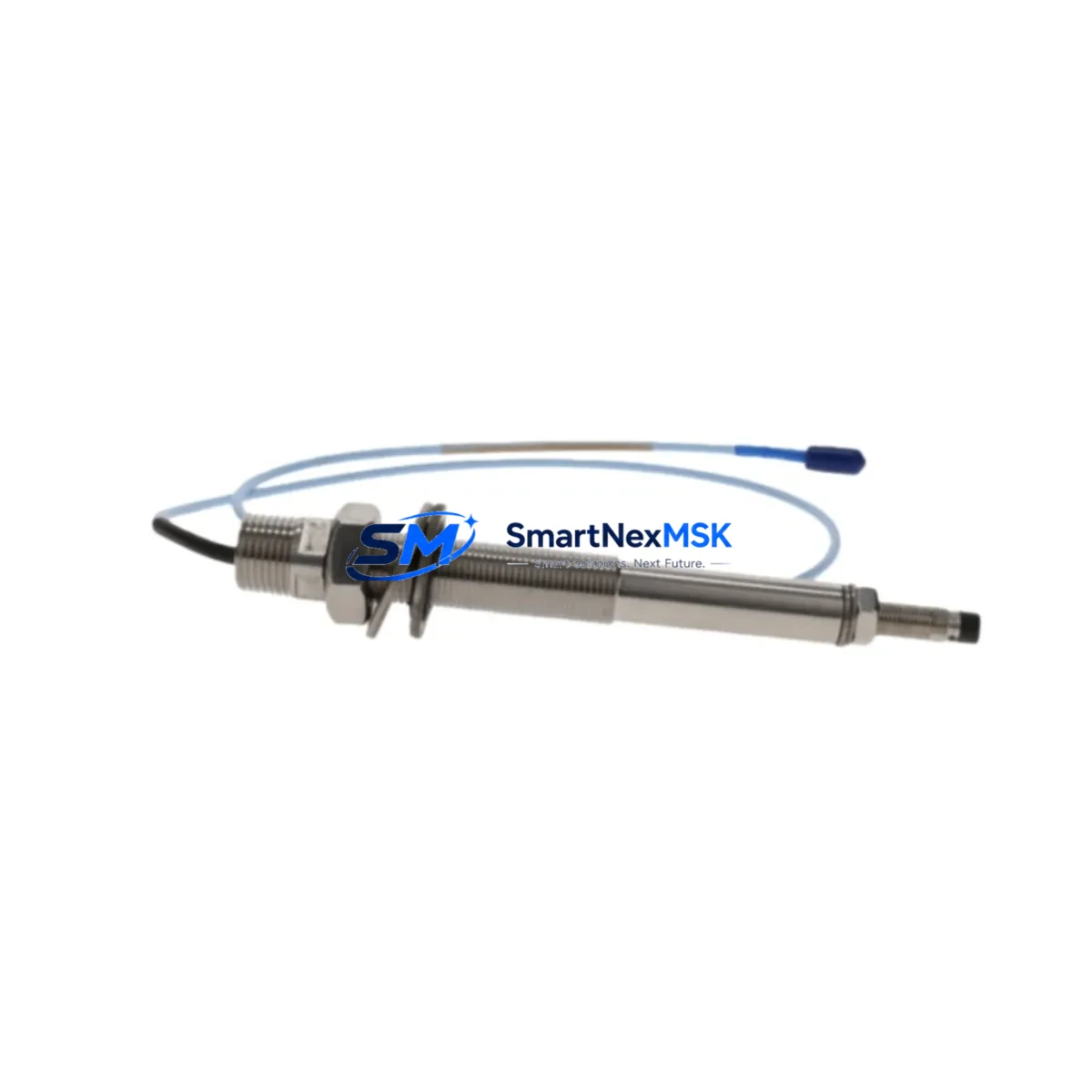

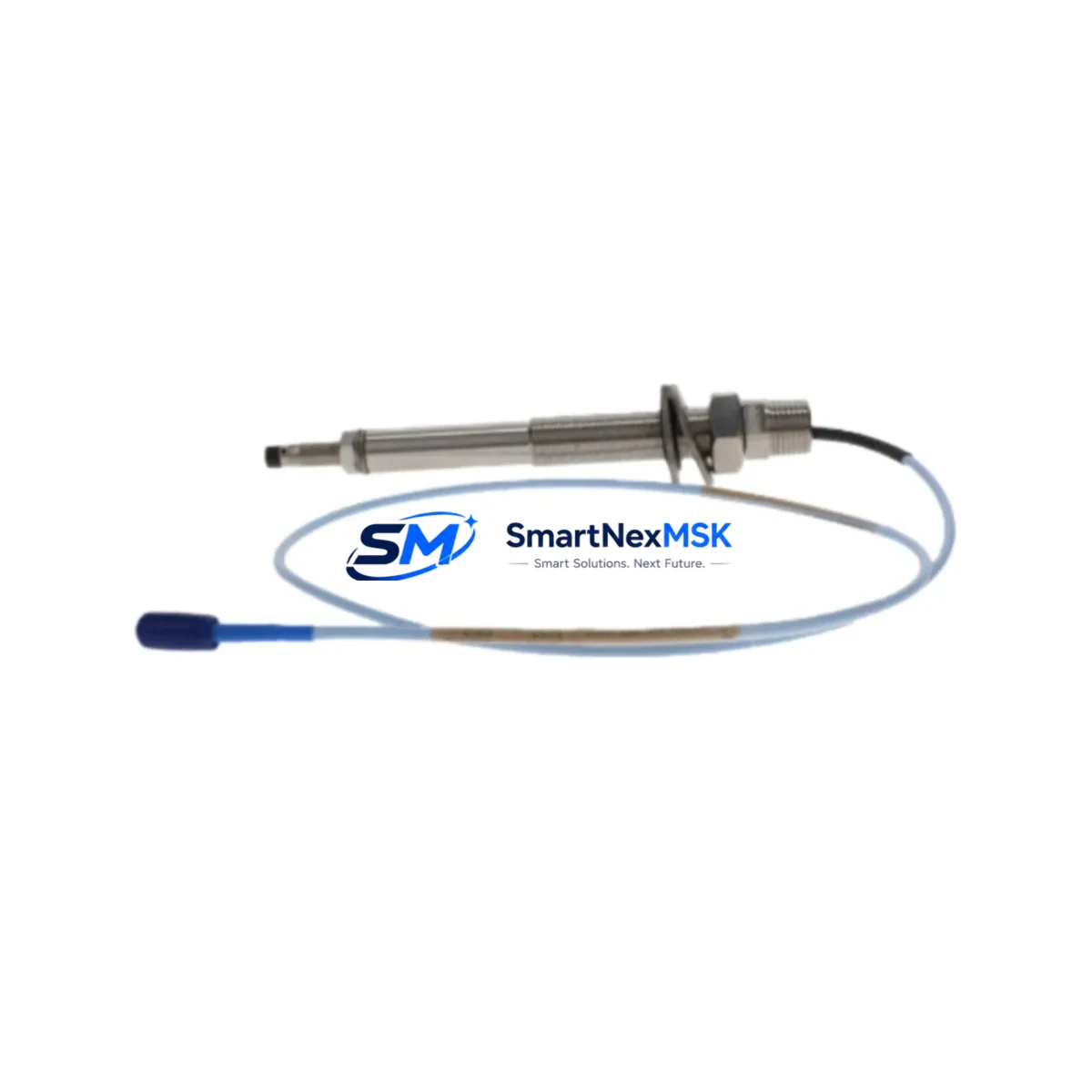

The Bently Nevada 102048-00-28-15-02 is an original proximity probe designed for continuous vibration and position monitoring within the 3300 XL Series transducer system. For maintenance engineers managing rotating machinery — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor whose failure can trigger unplanned shutdowns and costly production losses. Stocking a verified replacement spare is the single most effective step toward reducing mean time to repair (MTTR) and maintaining system uptime.

This unit ships fully tested and inspected, backed by a 12-month warranty, and is sourced as an original Bently Nevada component. Whether you are executing a planned turnaround, responding to a vibration alarm, or building out your critical spare inventory, the 102048-00-28-15-02 is available for immediate dispatch with documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proximity probe such as the 102048-00-28-15-02 is flagged for replacement during a routine inspection or after a vibration alarm event, experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. A thorough site assessment should include the complete transducer loop.

The 3300 XL extension cable (typically 5 m or 9 m, matched to the probe) should be inspected for jacket damage, connector corrosion, and continuity — a degraded cable is a common source of signal noise that mimics probe failure. The 3300 XL proximitor / signal conditioner (e.g., 330180 or 330130 series) mounted in the junction box or control cabinet should be checked for output voltage drift and proper gap voltage, as a failing proximitor will produce erratic readings even with a new probe installed.

At the monitor rack level, verify the 3500/40M or 3300/16 vibration monitor card for alarm setpoint integrity and channel health. If the machine has been running with a degraded probe signal for an extended period, the monitor’s internal calibration record should be reviewed. Alongside the vibration channel, the 3500 rack power supply module should be load-tested — an under-voltage condition on the rack bus is a known cause of false trips and intermittent channel faults.

For machines where the 102048-00-28-15-02 monitors axial position or differential expansion, the associated thrust position monitor channel and its 4–20 mA output isolator should be verified for loop integrity before the machine is returned to service. Signal isolators and barriers in the measurement loop — particularly in hazardous-area installations — should be tested for correct input/output scaling.

In control cabinets where the 3300 XL system interfaces with a DCS or safety system, check the terminal blocks and field wiring for tightness and insulation resistance. Loose terminations at the I/O marshalling panel are a frequent cause of intermittent vibration readings. If the site uses a Bently Nevada 3500 System 1 Evolution software platform, confirm that the replacement probe’s gap voltage and sensitivity are re-entered into the configuration after installation.

For older installations where the 3300 XL system is approaching end-of-support, this is also an appropriate time to assess whether 3500 Series upgrade kits or compatible third-party transducer systems can extend the operational life of the monitoring architecture without a full rack replacement.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the proximitor power supply and confirm zero energy state at the junction box before disconnecting the probe.

Step 2 — Gap Measurement: Record the existing probe gap voltage (typically –10 VDC ± 1 V for a healthy 8 mm probe at nominal gap). This baseline confirms whether the probe or the proximitor is the failed component.

Step 3 — Probe Removal: Unscrew the probe from the bracket. Inspect the probe tip for physical damage, oil contamination, or shaft contact marks. Inspect the target area on the shaft for scoring.

Step 4 — Install 102048-00-28-15-02: Thread the replacement probe to the bracket. Set gap per OEM specification (typically 1.0–1.5 mm for 8 mm probes). Torque to specification. Route the extension cable to the proximitor, avoiding sharp bends and heat sources.

Step 5 — Reconnect and Verify: Restore power to the proximitor. Measure output voltage at the monitor input. Confirm the reading falls within the linear range. Clear any latched alarms at the 3500 monitor rack.

Step 6 — Functional Test: With the machine at rest, verify static gap voltage. During startup, monitor the vibration trend for the first 15 minutes to confirm stable readings before returning to normal operation.

This workflow minimizes downtime and ensures the replacement is fully validated before the machine re-enters service — consistent with best practices for critical rotating equipment maintenance.

Spare Parts Support FAQ

Q: Is the 102048-00-28-15-02 compatible with both 3300 and 3500 Series monitor racks?
A: Yes. The 3300 XL 8 mm proximity transducer system is designed to interface with both 3300 Series and 3500 Series Bently Nevada monitor racks. Confirm the proximitor model and monitor channel configuration match the probe sensitivity (7.87 V/mm) before installation.

Q: What is the recommended spare inventory strategy for this probe?
A: For critical rotating machinery (turbines, compressors), industry best practice recommends holding a minimum of one probe-plus-extension-cable set per monitored shaft, plus one spare proximitor per rack. For plants with multiple identical machines, a pooled critical spare of 2–3 units per probe model is standard.

Q: How is the unit tested before shipment?
A: Each 102048-00-28-15-02 unit undergoes electrical continuity verification, insulation resistance testing, and output sensitivity confirmation against OEM specifications prior to dispatch. A test report is available upon request.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and electrical performance failures under normal operating conditions for 12 months from the date of shipment. Units damaged by incorrect installation, overvoltage, or physical impact are excluded. Warranty claims are processed with return authorization and replacement dispatch within 5 business days.
