Bently Nevada 106765-01 Retrofit-Ready Cable for Velomitor XA

Bently Nevada 106765-01 Retrofit-Ready Interconnect Cable for Velomitor XA Control Systems

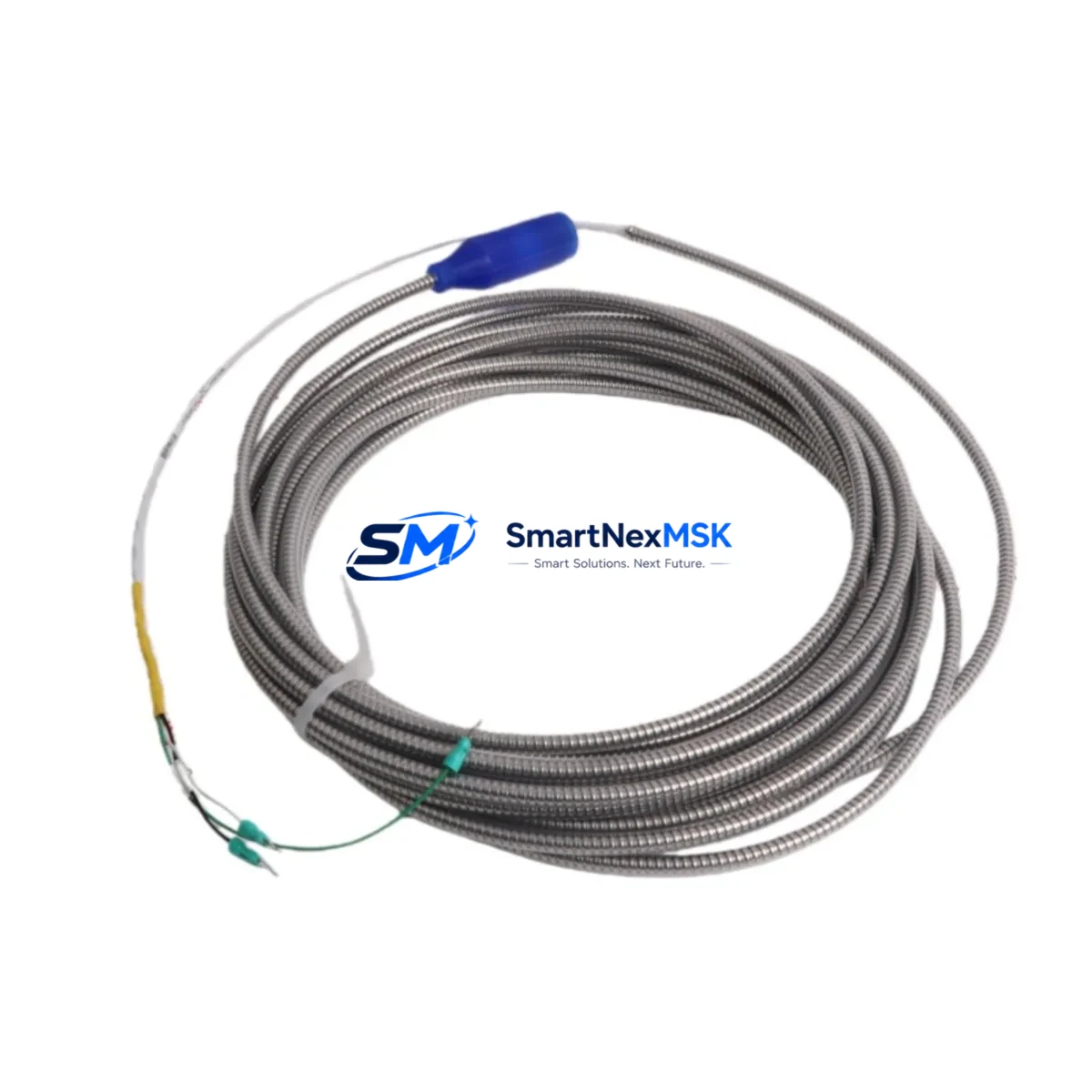

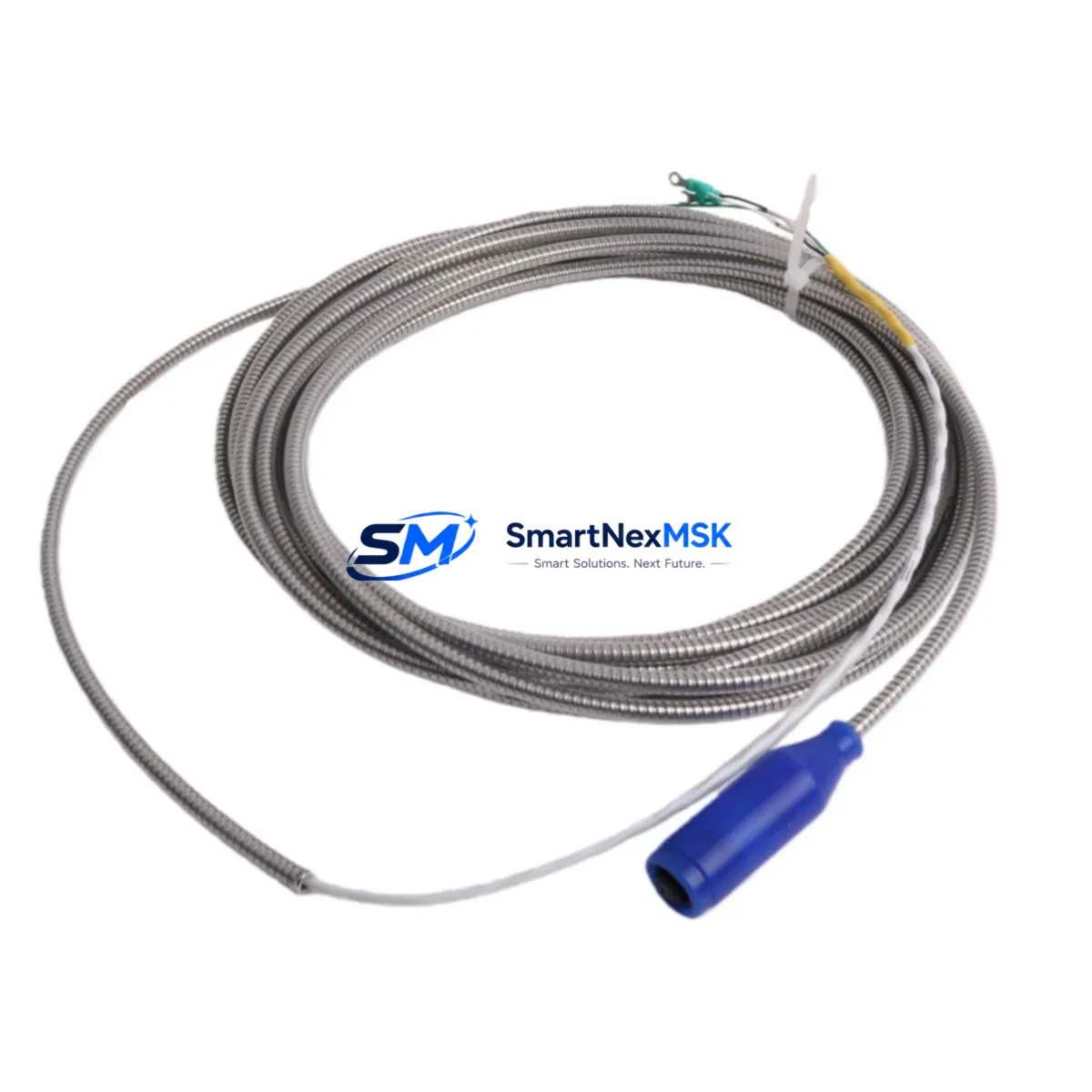

The Bently Nevada 106765-01 is a precision-engineered sensor interconnect cable designed for seamless integration with Velomitor XA velocity transducers in continuous machinery protection and condition monitoring applications. As legacy vibration monitoring infrastructure ages across refineries, power generation facilities, compressor stations, and rotating equipment platforms, the 106765-01 has become a critical retrofit component enabling engineers to extend the operational life of existing Bently Nevada 3500 Series monitoring systems without requiring full platform replacement.

This cable serves as a direct drop-in replacement for worn, damaged, or end-of-life interconnect assemblies in Velomitor XA installations. Its shielded construction preserves signal integrity across the full velocity measurement range, ensuring that the 3500/42M Velocity Monitor and associated rack modules continue to receive clean, low-noise analog signals from field-mounted transducers. For facilities operating Bently Nevada 3500 Series racks with modules such as the 3500/20 Rack Interface Module, 3500/22M Transient Data Interface, or 3500/42M Velocity Monitor, maintaining cable integrity is non-negotiable for alarm accuracy and trip reliability.

When planning a retrofit or cable replacement campaign, engineers must verify several key parameters before installation. Power supply capacity at the junction box or marshalling cabinet should be confirmed to ensure the Velomitor XA transducer’s 18–24 VDC excitation requirement is met without voltage drop across extended cable runs. Terminal wiring at both the transducer connector and the 3500 rack I/O module must be inspected for corrosion, pin alignment, and torque compliance per Bently Nevada installation specifications. Cable routing should avoid proximity to high-voltage conduit, VFD output cables, and other EMI sources that could introduce noise into the velocity signal chain.

For systems undergoing broader modernization, the 106765-01 is frequently deployed alongside the Bently Nevada 330130-080-00-00 proximity probe extension cable and the 330180-X0-05 proximity probe to maintain consistent wiring standards across both velocity and displacement measurement channels within the same machinery train. In multi-channel rack configurations, the 3500/40M Proximitor/Seismic Monitor may be installed in adjacent slots, and cable management discipline across all sensor types is essential to prevent cross-talk and maintain rack-level signal isolation.

Facilities migrating from older Bently Nevada 7200 Series or 3300 Series monitoring platforms to the current 3500 architecture will find that the 106765-01 supports the transition by providing a standardized, field-proven cable interface that is compatible with the updated rack backplane and I/O termination conventions. During such migrations, it is common to simultaneously replace the 3500/15 Power Supply Module to ensure adequate current capacity for the expanded sensor count, and to reconfigure the 3500/20 Rack Interface Module for updated Modbus or Ethernet/IP communication with the plant DCS or historian.

Program compatibility is another critical consideration during cable replacement on live systems. If the 3500 rack is connected to a GE/Bently Nevada System 1 Evolution condition monitoring software platform, the channel configuration, transducer type, and full-scale range settings stored in the rack must be verified after any hardware change. Replacing the interconnect cable does not alter rack programming, but a functional loop check — including a simulated velocity input and alarm verification — should be performed before returning the machinery to service. HMI screens on the plant DCS or dedicated vibration monitoring workstation should be reviewed to confirm that all channel tags, alarm setpoints, and trend displays reflect the correct engineering units following the retrofit.

Communication link integrity between the 3500 rack and the plant control network should also be validated post-installation. Whether the facility uses a Bently Nevada 3500/92 Communication Gateway Module for Modbus RTU, Profibus DP, or Ethernet/IP connectivity, a communication health check ensures that the historian and alarm management system are receiving continuous, gap-free data from the retrofitted channel. For sites using a Rockwell Automation ControlLogix or Siemens S7-300/S7-400 PLC as the primary safety or control platform, the vibration rack’s analog or digital output signals should be verified at the PLC I/O module level to confirm correct scaling and alarm integration.

All 106765-01 cables supplied by SMARTNEXMSK are sourced from verified supply channels, individually inspected prior to shipment, and covered by a 12-month warranty against manufacturing defects. In-stock inventory supports rapid dispatch to minimize unplanned downtime during emergency cable replacement scenarios. Global shipping is available with full export documentation for international customers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 106765-01 retrofit begins with a thorough site survey of the existing cable routing, junction box condition, and rack slot assignments. In a typical 3500 Series rack installation, the Velomitor XA transducer connects through the 106765-01 interconnect cable to the I/O termination block of the 3500/42M Velocity Monitor. Adjacent slots may house the 3500/40M Proximitor/Seismic Monitor for displacement measurement on the same shaft, and the 3500/20 Rack Interface Module manages overall rack communication and configuration access via the Bently Nevada Rack Configuration Software.

During the retrofit, engineers should also inspect the 3500/15 Power Supply Module output voltage under load, particularly in racks where additional I/O modules or communication gateways such as the 3500/92 Communication Gateway Module have been added since the original installation. Undersized power supply capacity is a common root cause of intermittent transducer faults that are misdiagnosed as cable failures. If the rack is being expanded as part of the same modernization project, replacing the power supply module concurrently with the interconnect cable eliminates a potential future failure point.

For facilities also upgrading proximity probe channels, the Bently Nevada 330130-080-00-00 extension cable and 330180-X0-05 proximity probe are natural companion items to the 106765-01 replacement, allowing a single maintenance window to address all sensor wiring across the machinery train. Programming cables such as the Bently Nevada 128229-01 are required if rack configuration changes are needed during the retrofit, and should be staged on-site before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a 106765-01 cable replacement requires advance preparation and a structured execution sequence. Before isolating the affected channel, the existing velocity trend data and alarm history should be exported from the System 1 Evolution historian or the plant DCS to establish a pre-retrofit baseline. The rack should be placed in bypass mode for the affected channel only, using the 3500/20 Rack Interface Module’s channel inhibit function, to prevent spurious trips during the cable swap.

The physical cable replacement — disconnecting the old 106765-01, routing the new cable, and terminating both ends — can typically be completed within a single shift when replacement hardware is staged in advance. Following termination, a loop check using a portable velocity signal simulator confirms continuity and correct polarity before the channel is returned to active monitoring. The bypass inhibit is then removed, and the channel alarm setpoints are verified against the pre-retrofit baseline to confirm that no configuration drift occurred during the maintenance window. DCS and HMI displays should be monitored for a minimum of one full operating cycle before the machinery is returned to full production load, ensuring that the retrofitted channel is delivering stable, noise-free velocity data consistent with the pre-maintenance trend.

Retrofit Support FAQ

Q: Is the 106765-01 a direct replacement for the original Bently Nevada cable, or are wiring modifications required?
A: The 106765-01 is a direct drop-in replacement for the original Velomitor XA interconnect cable. No wiring modifications or rack reprogramming are required. Terminal connections at both the transducer and the 3500/42M I/O block follow the original Bently Nevada installation drawing, and the replacement cable uses the same connector and shield configuration as the factory-supplied assembly.

Q: What commissioning steps are required after installing the 106765-01?
A: After installation, perform a full loop check by applying a known velocity signal at the transducer end and verifying the correct reading at the 3500/42M monitor display and the DCS/HMI tag. Confirm that alert and danger alarm setpoints are active and that the channel is no longer in bypass inhibit mode. Review the System 1 Evolution or historian trend for the first 30 minutes of operation to confirm signal stability and absence of noise spikes.

Q: Can the 106765-01 be used with older Bently Nevada 3300 Series or 7200 Series racks?
A: The 106765-01 is designed and specified for use with the Velomitor XA transducer and the Bently Nevada 3500 Series monitoring platform. Compatibility with 3300 or 7200 Series racks depends on the specific I/O termination and connector configuration of those legacy systems. Contact our technical team with your rack model and slot configuration for a compatibility assessment before ordering.

Q: What warranty coverage is provided, and what does it include?
A: All 106765-01 cables supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. The warranty includes replacement or credit at our discretion. Pre-shipment inspection records are available upon request. Warranty claims should be submitted to sales@smartnexmsk.com with the order number and a description of the observed defect.
