Bently Nevada 106765-4 Retrofit-Ready Rack Cable for 3500

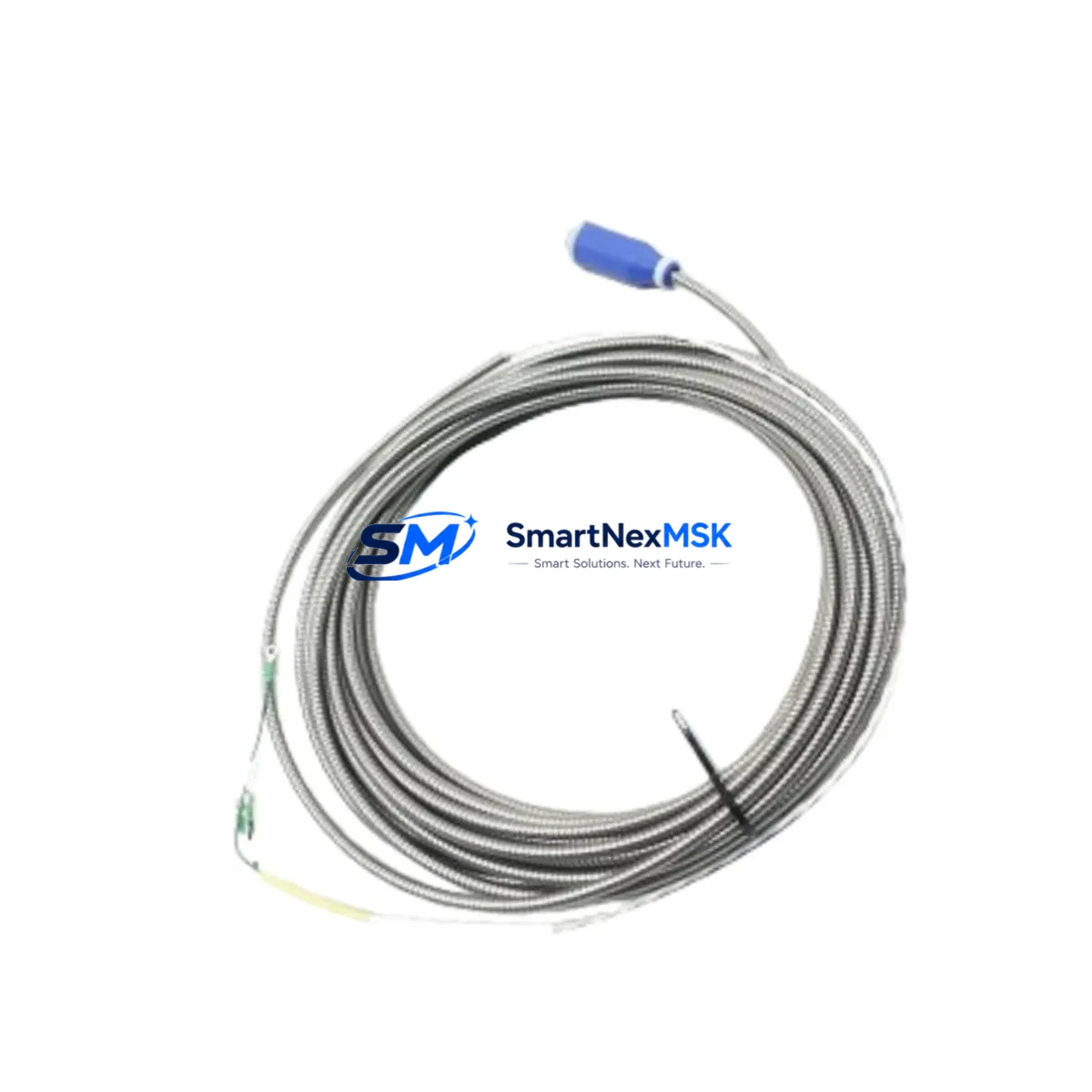

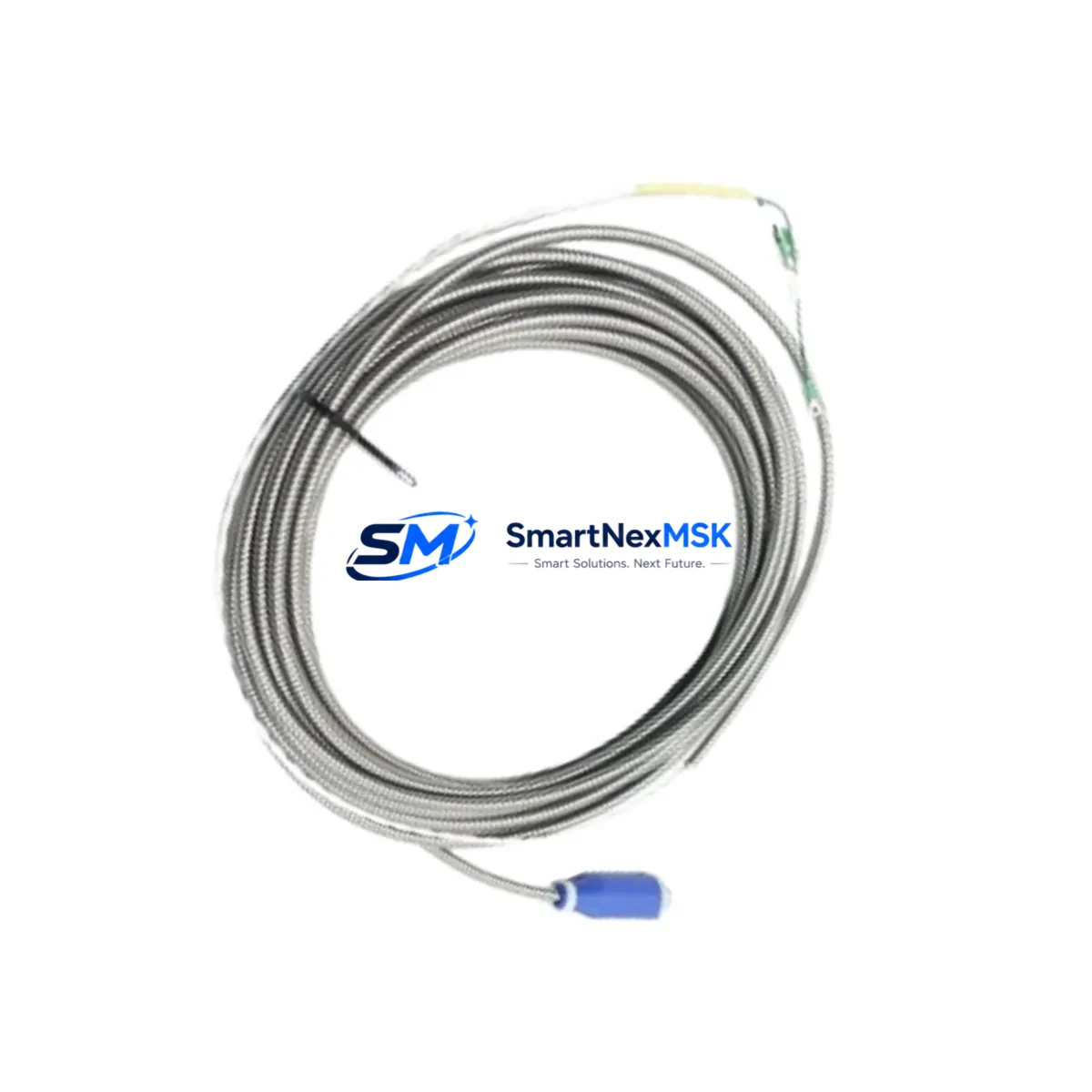

Bently Nevada 106765-4 Retrofit-Ready Rack Interconnect Cable for 3500 Series Control Systems

The Bently Nevada 106765-4 is a rack interconnect cable engineered for the 3500 Series machinery protection system platform. As aging 3500 Series installations approach end-of-support cycles, plant engineers and reliability teams increasingly rely on verified replacement cables like the 106765-4 to maintain system integrity without full rack replacement. This cable serves as a direct retrofit solution for facilities operating legacy Bently Nevada 3500/01 Power Supplies, 3500/20 Keyphasor Modules, 3500/22M Transient Data Interface modules, and 3500/42M Proximitor/Seismic Monitor cards that require reliable backplane interconnection.

Whether your facility is executing a planned control system upgrade, recovering from an unplanned failure, or consolidating spare parts inventory, the 106765-4 provides a drop-in replacement path that preserves existing rack architecture and minimizes engineering rework. It is compatible with standard 3500 Series 19-inch rack frames and interfaces directly with the 3500/05 System Rack and 3500/15 Power Supply Input Module without requiring firmware changes or address reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 106765-4 begins with a thorough audit of the existing 3500 Series rack configuration. Technicians should document the current slot assignments for all installed modules — including the 3500/40M Proximitor/Seismic Monitor, 3500/50 Tachometer Module, and 3500/60 Temperature Monitor — before disconnecting any cabling. This prevents address conflicts and ensures that the replacement cable restores the same logical interconnect topology that the original system relied upon.

Power capacity verification is a critical pre-installation step. The 3500/15 Power Supply Input Module must be confirmed to supply adequate current headroom for all active I/O cards in the rack. If the facility is simultaneously upgrading from older 3500/01 Power Supply units to newer redundant power configurations, the 106765-4 cable routing may need to be adjusted to accommodate revised terminal block positions. Wiring diagrams from the original system commissioning package should be cross-referenced against the current physical layout before any cable is removed.

For facilities migrating communication protocols — for example, transitioning from legacy serial-based monitoring to Ethernet-based integration with a DCS or historian platform — the 106765-4 supports the internal rack wiring that connects the 3500/22M Transient Data Interface to the system communication gateway. This makes it a key component in protocol migration projects where the rack’s internal signal paths must remain intact while external communication interfaces are upgraded.

I/O expansion projects that add new 3500 Series monitor cards to an existing rack also depend on correct interconnect cabling. When inserting additional Proximitor or vibration monitor modules into previously empty slots, the 106765-4 ensures that the new modules are properly integrated into the rack’s power distribution and communication bus. Technicians should confirm module address DIP switch settings on each new card and verify that the System Rack’s configuration software — typically accessed via the Rack Configuration Software (RCS) utility — reflects the updated slot map before returning the system to service.

HMI screen updates are often overlooked during cable replacement projects. If the facility uses a Bently Nevada System 1 software platform or a third-party SCADA/HMI connected to the 3500 rack, operators should verify that all channel tags, alarm limits, and trend displays remain correctly mapped after the cable swap. A brief functional test — cycling through each monitored machine channel and confirming live readings against baseline values — is recommended before signing off on the retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500 Series cable replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 106765-4 cable should be bench-tested for continuity and connector integrity. All module configurations — including alarm setpoints stored in the 3500/20 Keyphasor Module and trip multiply settings in active monitor cards — should be exported and saved using the Rack Configuration Software so that they can be restored immediately if a module reset occurs during the cable swap.

During the outage, the recommended sequence is: power down the rack via the 3500/15 Power Supply Input Module, remove the faulty or worn cable, seat the 106765-4 replacement firmly into the backplane connectors, restore power, and perform a channel-by-channel verification before releasing the machine to operations. This sequence preserves the original program logic and alarm configuration without requiring a full system re-commissioning. For critical rotating machinery applications — compressors, turbines, pumps — where continuous protection is mandatory, a temporary bypass monitoring arrangement using portable vibration analyzers may be deployed during the cable swap window to maintain field awareness of machine condition.

Post-installation, the communication link between the 3500 rack and the plant DCS or historian should be verified by confirming that all data tags are updating at the expected scan rate. Any interruption in the Modbus or OPC-DA data stream should be investigated before the maintenance record is closed. Shipping lead time for the 106765-4 is typically short from in-stock inventory, and all units are function-tested prior to dispatch. A 12-month warranty covers the replacement cable against manufacturing defects and functional failure under normal service conditions.

Retrofit Support FAQ

Q: Is the 106765-4 a direct drop-in replacement for the original Bently Nevada cable in the 3500 Series rack?
A: Yes. The 106765-4 is designed as a direct replacement for the OEM rack interconnect cable used in standard 3500 Series chassis configurations. No rack modification, firmware update, or address reconfiguration is required for a like-for-like cable swap.

Q: What wiring checks should be performed before and after installation?
A: Before installation, verify that all terminal block connections on adjacent modules are secure and that no conductors are damaged. After seating the 106765-4, confirm that all module status LEDs return to normal operating state and that no fault codes are displayed on the 3500/01 or 3500/15 power supply front panel. Check that the communication link to the System 1 platform or DCS is re-established within the expected timeout period.

Q: Can this cable be used when adding new I/O modules to an existing 3500 rack?
A: Yes. The 106765-4 supports rack expansion scenarios where new monitor modules — such as additional 3500/40M or 3500/50 cards — are being added to previously unoccupied slots. Confirm module address settings and update the Rack Configuration Software slot map before returning the system to service.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Units are function-tested prior to dispatch. For warranty claims or technical support, contact our team directly.
