Bently Nevada 106M2686-01 Spare for 3500 Automation

Bently Nevada 106M2686-01 Spare for 3500 Automation: Spare Replacement & Industrial Downtime Risk Control

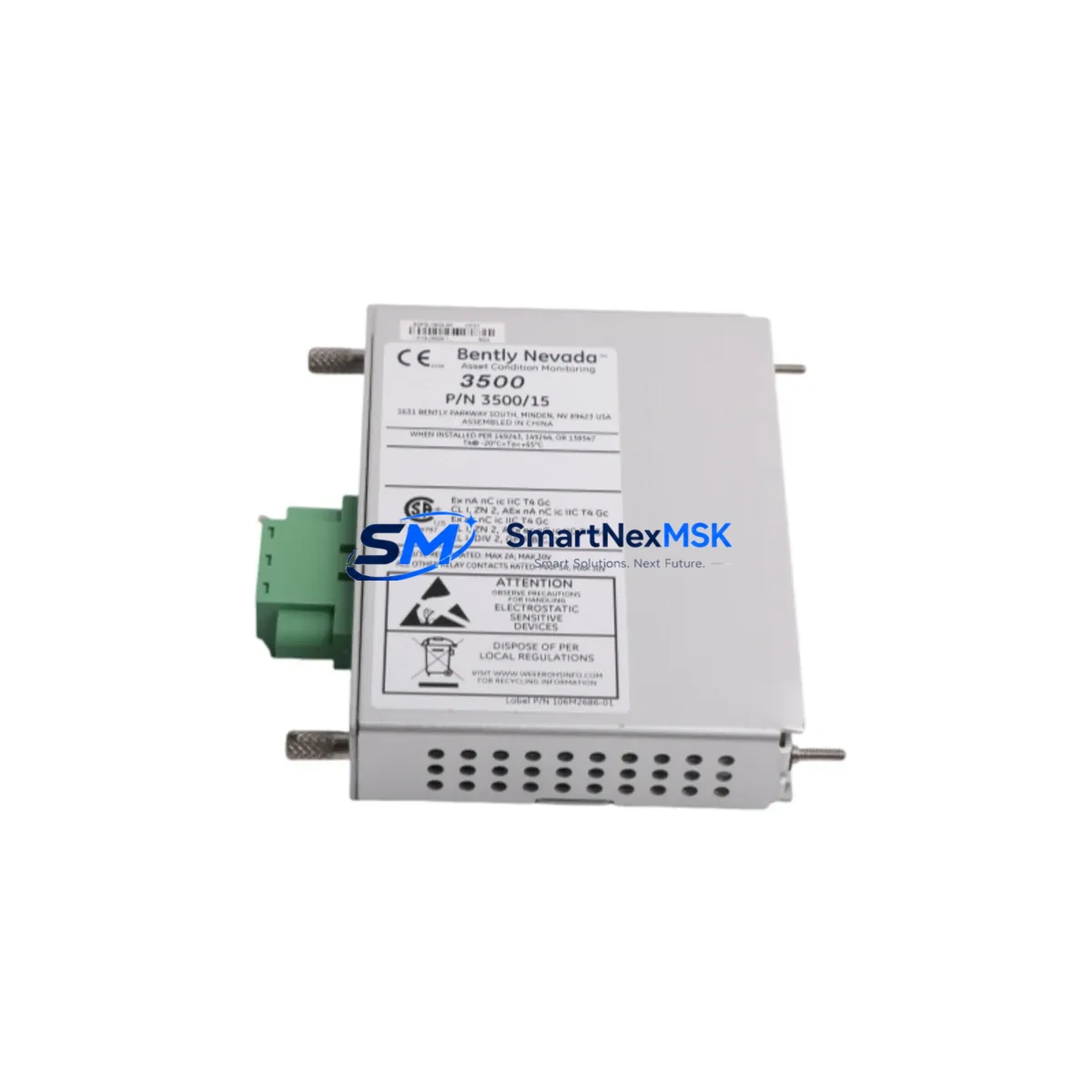

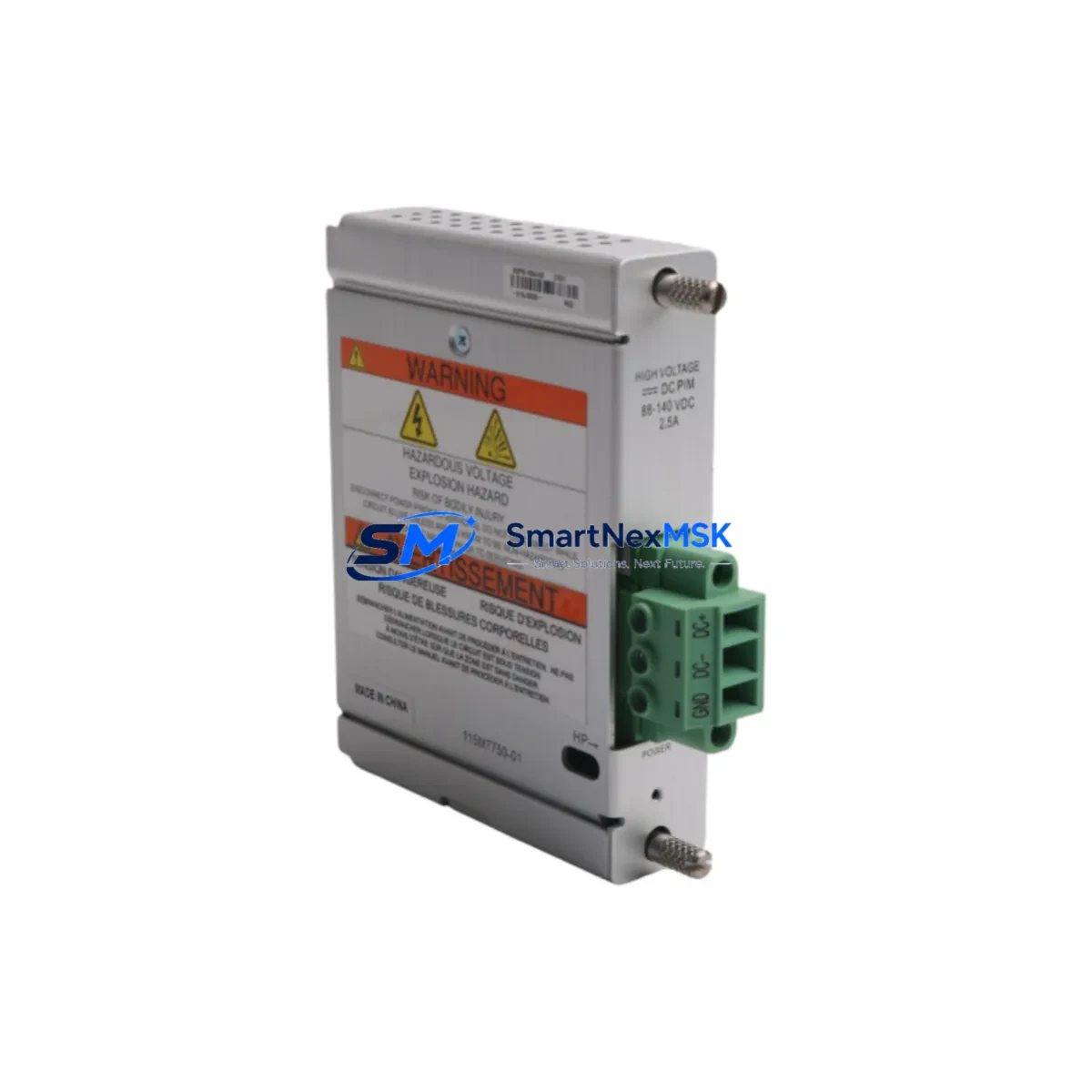

The Bently Nevada 106M2686-01 (cross-reference: 115M7750-01) is an original power supply module engineered for the 3500 Series machinery protection and vibration monitoring platform. In continuous-process industries — oil & gas, petrochemical, power generation, and rotating machinery — the 3500 rack system is a mission-critical asset. A failed power supply module can take an entire monitoring rack offline, triggering unplanned shutdowns and costly production losses. Stocking a verified, tested 106M2686-01 spare is the most direct way to compress mean time to repair (MTTR) and restore system integrity within hours rather than days.

This module provides regulated DC power to the 3500 rack backplane, supporting all installed monitor modules, I/O modules, and communication cards. Its dual-redundant power input design allows hot-swap replacement without de-energizing the full rack — a critical advantage during live plant operations. Each unit shipped by SMARTNEXMSK undergoes functional bench testing, output voltage verification, and visual inspection before dispatch, ensuring the replacement module performs identically to the original factory specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 106M2686-01 power supply module is flagged for replacement during a planned outage or emergency callout, experienced maintenance engineers treat the event as a trigger for a broader rack-level inspection. The 3500 Series rack is an integrated system: power quality directly affects every downstream module. Before or immediately after replacing the power supply, the following components should be inspected or tested as part of a disciplined maintenance workflow:

• 3500/15 Rack Interface Module — Verify communication integrity and backplane bus health after power restoration.
• 3500/22M Transient Data Interface (TDI) — Confirm that transient capture buffers have not been corrupted by the power event.
• 3500/42M Proximitor / Seismic Monitor — Check channel calibration and OK relay status; power interruptions can reset monitor thresholds.
• 3500/45 Position Monitor — Inspect wiring terminals and verify position channel outputs are within expected range post-restart.
• Proximitor Sensor cables and extension cables — Inspect for insulation damage, connector corrosion, or shield continuity issues that may have contributed to the original fault.
• 3500/92 Communication Gateway Module — Confirm Modbus or Ethernet link re-establishment and verify that the DCS or historian is receiving live data.
• Terminal input modules (TIM) — Check field wiring terminations for loose connections that may have been disturbed during module swap.
• Barrier strips and surge protection devices — Inspect for signs of overvoltage damage, particularly if the power supply failure was caused by an upstream transient.
• Fuse holders and panel fuses — Replace any blown fuses in the AC input circuit and verify fuse ratings match the 3500 rack specification.
• UPS or panel power distribution unit — Audit the upstream power source for voltage sags, harmonic distortion, or grounding issues that may accelerate future power supply wear.

Procurement engineers sourcing a 106M2686-01 replacement should also consider holding a second unit as a cold standby spare, particularly for sites operating multiple 3500 racks or where lead times for OEM procurement exceed acceptable downtime windows. SMARTNEXMSK maintains stock of 3500 Series modules and can support multi-unit orders with consistent batch testing and documentation.

Site Replacement Workflow

Replacing the 106M2686-01 in a live 3500 rack follows a structured sequence to minimize disruption and ensure system compatibility:

1. Pre-replacement verification: Confirm the replacement module’s part number and revision level match the installed unit. Cross-reference 115M7750-01 if the original label is worn. Check the rack’s System Event Log via the 3500/92 gateway for any pre-existing fault codes.
2. Redundancy check: If the rack is configured with dual power supplies, confirm the second supply is healthy and carrying load before removing the failed unit. This allows a true hot-swap without interrupting monitor outputs.
3. Module extraction: Loosen the front-panel captive screws, slide the module out along the rack guides, and inspect the backplane connector for bent pins or contamination.
4. Replacement insertion: Seat the new 106M2686-01 firmly until the backplane connector engages. Tighten captive screws to the specified torque. Observe the module’s LED status indicators — green OK status should appear within seconds of power-up.
5. Post-installation validation: Verify all monitor channels return to OK status. Confirm DCS communication is restored via the 3500/92 gateway. Document the replacement in the site maintenance log with the new module’s serial number and test report.
6. Legacy system compatibility: The 106M2686-01 is backward-compatible with earlier 3500 rack configurations. No firmware update is required for standard power supply replacement. For sites running older rack revisions, contact SMARTNEXMSK for compatibility confirmation before ordering.

Spare Parts Support FAQ

Q1: What is the shelf life of a stored 106M2686-01 spare, and how should it be stored?
When stored in original anti-static packaging in a climate-controlled environment (10°C–30°C, <70% RH), the 106M2686-01 maintains full functional integrity for 5+ years. SMARTNEXMSK ships all modules in ESD-safe packaging with desiccant. Inspect the module annually if held in long-term storage and re-test before deployment.

Q2: How is compatibility with my specific 3500 rack revision confirmed before shipment?
Provide your rack model number (e.g., 3500/15 or 3500/20) and existing power supply revision when placing your order. SMARTNEXMSK’s technical team will cross-reference the 106M2686-01 / 115M7750-01 revision history and confirm compatibility. All units are bench-tested against standard 3500 rack load profiles before dispatch.

Q3: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, SMARTNEXMSK will provide a tested replacement unit. Contact sales@smartnexmsk.com with the module serial number and a brief fault description to initiate a warranty claim. Typical replacement dispatch is within 3 business days.

Q4: Can SMARTNEXMSK supply multiple 106M2686-01 units for a planned outage or spare parts kit?
Yes. SMARTNEXMSK supports multi-unit orders for planned maintenance shutdowns, spare parts kits, and site-wide 3500 rack standardization programs. Bulk orders receive batch test documentation and can be coordinated with your planned outage schedule. Contact sales@smartnexmsk.com or +86 18259474341 to discuss quantity, lead time, and documentation requirements.
