Bently Nevada 123447-01 Spare for 3500 Series Automation: Spare Replacement & Industrial Downtime Risk Control

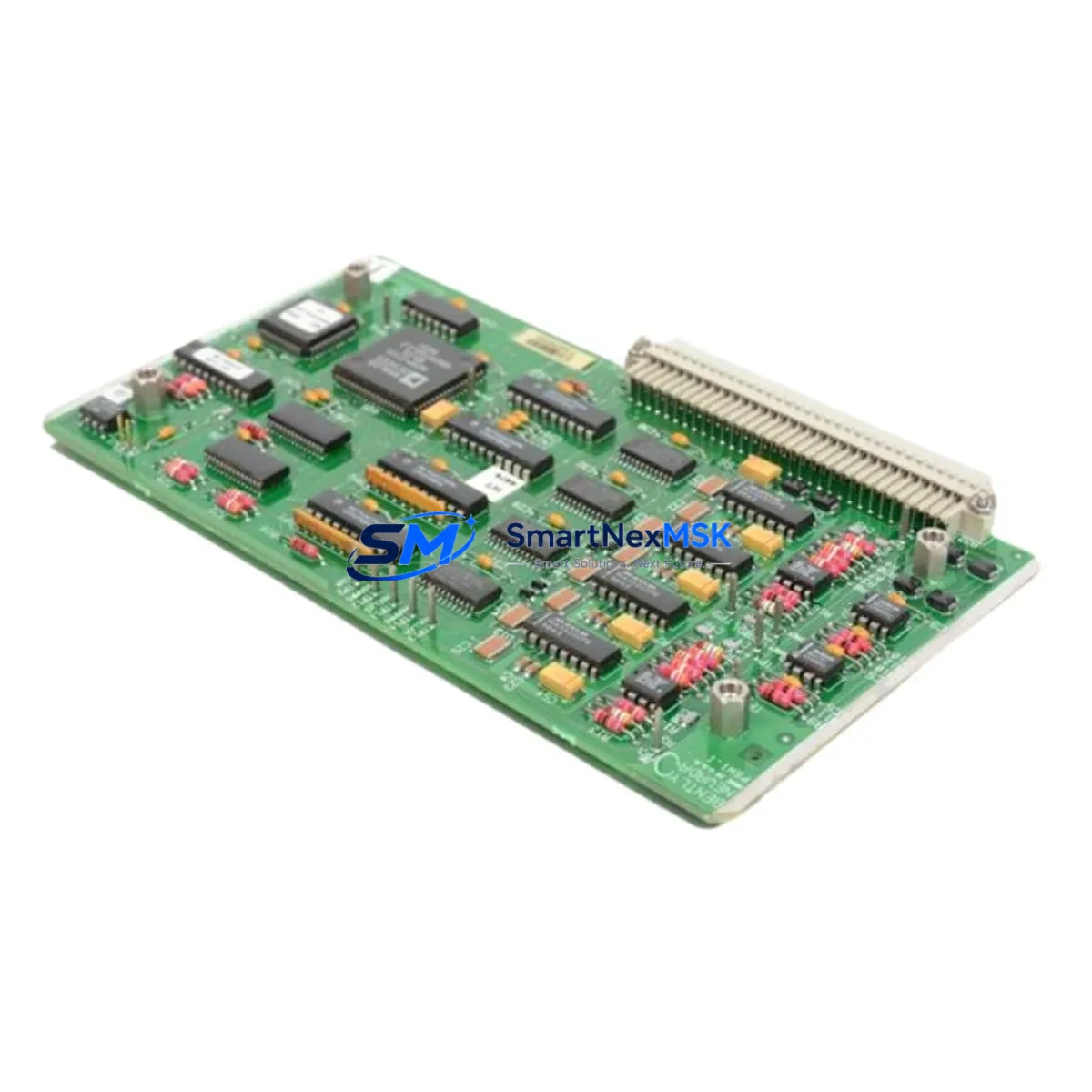

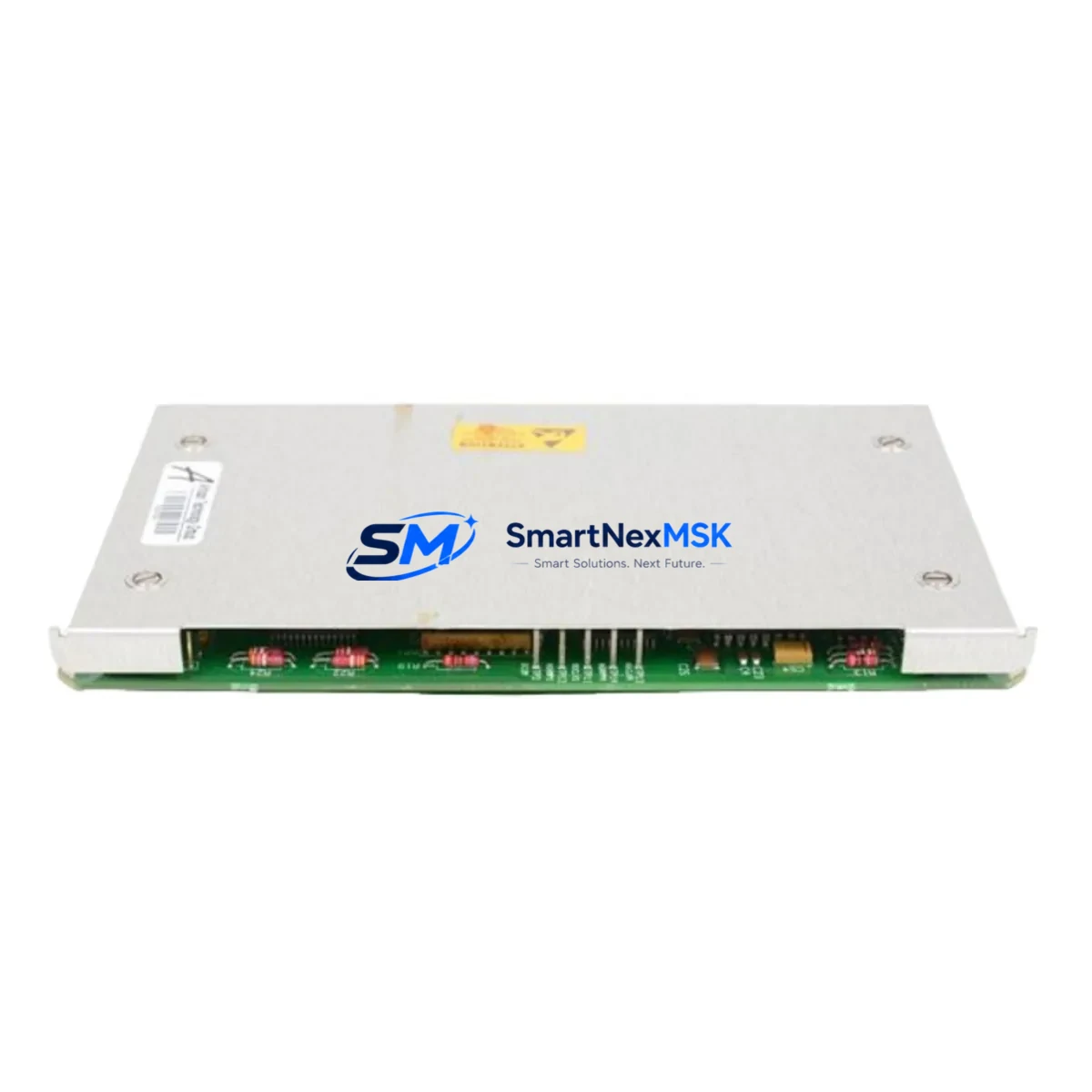

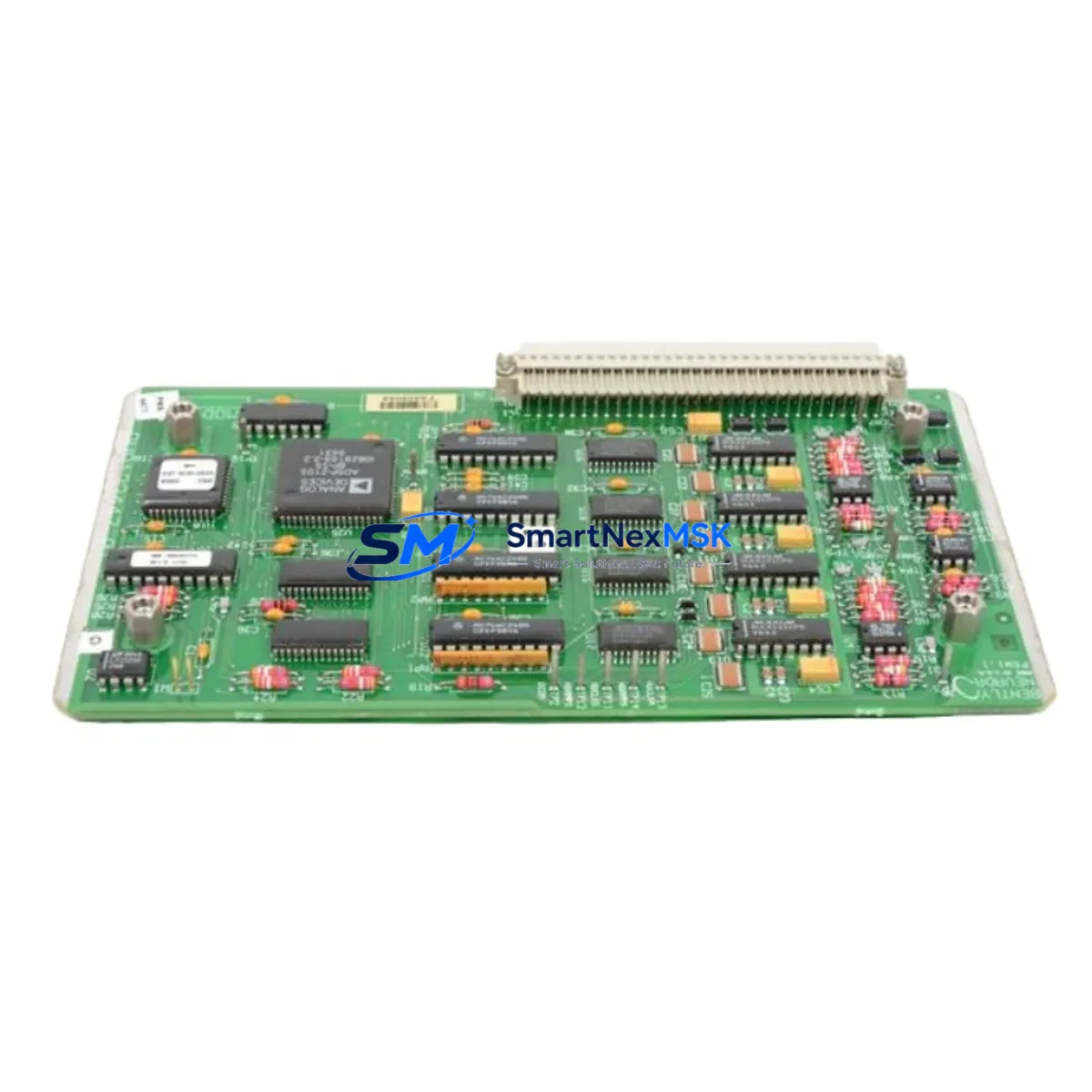

The Bently Nevada 123447-01 is a TDXnet Sampler Board designed for the 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment applications including turbines, compressors, pumps, and generators. As an original-specification spare, the 123447-01 is a critical component for maintenance engineers managing predictive maintenance programs, planned overhauls, and emergency fault isolation in industrial facilities.
When a 3500 Series rack experiences a sampler board fault, the entire monitoring channel may go offline, triggering a protective shutdown or leaving critical machinery unmonitored. Holding a verified, tested 123447-01 in your spare parts inventory eliminates the lead time risk associated with unplanned downtime. Our units are sourced from original supply chains, functionally tested prior to dispatch, and backed by a 12-month warranty.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | 123447-01 |
| Brand | Bently Nevada |
| Series | 3500 Series Machinery Protection System |
| Module Type | TDXnet Sampler Board |
| Compatible Rack | 3500/22M, 3500/25, 3500/32, 3500/40M, 3500/42M, 3500/44M, 3500/45, 3500/50, 3500/60, 3500/72M |
| Application | Rotating machinery vibration monitoring, turbine protection, compressor surveillance |
| Installation Environment | Industrial control cabinet, DCS/PLC panel, machinery protection rack |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Origin | USA (Original Bently Nevada / Baker Hughes supply chain) |
| Condition | Original spare — functionally tested before shipment |
| Warranty | 12 Months |
| Lead Time | In-stock units ship within 1–3 business days |
| Maintenance Recommendation | Replace at first indication of sampler fault alarm; inspect rack backplane and I/O wiring on replacement |
Maintenance Planning for Continuous Operation
Replacing the 123447-01 TDXnet Sampler Board is rarely an isolated task. Experienced maintenance engineers know that a sampler board fault in a 3500 Series rack is often symptomatic of broader electrical stress or aging in the monitoring loop. A thorough replacement procedure should include inspection of the following associated components:
Begin with the 3500/15 Power Supply Module — voltage ripple or under-voltage conditions are a leading cause of sampler board degradation. Verify DC rail stability before inserting the replacement 123447-01. Next, inspect the 3500/20 Rack Interface Module (RIM), which manages communication between the rack and the host DCS or historian; a marginal RIM can cause intermittent data loss that mimics a sampler fault.
Check all Proximitor/Seismic I/O Module connections (e.g., 3500/40M or 3500/42M) for loose field wiring, corroded terminals, or damaged coaxial cables. The 3500/92 Communication Gateway Module should also be verified if the rack is integrated into a Modbus, Profibus, or Ethernet-based DCS network — a communication fault can mask or amplify sampler alarms. For facilities running System 1 Evolution or System 1 Optimizer software, confirm that the replacement board is recognized by the host software after installation and that all channel configurations are restored from backup.
In the field wiring cabinet, inspect terminal blocks and DIN rail assemblies for signs of heat stress or insulation breakdown. If the facility uses Bently Nevada 3300 XL proximity transducers or 330180 series extension cables, verify cable continuity and gap voltage at each probe after the sampler board swap. For high-vibration environments, consider replacing 3500 Series rack mounting hardware and checking that all module ejector latches are fully seated to prevent intermittent contact faults.
Finally, if the 3500 rack is co-located with a GE Mark VI or Mark VIe turbine control system, coordinate the sampler board replacement with the I/O module inspection cycle for the turbine controller to avoid simultaneous monitoring gaps during the maintenance window.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the fault is isolated to the 123447-01 by reviewing the 3500 rack’s front-panel LED status and System 1 alarm log. Document all channel configurations, setpoints, and transducer gap voltages before powering down the affected slot.
Step 2 — Safe removal: Follow Bently Nevada lockout/tagout procedures. Remove the faulty 123447-01 by releasing the ejector levers. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.
Step 3 — Installation and configuration restore: Insert the new 123447-01 and secure the ejector latches. Power up the rack and confirm the module is recognized. Restore channel configuration from the saved System 1 backup. Verify all gap voltages and alarm setpoints match pre-maintenance records.
Step 4 — Functional test: Apply a known vibration signal or use the rack’s built-in self-test function to confirm all channels are reading correctly. Verify that the DCS historian is receiving data from all restored channels before returning the machinery to service.
Step 5 — Documentation: Record the replacement in the CMMS, update the spare parts inventory, and order a replacement 123447-01 to restore your buffer stock. Downtime for a prepared team with a pre-tested spare is typically under 2 hours.
Spare Parts Support FAQ
Q1: Is the 123447-01 compatible with all 3500 Series rack configurations?
The 123447-01 TDXnet Sampler Board is designed for use within the Bently Nevada 3500 Series platform. Compatibility depends on the specific rack model and firmware revision. We recommend confirming your rack model number and System 1 software version before ordering. Our technical team can assist with compatibility verification prior to shipment.
Q2: How is the unit tested before shipment?
Each 123447-01 unit undergoes functional testing on a 3500 Series compatible test bench prior to dispatch. Power-up, communication handshake, and channel response are verified. A test report is available upon request. Units are packed in anti-static ESD packaging with foam protection for safe transit.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days, with replacement or repair options available depending on the fault assessment.
Q4: Can you support long-term or recurring spare parts supply for the 3500 Series?
Yes. We maintain ongoing inventory of 3500 Series modules and can support blanket purchase orders, annual supply agreements, and emergency same-day quotation for critical spares. Contact our team to discuss a customized spare parts program aligned with your planned maintenance schedule and equipment criticality classification.
