Bently Nevada 125388-01 Spare for 3500 Series Automation

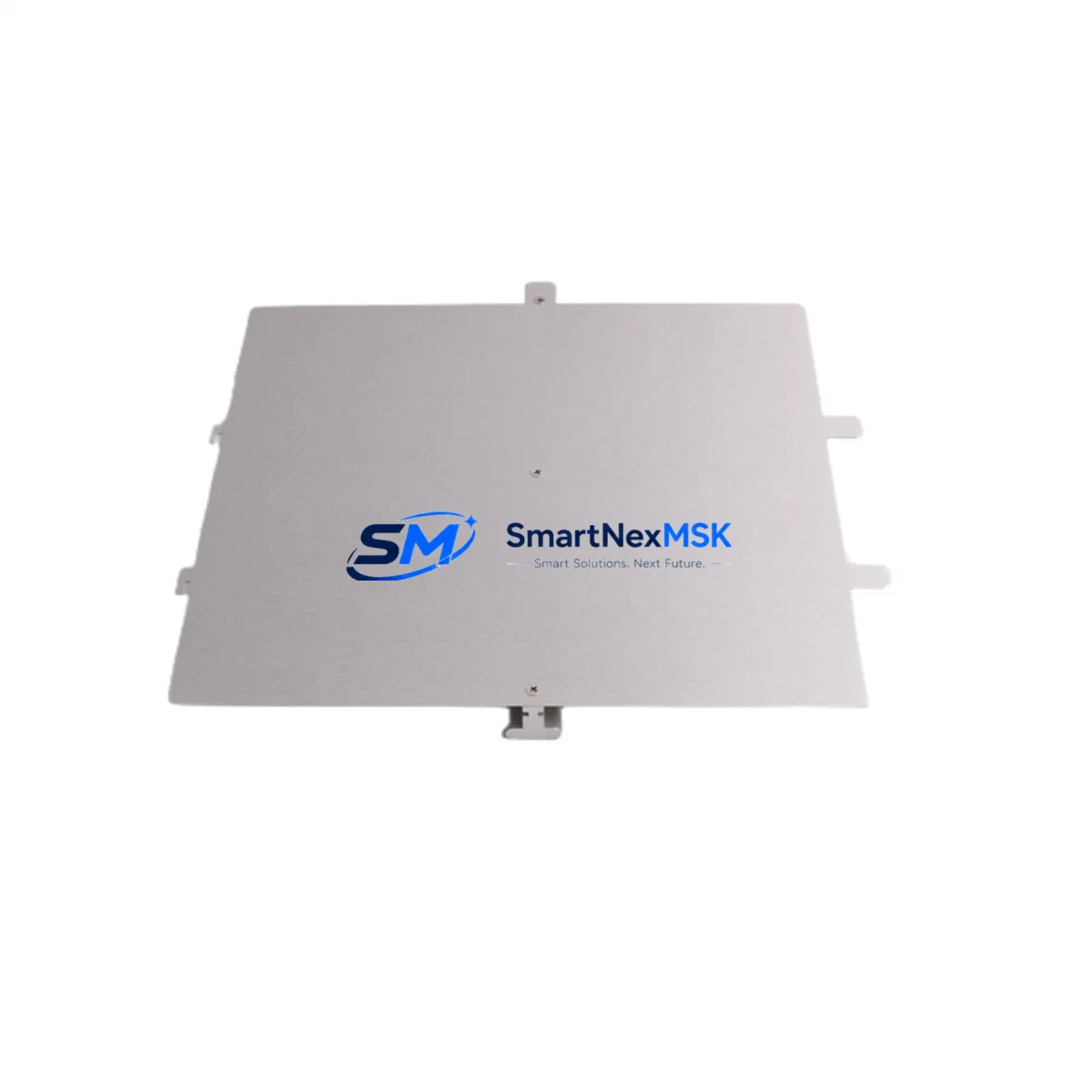

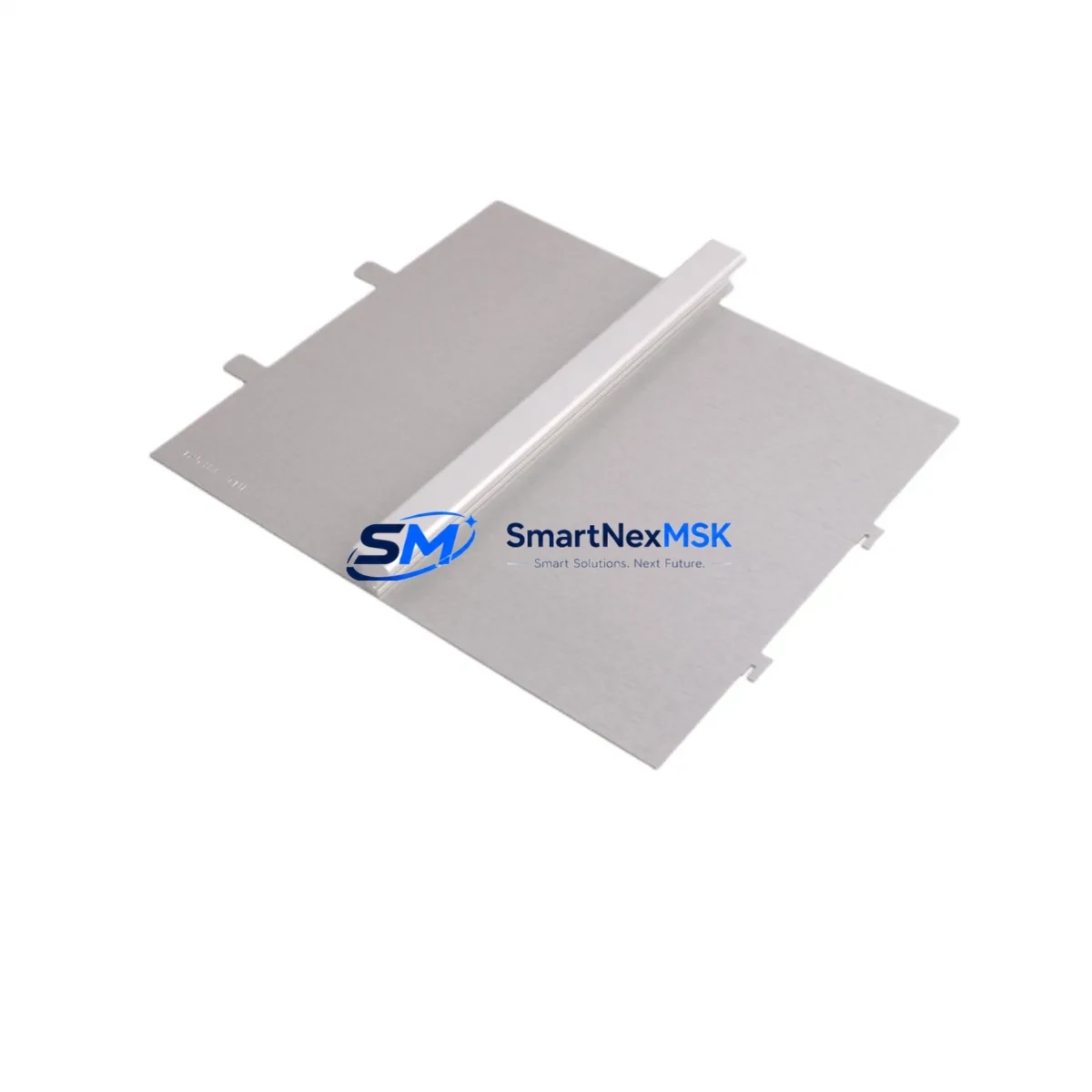

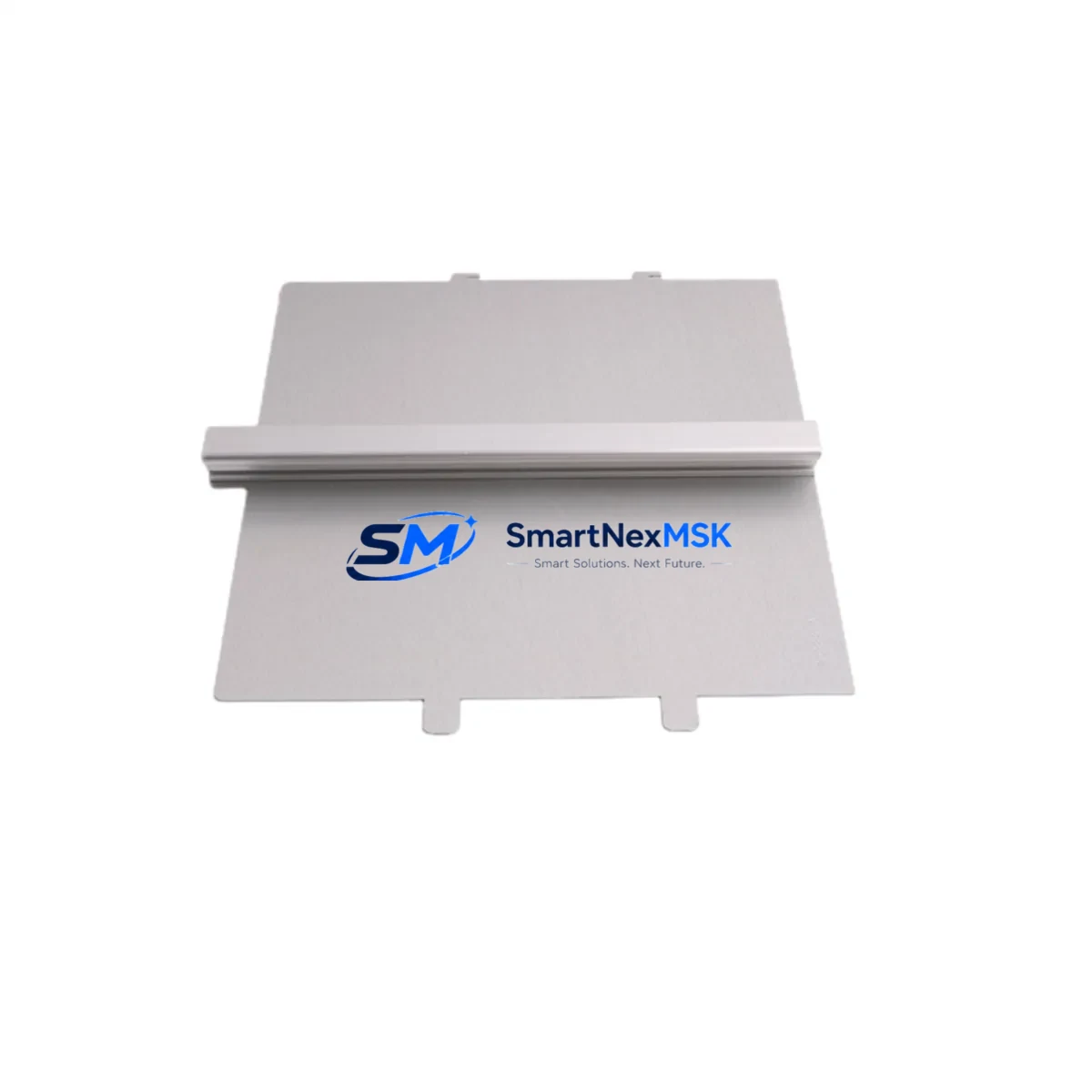

The Bently Nevada 125388-01 (also referenced as 125388-01H in half-height configurations) is a critical rack chassis component within the 3500 Series Machinery Protection System — one of the most widely deployed vibration monitoring and condition monitoring platforms in rotating machinery applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and generators, this chassis forms the structural and electrical backbone of the entire 3500 monitoring rack. When this component fails or reaches end-of-life, the entire protection system is compromised, creating unacceptable downtime risk in continuous-process environments.
Sourced as an original spare, the 125388-01 chassis is tested prior to shipment and backed by a 12-month warranty. Fast dispatch supports emergency replacement scenarios where minimizing mean time to repair (MTTR) is the primary objective. Whether you are building a strategic spare parts inventory, executing a planned shutdown, or responding to an unplanned trip event, this chassis is available for immediate order and rapid delivery.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 125388-01 / 125388-01H |
| Brand | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Product Type | Rack Chassis (Half-Height) |
| Application | Vibration monitoring, condition monitoring, machinery protection |
| Compatibility | 3500 Series I/O and monitor modules; standard 19-inch rack enclosures |
| Power Input | Compatible with 3500/15 Power Supply Module (AC/DC) |
| Slot Capacity | Supports standard 3500 Series module population per rack design |
| Installation | Panel or rack-mount; follows 3500 Series installation guidelines |
| Operating Environment | Industrial control room; temperature and humidity per 3500 Series spec |
| Origin | United States |
| Condition | Original spare; pre-shipment tested |
| Warranty | 12 Months |
| Shipping | Fast dispatch; worldwide delivery available |
Maintenance Planning for Continuous Operation
When replacing the 125388-01 rack chassis in a 3500 Series system, a thorough site inspection of all co-located components is essential to prevent repeat failures and ensure the restored system meets its original protection specification. Maintenance engineers should treat a chassis replacement as an opportunity to audit the full rack population.
Begin with the 3500/15 Power Supply Module — the chassis replacement is the ideal moment to verify power supply output voltage, check for capacitor aging, and confirm the redundant power path is functional. A degraded power supply feeding a new chassis will shorten the replacement’s service life. Alongside this, inspect all 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor modules seated in the rack; connector pins and backplane contacts should be cleaned and inspected for oxidation or mechanical damage.
I/O wiring integrity is equally critical. All 3500 Series I/O terminal blocks and field wiring connections should be re-torqued to specification during the chassis swap. Loose terminations are a leading cause of nuisance trips and signal drift in vibration monitoring systems. If the installation includes signal isolators or barriers between field sensors and the 3500 rack — common in hazardous area installations — verify that isolation resistance and signal fidelity remain within specification.
For systems with 3500/92 Communication Gateway or 3500/93 Data Manager modules, confirm that network communication is restored and that the system configuration database is intact after the chassis swap. Configuration loss during a chassis replacement is a common oversight that can delay restart. Similarly, if a Bently Nevada 3500/05 System Rack Interface Module is present, verify its address settings and communication links post-installation.
Procurement engineers building a strategic spare parts inventory around the 125388-01 should also consider stocking the 3500/15 Power Supply, a selection of 3500 Series monitor modules matched to the site’s sensor types (proximity, velocity, or acceleration), and a set of 3500 Series I/O terminal blocks. For older installations approaching system end-of-life, maintaining a chassis spare alongside key monitor modules significantly extends the viable service life of the protection system without requiring a full platform migration.
Site Replacement Workflow
Replacing the 125388-01 chassis on-site follows a structured sequence to minimize downtime and maintain system integrity. Prior to any work, confirm that the machinery protection system can be safely bypassed or that the protected equipment is taken offline per site safety procedures. Document the existing module population, slot assignments, and all field wiring labels before disassembly — this documentation is critical for accurate restoration.
Remove all 3500 Series modules from the existing chassis in sequence, storing them in anti-static packaging. Disconnect all field wiring from I/O terminal blocks, labeling each connection. Remove the old chassis from the rack enclosure and install the 125388-01 replacement, verifying mechanical seating and rack grounding continuity. Re-install all modules in their original slot positions, reconnect field wiring per the documented labels, and restore power via the 3500/15 Power Supply Module.
After power-up, verify that all monitor modules initialize correctly, that system configuration is intact, and that all channel readings are within expected ranges before returning the system to active protection duty. For systems that have been running legacy firmware, a chassis replacement is also an appropriate time to evaluate whether a firmware update is warranted — consult the 3500 Series release notes for compatibility guidance.
The 125388-01 is a direct replacement for earlier chassis variants used in 3500 Series racks, maintaining full backward compatibility with the existing module and wiring infrastructure. This compatibility eliminates the need for re-engineering or re-cabling, making it the lowest-risk replacement path for aging 3500 installations.
Spare Parts Support FAQ
Q: Is the 125388-01 compatible with all 3500 Series monitor modules?
A: Yes. The 125388-01 chassis is designed for the 3500 Series platform and is compatible with the full range of 3500 Series monitor, power supply, and communication modules. Always verify slot assignments and module firmware versions against your site’s system configuration documentation before installation.
Q: What is included in the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment. Warranty claims are supported with replacement or repair, subject to inspection of the returned unit.
Q: How is the unit tested before shipment?
A: Each 125388-01 chassis undergoes pre-shipment functional verification to confirm structural integrity, backplane connectivity, and compliance with 3500 Series installation requirements. A test report is available upon request for quality-critical procurement processes.
Q: Can this chassis be used to extend the life of an older 3500 Series installation?
A: Yes. The 125388-01 is the recommended chassis replacement for aging 3500 Series racks where the chassis has suffered mechanical damage, backplane degradation, or connector wear. Replacing the chassis while retaining existing monitor modules and field wiring is a cost-effective strategy for extending system service life without a full platform upgrade.
