Bently Nevada 125720-02 Maintenance-Ready Spare for 3500 Automation

Bently Nevada 125720-02 Maintenance-Ready Spare for 3500 Automation

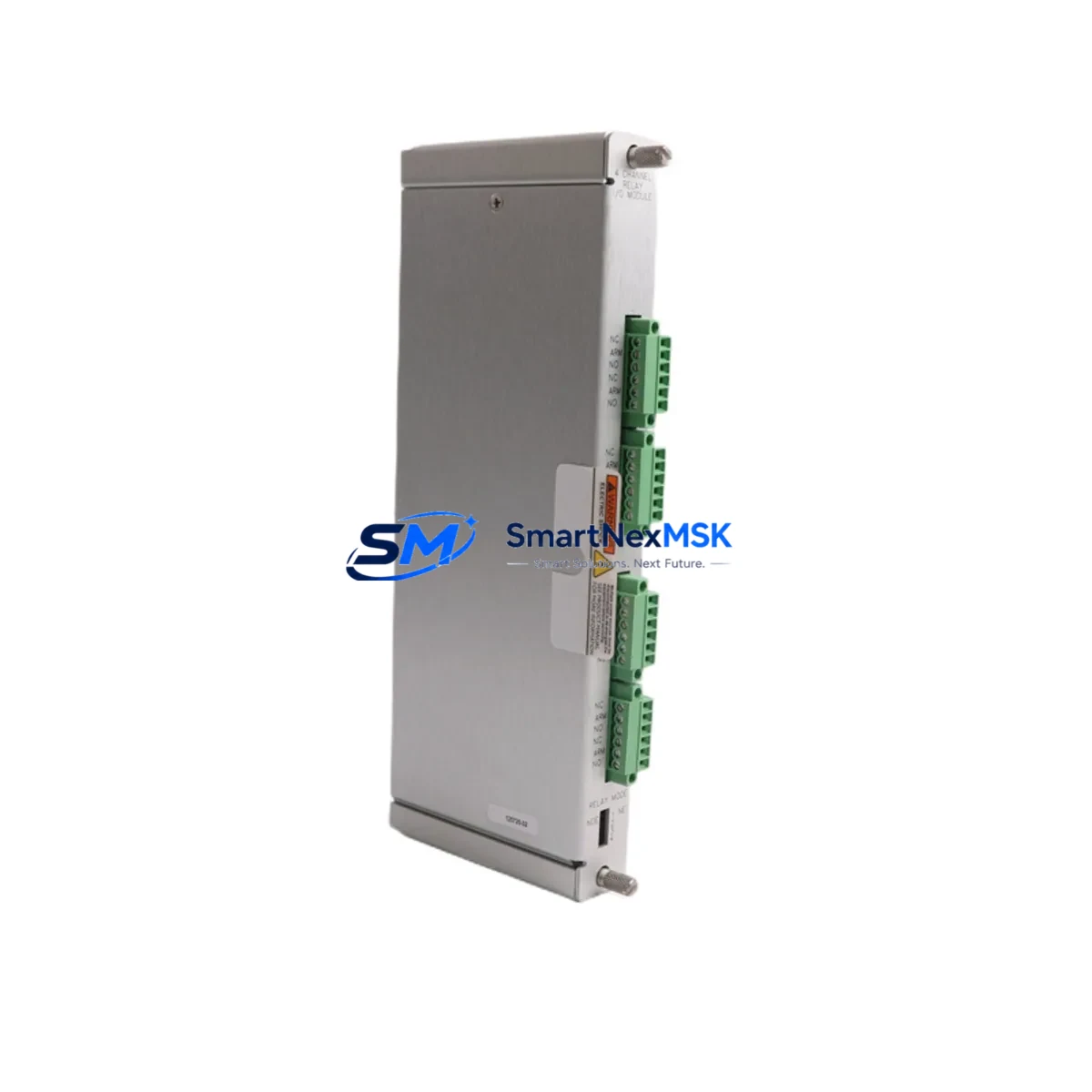

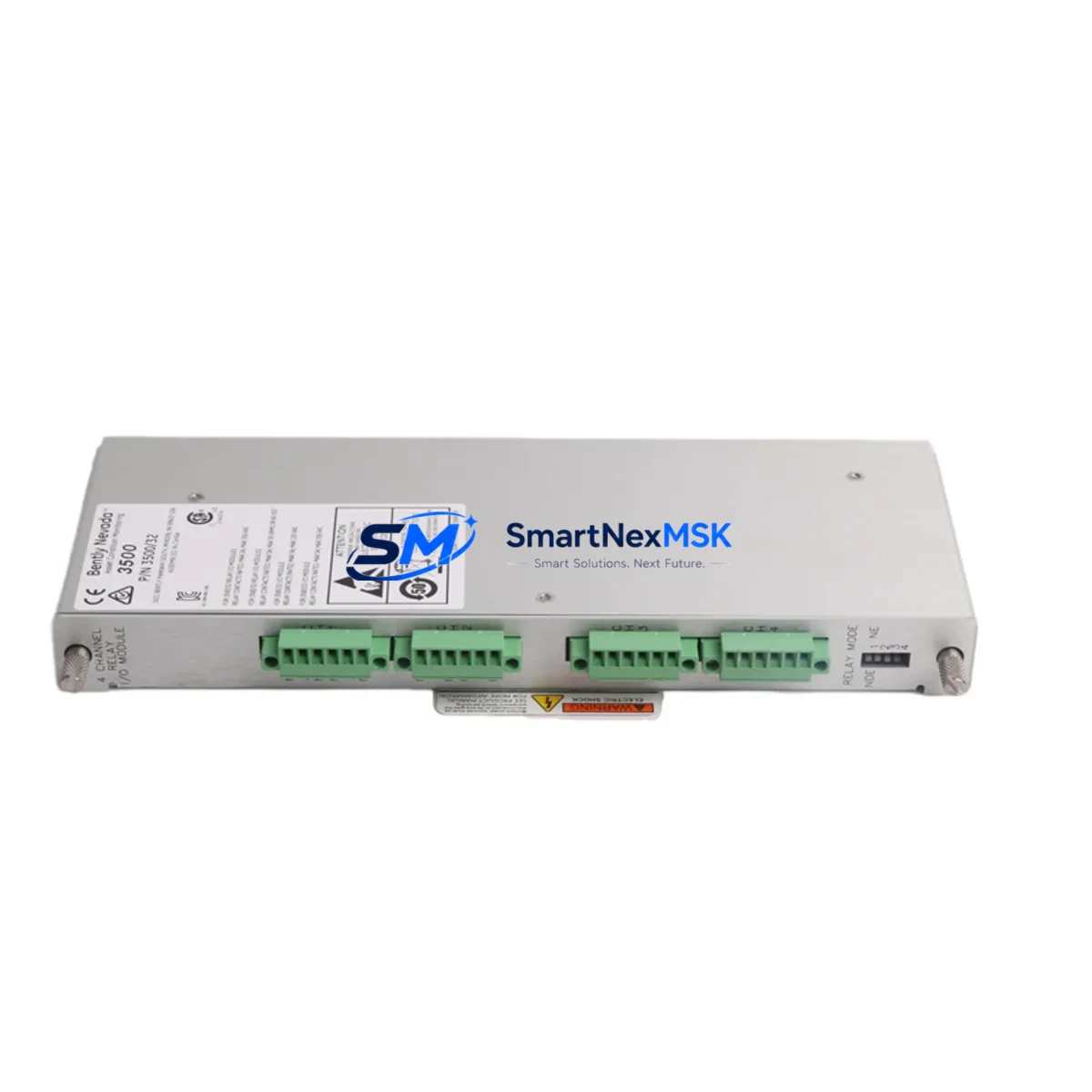

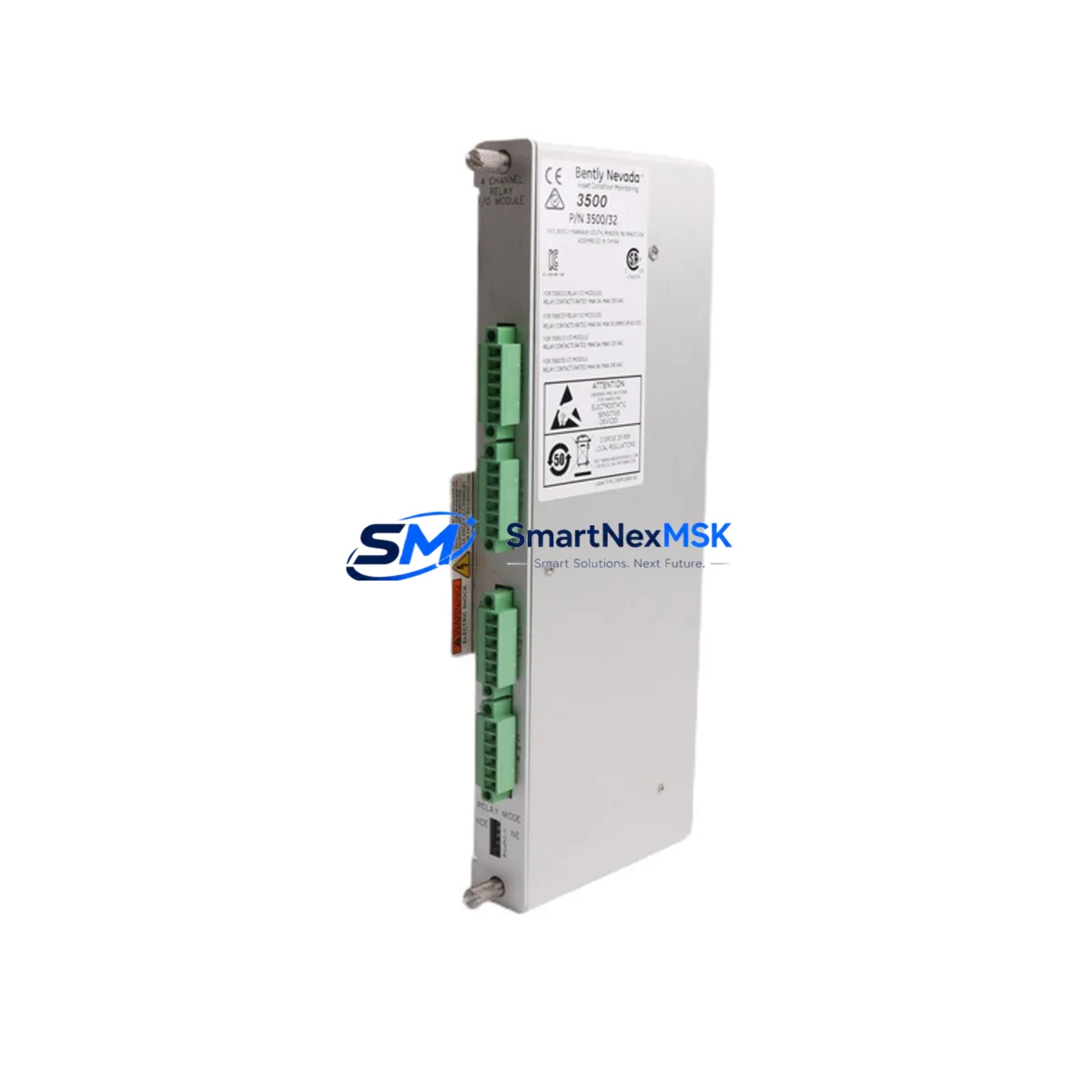

The Bently Nevada 125720-02 is an original output module designed for the 3500 Series Machinery Protection System — one of the most widely deployed vibration monitoring and machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and generators, this module represents a critical spare that directly impacts uptime and safety system integrity. Sourcing a verified, tested replacement before failure occurs is the cornerstone of any effective predictive maintenance strategy.

When a 3500 Series rack experiences an output module fault, the consequences extend beyond a single channel. Alarm relay outputs, OK relay contacts, and buffered transducer outputs may all be affected, triggering nuisance trips or — more critically — masking real machinery faults. Keeping the 125720-02 in your on-site spare parts inventory eliminates the lead time risk associated with emergency procurement and allows maintenance teams to restore full system functionality within a single planned maintenance window.

This unit ships after full functional verification, including output relay actuation, signal integrity checks, and rack compatibility confirmation. Each unit is backed by a 12-month warranty covering manufacturing defects and functional performance, giving procurement engineers confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 125720-02 in a live 3500 rack is rarely an isolated task. A disciplined maintenance engineer will treat this as an opportunity to inspect the entire protection loop. Begin with the 3500/15 Power Supply Module — verify DC rail voltages are within tolerance before re-seating any signal module. A marginal power supply is a common root cause of intermittent output relay faults that are misdiagnosed as module failures.

Next, inspect the 3500/22M Communication Gateway Module if your system uses Modbus or Ethernet/IP for DCS integration. A degraded communication module can cause the output module to report false OK status to the control room while the physical relay contacts remain in an indeterminate state. Confirm gateway firmware version compatibility with your current rack configuration.

For the transducer signal chain, check the associated 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor Monitor modules that feed vibration data to the output module’s alarm logic. Worn or contaminated Bently Nevada 330100 series proximity probes and extension cables should be replaced concurrently to avoid re-entry into the same equipment after a short interval.

Terminal blocks and field wiring at the 3500 I/O Module rear terminal board deserve close attention. Loose screw terminals on relay output wiring are a leading cause of intermittent alarm relay failures in high-vibration environments. Torque all terminals to specification and apply anti-vibration locking compound where permitted by site standards.

If your facility uses a Bently Nevada 3500/92 Communication Module for System 1 software integration, verify that the replacement 125720-02 is recognized correctly in the System 1 configuration database after installation. Configuration mismatches between the software asset record and the physical module can generate spurious alerts during the first post-maintenance run.

For sites running extended 3500 racks with 3500/20 Rack Interface Module (RIM), confirm that the RIM firmware supports the output module revision installed. Older RIM firmware versions may not correctly handle relay output status reporting for later hardware revisions of the 125720-02.

Finally, review the 3500/05 System Monitor Module event log before and after replacement. This module records all rack-level events including module insertion, removal, and configuration changes — providing an audit trail that satisfies most plant maintenance management system (CMMS) documentation requirements.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the 125720-02 part number against the rack slot label and System 1 asset record. Cross-reference with the 3500 Series rack configuration printout held in the control room documentation binder. Verify that the replacement unit’s hardware revision is compatible with your rack firmware.

Step 2 — Bypass and inhibit: Place the affected monitor channels in bypass mode via System 1 or the front-panel keyswitch before removing the module. This prevents spurious trips to the DCS or ESD system during the swap. Coordinate with the control room operator and log the bypass in the shift handover record.

Step 3 — Module extraction and installation: The 3500 rack supports hot-swap for most module types; however, always verify your site’s safety operating procedure. Extract the faulty 125720-02 using the front-panel ejector levers. Insert the replacement unit firmly until the backplane connector is fully seated and the front-panel LED indicators illuminate correctly.

Step 4 — Configuration restore: If the replacement module requires configuration download, use System 1 or the 3500 Rack Configuration Software to push the saved configuration file. Verify all setpoints, relay logic, and output assignments match the pre-replacement baseline.

Step 5 — Functional test and release: Remove the bypass inhibit and confirm that all relay outputs respond correctly to simulated alarm conditions. Document the replacement in the CMMS with the new module serial number, installation date, and test results. Return the faulty module for evaluation or disposal per site procedures.

Spare Parts Support FAQ

Q: Is the 125720-02 compatible with all 3500 Series rack configurations?
A: The 125720-02 is designed for the standard 3500 Series 19-slot rack. Compatibility with specific rack firmware versions and monitor module combinations should be verified against the Bently Nevada 3500 Series compatibility matrix. We recommend providing your rack configuration details at the time of order so our technical team can confirm fit before shipment.

Q: What does the 12-month warranty cover?
A: The warranty covers functional defects including relay contact failure, backplane connector faults, and signal output degradation under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return shipment support and replacement dispatch within 5 business days of fault confirmation.

Q: How is the unit tested before shipment?
A: Each 125720-02 undergoes bench-level functional testing including relay actuation verification, backplane signal continuity, and visual inspection for component condition. Units that do not pass all test criteria are quarantined and not offered for sale. A test record is available upon request for quality-critical procurement processes.

Q: Can this module replace older hardware revisions of the 125720-02?
A: In most cases, later hardware revisions of the 125720-02 are backward compatible within the 3500 rack architecture. However, sites running very early rack firmware versions may require a firmware update before installing a later hardware revision. We advise customers to share their current rack firmware version so we can advise on any compatibility steps required prior to installation.
