Bently Nevada 125768-01 Maintenance-Ready Spare 3500 Automation

Bently Nevada 125768-01 Maintenance-Ready Spare 3500 Automation

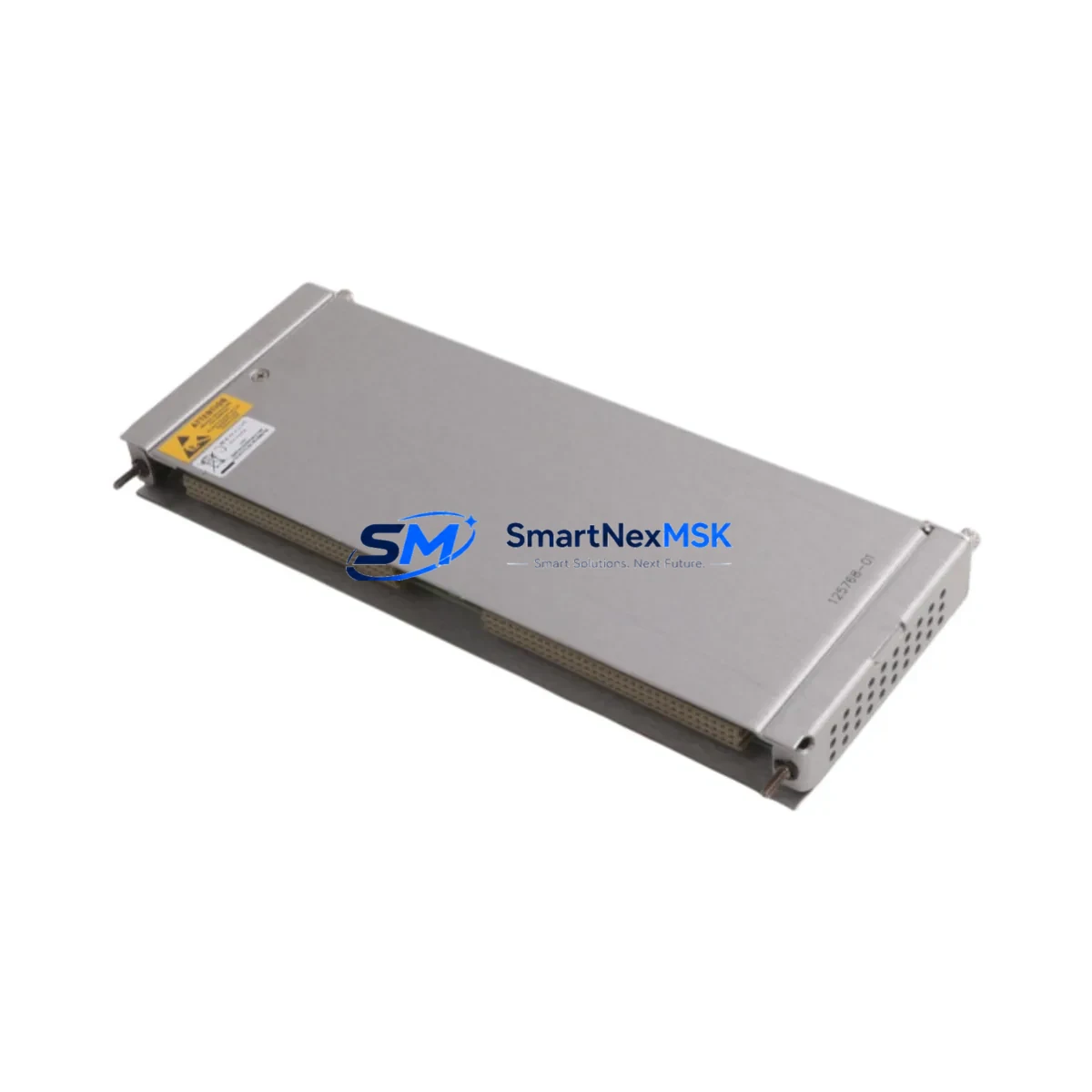

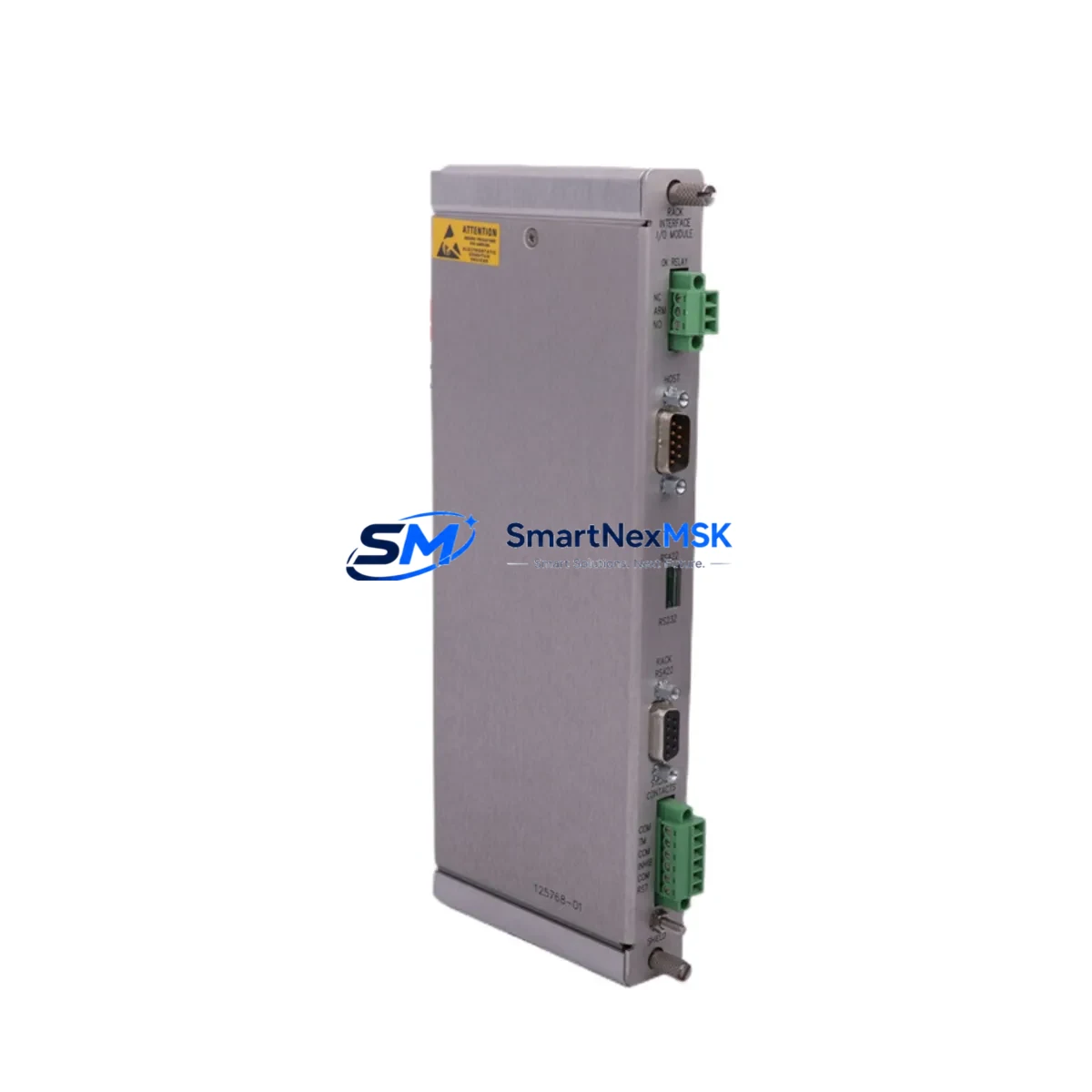

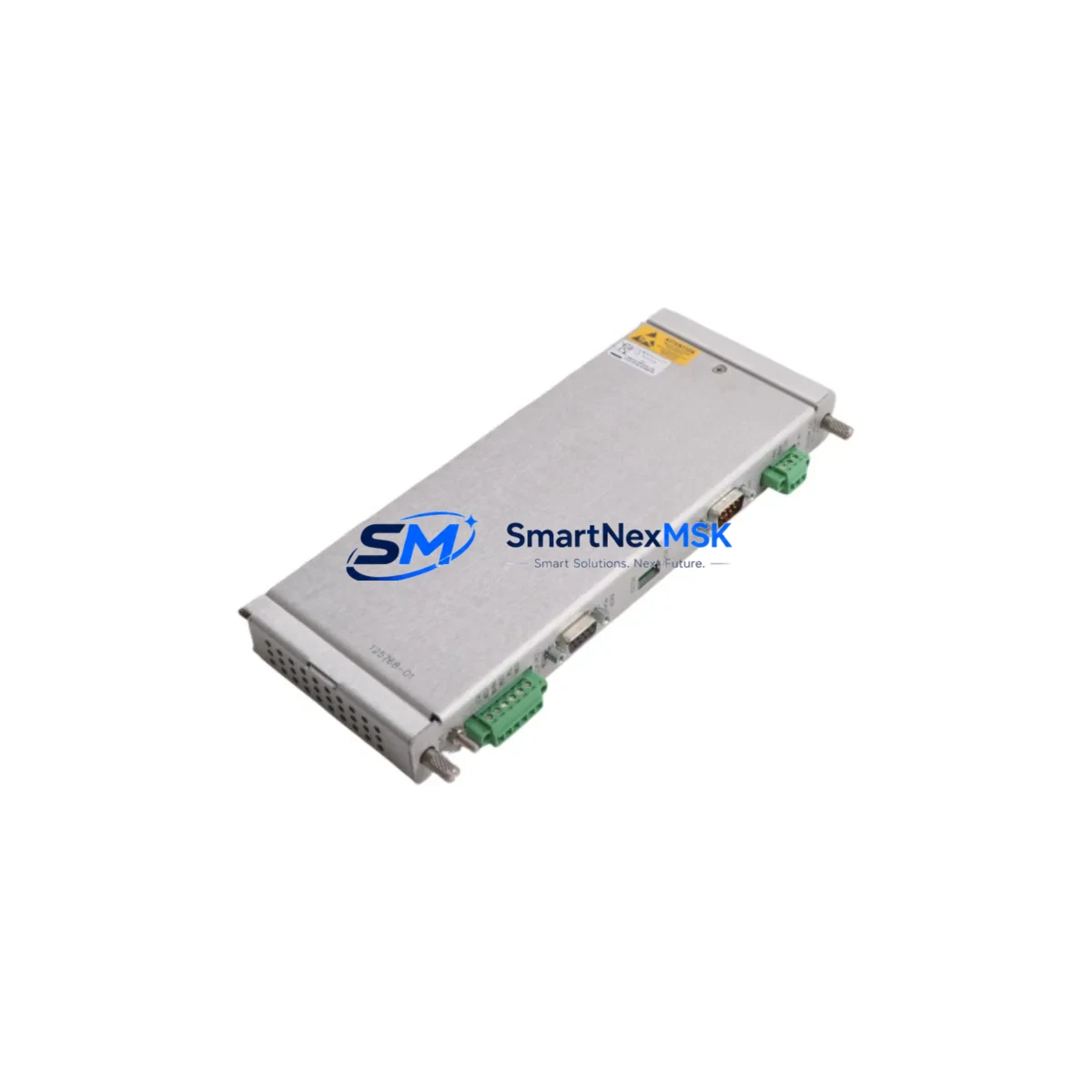

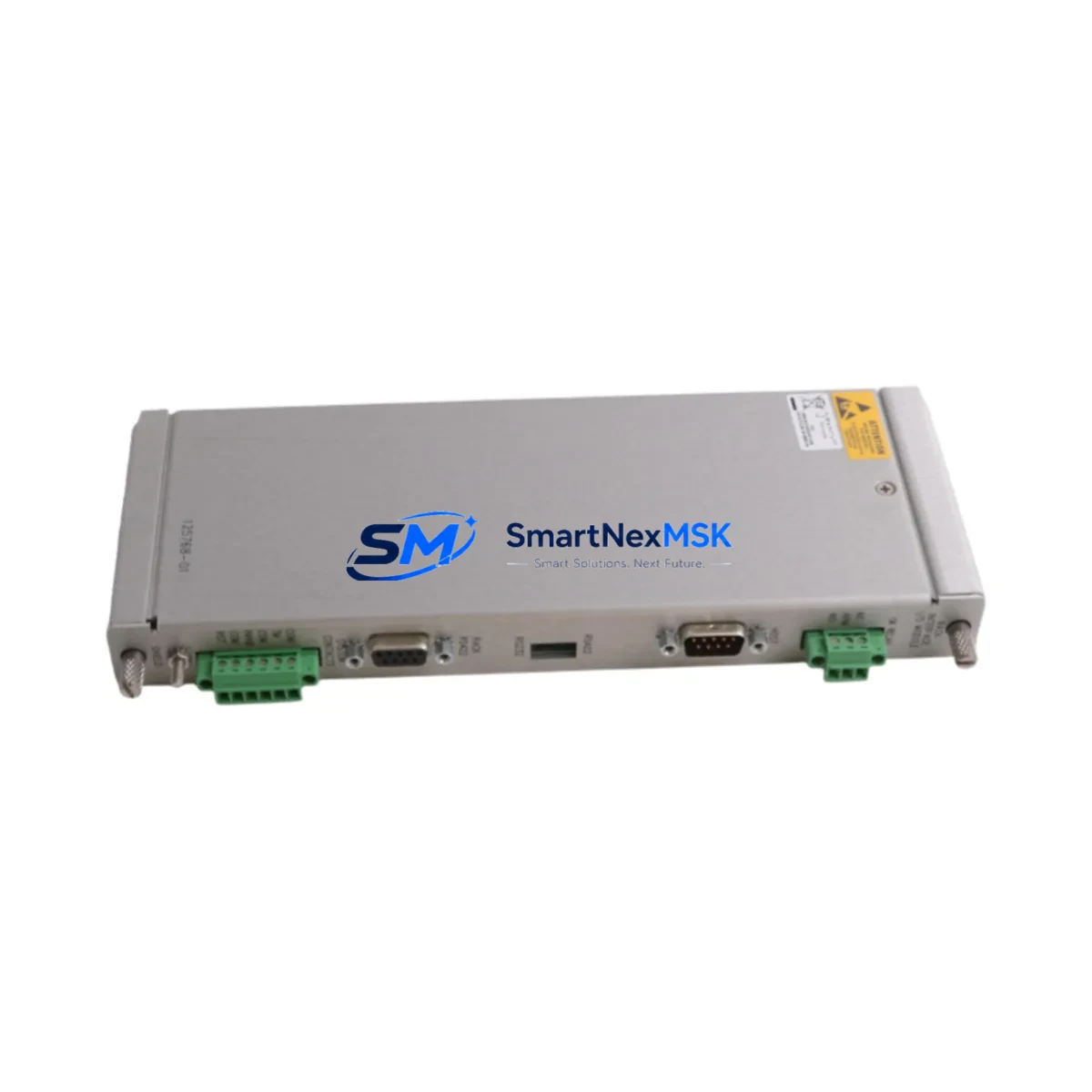

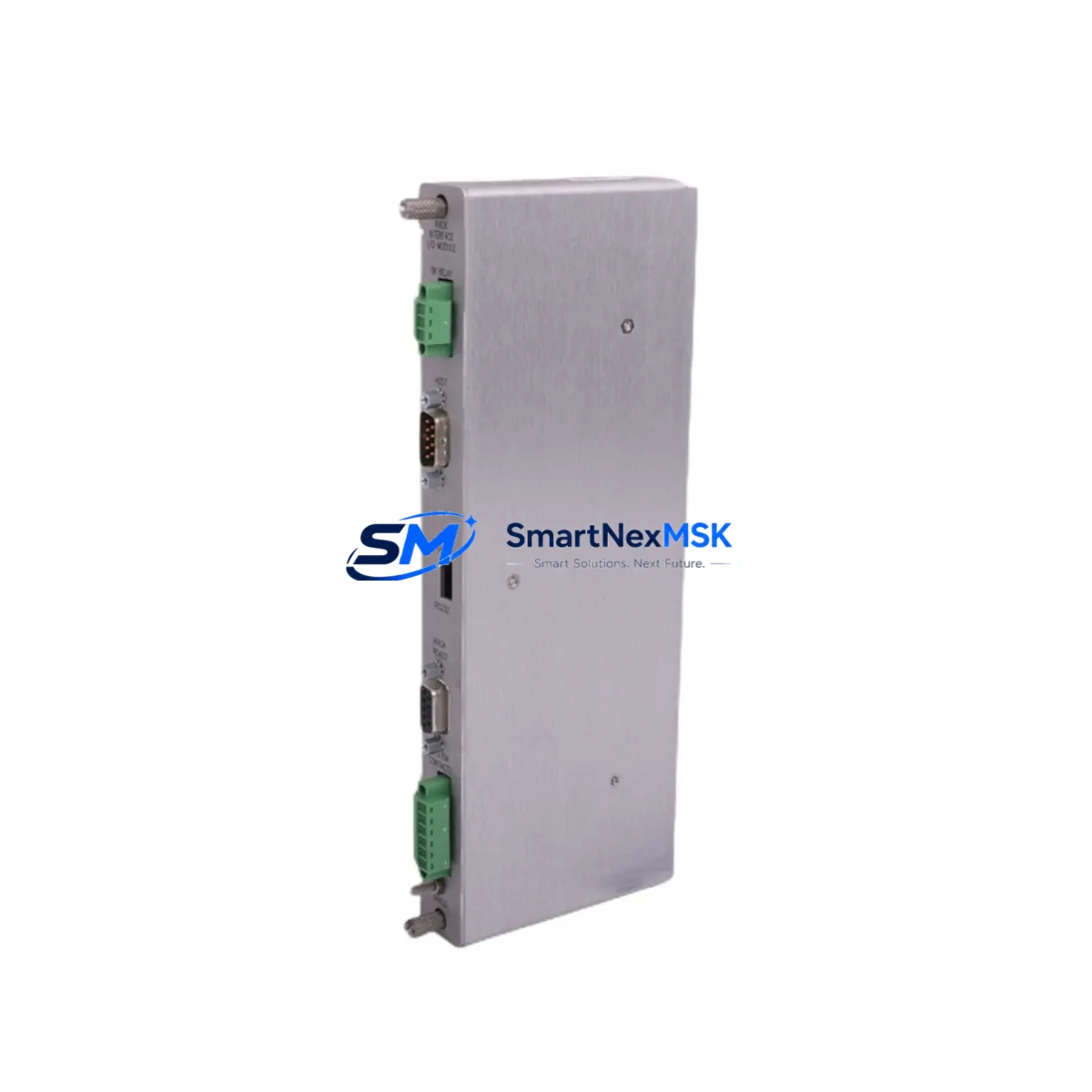

When a rack interface I/O module fails inside a Bently Nevada 3500 Series machinery protection system, every minute of unplanned downtime carries real operational and safety consequences. The Bently Nevada 125768-01 is the original rack interface I/O module engineered specifically for the 3500 Series monitoring platform — a system trusted across rotating machinery protection in power generation, petrochemical, refining, and heavy industrial facilities worldwide. Keeping a verified, tested spare of the 125768-01 on hand is not optional for any maintenance team responsible for continuous-process equipment; it is a fundamental element of a sound spare-parts strategy.

The 125768-01 serves as the critical communication bridge between the 3500 rack backplane and external I/O field wiring. It routes vibration, position, speed, and process variable signals from field transducers into the monitoring rack, enabling the system to perform real-time machinery health assessment and trigger protective relay outputs when alarm or danger thresholds are exceeded. Any degradation in this module — whether caused by connector wear, moisture ingress, power transient damage, or age-related component drift — can compromise the integrity of the entire protection loop. A maintenance-ready replacement eliminates the risk of extended lead times during a critical failure event.

From a maintenance engineering perspective, the 125768-01 is not an isolated component. When planning a replacement or conducting a scheduled rack inspection, it is equally important to verify the condition of adjacent modules and interconnected components. The Bently Nevada 3500/20 rack power supply module should be inspected for output voltage stability, as power ripple or undervoltage conditions are a common root cause of I/O module faults. The 3500/15 power supply input module and its associated terminal block wiring should be checked for secure connections and signs of thermal stress. The 3500/22M transient data interface module, which shares the same backplane communication bus, should be confirmed operational to ensure no secondary faults exist upstream.

Field wiring integrity is equally critical. The 3500 Series I/O terminal block assemblies connected to the 125768-01 should be inspected for loose terminations, corrosion on screw terminals, and correct cable routing. In high-vibration environments, terminal loosening is a progressive failure mode that can mimic module faults during diagnostics. Maintenance teams should also verify the condition of Bently Nevada proximitor extension cables and 3300 XL series proximitor sensors feeding signals into the rack, as a degraded sensor or cable can produce erratic readings that stress the I/O module’s signal conditioning circuits.

For facilities running integrated protection and control architectures, the 125768-01 often operates alongside Bently Nevada 3500/40M proximitor I/O modules and 3500/42M velocity and acceleration I/O modules within the same rack. During a planned outage, it is best practice to perform a full rack audit — checking each module’s LED status indicators, verifying communication handshake with the 3500/01 rack controller, and confirming that relay output modules such as the 3500/32 relay module are responding correctly to test signals. This systematic approach prevents the common scenario where replacing one failed module reveals a secondary fault in an adjacent component that was masked by the primary failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3500 Series rack begins with understanding the interdependencies between modules. The 125768-01 rack interface I/O module sits at the center of the signal chain, and its reliable operation depends on the health of every component it interfaces with. During scheduled inspections or corrective maintenance events, maintenance engineers should treat the 125768-01 replacement as the trigger for a broader rack health review.

Start with the power infrastructure. The 3500/15 power supply input module feeds conditioned DC power to the backplane; any instability here will manifest as intermittent I/O module faults. Verify DC bus voltage at the backplane connector with a calibrated multimeter before installing the replacement 125768-01. Next, inspect the 3500/20 rack power supply module for fan operation, output ripple, and alarm LED status. A power supply operating near end-of-life is a common hidden cause of repeated I/O module failures.

On the signal side, check all 3500 Series I/O terminal block assemblies for proper torque on screw terminals — particularly in environments subject to vibration or thermal cycling. Inspect Bently Nevada proximitor extension cables for jacket integrity, connector pin condition, and continuity. If the facility uses 3300 XL 8mm or 11mm proximity transducer systems, verify that each proximitor is within its linear range and that gap voltage readings are within specification before reconnecting to the new I/O module.

For racks that include 3500/40M proximitor I/O modules or 3500/42M velocity I/O modules, confirm that channel configuration parameters stored in the 3500/01 rack controller are intact and have not been corrupted during the fault event. Use Bently Nevada System 1 software or the rack’s front-panel interface to verify alarm setpoints, danger setpoints, and relay output assignments. Finally, test the 3500/32 relay output module to confirm that protective relay contacts are operating correctly before returning the system to service.

Site Replacement Workflow

Replacing the Bently Nevada 125768-01 in a live industrial environment requires a structured approach to minimize downtime and ensure system integrity is fully restored. The following workflow reflects best practices for maintenance engineers performing this replacement in petrochemical, power, or heavy manufacturing facilities.

Step 1 — Pre-replacement verification: Before removing the faulty module, document the current rack configuration using System 1 software or a manual record of all channel assignments, alarm setpoints, and relay configurations. Photograph the terminal block wiring layout for reference during reinstallation.

Step 2 — Safe isolation: Coordinate with the control room to place the affected monitoring channels in bypass mode to prevent spurious trips during the replacement. Confirm bypass status on the 3500/32 relay module before proceeding.

Step 3 — Module removal: Power down the rack slot if hot-swap is not supported for this configuration. Disconnect the I/O terminal block from the 125768-01 carefully, labeling each cable if not already marked. Slide the module out of the rack slot and inspect the backplane connector for damage or contamination.

Step 4 — Replacement installation: Insert the new 125768-01 into the rack slot, ensuring full backplane connector engagement. Reconnect the I/O terminal block, verifying each termination against the pre-removal documentation. Restore power to the slot.

Step 5 — Functional verification: Confirm that the module’s status LEDs indicate normal operation. Verify live channel readings against known reference values from connected transducers. Remove bypass mode from the relay module and confirm that alarm and danger setpoints are active and correctly configured.

Step 6 — Documentation: Record the replacement in the facility’s maintenance management system, including the date, technician, module serial number, and post-replacement test results. Update the spare-parts inventory to trigger reorder of a replacement 125768-01 for the next event.

Spare Parts Support FAQ

Q1: What warranty does the Bently Nevada 125768-01 carry?
All 125768-01 modules supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. Each unit undergoes full functional testing prior to dispatch to verify electrical performance and compatibility with 3500 Series rack systems. Warranty claims are supported with direct technical assistance and replacement dispatch.

Q2: How do I confirm compatibility before ordering?
The 125768-01 is designed for use in Bently Nevada 3500 Series rack systems. Compatibility is determined by the rack chassis model and the firmware revision of the 3500/01 rack controller. If you are unsure whether the 125768-01 is the correct module for your specific rack configuration, contact our technical team at sales@smartnexmsk.com with your rack model number and current module part numbers for confirmation before ordering.

Q3: Is long-term supply availability guaranteed for this part?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3500 Series spare modules, including the 125768-01, to support facilities operating legacy systems that may no longer be covered by OEM supply programs. We provide long-term sourcing support for discontinued and hard-to-find industrial automation spare parts, ensuring your maintenance team has access to verified components when needed.

Q4: What pre-shipment testing is performed on each unit?
Every 125768-01 module is subjected to a full functional test protocol before shipment. This includes backplane communication verification, I/O signal routing checks, power consumption measurement, and visual inspection of connectors and PCB condition. A test report is available upon request. Units that do not meet performance specifications are not dispatched.
