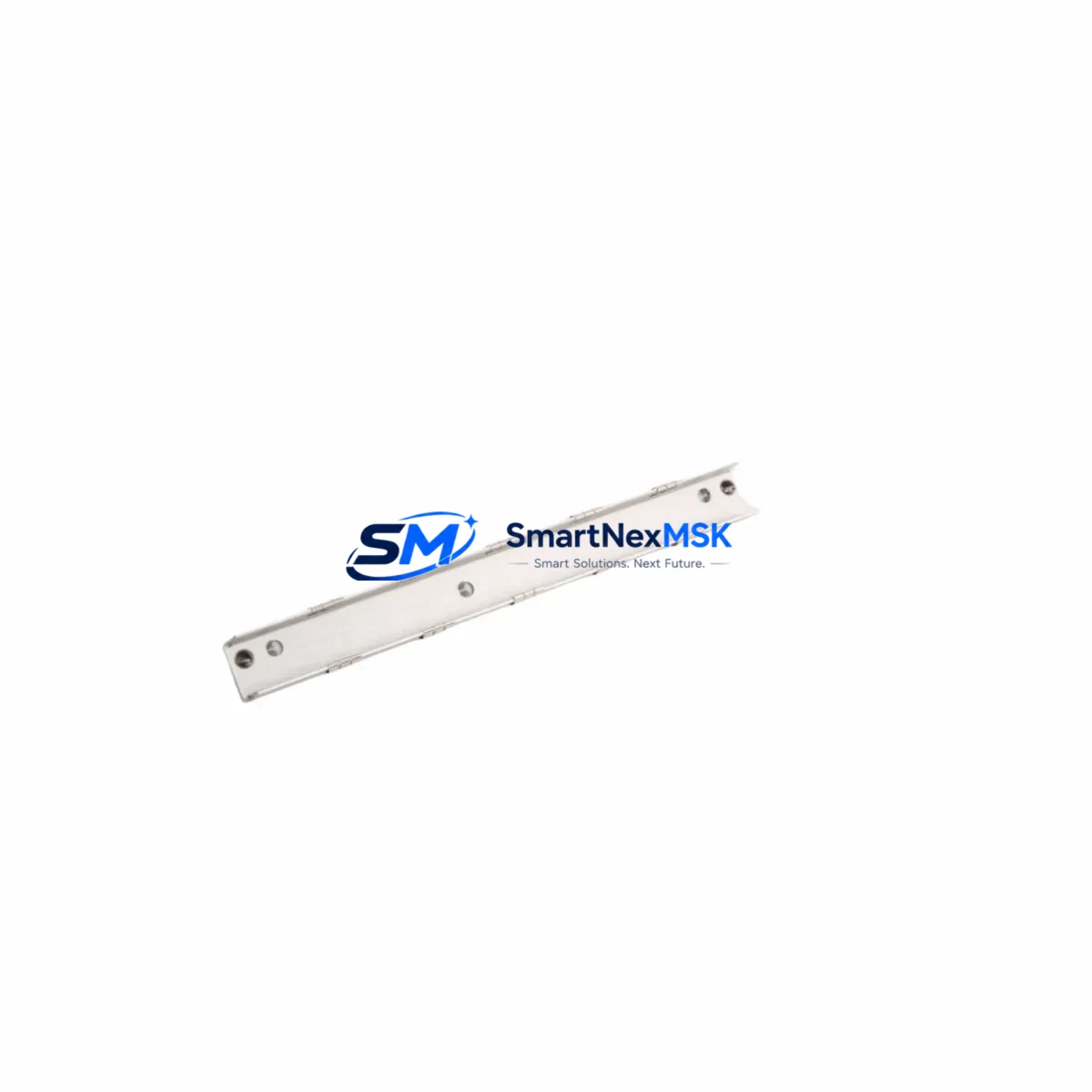

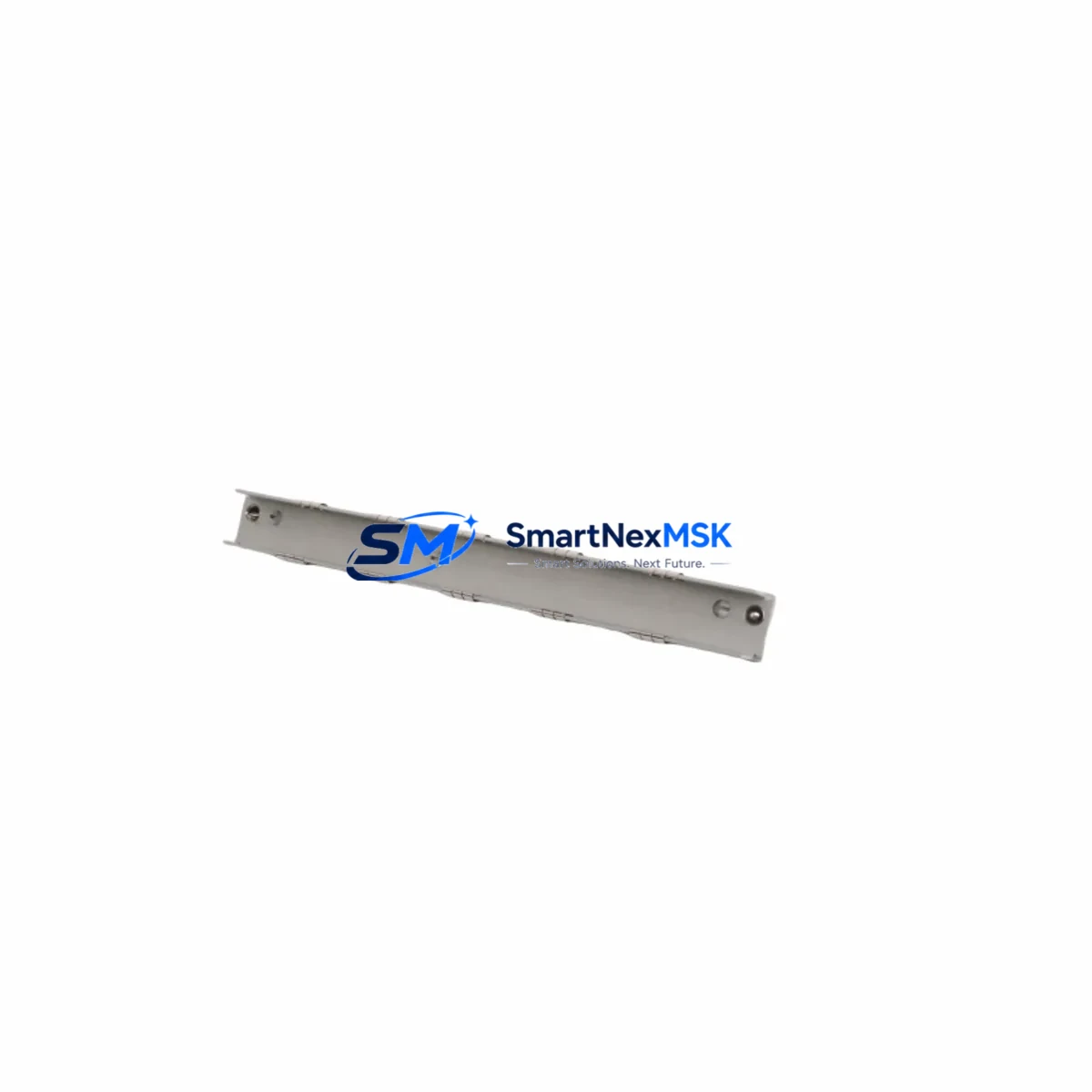

Bently Nevada 128275-01E Safety-Enhanced Expansion Faceplate for Harsh Industrial Sites
The Bently Nevada 128275-01E is a ruggedized expansion faceplate engineered for the 3500 Series machinery protection rack — one of the most trusted continuous monitoring platforms deployed across rotating equipment in oil & gas, petrochemical, power generation, mining, and heavy manufacturing environments. In facilities where turbines, compressors, pumps, and motors operate around the clock under high mechanical load and electrical interference, the structural and functional integrity of every rack component directly determines whether a critical machine trip is detected in time or missed entirely. The 128275-01E is designed to maintain that integrity under the most demanding field conditions.
The 3500 Series rack architecture relies on precise mechanical alignment between the backplane, I/O modules, and faceplates to ensure reliable signal transmission from field transducers to the monitoring system. A degraded or non-original faceplate introduces mechanical play that can cause intermittent connector contact — a failure mode that is particularly dangerous in vibration monitoring applications because it can produce false “healthy” readings during the early stages of bearing wear or shaft misalignment. The 128275-01E maintains the original dimensional tolerances required for secure module seating in the 3500/05 Power Supply, 3500/15 Power Supply Monitor, and adjacent I/O module slots.
In high-vibration environments such as gas turbine enclosures, reciprocating compressor skids, and large centrifugal pump stations, the mechanical robustness of the faceplate assembly is a direct safety factor. Loose or improperly fitted faceplates can allow dust, oil mist, and conductive particulates to enter the rack enclosure, contaminating the backplane connectors of modules such as the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor. Contamination-induced connector resistance increases are a known root cause of signal drift in eddy-current proximity probe circuits, which can mask developing shaft displacement trends and delay protective shutdown responses.
Power quality within the 3500 rack is another critical safety dimension. The 3500/05 Power Supply provides regulated DC power to all installed modules, and the faceplate assembly contributes to the overall EMC shielding integrity of the rack. In facilities with high-frequency variable speed drives, large motor starters, or arc furnaces operating in proximity to the monitoring rack, maintaining the full shielding continuity of the rack enclosure — including the faceplate — is essential to prevent conducted and radiated interference from corrupting the analog signal chains of the 3500/60 Temperature Monitor or 3500/50 Tachometer modules. Even minor shielding gaps can introduce noise floors that reduce the effective resolution of vibration and temperature measurements.
For facilities managing long-term asset integrity programs, the 128275-01E is a critical spare that should be held in inventory alongside other high-wear rack components. Maintenance teams responsible for 3500 Series racks in continuous service should also maintain stock of the 3500/20 Rack Interface Module and 3500/22M Transient Data Interface, as these modules are frequently accessed during diagnostic campaigns and are subject to connector wear from repeated insertion cycles. Proactive spare parts management for these components, combined with a reliable supply of structural parts like the 128275-01E, is the foundation of a zero-unplanned-downtime maintenance strategy for rotating equipment protection systems.
Installation of the 128275-01E requires no firmware changes or software reconfiguration. The faceplate is a passive mechanical component that slots into the standard 3500 rack frame. However, maintenance teams should follow the Bently Nevada rack installation procedure to verify that the module retention latch engages fully and that the faceplate sits flush with adjacent modules before restoring power to the rack. A visual inspection of the backplane connector pins in the target slot is recommended before installation, particularly in racks that have been in service for more than five years in high-humidity or high-particulate environments.
Each 128275-01E unit supplied by SMARTNEXMSK undergoes functional and dimensional verification prior to shipment. Units are inspected for connector integrity, housing dimensional conformance, and latch mechanism operation. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. SMARTNEXMSK maintains inventory of the 128275-01E and related 3500 Series components to support urgent spare parts requirements with short lead times.
Safety Reliability Table
| Parameter | 128275-01E Specification | Safety / Reliability Notes |
|---|---|---|
| Compatible Platform | Bently Nevada 3500 Series Rack | Direct fit for all standard 3500 rack frame configurations |
| Module Type | Expansion Faceplate (Passive) | No firmware or software configuration required |
| Mechanical Fit | OEM-equivalent dimensional tolerances | Ensures secure module seating and backplane connector integrity |
| EMC Shielding | Full rack shielding continuity | Prevents conducted/radiated interference in high-noise environments |
| Environmental Protection | Dust and particulate ingress prevention | Protects backplane connectors in oil mist and high-particulate sites |
| Operating Environment | Industrial — continuous duty | Suitable for turbine enclosures, compressor skids, pump stations |
| Installation | Tool-free latch retention | Verify flush seating and latch engagement before rack power-up |
| Pre-Shipment Testing | Dimensional and functional verification | Each unit inspected before dispatch |
| Warranty | 12 Months | Covers manufacturing defects and functional failure |
Control Cabinet Protection Strategy
A robust protection strategy for a 3500 Series monitoring installation begins with ensuring that every slot in the rack is properly occupied — either by an active monitoring module or by a correctly fitted faceplate such as the 128275-01E. Open or improperly covered slots are the single most common entry point for environmental contaminants that degrade the long-term reliability of the entire rack assembly.
In a typical large turbine protection cabinet, the 3500 rack may house a combination of the 3500/40M Proximitor/Seismic Monitor for radial vibration, the 3500/45 Position Monitor for axial thrust, the 3500/50 Tachometer for speed and overspeed detection, and the 3500/60 Temperature Monitor for bearing temperature surveillance. Each of these modules depends on clean, stable backplane power from the 3500/05 Power Supply and uninterrupted communication with the 3500/20 Rack Interface Module for alarm and trip relay output. The structural integrity provided by correctly fitted faceplates like the 128275-01E is the first line of defense for all of these active monitoring functions.
For cabinets installed in classified hazardous areas — such as Zone 1 or Zone 2 gas atmospheres in petrochemical plants or offshore platforms — the rack enclosure’s ability to maintain its ingress protection rating depends on all mechanical components, including faceplates, being correctly installed and undamaged. Maintenance teams in these environments should include faceplate condition inspection as part of every scheduled rack maintenance visit, replacing any units showing signs of mechanical damage, warping, or latch wear.
In facilities where the 3500 rack communicates with a distributed control system via the 3500/22M Transient Data Interface or a System 1 condition monitoring software platform, maintaining the physical integrity of the rack is equally important for data quality. Signal noise introduced by shielding gaps or connector contamination can corrupt the waveform data used by System 1 for spectrum analysis and machine health trending, reducing the diagnostic value of the monitoring system and potentially masking early fault signatures.
Critical Industrial Safety Applications
The Bently Nevada 128275-01E is deployed across a wide range of critical industrial applications where continuous machinery protection is non-negotiable. In petrochemical and refinery environments, 3500 Series racks protect the large centrifugal compressors and pumps that handle hazardous process fluids — a missed vibration alarm or a spurious trip caused by a degraded rack component can result in either a safety incident or a costly unplanned shutdown. The 128275-01E ensures that the rack maintains its full protective capability between planned maintenance intervals.
In power generation facilities — including gas turbine, steam turbine, and hydro generator installations — the 3500 Series is frequently the primary overspeed and vibration protection system for the generating unit. Regulatory requirements in many jurisdictions mandate that machinery protection systems be maintained in a fully functional state at all times, with documented inspection records. Maintaining a stock of critical spare parts including the 128275-01E supports compliance with these requirements and reduces the risk of a protection system being taken out of service due to a missing mechanical component.
In mining and mineral processing operations, where large ball mills, SAG mills, and crusher drives operate in extremely high-dust, high-vibration environments, the physical robustness of the monitoring rack is tested continuously. The 128275-01E’s role in maintaining rack enclosure integrity is particularly important in these applications, where airborne silica and metal particulates can cause rapid degradation of unprotected electrical connectors.
In water and wastewater treatment plants, where large pump stations and blower systems operate continuously with minimal staffing, the 3500 Series provides the automated protection that prevents equipment damage during off-hours operation. The reliability of every rack component — including structural elements like the 128275-01E — directly determines the availability of this automated protection layer.
Safety and Quality FAQ
Q: What does the 12-month warranty on the 128275-01E cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes dimensional and functional verification before shipment. For warranty claims, contact sales@smartnexmsk.com with your order reference and a description of the issue. Replacement units are dispatched within 3 business days of claim approval.
Q: What pre-shipment testing is performed on the 128275-01E?
A: Each unit is inspected for dimensional conformance to 3500 rack slot specifications, connector and latch mechanism integrity, and housing condition. Units that do not meet inspection criteria are not dispatched. A test record is maintained for each unit shipped.
Q: Is the 128275-01E compatible with all 3500 Series rack configurations?
A: The 128275-01E is designed for the standard Bently Nevada 3500 Series rack frame and is compatible with all standard slot positions in both the full-size and half-size 3500 rack configurations. If you are unsure whether this faceplate is compatible with your specific rack revision, contact sales@smartnexmsk.com with your rack model number for confirmation before ordering.
Q: Can SMARTNEXMSK support long-term or repeat supply of the 128275-01E?
A: Yes. SMARTNEXMSK maintains ongoing inventory of the 128275-01E and related 3500 Series components to support both immediate spare parts requirements and planned maintenance programs. For facilities managing multiple 3500 racks or operating under a long-term maintenance contract, contact us to discuss scheduled supply arrangements and volume pricing.
