Bently Nevada 130539-99 Maintenance Spare 3500 Series

Bently Nevada 130539-99 Maintenance Spare 3500 Series: Spare Replacement & Industrial Downtime Risk Control

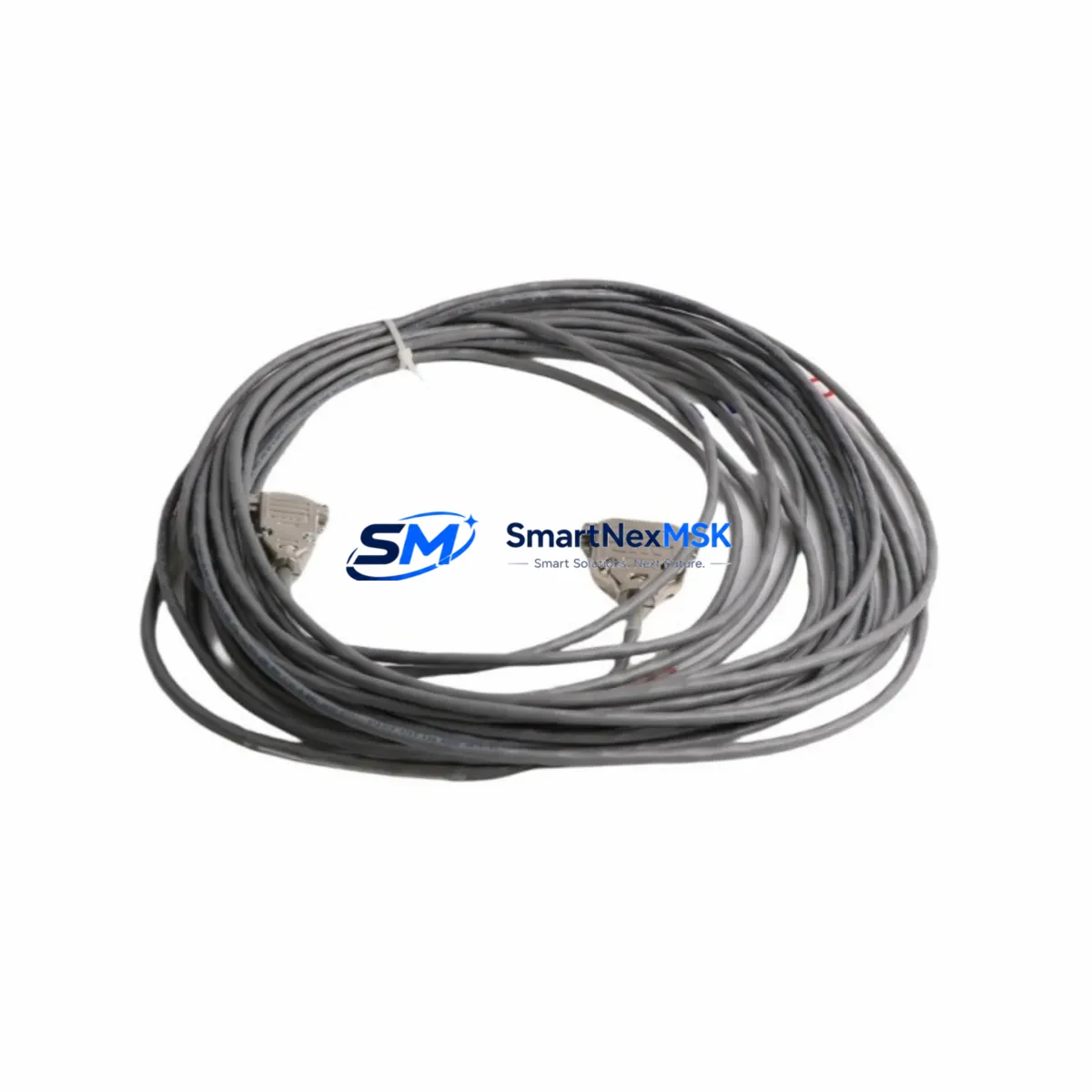

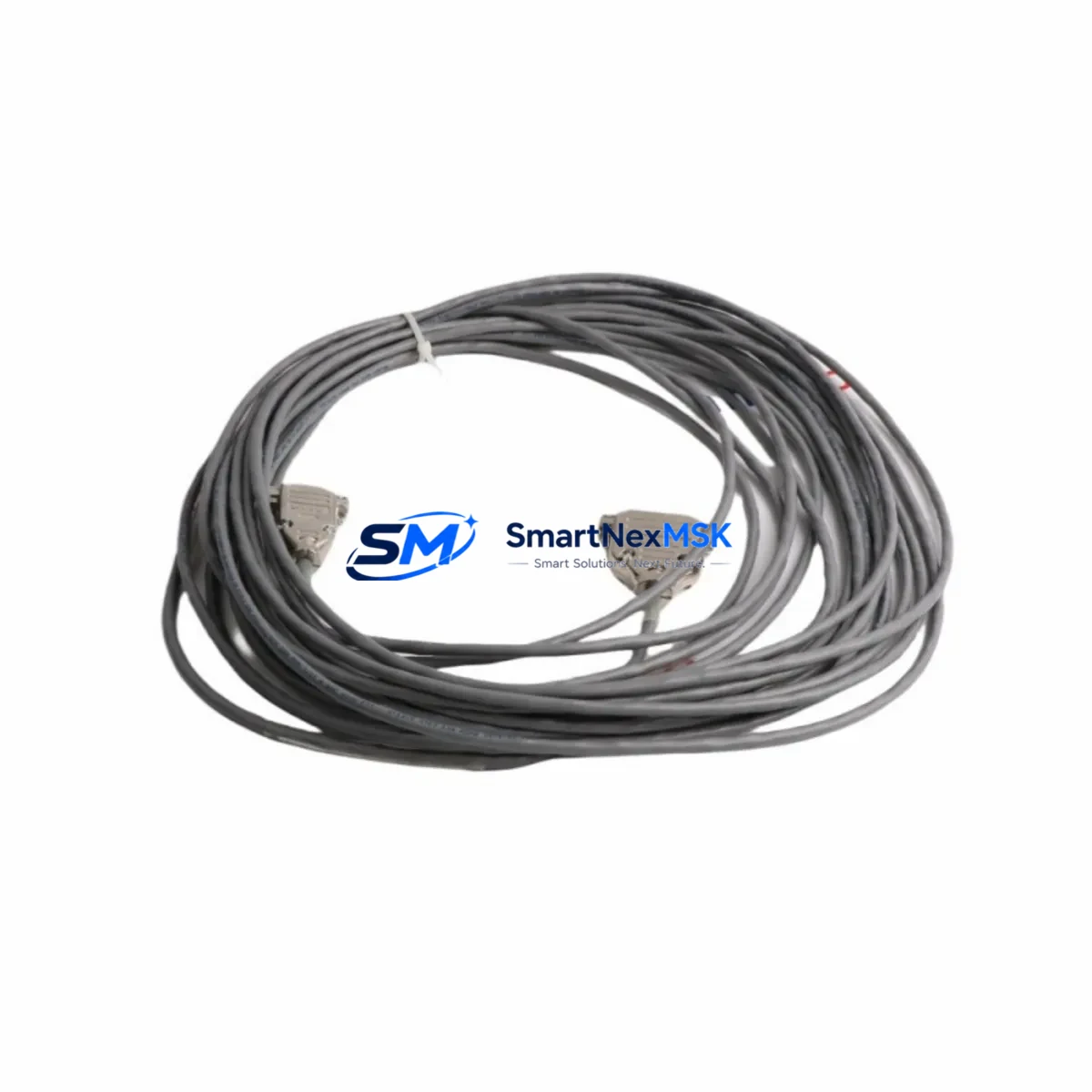

The Bently Nevada 130539-99 is an original OEM interconnect cable engineered for the 3500 Series machinery protection and vibration monitoring platform. In continuous-process industries — oil & gas, petrochemical, power generation, and rotating machinery — the 3500 Series is a mission-critical system. A failed or degraded interconnect cable such as the 130539-99 can interrupt signal transmission between transducers and the 3500 rack, triggering false trips, masking real faults, or causing unplanned shutdowns. Maintaining a verified spare of the 130539-99 in your site inventory is a fundamental element of any proactive maintenance strategy.

This listing supplies the 130539-99 as a maintenance-ready spare: inspected, tested, and shipped with a 12-month warranty. Each unit is verified for connector integrity, shielding continuity, and dimensional compliance before dispatch. Long-term supply availability is maintained to support both planned turnarounds and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer replaces the 130539-99 interconnect cable, the replacement event is an opportunity to inspect the broader signal chain and associated components within the same control cabinet or machinery skid. Failure to inspect adjacent components is a common cause of repeat faults and unnecessary downtime.

During a 130539-99 replacement, engineers should systematically verify the following components in the same maintenance window:

Proximitor / Transducer Interface: Inspect the Bently Nevada 3300 XL proximitor or equivalent proximity transducer connected to this cable. A degraded proximitor output can mimic a cable fault and should be confirmed operational after cable replacement. Check the proximitor housing for moisture ingress and connector corrosion.

3500 Rack I/O Modules: Confirm that the receiving I/O module — such as the 3500/42M or 3500/44M vibration monitor card — is seated correctly and that its terminal connections are torqued to specification. Loose I/O module seating is a frequent source of intermittent signal loss that is often misattributed to cable failure.

Power Supply Module: The 3500/15 or 3500/20 power supply module feeding the rack should be checked for output voltage stability. A marginal power supply can cause erratic readings across multiple channels and accelerate cable connector wear through voltage fluctuation.

Relay Output Module: If the 3500 rack includes a 3500/32 or 3500/33 relay output module, verify relay contact condition and wiring integrity. Relay contacts in high-cycle applications may show increased contact resistance, which can affect trip logic reliability.

Communication Gateway: For systems using the 3500/92 communication gateway or Modbus/TCP interface, confirm that the gateway firmware is current and that the communication cable between the rack and the DCS or historian is undamaged. A communication fault can prevent alarm data from reaching the control room even when the vibration monitoring hardware is functioning correctly.

Terminal Blocks and Wiring: Inspect all terminal blocks in the junction box or marshalling cabinet associated with this signal loop. Loose or corroded terminals on DIN-rail mounted terminal blocks are a leading cause of intermittent faults in vibration monitoring circuits. Re-torque all terminals and apply anti-corrosion treatment where appropriate.

Signal Isolators: If signal isolation modules are installed between the proximitor and the 3500 rack — common in installations where the rack is located remotely from the machinery — verify isolator output levels and check for ground loop conditions. A failed signal isolator can produce a flat-line or out-of-range reading that triggers unnecessary shutdowns.

Fusing and Circuit Protection: Check the fuse or circuit breaker protecting the 24 VDC supply to the proximitor circuit. A marginal fuse with elevated resistance can cause supply voltage drop under load, affecting proximitor gap voltage and producing false proximity readings.

Grounding and Shielding Continuity: Verify that the cable shield drain wire is terminated at one end only (typically at the rack end) to prevent ground loops. Improper shield termination is a persistent source of noise in vibration monitoring systems and can cause erratic readings that are difficult to diagnose without systematic inspection.

Addressing all of these components during a planned 130539-99 replacement significantly reduces the probability of a repeat fault and extends the mean time between maintenance interventions for the entire vibration monitoring loop.

Site Replacement Workflow

The 130539-99 is a direct OEM replacement for the same part number in any 3500 Series installation. No firmware changes, rack reconfiguration, or calibration offsets are required for a like-for-like cable replacement. The following workflow is recommended for site replacement:

Step 1 — Pre-replacement verification: Confirm the existing cable part number against the rack wiring diagram and the as-built documentation. Verify that the replacement 130539-99 matches the required length and connector configuration for the specific installation point.

Step 2 — System state management: Coordinate with the control room to place the affected channel in bypass or maintenance mode before disconnecting the cable. This prevents a false trip from propagating to the DCS or safety system during the replacement.

Step 3 — Cable removal and inspection: Remove the failed cable and inspect both connector ends for pin damage, corrosion, or deformation. Inspect the mating connectors on the proximitor housing and the 3500 rack I/O module for the same defects. Clean mating connectors with approved contact cleaner before installing the replacement cable.

Step 4 — Installation and seating: Install the replacement 130539-99, ensuring that the connector is fully seated and the locking mechanism is engaged. Route the cable to avoid sharp bends, pinch points, and proximity to high-voltage conductors or heat sources.

Step 5 — Functional verification: Restore the channel from bypass mode and verify that the gap voltage, direct vibration reading, and 1X/2X amplitude values are within expected ranges for the machine at its normal operating condition. Document the as-found and as-left readings in the maintenance management system.

Step 6 — Spare inventory update: Record the replacement in the CMMS and initiate a replenishment order for the 130539-99 to restore the site spare inventory to its minimum holding level. Maintaining at least one verified spare of the 130539-99 on-site is recommended for any facility operating 3500 Series machinery protection systems.

Spare Parts Support FAQ

Q: Is the 130539-99 still available as a new OEM part, or is it a legacy item?
A: The 130539-99 is available as an original Bently Nevada spare. We maintain long-term supply to support both active installations and legacy 3500 Series systems that are being extended beyond their original design life. Contact us to confirm current stock availability and lead time.

Q: What pre-shipment testing is performed on the 130539-99?
A: Each 130539-99 is tested for electrical continuity across all conductors, shield integrity, and correct connector seating before dispatch. Units that do not pass all checks are not shipped. A test record is available on request.

Q: How do I confirm compatibility with my specific 3500 rack configuration?
A: Provide your rack slot configuration, the proximitor model number, and the cable routing distance. We will confirm compatibility against the Bently Nevada 3500 Series wiring documentation before shipment. For non-standard configurations, we can advise on alternative cable assemblies within the 3500 Series spare parts catalog.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating and installation conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside the specified environmental limits. Warranty claims are processed with a replacement unit dispatched after fault confirmation.
