Bently Nevada 136719-01 Spare for 3500 Automation: Spare Replacement & Industrial Downtime Risk Control

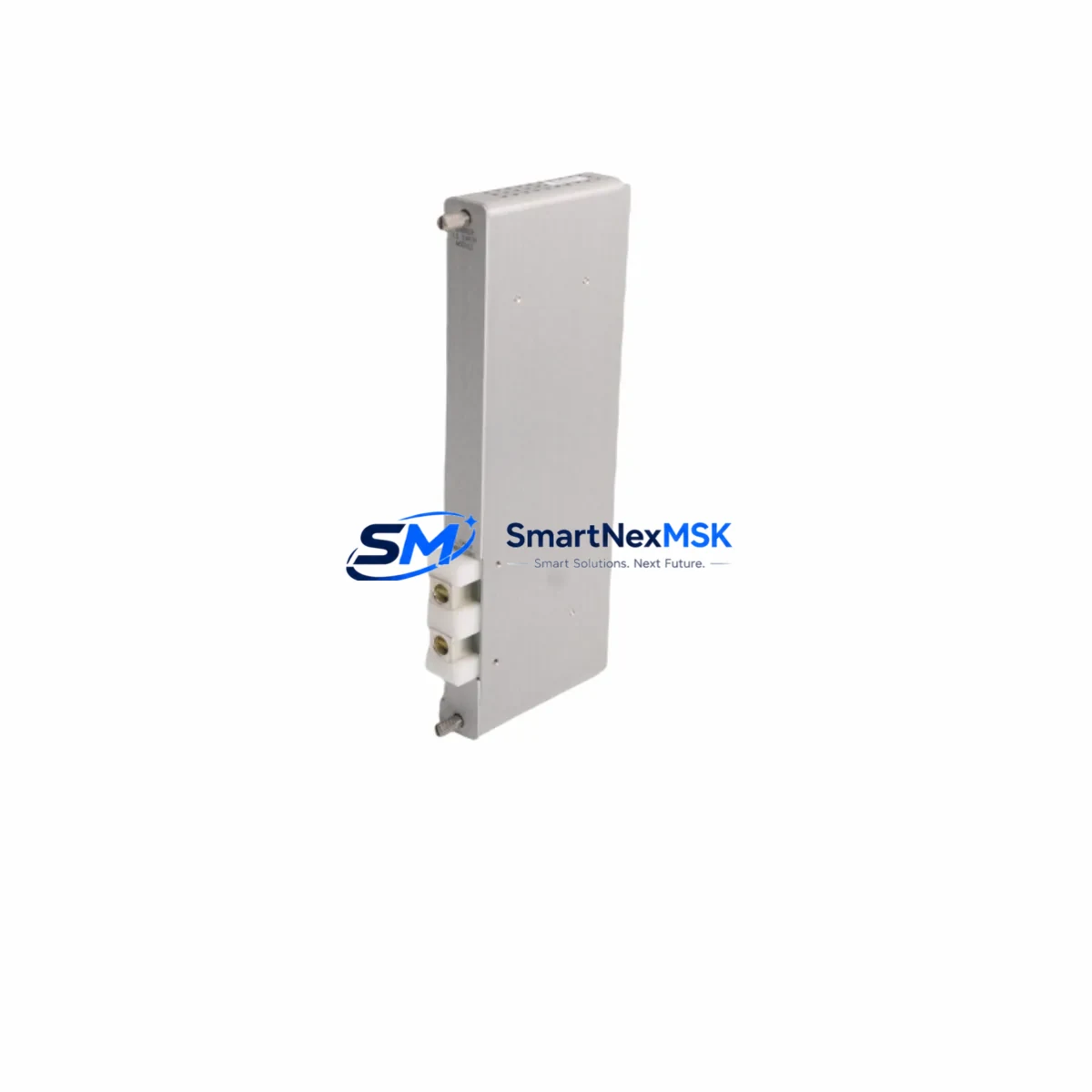

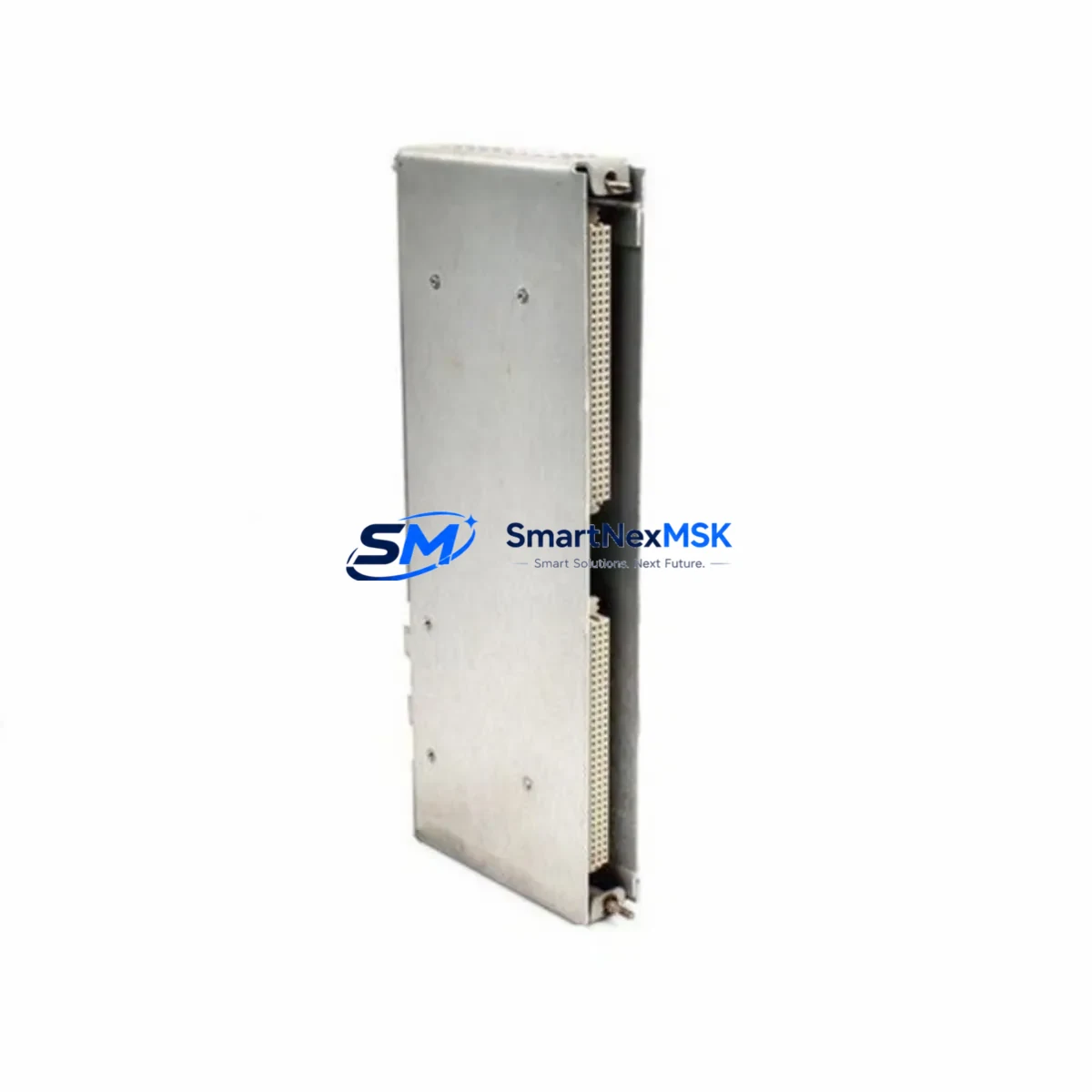

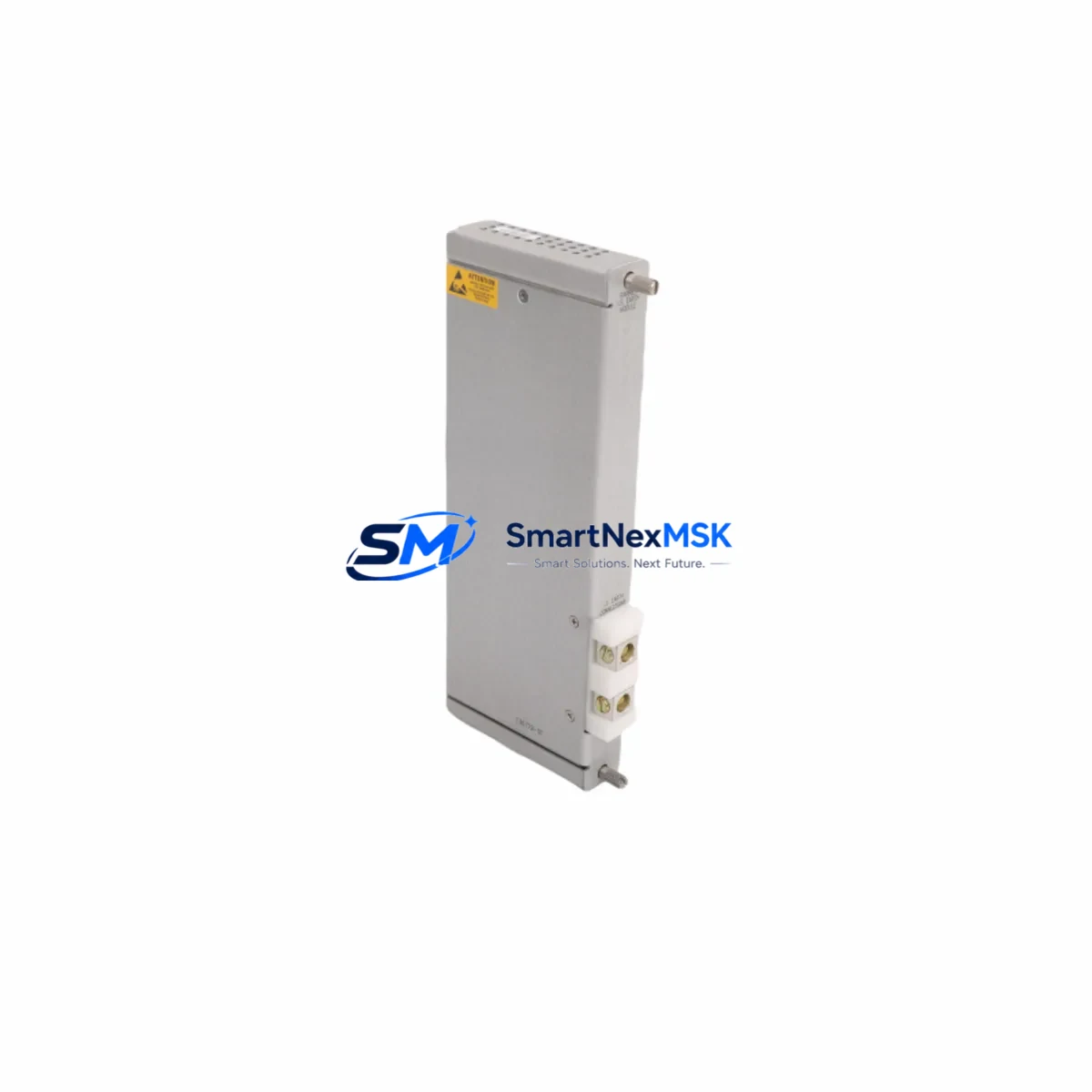

The Bently Nevada 136719-01 is an original Barrier Earth Module designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment facilities worldwide. This module provides intrinsically safe (IS) grounding and signal isolation between field-side transducer circuits and the control-side electronics, making it a critical safety and signal-integrity component in any 3500 rack installation.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes in oil & gas, power generation, petrochemical, and heavy industrial environments, the 136719-01 is a non-negotiable spare. A failed or degraded barrier earth module can introduce ground loops, corrupt vibration and position data, trigger false alarms, or — more critically — mask real machinery faults. Keeping a verified replacement unit on the shelf is the single most effective way to restore system integrity within a planned maintenance window rather than an unplanned shutdown.

This listing covers an original, tested 136719-01 unit, shipped with inspection documentation, and backed by a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 136719-01 Barrier Earth Module is flagged for replacement during a scheduled outage or corrective maintenance event, experienced maintenance engineers treat it as a trigger for a broader cabinet and loop inspection. The 3500 Series rack is a tightly integrated system, and a single degraded component can affect multiple measurement channels simultaneously.

Start with the 3500/05 Power Supply Module — verify input voltage stability and output rail integrity before re-energising any replaced module. A marginal power supply is a common root cause of repeated barrier earth failures. Next, inspect the 3500/15 or 3500/20 Rack Interface Module for firmware currency and communication health, particularly if the system interfaces with a DCS or SCADA via Modbus or Ethernet.

On the field side, check the 3500/25 Keyphasor Module and associated wiring for continuity and shielding integrity — Keyphasor signal corruption is frequently misdiagnosed as a barrier earth fault. Review the 3500/40M or 3500/42M Proximitor I/O Modules for channel-by-channel OK status; a failing I/O module can present symptoms identical to a barrier earth ground fault.

For facilities running Bently Nevada 3300 Series legacy racks alongside 3500 systems, verify that the barrier earth architecture is consistent across both platforms — mixed grounding schemes are a known source of interference in shared cable trays. If the plant uses Velomitor or 330500 Series accelerometers as transducers, confirm that cable screen termination at the junction box is intact and that the transducer body is not providing an unintended ground path.

Procurement engineers should also consider stocking the 3500/92 Communication Gateway Module if the rack serves as a data concentrator for plant historians. Communication module failures during a barrier earth replacement outage are a common secondary finding. Additionally, terminal blocks, cable ferrules, and IS-rated fuse holders within the same cabinet should be inspected and replaced on a condition basis — these low-cost consumables are frequently overlooked until they cause a nuisance trip or measurement dropout.

All replacement work should be documented in the plant CMMS with the new module serial number, installation date, and post-installation loop check results, establishing a traceable maintenance record for IS certification audits.

Site Replacement Workflow

Step 1 — Verify compatibility: Confirm the installed rack firmware version and slot assignment against the 136719-01 datasheet. The 3500 Series supports hot-swap on certain module types; verify whether a controlled shutdown is required for your specific rack configuration before proceeding.

Step 2 — Isolate and de-energise: Follow site LOTO (Lockout/Tagout) procedures. Disconnect field-side IS barriers and document terminal wiring with photographs before removal. Label all conductors if not already marked.

Step 3 — Remove the legacy module: Extract the 136719-01 from its slot. Inspect the backplane connector for corrosion, bent pins, or contamination. Clean with approved contact cleaner if necessary before installing the replacement.

Step 4 — Install and verify: Seat the replacement 136719-01 firmly. Reconnect field wiring per the original termination record. Re-energise the rack and confirm OK status on all affected channels via the 3500 System Display or connected Bently Nevada System 1 software.

Step 5 — Functional loop check: Apply a known reference signal to each transducer channel and verify that measured values are within expected engineering units. Document results and update the CMMS record.

This workflow minimises downtime, preserves IS certification compliance, and ensures that the replacement module is performing correctly before the asset is returned to service — typically achievable within a 2–4 hour planned maintenance window for a single-slot replacement.

Spare Parts Support FAQ

Q1: Is the 136719-01 a direct drop-in replacement for all 3500 Series rack configurations?
The 136719-01 is the standard Barrier Earth Module for the Bently Nevada 3500 platform and is compatible with the full range of 3500 rack chassis. However, always cross-reference your rack’s bill of materials and firmware version before installation. If your rack was supplied with a specific revision suffix, contact our technical team to confirm exact compatibility before ordering.

Q2: What pre-shipment testing is performed on each unit?
Each 136719-01 unit undergoes functional verification including IS barrier continuity, isolation resistance measurement, and visual inspection of the backplane connector and housing. Units that do not meet original Bently Nevada performance specifications are not shipped. A test record is available on request for quality-critical applications.

Q3: How should the 136719-01 be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (typically 0–50°C, <85% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect annually for connector oxidation and re-verify functional status before deploying into a live rack after extended storage periods exceeding 24 months.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental ratings. Warranty claims are processed with return shipment and replacement dispatch within 10 business days of receipt and fault confirmation.
