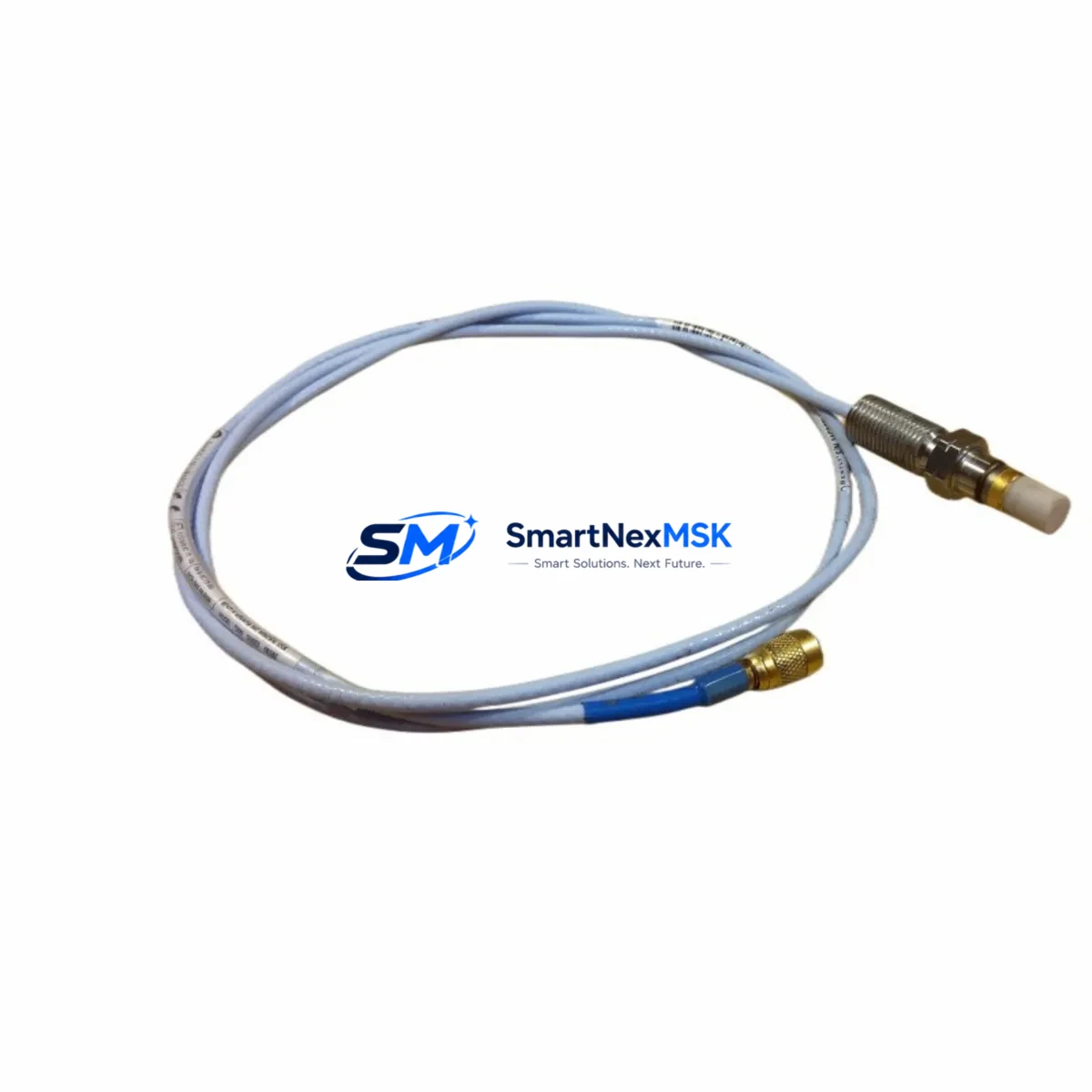

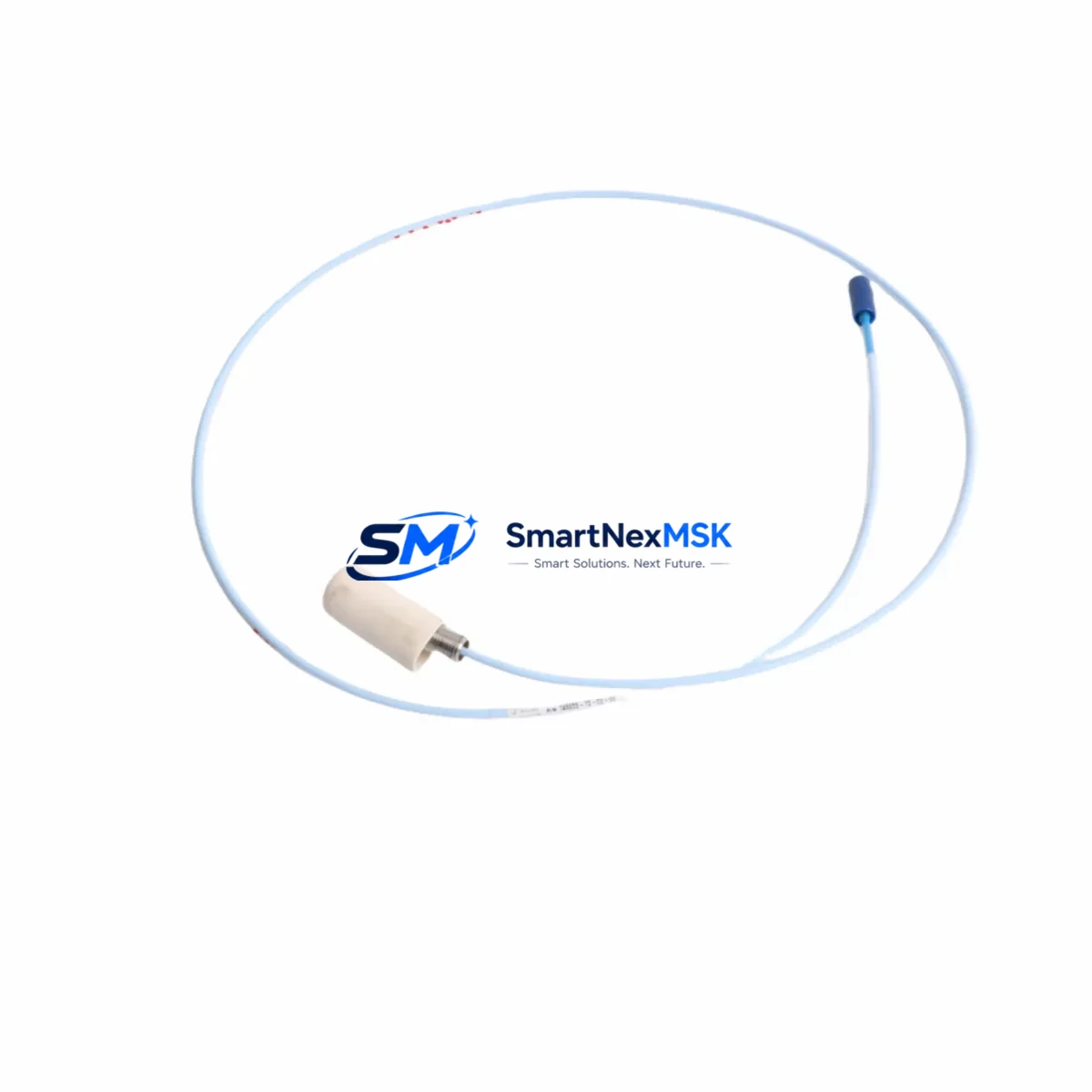

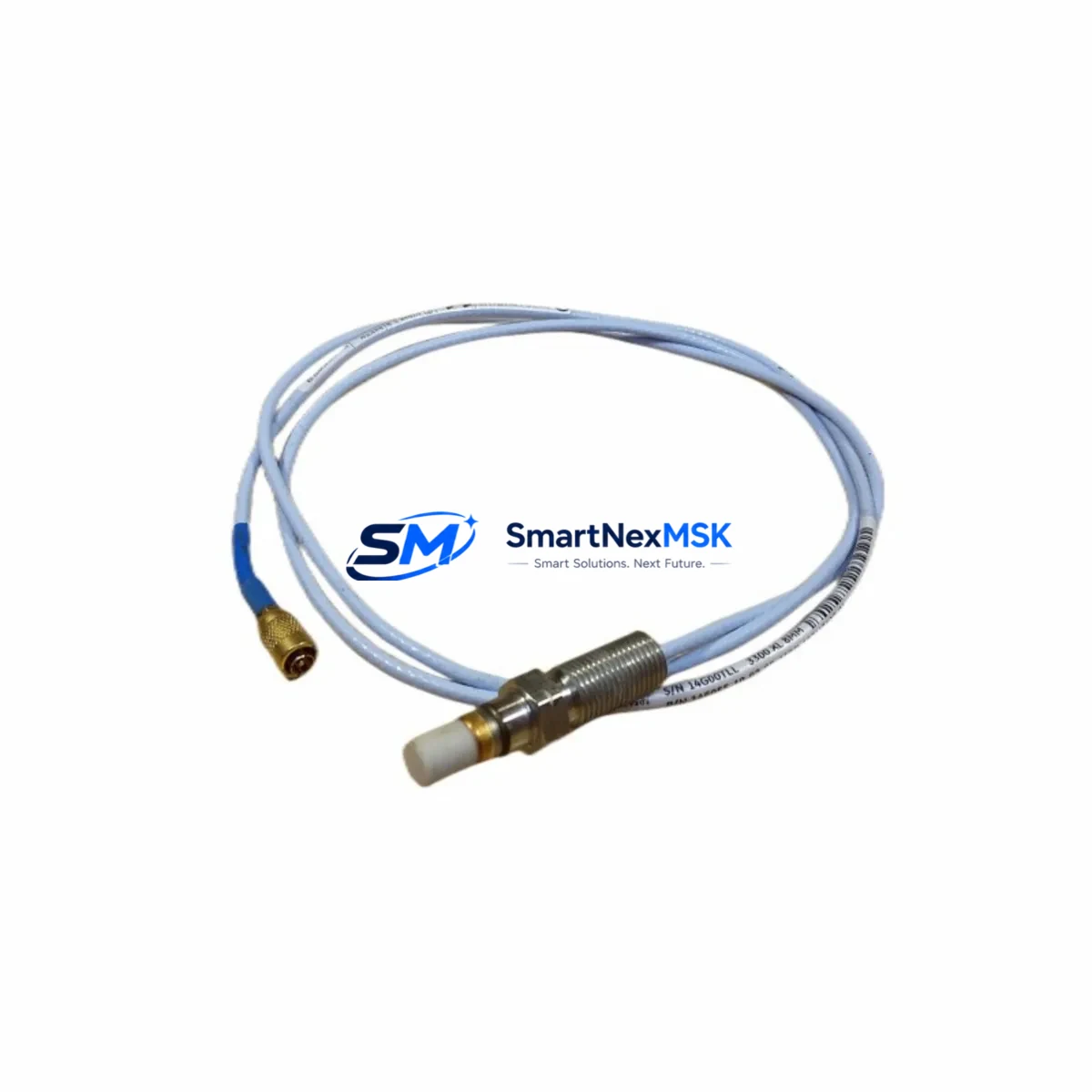

The Bently Nevada 146055-10-02-00 is an original proximity probe engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery applications including turbines, compressors, pumps, and gearboxes. As a maintenance-ready spare, this unit is sourced, inspected, and dispatched to support rapid field replacement, minimizing unplanned downtime and protecting critical rotating assets.

For maintenance engineers managing aging DCS or machinery protection systems, having a verified spare of the 146055-10-02-00 on the shelf is a fundamental risk-reduction strategy. The 3300 XL proximity probe system operates as a complete measurement chain: probe, extension cable, and proximitor/driver. A failure at any point in this chain — whether due to cable damage, connector corrosion, or probe tip wear — can trigger a false trip or, worse, a missed alarm. Stocking this probe as a ready-to-install spare ensures that fault isolation and restoration can be completed within a single maintenance window.

This unit ships tested, with full electrical verification against OEM specifications, and is backed by a 12-month warranty. Long-term supply continuity is supported for customers managing multi-unit installations or legacy system life extension programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 146055-10-02-00 proximity probe in the field, a disciplined maintenance engineer will not stop at the probe itself. The 3300 XL measurement chain is only as reliable as its weakest component, and a probe replacement event is the ideal opportunity to inspect and — where necessary — pre-stage spares for adjacent components.

Begin with the 3300 XL extension cable (typically an 18-meter or 9-meter armored cable, part numbers in the 330130 series). Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. If the probe is being replaced due to a measurement drift fault, the extension cable is a primary suspect and should be swapped simultaneously.

Next, verify the condition of the 3300 XL Proximitor sensor (e.g., 330180 series or 3300 XL 8mm Proximitor). The proximitor converts the probe’s eddy-current signal into a DC voltage proportional to gap distance. A degraded proximitor can produce erratic output even with a new probe installed — always bench-test the proximitor independently before closing out the work order.

At the monitor rack level, inspect the Bently Nevada 3300/16 or 3500 series monitor cards that receive the proximitor output. Check terminal block connections for oxidation, verify that the OK relay output is functioning correctly, and confirm that the monitor’s gap voltage reading falls within the linear range (typically -10 VDC ± 2 VDC at the nominal gap). If the installation uses a 3500/42M Proximitor/Seismoprobe Monitor, confirm that the channel configuration in the System 1 software matches the replacement probe’s sensitivity specification.

For installations where the 3300 XL probe feeds into a DCS analog input card (such as an Emerson DeltaV AI card or Honeywell C300 analog input module), verify the 4–20 mA or voltage signal scaling at the DCS termination cabinet. Loose terminal screws and corroded DIN rail terminal blocks (such as Phoenix Contact or Weidmüller series) are a common source of signal noise that can be mistaken for probe degradation.

Where the vibration signal is also routed to a safety instrumented system (SIS) or machinery trip relay, confirm that the relay output from the monitor is functioning and that the SIS input card (e.g., a Triconex or Hima analog input module) is reading correctly. This is particularly important in API 670-compliant installations where the probe replacement must be followed by a functional test of the trip circuit.

Finally, for sites running Bently Nevada System 1 Evolution condition monitoring software, update the probe calibration record and verify that the trend data baseline is reset after replacement. Retaining the pre-replacement trend data for comparison is recommended for root cause analysis documentation.

Recommended co-stocking items for 3300 XL installations: 330130-series extension cables, 330180-series Proximitor sensors, 3300 XL connector kits, terminal block spares for the monitor rack, and a calibrated gap-setting tool for probe installation verification.

Site Replacement Workflow

Step 1 — Identify and isolate: Confirm the faulty channel on the Bently Nevada monitor. Note the gap voltage, vibration amplitude, and OK status. Isolate the channel per site LOTO procedure before disconnecting the probe.

Step 2 — Remove the existing probe: Disconnect the extension cable at the probe connector. Remove the probe from its mounting bracket or proximity probe holder. Note the installed gap (typically measured with a feeler gauge or inferred from the gap voltage at the proximitor).

Step 3 — Install the 146055-10-02-00 replacement: Thread the new probe into the holder to the same gap setting as the original (typically 1.0–1.5 mm for 8 mm probes; verify against the machine’s vibration monitoring specification). Reconnect the extension cable. Ensure the connector is fully seated and the locking collar is secure.

Step 4 — Verify gap voltage: With the machine at rest, confirm the gap voltage at the proximitor output is within the linear range. Adjust the probe gap if necessary. Document the final gap voltage on the maintenance record.

Step 5 — Functional test: Restore power to the monitor channel. Confirm the OK relay energizes, the vibration reading is within baseline, and no alarms are active. For SIS-connected installations, perform the required functional test of the trip circuit before returning the machine to service.

Step 6 — Update records: Log the replacement in the CMMS (e.g., SAP PM or Maximo), update the System 1 calibration record, and replenish the spare parts inventory with a new 146055-10-02-00 unit to maintain readiness for the next event.

This workflow is designed to minimize mean time to repair (MTTR) and ensure that the replacement does not introduce new faults. Using a pre-tested, original spare — rather than a field-refurbished unit — is the single most effective way to reduce the risk of a repeat failure within the warranty period.

Spare Parts Support FAQ

Q1: Is the 146055-10-02-00 a direct replacement for older 3300 series proximity probes?
The 146055-10-02-00 is designed for the 3300 XL system. Compatibility with earlier 3300 (non-XL) probes depends on the proximitor model installed. The 3300 XL Proximitor is backward-compatible with standard 3300 probes in most configurations, but the reverse is not always true. Confirm the proximitor part number before substituting across generations. If in doubt, contact our technical team with your proximitor model and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on this unit?
Each 146055-10-02-00 unit undergoes electrical continuity verification, insulation resistance check, and functional output test against a reference target before dispatch. Units that do not meet OEM electrical specifications are not shipped. A test record is available on request for quality-critical installations.

Q3: How should this spare be stored to maintain readiness?
Store in the original packaging or an ESD-safe bag, in a dry environment between 0°C and 40°C, away from strong magnetic fields and solvents. Inspect the connector and cable termination annually. Rotate stock on a first-in, first-out basis. The recommended maximum shelf storage period before installation verification is 3 years.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions as specified by Bently Nevada for the 3300 XL series. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or operation outside the rated temperature range. Warranty claims are processed with return of the defective unit and a completed failure report. Replacement units are dispatched within 5 business days of claim approval.
