Bently Nevada 16710-16 Retrofit-Ready Interconnect Cable for 3500 MPS

Bently Nevada 16710-16 Retrofit-Ready Interconnect Cable for 3500 Series MPS: Seamless Compatibility Upgrade for Legacy Control Systems

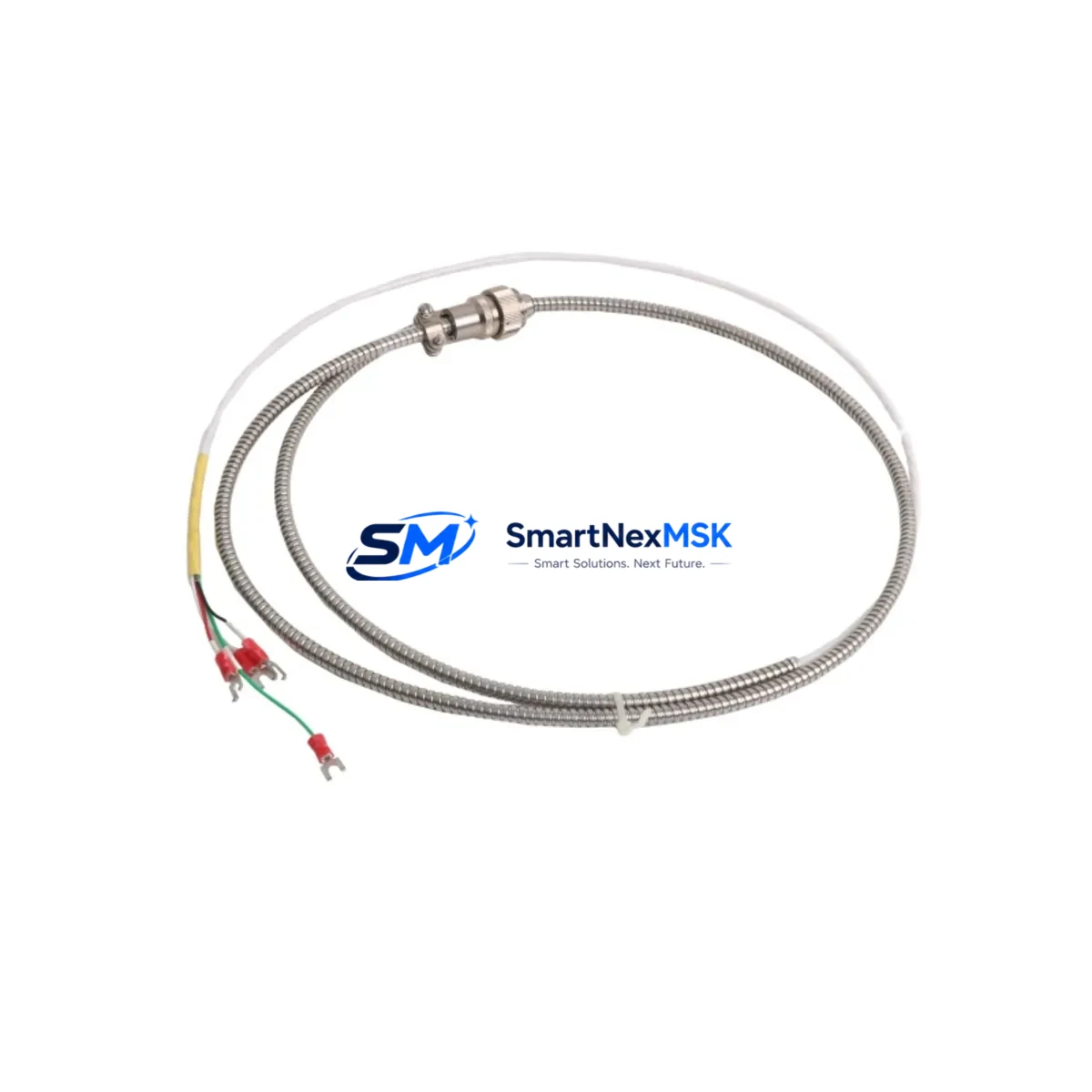

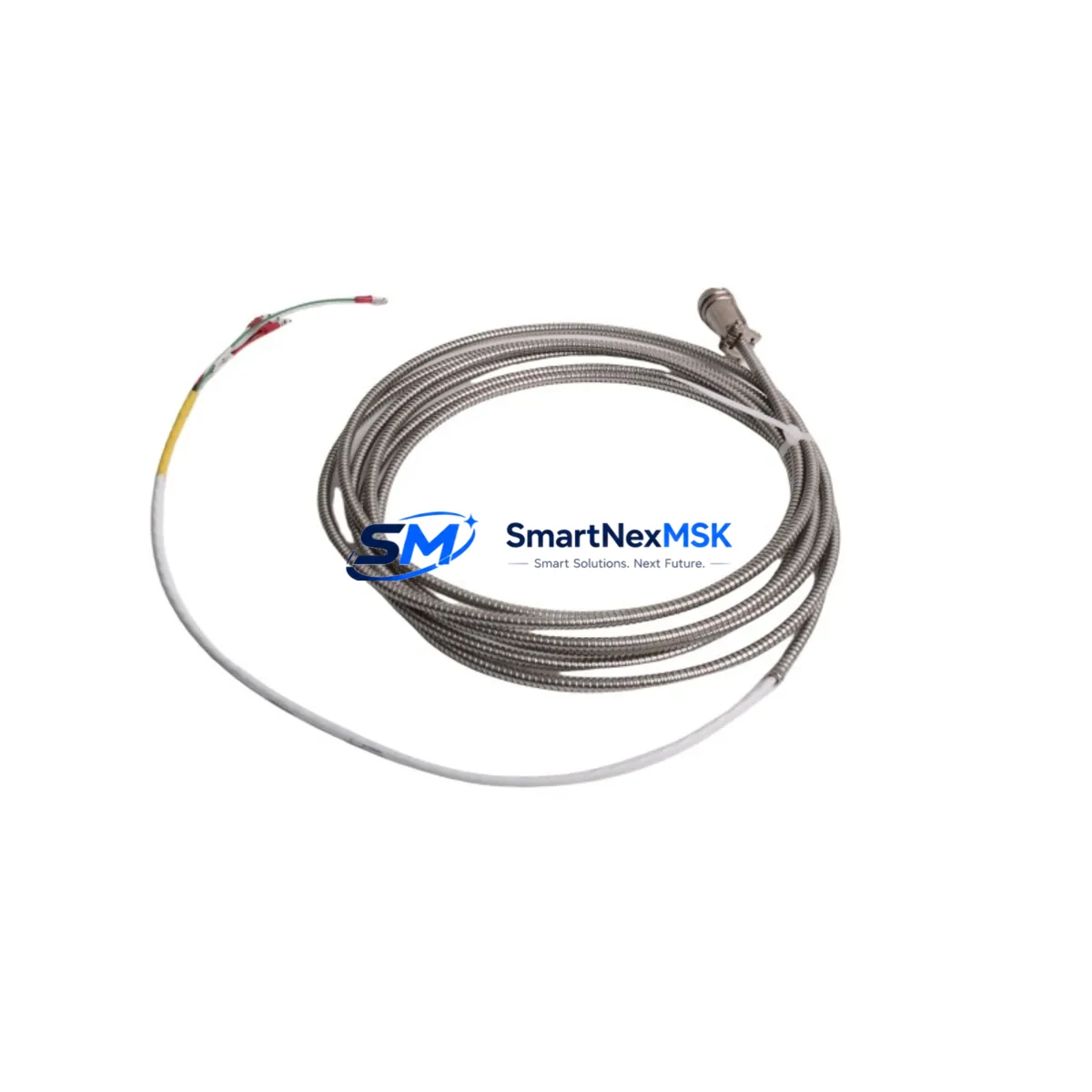

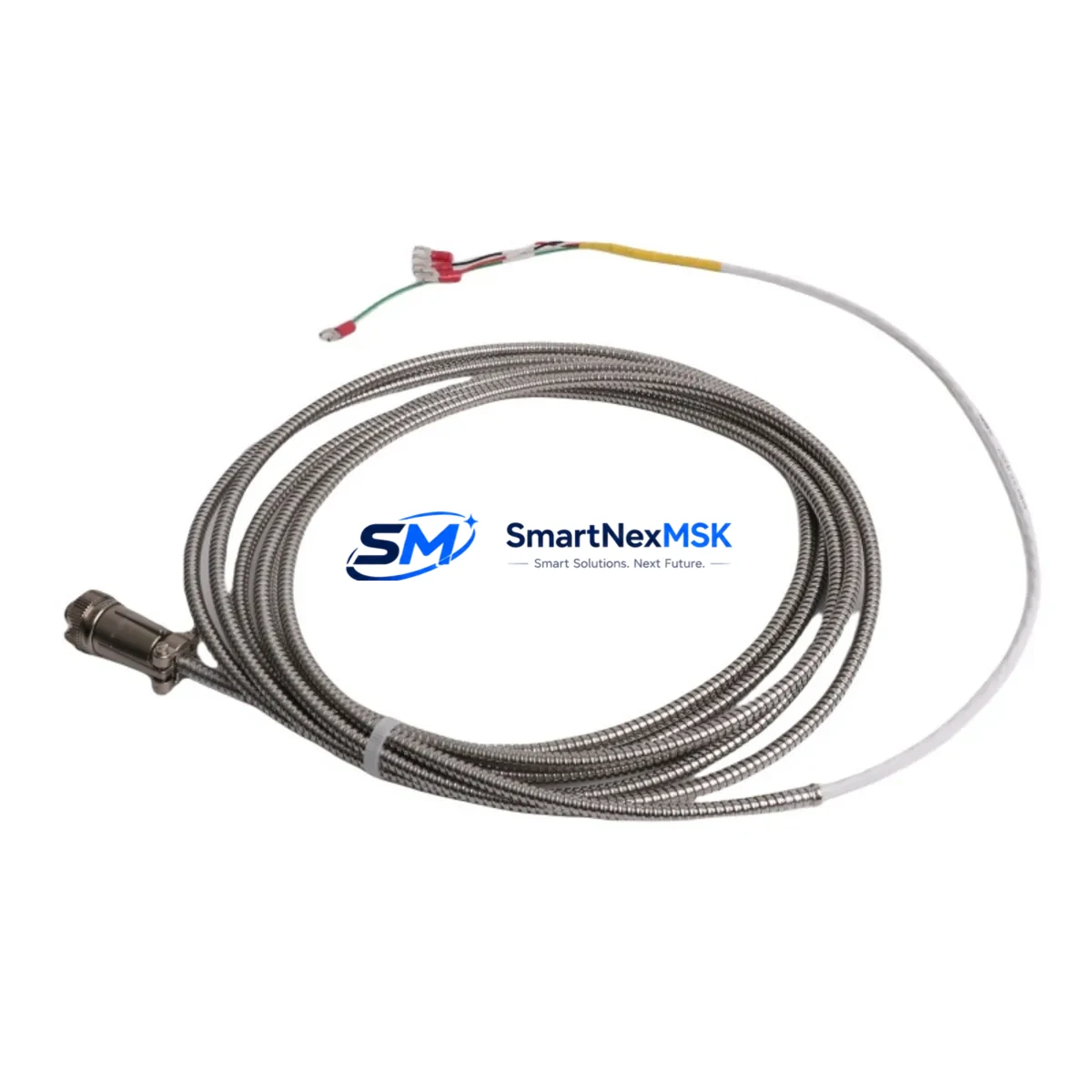

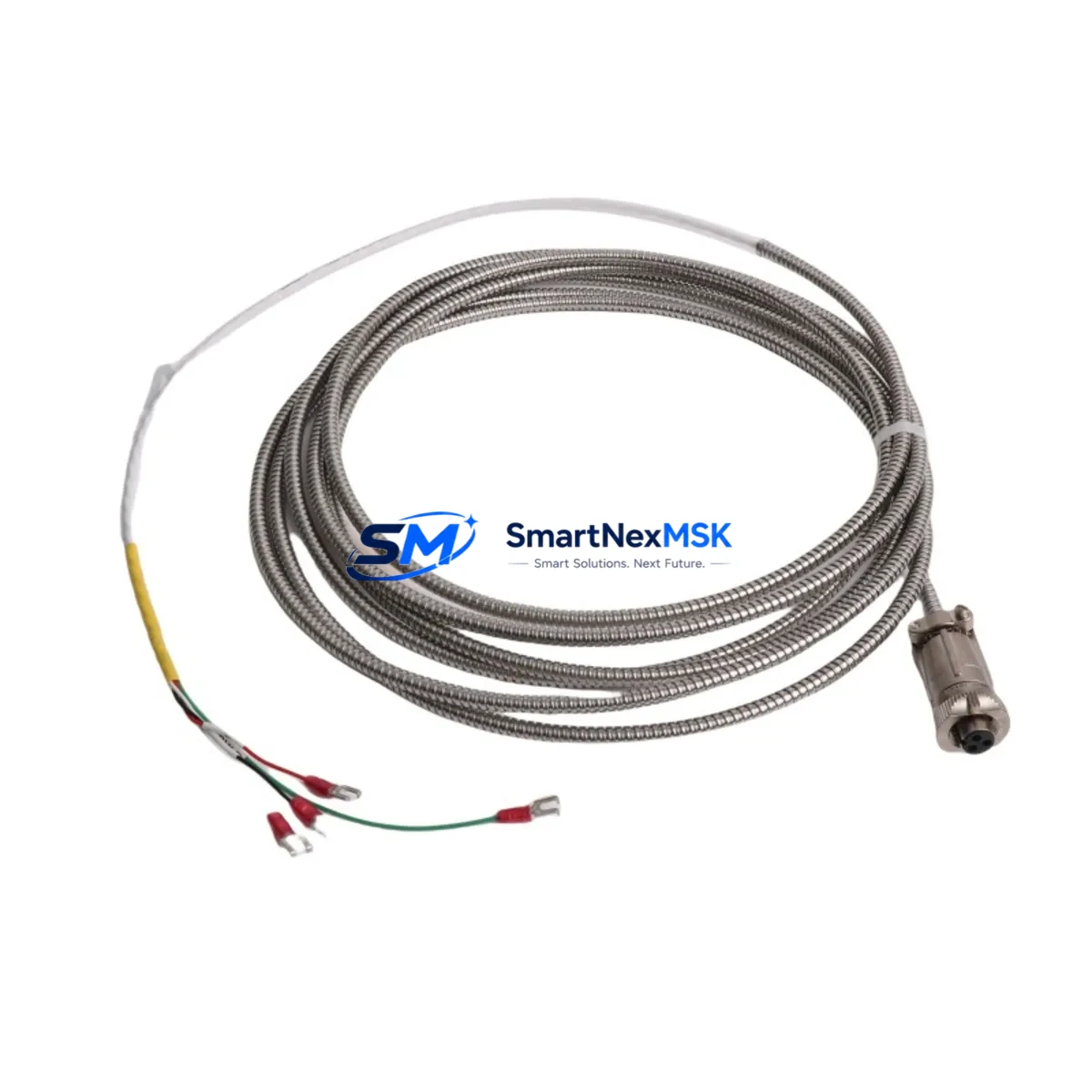

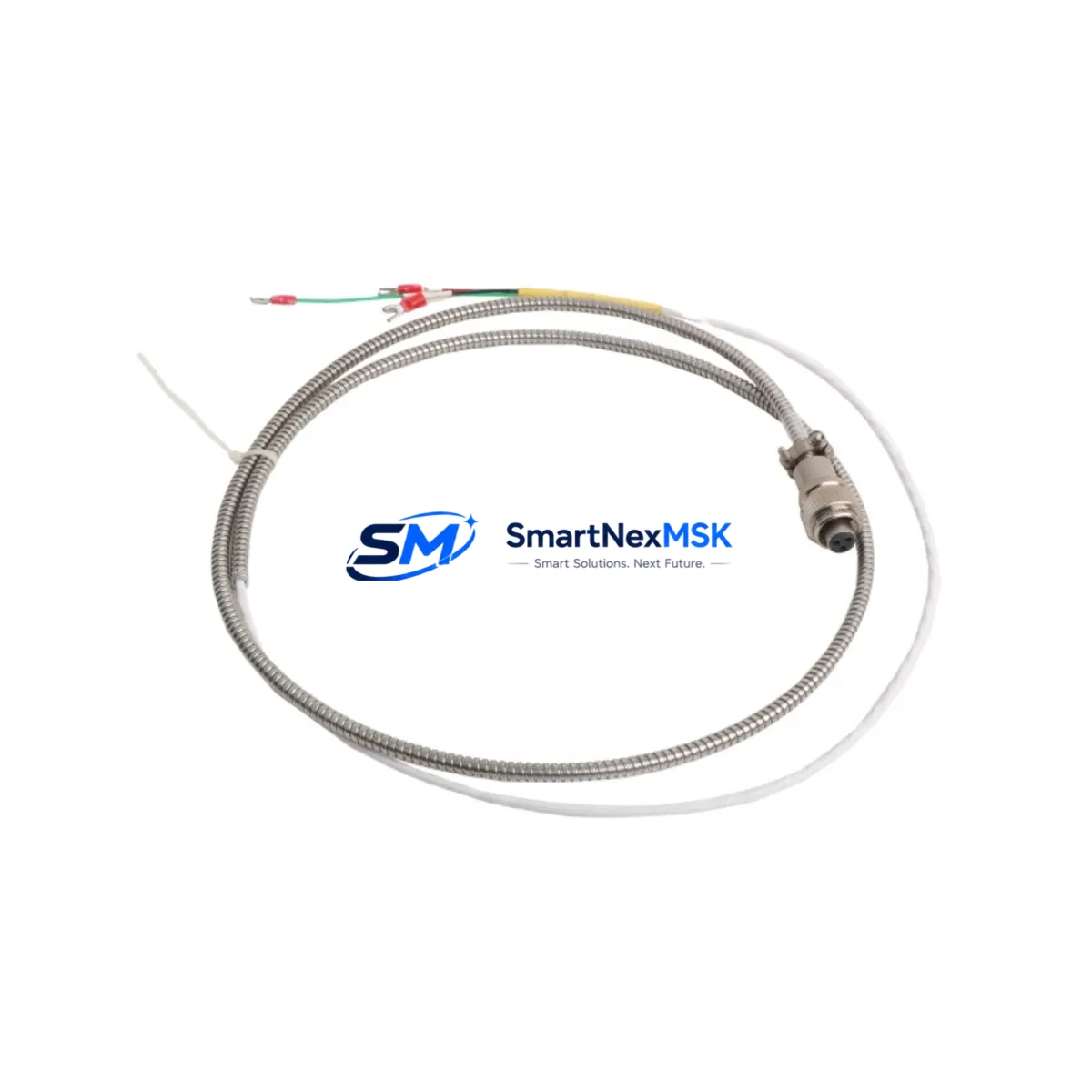

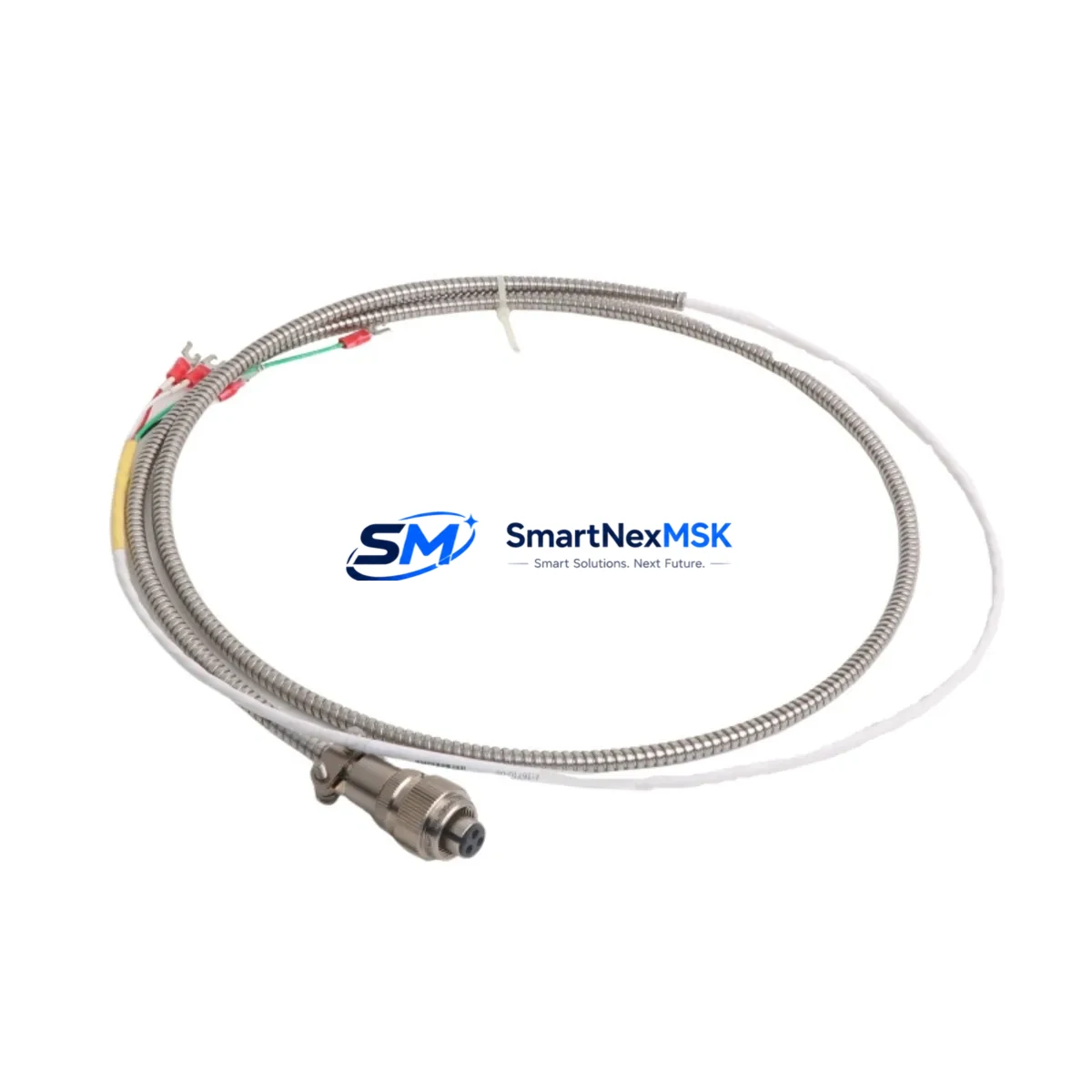

The Bently Nevada 16710-16 is a precision-engineered interconnect cable designed to serve as a direct retrofit replacement within the Bently Nevada 3500 Series Machinery Protection System (MPS). As industrial facilities face increasing pressure to extend the operational life of legacy vibration monitoring and machinery protection infrastructure, the 16710-16 provides a verified, drop-in upgrade path that eliminates the need for full system replacement. Whether you are restoring a decommissioned monitoring rack, upgrading a control cabinet, or migrating from an end-of-life 3300 Series platform to the 3500 architecture, this cable is a critical link in maintaining signal integrity between transducer inputs and the monitoring modules.

Engineered to Bently Nevada’s original specifications, the 16710-16 interconnect cable maintains full electrical compatibility with the 3500/42M Proximitor/Seismic Monitor, the 3500/40M Proximitor/Seismic Monitor, and associated I/O modules within the 3500 rack. Its shielded construction ensures low-noise signal transmission in electrically noisy industrial environments — a critical requirement when monitoring proximity probes, velocity transducers, and accelerometers in rotating machinery applications such as compressors, turbines, pumps, and fans.

For facilities currently operating aging Bently Nevada 3300 Series systems, the migration path to the 3500 platform typically involves replacing the monitoring modules, updating the 3500/20 Rack Interface Module (RIM), and reconfiguring communication links to the plant DCS or SCADA via Modbus TCP or System 1 software. The 16710-16 cable plays a foundational role in this transition by ensuring that existing field wiring and transducer terminations can be preserved, significantly reducing rewiring labor and minimizing exposure to installation errors during cutover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 16710-16 begins well before the physical cable swap. Engineering teams should conduct a pre-outage audit of the existing 3500 rack configuration, documenting the slot assignments of each monitoring module, the terminal block wiring for each channel, and the current alarm and danger setpoints stored in the 3500 Rack Configuration Software. This configuration backup is essential — it allows rapid restoration of setpoints if the 3500/20 Rack Interface Module requires re-initialization after the cable replacement.

In multi-rack installations, the 16710-16 is commonly used alongside the 3500/15 Power Supply and 3500/05 Rack (19-inch or 3U form factor), which provide the regulated DC power and physical backplane that the interconnect cable interfaces with. Engineers should verify that the power supply output capacity is sufficient to support all installed monitoring modules after the retrofit — particularly if additional I/O channels are being added as part of a broader system expansion. The 3500/32 4-Channel Relay Module and 3500/22M Transient Data Interface are frequently added during such upgrades to extend alarm output capability and transient capture functionality.

For facilities integrating the 3500 MPS with a plant-wide DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — the communication link between the 3500 rack and the DCS gateway must be validated after any hardware change. The 16710-16 cable does not affect the Modbus or OPC-DA communication path directly, but physical disturbance of the rack during installation can occasionally cause RIM communication faults that require a soft reset of the 3500/20 RIM and re-establishment of the Ethernet link to the System 1 server.

HMI screens tied to the machinery protection system — whether running on GE Cimplicity, Wonderware InTouch, or a custom SCADA display — should be reviewed to confirm that tag mappings for vibration, position, and temperature channels remain intact after the retrofit. In cases where the 16710-16 is replacing a cable that had been field-modified or non-standard, channel numbering may shift, requiring a corresponding update to the HMI tag database.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any MPS retrofit. For the 16710-16 replacement, the recommended approach is a planned maintenance window during a scheduled outage, with the following sequence: (1) export and archive the full rack configuration using the 3500 Rack Configuration Software; (2) de-energize the rack and remove the existing interconnect cable; (3) install the 16710-16 and verify seating at both the module and terminal block ends; (4) re-energize and confirm OK relay status on all channels before releasing the machinery to operation.

Where a hot-standby or redundant monitoring architecture is in place — for example, using dual 3500/20 RIM modules in a redundant Ethernet configuration — the switchover to the standby path should be executed before beginning the cable replacement, ensuring continuous protection coverage throughout the maintenance activity. This approach is particularly important for critical rotating equipment where API 670 compliance requires uninterrupted monitoring.

After installation, the commissioning checklist should include: probe gap voltage verification for each Proximitor channel, confirmation of vibration alarm and danger setpoints against the archived configuration, functional test of the OK relay output to the plant DCS, and a 30-minute observation period under normal operating load before returning the system to full automatic protection mode. All test results should be documented in the site maintenance management system (CMMS) for traceability and warranty record purposes.

Retrofit Support FAQ

Q1: Is the 16710-16 a direct replacement for the original Bently Nevada part, or does it require any field modification?
The 16710-16 is engineered as a direct drop-in replacement for the original Bently Nevada interconnect cable used in the 3500 Series MPS. No field modification, re-pinning, or adapter is required. The connector interface, cable length, and shielding specification match the original factory part, ensuring compatibility with the 3500/40M, 3500/42M, and associated rack components without any wiring changes at the terminal block.

Q2: How do I verify compatibility before installation, and what should I check at the backplane interface?
Before installation, confirm the slot assignment and module type of the monitoring card the cable will connect to. Inspect the backplane connector on the 3500 rack for bent pins or corrosion, and verify that the terminal block wiring matches the channel map in your archived rack configuration. After seating the 16710-16, power up the rack and check that the module’s OK LED illuminates and that no fault codes appear on the 3500/20 RIM display before proceeding with setpoint verification.

Q3: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical abuse. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, a description of the fault, and photographic evidence of the installation. Replacement or repair will be arranged within 5 business days of claim approval.

Q4: Can the 16710-16 be used in a 3300 Series rack, or is it exclusively for the 3500 platform?
The 16710-16 is designed and verified for use within the Bently Nevada 3500 Series MPS architecture. It is not compatible with the 3300 Series rack backplane due to differences in connector geometry and module interface standards. If you are migrating from a 3300 Series system, the 16710-16 is part of the 3500 destination platform build — not a bridge cable between the two generations. Please contact our technical team to confirm the complete bill of materials for your 3300-to-3500 migration project.
