Bently Nevada 16710-20 Spare for 3300 XL Automation: Spare Replacement & Industrial Downtime Risk Control

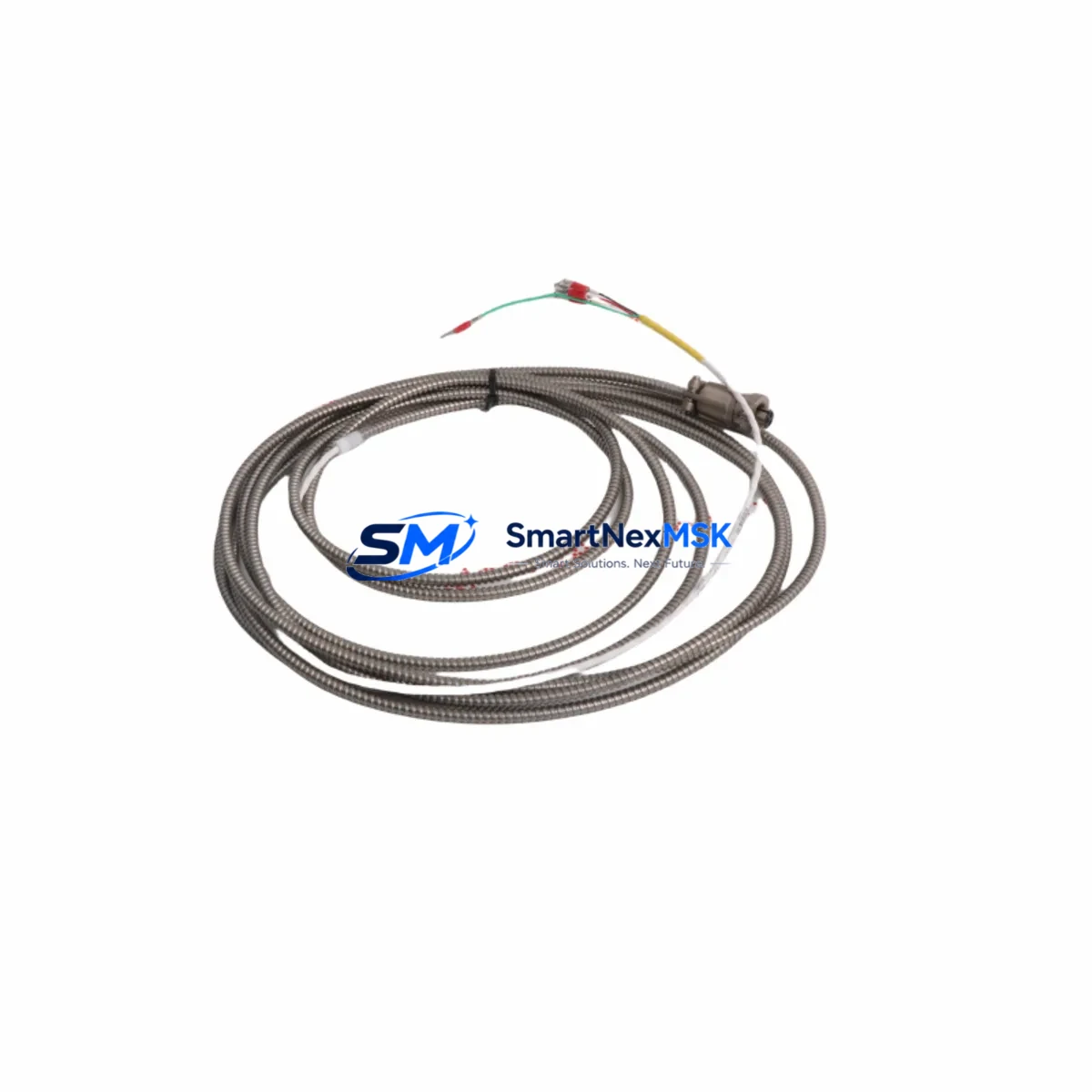

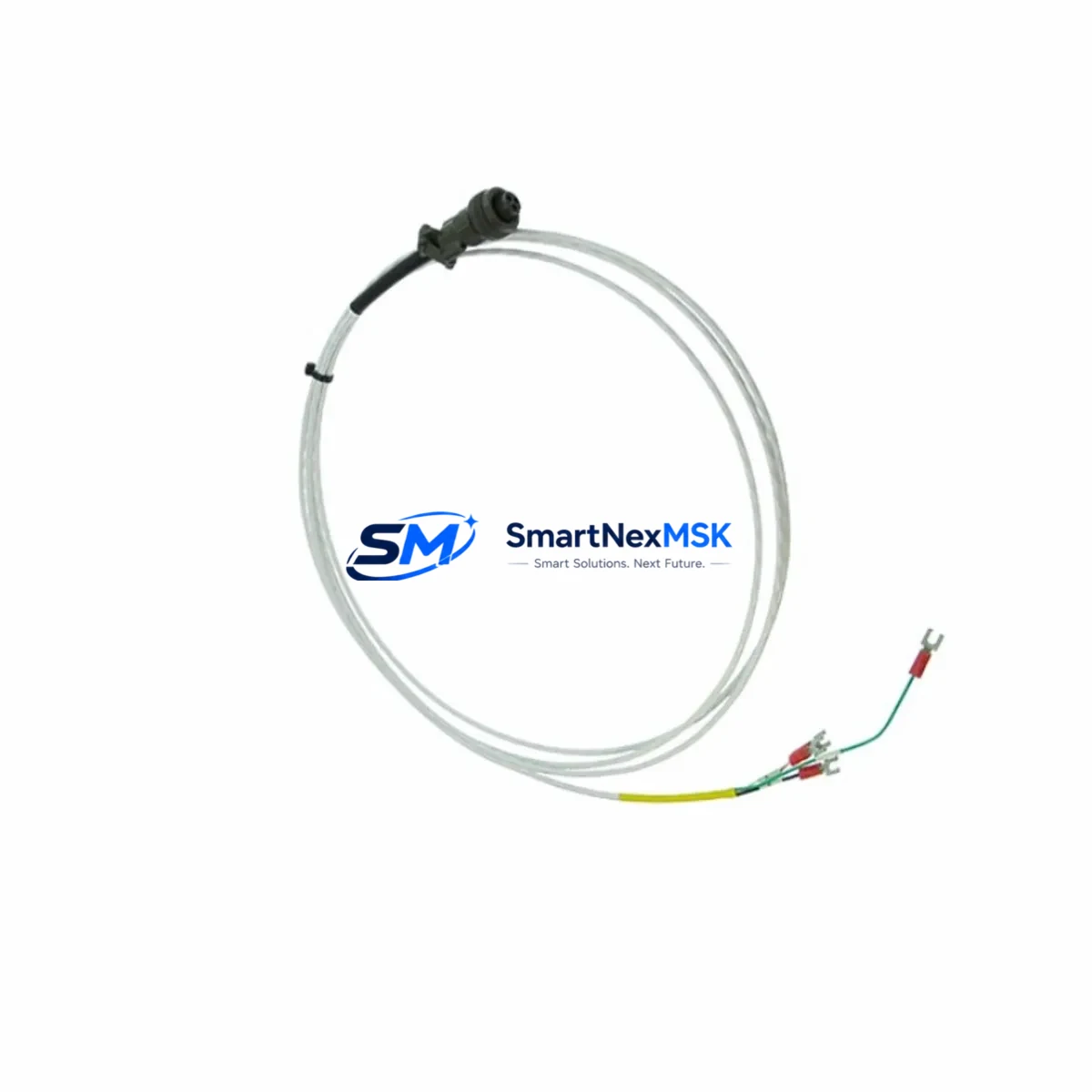

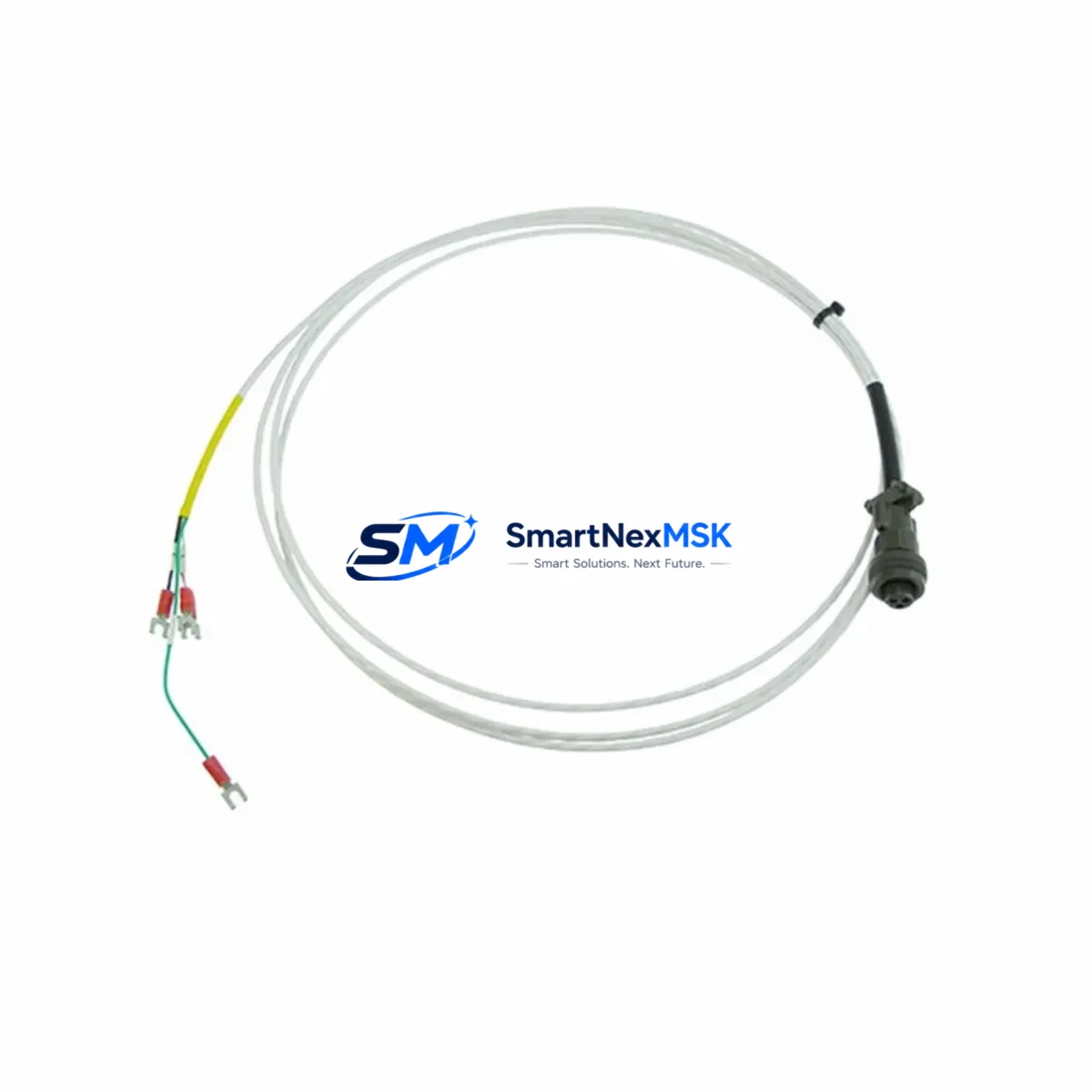

The Bently Nevada 16710-20 is a precision eddy-current extension cable engineered for continuous-duty vibration monitoring in rotating machinery protection systems. As a maintenance-ready original spare, it serves as the critical signal path between the proximity probe and the Bently Nevada 3300 XL or 3500 Series proximitor/driver, ensuring uninterrupted shaft displacement and vibration data acquisition in turbines, compressors, pumps, and other rotating assets. Sourced directly from authorized supply channels, each unit is tested prior to shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock and deploy with minimal lead-time risk.

In industrial facilities where continuous operation is non-negotiable, a failed or degraded extension cable can trigger false alarms, mask real vibration anomalies, or cause complete loss of channel integrity — all of which translate directly into unplanned downtime and costly production interruptions. Stocking the 16710-20 as a certified spare eliminates this single point of failure and supports rapid fault isolation during scheduled or emergency maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Bently Nevada 16710-20 extension cable during a planned outage or emergency fault response, experienced maintenance engineers treat the cable swap as an opportunity to audit the entire vibration monitoring loop. The extension cable is only one element in a three-component eddy-current measurement chain: the proximity probe (such as the Bently Nevada 330101 or 330103 series), the extension cable itself (16710-20), and the proximitor/driver module (such as the 3300 XL 8mm Proximitor or 3500/42M velocity/acceleration monitor). All three must be matched in impedance and length to maintain calibrated output.

Beyond the measurement chain, a thorough control cabinet inspection during the same maintenance window should include verification of the 3500 Rack Power Supply (e.g., 3500/15 or 3500/05) to confirm stable DC rail voltage, since power fluctuations are a common root cause of spurious vibration alarms. The 3500/20 Rack Interface Module and associated 3500/22M Transient Data Interface should be checked for firmware currency and communication integrity with the plant DCS or safety system. If the machine train is integrated into a broader control architecture, the Bently Nevada System 1 software interface and its associated Ethernet communication modules warrant inspection for alarm setpoint drift or configuration mismatch introduced during previous maintenance cycles.

For facilities running legacy 3300 XL racks alongside newer 3500 Series hardware, it is advisable to maintain parallel spare inventories for both platform cable standards. The 3300 XL Proximitor and 3500/40M displacement monitor have different connector and signal conditioning requirements, and cross-platform substitution without verification will introduce measurement error. Procurement engineers should also consider stocking Bently Nevada TK-3 calibration tools and 3300 XL barrier isolators to support in-situ verification after cable replacement, particularly in hazardous area installations where intrinsic safety barriers are mandatory.

Terminal blocks, cable glands, and shield grounding hardware within the junction box should be inspected for corrosion and torque compliance whenever the 16710-20 is replaced, as mechanical vibration in rotating machinery environments accelerates terminal loosening and ground loop formation — both of which degrade signal quality and can trigger nuisance trips.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the affected monitoring channel at the 3500 or 3300 XL rack. Note the current gap voltage reading before disconnection to establish a baseline for post-installation verification.

Step 2 — Cable Removal: Disconnect the 16710-20 at both the proximity probe junction box and the proximitor input. Inspect the probe tip and junction box interior for moisture ingress, corrosion, or mechanical damage that may have contributed to cable degradation.

Step 3 — New Cable Installation: Route the replacement 16710-20 following the original cable path. Avoid sharp bends below the minimum bend radius. Secure with cable ties at the same intervals as the original installation to prevent vibration-induced fatigue at connectors.

Step 4 — Gap Voltage Verification: After connection, measure the proximitor output gap voltage. It should fall within the linear range specified for the probe/cable/proximitor combination (typically -10 VDC ±1 V for standard 8 mm systems). Adjust probe gap if necessary.

Step 5 — Alarm Reinstatement: Re-enable monitoring channel alarms at the 3500 rack or DCS interface. Confirm OK relay status and verify data is being received correctly in the plant historian or System 1 condition monitoring platform.

Step 6 — Documentation: Record the replacement in the maintenance management system (CMMS), including the new cable serial number, installation date, gap voltage reading, and technician sign-off. Update the spare parts inventory to trigger reorder of a replacement 16710-20 for the next maintenance cycle.

This like-for-like replacement approach eliminates the need for system recalibration, minimizes downtime to the duration of the physical swap, and maintains full compatibility with existing 3300 XL and 3500 Series rack configurations without firmware or configuration changes.

Spare Parts Support FAQ

Q1: Is the 16710-20 a direct drop-in replacement for an existing Bently Nevada extension cable of the same part number?
Yes. The 16710-20 is a like-for-like replacement. Provided the probe, cable, and proximitor are all matched to the same system specification (8 mm or 5 mm eddy-current standard), no recalibration is required. Gap voltage should be verified after installation as a standard commissioning check.

Q2: What is the recommended spare inventory strategy for the 16710-20 in a large rotating machinery fleet?
For facilities with 10 or more monitored machine trains, we recommend maintaining a minimum of 2–3 units of the 16710-20 on-site. Given that extension cables are subject to mechanical wear, thermal cycling, and connector corrosion, a proactive replacement cycle of 5–7 years is advisable even in the absence of measured signal degradation. Pairing the cable spare with a matched proximity probe spare (e.g., 330101 or 330103) and a proximitor module spare ensures full channel restoration capability without waiting for parts procurement.

Q3: How is each unit tested before shipment?
Every 16710-20 unit is inspected for connector integrity, cable jacket condition, and electrical continuity prior to dispatch. Units are packaged to prevent connector damage during transit. A 12-month warranty covers manufacturing defects and premature failure under normal operating conditions.

Q4: Can the 16710-20 be used with both 3300 XL and 3500 Series systems?
The 16710-20 is designed for use within the Bently Nevada eddy-current measurement ecosystem and is compatible with both 3300 XL and 3500 Series proximitor/driver modules, provided the overall system cable length (probe cable + extension cable) matches the proximitor’s specified total cable length. Always verify total system cable length against the proximitor datasheet before installation to avoid sensitivity errors.
