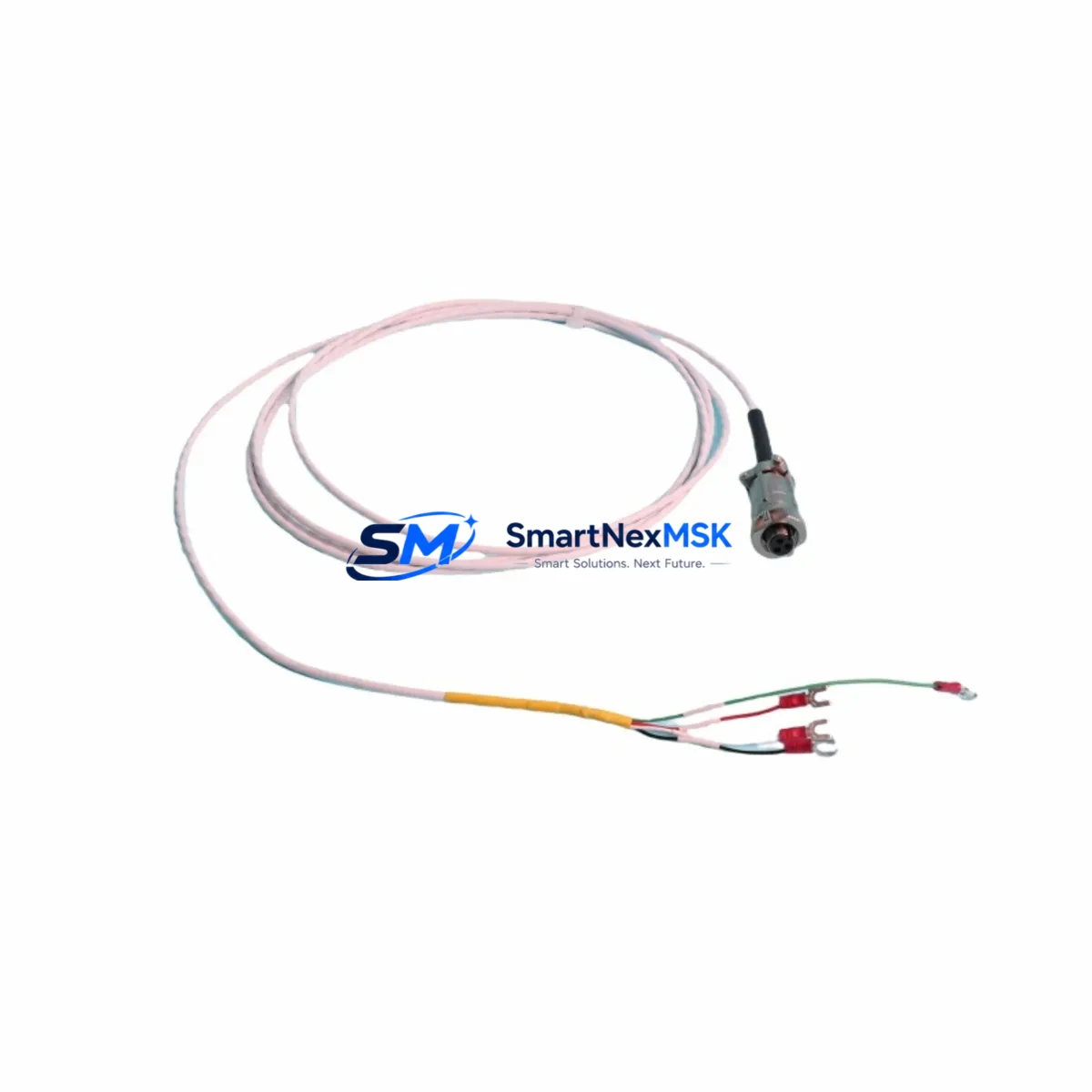

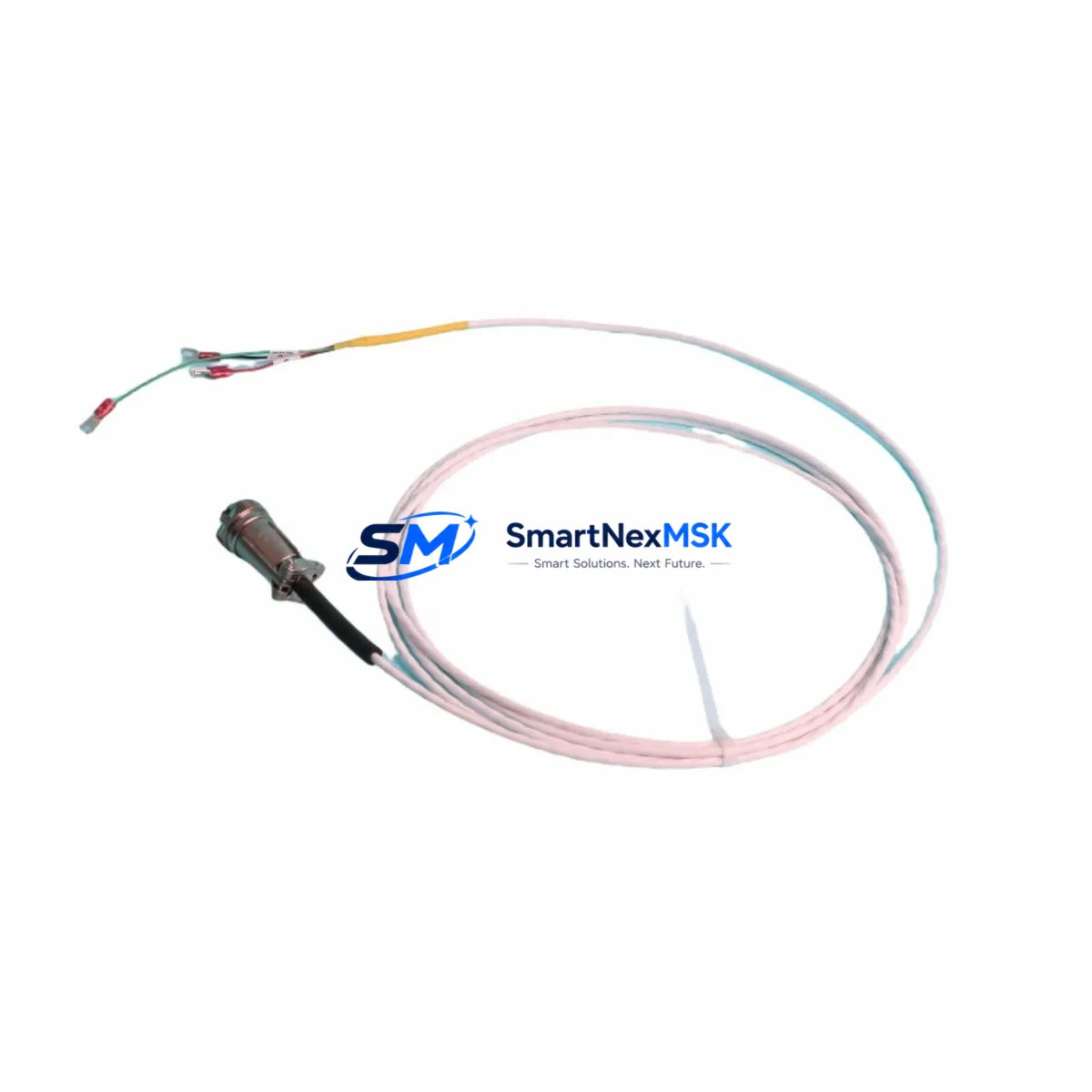

Bently Nevada 16925-17 Retrofit-Ready Interconnect Cable for 3500 Series MPS Control Systems

The Bently Nevada 16925-17 is a retrofit-ready interconnect cable engineered for seamless integration into the 3500 Series Machinery Protection System (MPS). As legacy monitoring infrastructure ages and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement components that maintain signal integrity, preserve existing wiring layouts, and eliminate the need for costly panel redesigns. The 16925-17 addresses all of these requirements directly, offering a drop-in compatible solution for facilities operating Bently Nevada 3500 Series racks in continuous or critical monitoring applications.

This cable is designed to interface with the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, and the 3500/40M Proximitor/Seismic Monitor modules. It maintains the original connector pinout and shielding specification, ensuring that existing field wiring from proximity probes, accelerometers, and velocity transducers can be reconnected without modification. For sites where the 3500/01 Rack Interface Module or 3500/05 System Display Module is still in service, the 16925-17 supports the same backplane communication path and does not require firmware changes or address reassignment.

When planning a retrofit or spare-parts replenishment for a 3500 Series installation, engineers should also verify the condition of adjacent components in the same control cabinet. The 3500/15 Power Supply Module and 3500/20 Rack Interface Module are common failure points in aging systems and should be inspected or replaced concurrently to avoid repeat downtime. Similarly, the 3500/32 4-Channel Relay Module and 3500/33 16-Channel Relay Module may require reconfiguration if the monitoring logic has been updated since the original commissioning. Interconnect cables like the 16925-17 are often the last component to be replaced, but their condition directly affects the accuracy of vibration, position, and speed measurements transmitted to the host DCS or SCADA platform.

For facilities migrating from older Bently Nevada 7200 Series or 3300 Series monitoring systems to the 3500 platform, the 16925-17 plays a role in bridging legacy transducer wiring to the new rack architecture. During such migrations, it is common to retain existing Proximitor sensor installations and reroute their output cables through updated interconnect assemblies. The 16925-17 supports this approach, reducing the scope of field rewiring and shortening overall migration timelines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 16925-17 begins with a thorough audit of the existing 3500 Series rack configuration. Technicians should document the slot assignments of all installed modules — including the 3500/15 Power Supply, 3500/20 Rack Interface, 3500/32 Relay Module, and any monitor modules such as the 3500/42M or 3500/40M — before removing any cabling. This baseline record ensures that module addresses and channel-to-tag mappings can be restored accurately after the cable replacement.

Power capacity is a critical consideration. The 3500/15 Power Supply Module has defined current budgets per rack, and adding or replacing modules without verifying the total load can result in undervoltage conditions that affect measurement accuracy. If the existing power supply is operating near its rated capacity, a parallel replacement using a second 3500/15 unit should be staged before the interconnect cable work begins.

Terminal wiring should be photographed and labeled before disconnection. The 16925-17 uses the same terminal block layout as the original OEM cable, but field wiring from proximity probes, velocity sensors, and accelerometers should be verified against the original loop drawings to confirm polarity and shield grounding. For systems where the 3500/05 System Display Module is used for local operator interface, the HMI screen assignments should be exported and backed up prior to any rack-level work, as some display configurations are stored locally and may not be recoverable from the host system alone.

Communication links between the 3500 rack and the plant DCS — typically via Modbus RTU, Modbus TCP, or the Bently Nevada System 1 software platform — should be tested after cable replacement to confirm that all channel data is transmitting correctly. If the site uses a 3500/92 Communication Gateway Module, its configuration file should be archived before the retrofit and reloaded after commissioning to avoid loss of tag mapping and alarm setpoints.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500 Series cable replacement requires a structured pre-outage preparation process. Before the maintenance window opens, all spare components — including the 16925-17 interconnect cable, any replacement monitor modules, and a tested 3500/15 Power Supply — should be staged and verified against the site’s bill of materials. A pre-tested spare rack, if available, can be pre-configured offline and swapped in as a complete assembly, reducing in-situ work time to connection and verification only.

During the outage, the sequence of operations should follow the rack’s power-down procedure as documented in the Bently Nevada 3500 Series Installation Manual. After the 16925-17 is installed and terminal connections are confirmed, the rack should be powered up in stages, with each monitor module verified for correct channel indication before the system is returned to service. Alarm inhibit functions should be activated during commissioning to prevent spurious trips, and removed only after all channels have been confirmed within normal operating ranges.

Original program logic stored in the host DCS or in the System 1 platform is not affected by an interconnect cable replacement, provided that module slot assignments and channel addresses are preserved. If any monitor module is replaced concurrently, its configuration should be downloaded from the host system or re-entered manually using the Bently Nevada 3500 Configuration Software before the inhibit is lifted. This approach protects control continuity and ensures that the plant returns to its pre-outage monitoring state without requiring a full recommissioning cycle.

Retrofit Support FAQ

Q: Is the 16925-17 a direct replacement for the original Bently Nevada cable in the 3500 Series rack?
A: Yes. The 16925-17 is manufactured to the original OEM specification and uses the same connector pinout, shielding, and cable geometry. It installs without modification to the rack, backplane, or field wiring terminals.

Q: What commissioning steps are required after installing the 16925-17?
A: After installation, verify that all terminal connections match the original loop drawings, confirm module channel assignments in the 3500 Configuration Software, test communication links to the host DCS or System 1 platform, and validate that all monitored channels are reading within expected ranges before removing alarm inhibits.

Q: Can the 16925-17 be used in a system that has been partially upgraded from 3300 Series to 3500 Series modules?
A: The 16925-17 is designed for the 3500 Series rack architecture. For mixed-generation installations, the specific interface requirements of each module slot should be verified against the Bently Nevada compatibility documentation before installation.

Q: What warranty coverage applies to the 16925-17?
A: All units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing. Warranty claims are handled directly through our sales team at sales@smartnexmsk.com.
