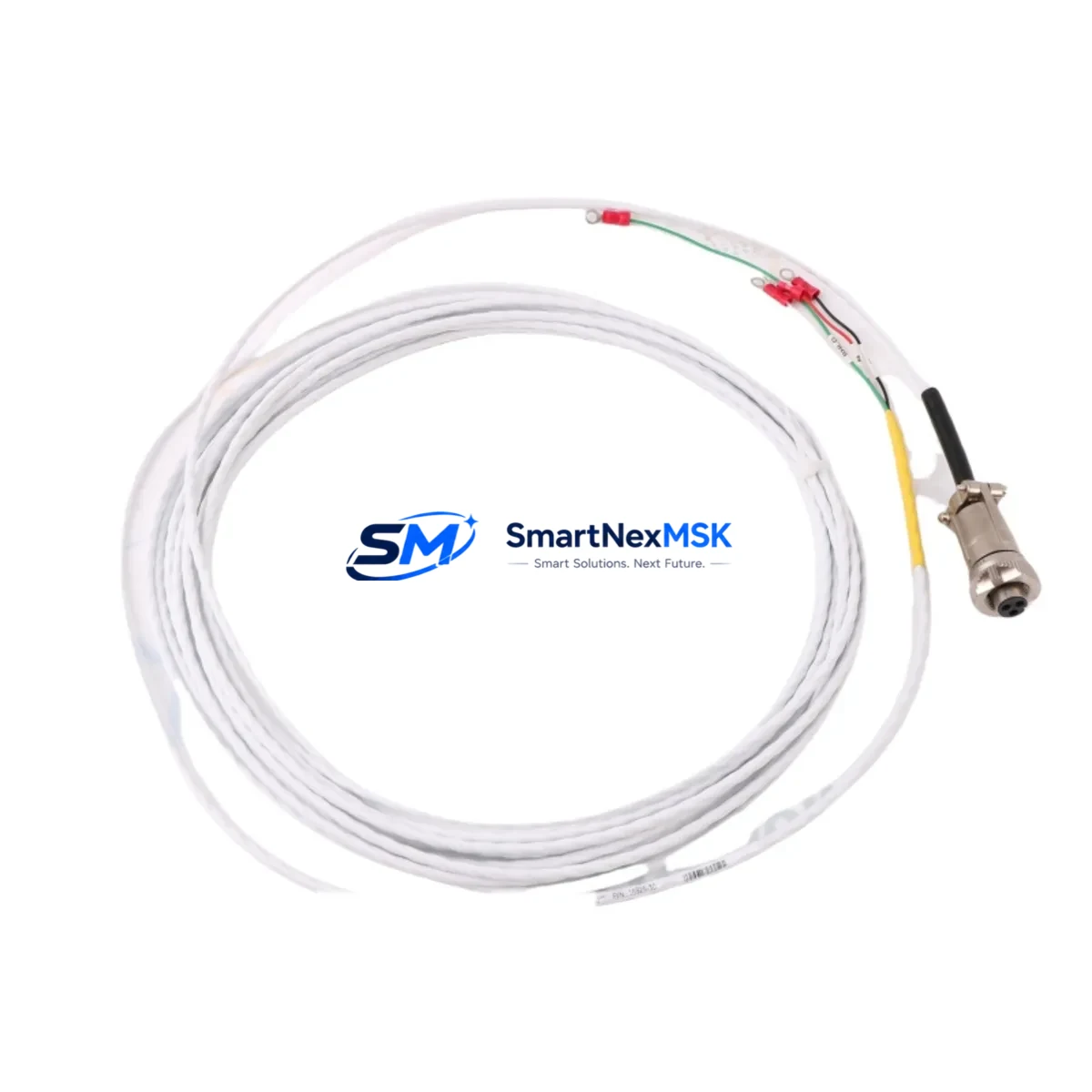

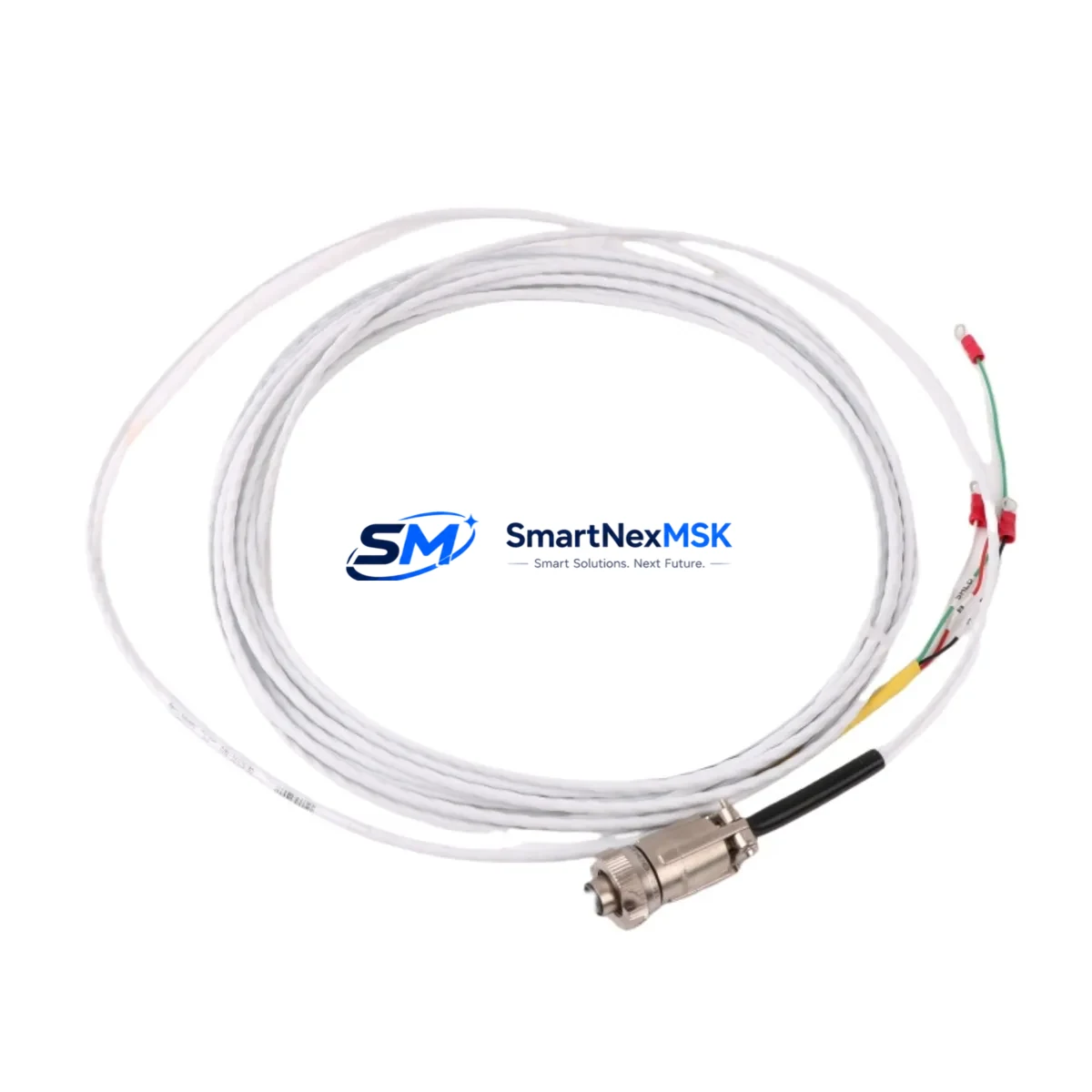

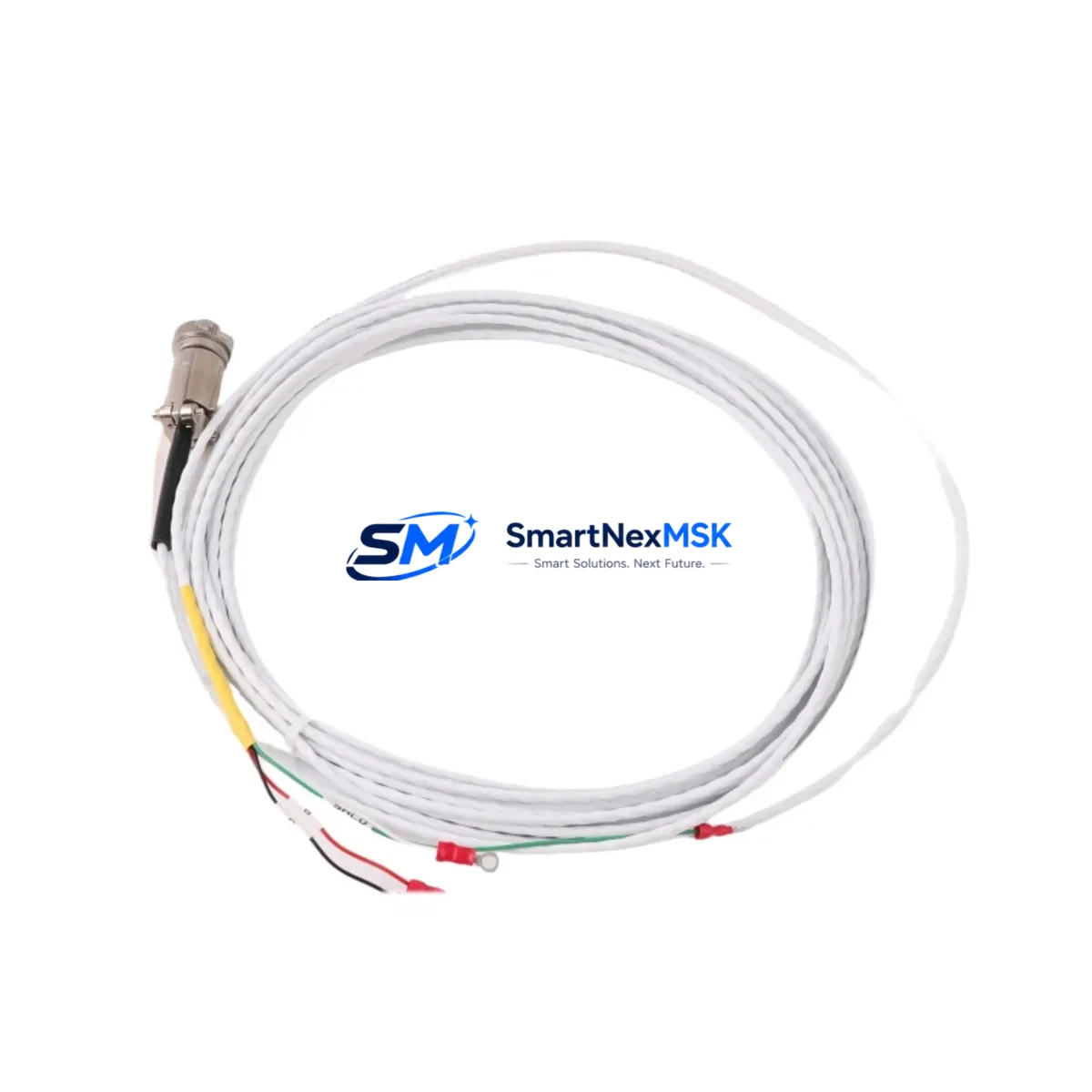

The Bently Nevada 16925-26 is a precision-engineered proximity probe extension cable designed for seamless compatibility with the 3300 XL Series vibration monitoring platform. As legacy 3300 Series installations reach end-of-service milestones, plant engineers and reliability teams increasingly rely on verified drop-in replacements like the 16925-26 to sustain continuous machinery protection without triggering full-system overhauls. This cable bridges the gap between existing field-mounted proximity probes and the 3300 XL proximitor/driver modules installed in control cabinets, preserving signal integrity across the full measurement chain.

Whether you are replacing a failed cable on a critical rotating machine, upgrading a brownfield turbine monitoring loop, or consolidating spare parts inventory ahead of a planned outage, the 16925-26 delivers the dimensional accuracy, shielding specification, and connector compatibility required by the 3300 XL architecture. Each unit is pre-tested prior to shipment and backed by a 12-month warranty covering manufacturing defects and signal performance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a 3300 XL vibration monitoring loop requires careful coordination across multiple components in the measurement chain. The 16925-26 extension cable connects the field-mounted proximity probe — typically a 3300 XL 8mm or 5mm probe from the 330100 or 330101 probe series — to the proximitor/driver module housed in the control cabinet. Before pulling the old cable, technicians should document the existing gap voltage reading at the proximitor output using a calibrated voltmeter, as this baseline is essential for post-installation verification.

In the control cabinet, the 3300 XL proximitor module (such as the 3300/16 or 3300/20 series driver) receives the conditioned signal and feeds it to the 3500 Series rack-based monitoring system or a standalone 3300 XL monitor card. If the plant is simultaneously upgrading from a 3300 rack to a 3500/22M transient data interface or a 3500/42M proximitor I/O module, the 16925-26 cable remains fully compatible, as the signal conditioning standard is preserved across both platforms.

For installations where the control cabinet also houses a Bently Nevada 3500/01 power supply module or a 3500/05 system rack, ensure that the cable routing does not introduce ground loops. The 16925-26 uses a double-shielded construction that minimizes electromagnetic interference from adjacent power conductors, VFD output cables, or relay coil wiring commonly found in motor control centers. If the existing conduit runs near high-voltage bus bars or servo drive output cables, additional ferrite suppression at the proximitor input terminal may be advisable.

When the retrofit scope extends to replacing the proximitor module itself — for example, migrating from an older 3300/16 to a current-production 3300 XL 8mm proximitor — the 16925-26 cable length and connector type must be re-confirmed against the new module’s input specification. Similarly, if the plant is integrating a System 1 Evolution condition monitoring software platform, the 3500 rack’s communication module (such as the 3500/92 Ethernet I/O module) must be configured to recognize the updated channel mapping after cable replacement.

Inventory planning for a multi-machine retrofit should also account for associated consumables: connector backshells, cable ties rated for the ambient temperature, and terminal ferrules compatible with the proximitor’s screw-clamp input terminals. Stocking a minimum of two 16925-26 cables per critical machine train is recommended practice for plants operating under API 670 machinery protection standards.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe cable replacement begins with pre-staging all materials before the maintenance window opens. The 16925-26 should be bench-tested for continuity and shield integrity before the machine is taken offline. A portable oscilloscope or a Bently Nevada 330180 proximitor calibrator can be used to verify the cable’s signal transmission characteristics against the original specification.

During the outage, the original program logic in the plant’s DCS or safety instrumented system (SIS) does not require modification — the 16925-26 is a passive cable replacement that does not alter the signal conditioning chain. However, if the replacement is performed concurrently with a firmware update to the 3500 rack’s 3500/20 Keyphasor module or a reconfiguration of the 3500/40M proximitor monitor card, the rack should be taken through a full self-test sequence before the machine is restarted.

After reinstallation, the gap voltage must be re-established at the probe tip using the standard Bently Nevada gapping procedure. The target gap voltage for most 3300 XL 8mm probes is −10.0 VDC ±0.5 V at the nominal gap distance specified on the probe data sheet. Once gap voltage is confirmed, the channel should be observed through at least one full machine startup transient to verify that vibration amplitude and phase readings are stable and consistent with pre-outage baseline data stored in System 1 or the plant historian.

For plants with redundant monitoring loops, the replacement can be performed on one channel while the redundant channel remains active, effectively reducing the risk window to the final switchover step. This approach is particularly effective in turbine protection applications where the 3500 rack is configured for 2-out-of-3 voting logic across three proximity probe channels monitoring the same bearing journal.

Retrofit Support FAQ

Q: Is the 16925-26 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. The 16925-26 is manufactured to the original dimensional and electrical specification. It uses the same connector interface and cable construction as the OEM part, allowing direct installation without modification to the proximitor module or probe assembly. After installation, re-verify gap voltage per the standard Bently Nevada gapping procedure.

Q: What commissioning checks are required after replacing the extension cable?
A: Confirm shield continuity from probe tip to proximitor input, measure gap voltage (target: −10.0 VDC ±0.5 V for standard 8mm probes), check for cross-talk on adjacent channels, and observe vibration readings through one full machine startup transient. Document the post-installation gap voltage in the plant maintenance record.

Q: Can this cable be used with both the 3300 XL and 3500 Series monitoring platforms?
A: Yes. The 16925-26 is compatible with all 3300 XL proximitor/driver modules and integrates without modification into 3500 Series rack systems, including the 3500/40M and 3500/42M proximitor I/O modules. The passive cable design ensures full compatibility across both monitoring platforms.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship, including connector integrity, shield continuity, and cable insulation. Each unit undergoes pre-shipment electrical testing. Warranty claims are processed through SMARTNEXMSK’s technical support team with a target response time of one business day.
