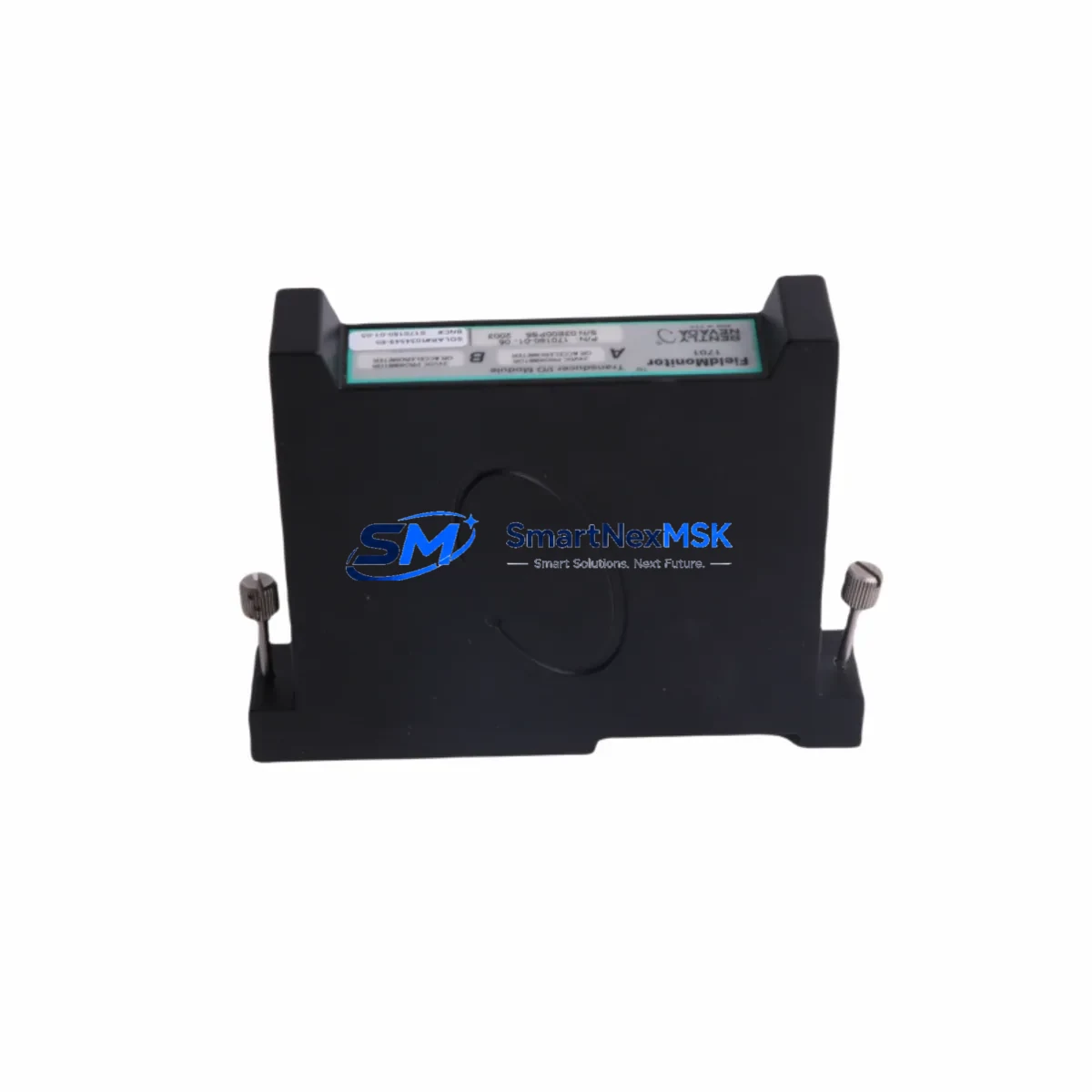

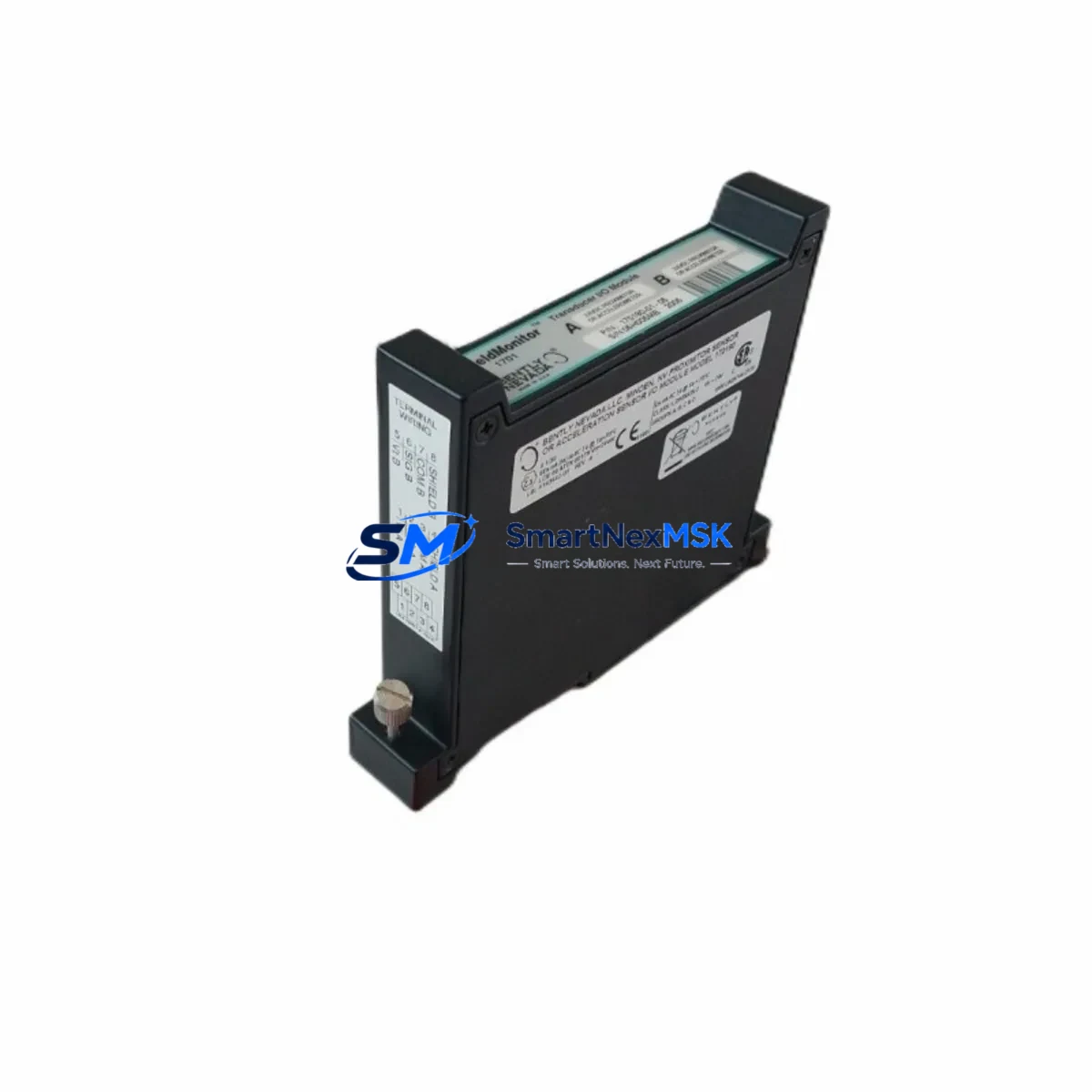

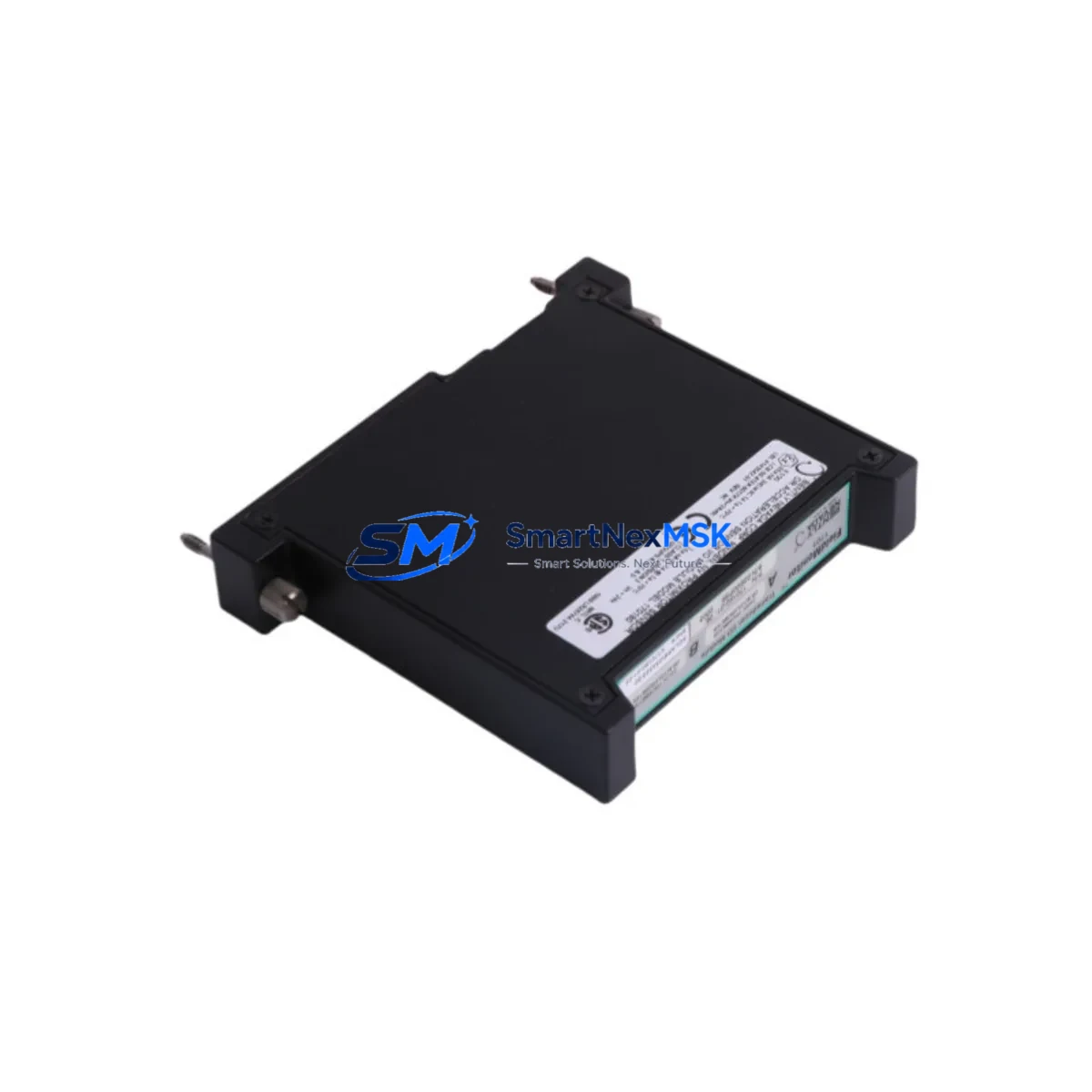

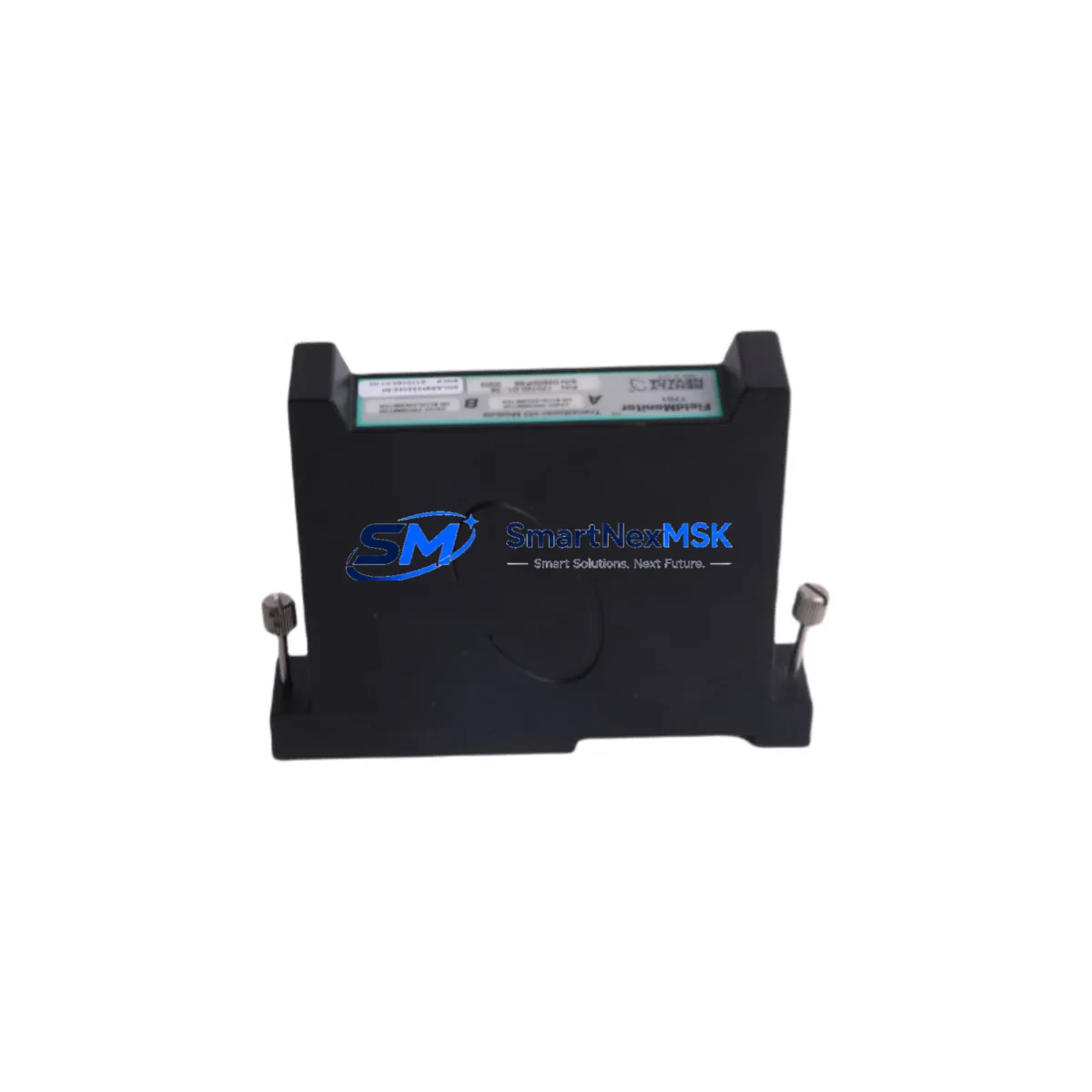

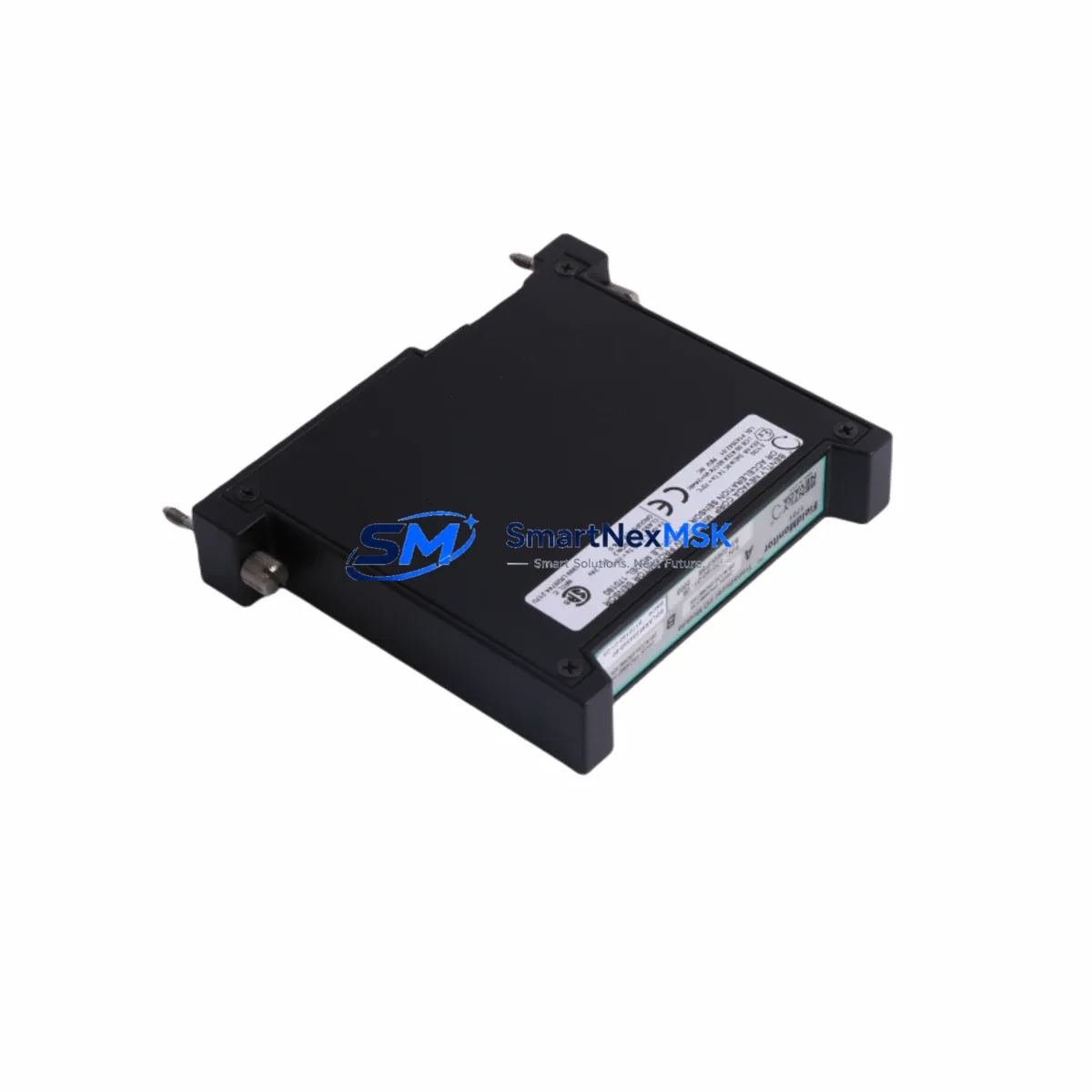

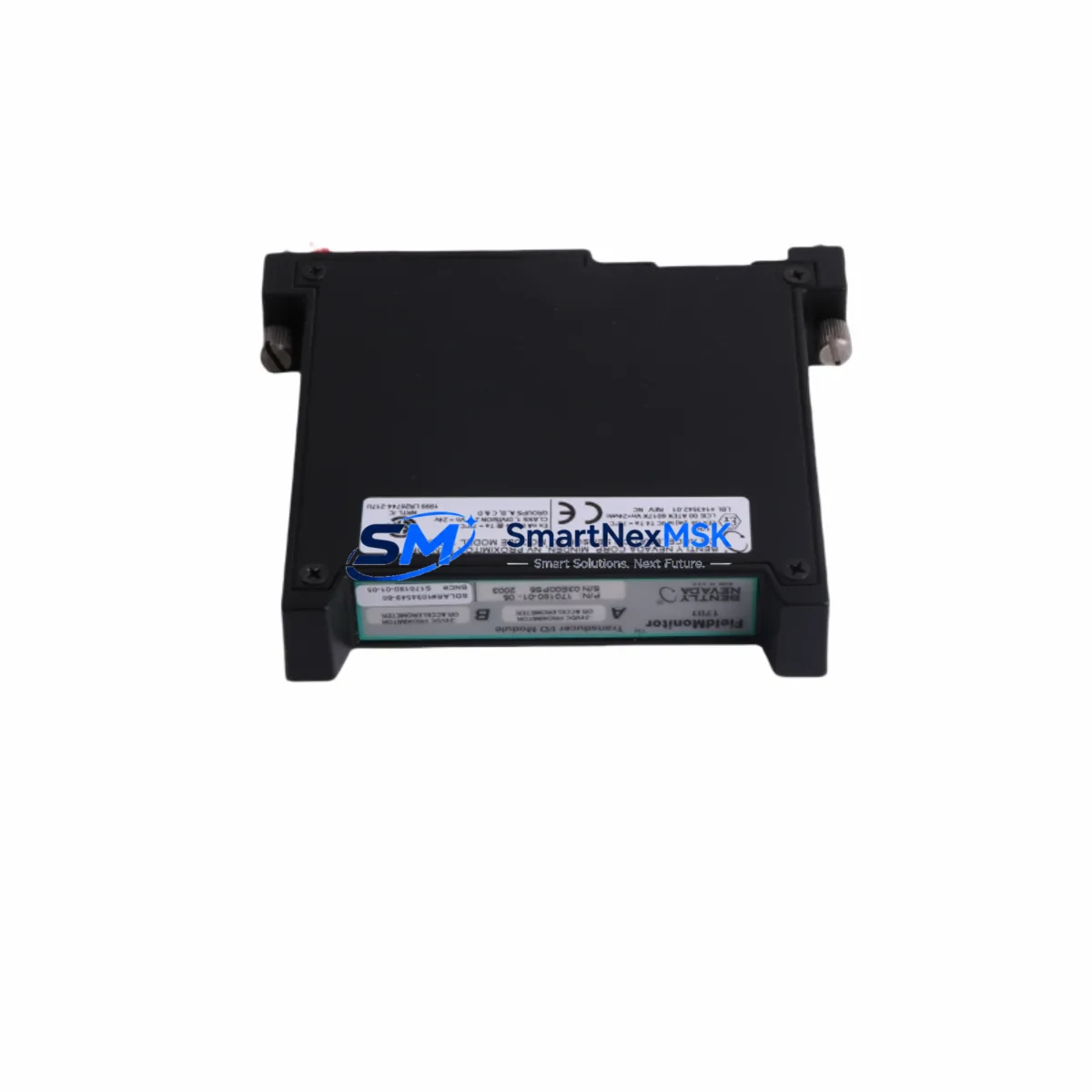

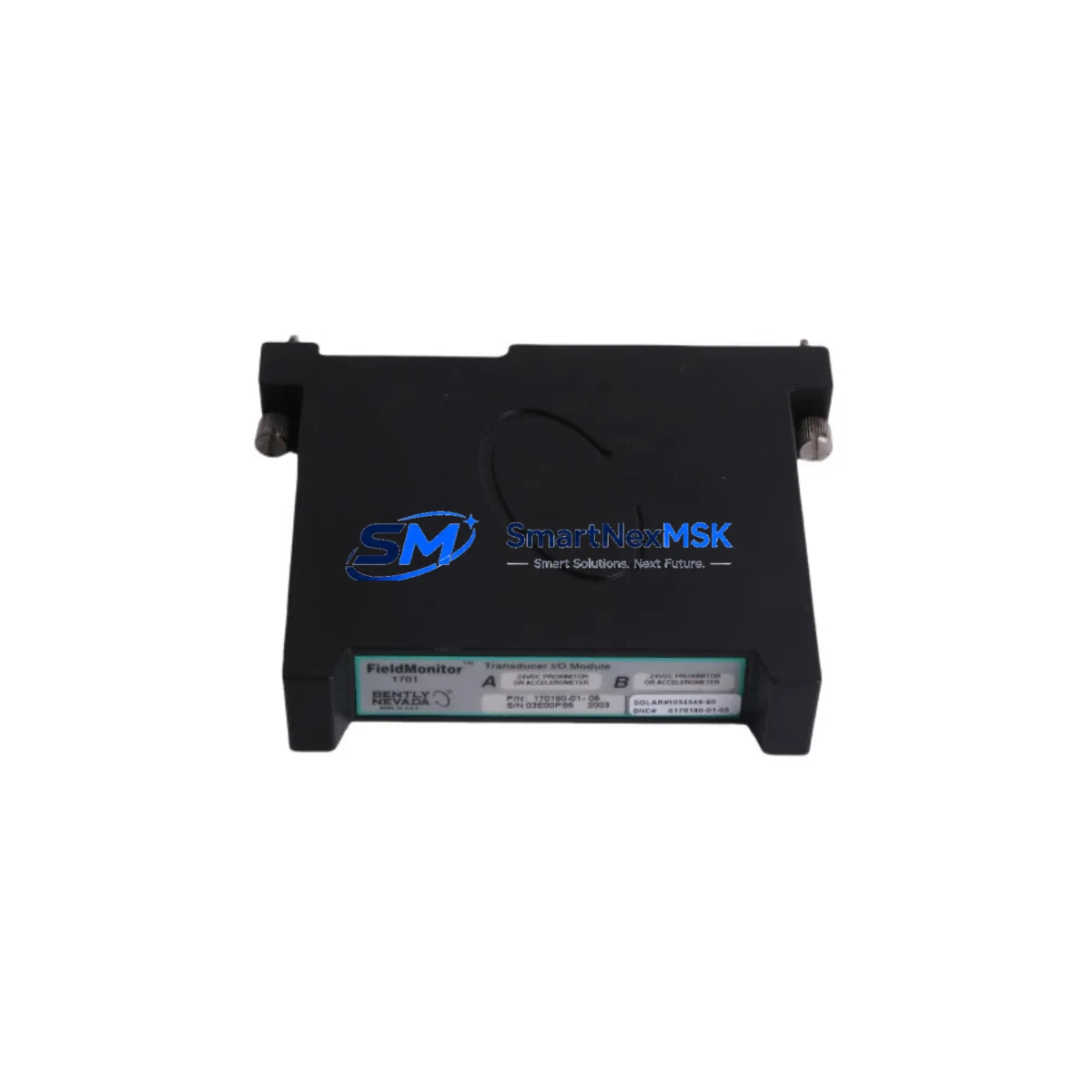

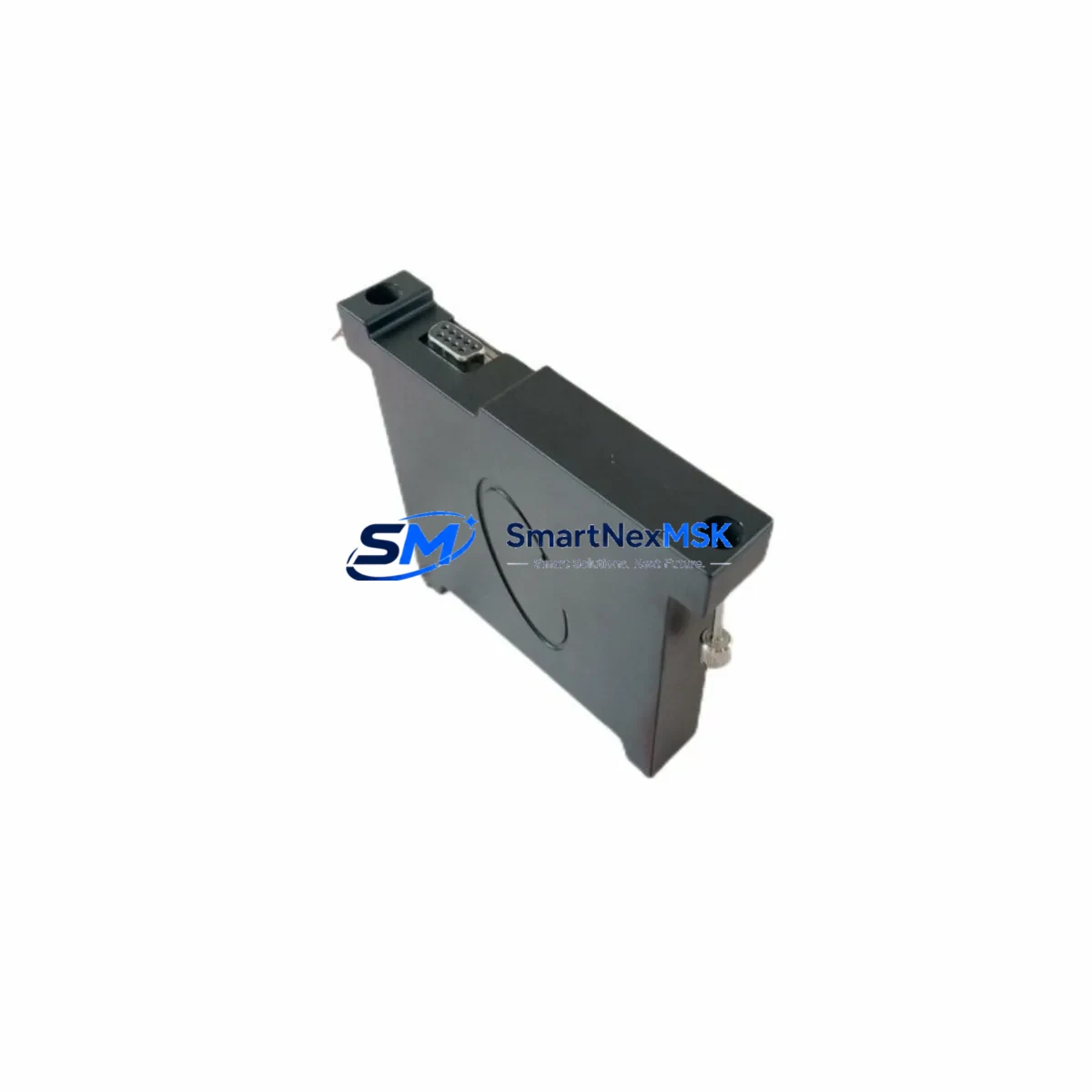

The Bently Nevada 170180-01-05 is an original Input Monitor Card designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed vibration and condition monitoring platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a proactive spare parts inventory for your control room, the 170180-01-05 is a critical line-replaceable unit that directly impacts system uptime and machinery protection integrity.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, compressors, pumps, and large motors depend on the 3500 rack architecture to deliver continuous vibration, position, and process variable data to the control system. When an Input Monitor Card fails or degrades, the entire monitoring channel goes offline — exposing the machine to undetected fault conditions and triggering protective shutdowns. Stocking a verified replacement of the 170180-01-05 eliminates the lead-time risk that turns a two-hour card swap into a multi-day production loss event.

This unit ships after full functional verification, is packaged for ESD-safe transport, and is backed by a 12-month warranty covering manufacturing defects and operational failure under normal industrial service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 170180-01-05 Input Monitor Card is rarely an isolated task. Experienced maintenance engineers treat a card-level fault as a trigger for a broader inspection of the associated monitoring loop and rack infrastructure. During the same maintenance window, the following components and assemblies should be evaluated:

Begin with the 3500/20 Rack Interface Module and the 3500/15 Power Supply — both are upstream dependencies that can cause intermittent card faults if their output voltages are drifting. Verify DC rail voltages at the backplane connectors before inserting the replacement card. If the rack has been in service for more than five years, consider stocking a spare 3500/15 Power Supply module alongside the Input Monitor Card.

Inspect the transducer field wiring and junction box terminations feeding the affected channel. Proximitor sensor cables, particularly the 3300 XL 8mm Proximitor or 3300 XL 11mm Proximitor assemblies, are subject to connector corrosion and cable jacket degradation in high-vibration or high-humidity environments. A card replacement that is followed by a transducer fault will extend downtime unnecessarily — verify sensor output voltage and gap voltage at the field terminal before closing out the work order.

Check the 3500/32 4-Channel Relay Module associated with the monitored machine. Relay contacts that have operated repeatedly under alarm or trip conditions may exhibit increased contact resistance; test continuity and replace if contact resistance exceeds specification. Similarly, review the 3500/22M Transient Data Interface if the site uses System 1 software for trend and event data — a card swap is an appropriate time to confirm that the TDI is communicating correctly and that no buffered fault data has been lost.

For sites running the 3500 system integrated with a DCS or safety instrumented system, confirm that the 4–20 mA output signals from the monitor module are being received correctly at the marshalling cabinet. Inspect signal isolators and barrier modules in the I/O loop — these passive components age silently and can introduce offset errors that mask real machinery changes. If the site uses Modbus or System 1 Ethernet communication, verify that the 3500/92 Communication Gateway Module is online and that no watchdog faults have accumulated during the card outage period.

Finally, update your spare parts register. A single 170180-01-05 consumed from stock should trigger a replenishment order. Best practice for critical rotating equipment sites is to maintain a minimum of one verified spare Input Monitor Card per monitored machine train, with a secondary buffer for the most common rack modules across the installed base.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 170180-01-05 part number and revision suffix match the installed card. The 3500 system uses revision-controlled firmware; mismatched revisions may require a configuration download from the 3500 Rack Configuration software before the channel becomes active.

Step 2 — Bypass and inhibit: Place the affected monitoring channel in bypass or inhibit mode via the 3500 operator interface or System 1 software to prevent a spurious trip during card removal. Notify the control room and obtain a permit to work before proceeding.

Step 3 — Card removal and insertion: The 3500 rack supports live insertion; however, always follow your site’s electrical safety procedures. Remove the faulty card by releasing the front-panel ejector levers, slide the replacement 170180-01-05 into the same slot, and seat firmly until the ejectors latch. The card will perform a self-test sequence — the OK LED should illuminate green within 30 seconds.

Step 4 — Channel verification: With the transducer connected, verify that gap voltage, direct vibration, and 1X/2X vector readings are within expected ranges for the machine at its normal operating condition. Compare against the baseline trend stored in System 1 or your CMMS. Remove the bypass/inhibit and confirm that the OK relay is energized and that no alarms are active.

Step 5 — Documentation: Record the replaced card serial number, installation date, and post-replacement readings in your maintenance management system. Retain the removed card for failure analysis if the fault was not caused by an obvious physical defect.

This workflow applies equally when upgrading from an older 170180-01 revision to the current -05 variant, ensuring backward compatibility is confirmed and system configuration is preserved without requiring a full rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 170180-01-05 compatible with all 3500 Series monitor modules?
The 170180-01-05 Input Monitor Card is designed for use within the Bently Nevada 3500 rack architecture. Compatibility with specific monitor modules (such as the 3500/42M, 3500/45, or 3500/50M) depends on the rack configuration and firmware revision. We recommend confirming the installed rack configuration file and firmware version before ordering. Our technical team can assist with compatibility verification based on your rack serial number and System 1 configuration export.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our sales team with the order number, installation date, and a description of the failure symptom. We will arrange return shipping and provide a replacement or repair within an agreed lead time.

Q3: How do you verify the unit before shipment?
Each 170180-01-05 unit undergoes a functional verification process prior to dispatch, including power-on self-test confirmation and visual inspection for connector integrity and PCB condition. Units are packaged in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A test report is available upon request for units destined for critical machinery protection applications.

Q4: Can you support long-term or blanket spare parts orders for multi-site operations?
Yes. We support blanket purchase orders, consignment stock arrangements, and scheduled delivery programs for maintenance teams managing multiple facilities or large installed bases of 3500 Series equipment. Long-term supply agreements help stabilize your spare parts budget and ensure priority allocation during periods of market shortage for legacy Bently Nevada components. Contact our sales team to discuss volume pricing and delivery scheduling.
