Bently Nevada 190501-07-00-04 Retrofit-Ready Piezo-Velocity Sensor

Bently Nevada 190501-07-00-04 Retrofit-Ready Piezo-Velocity Sensor for 3300 Series Control Systems

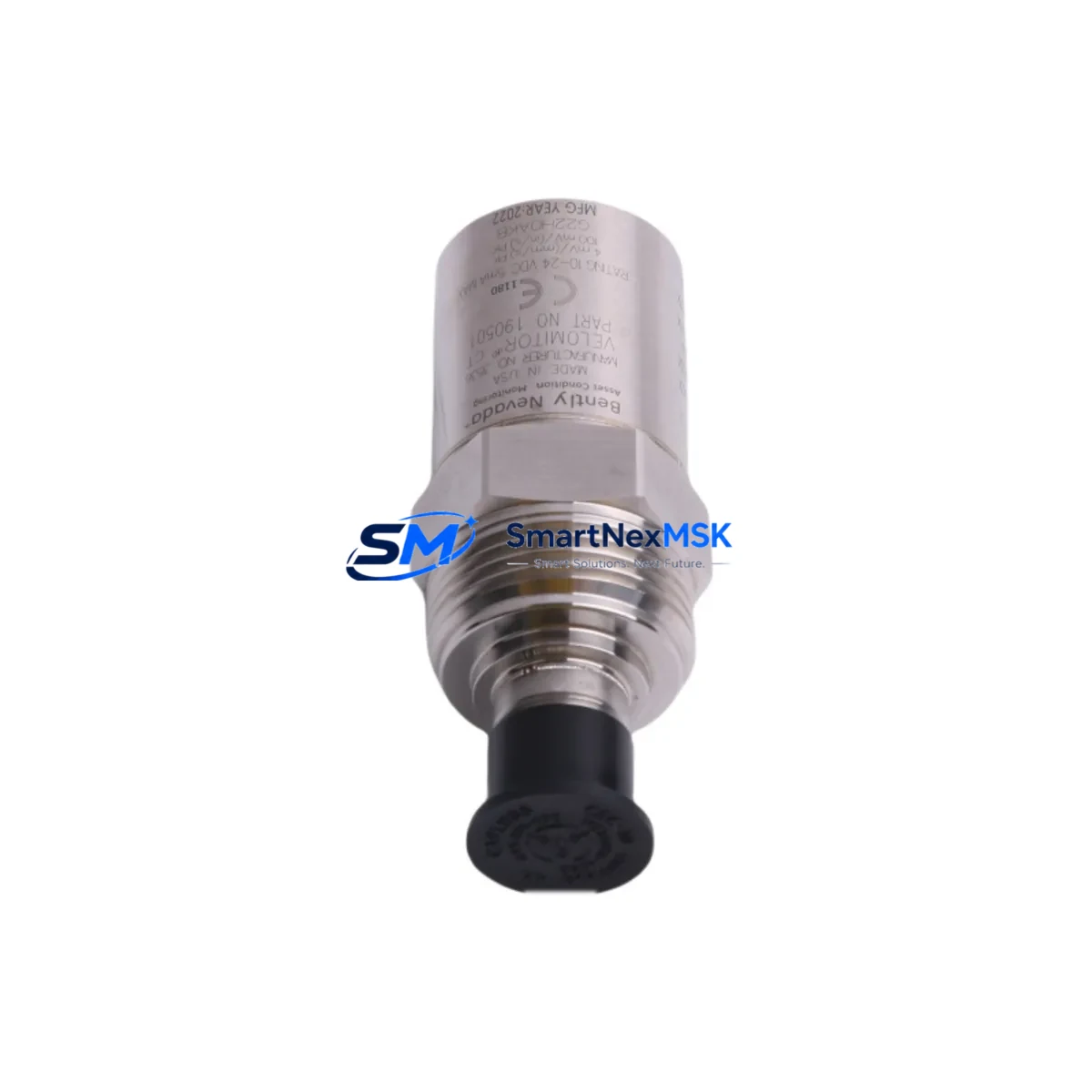

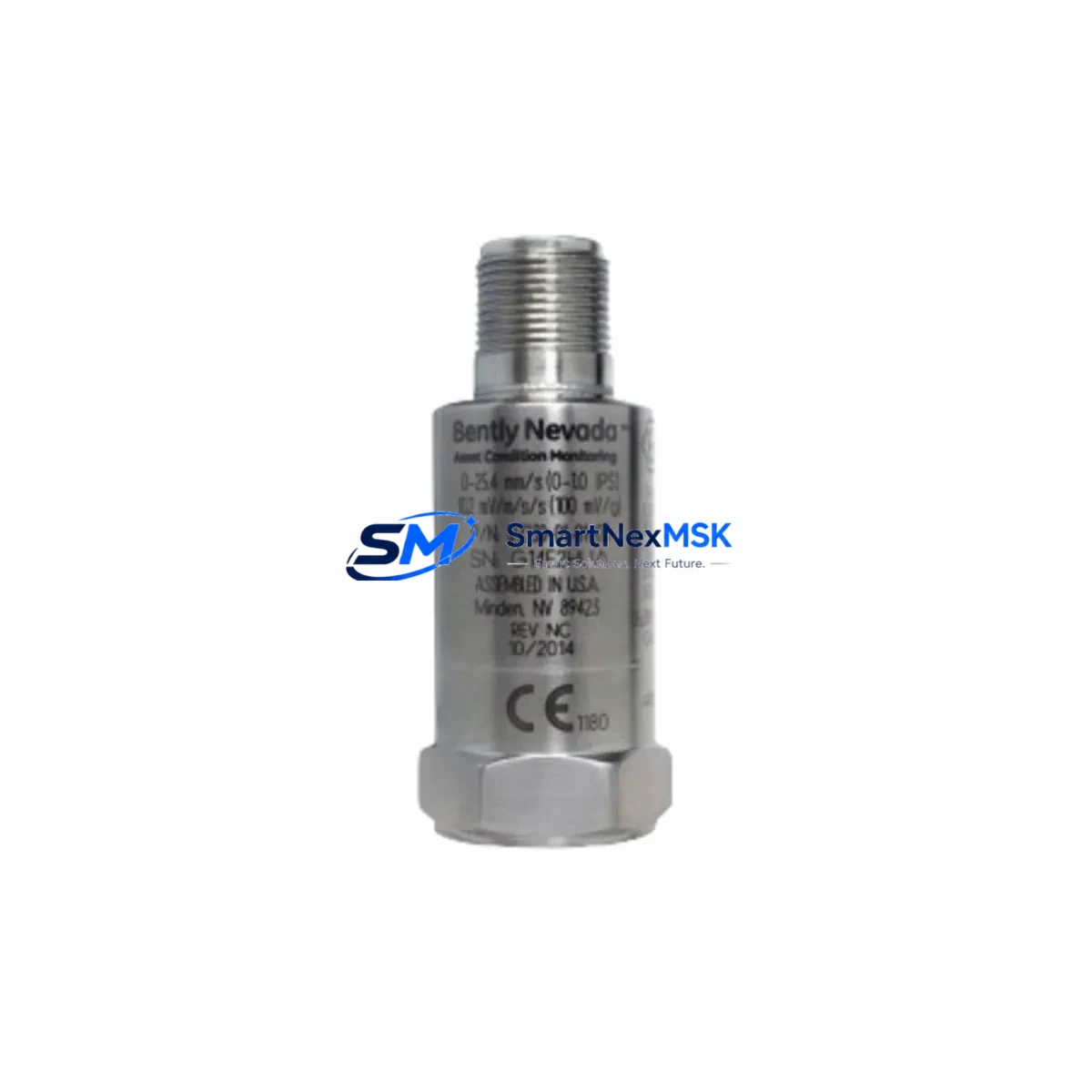

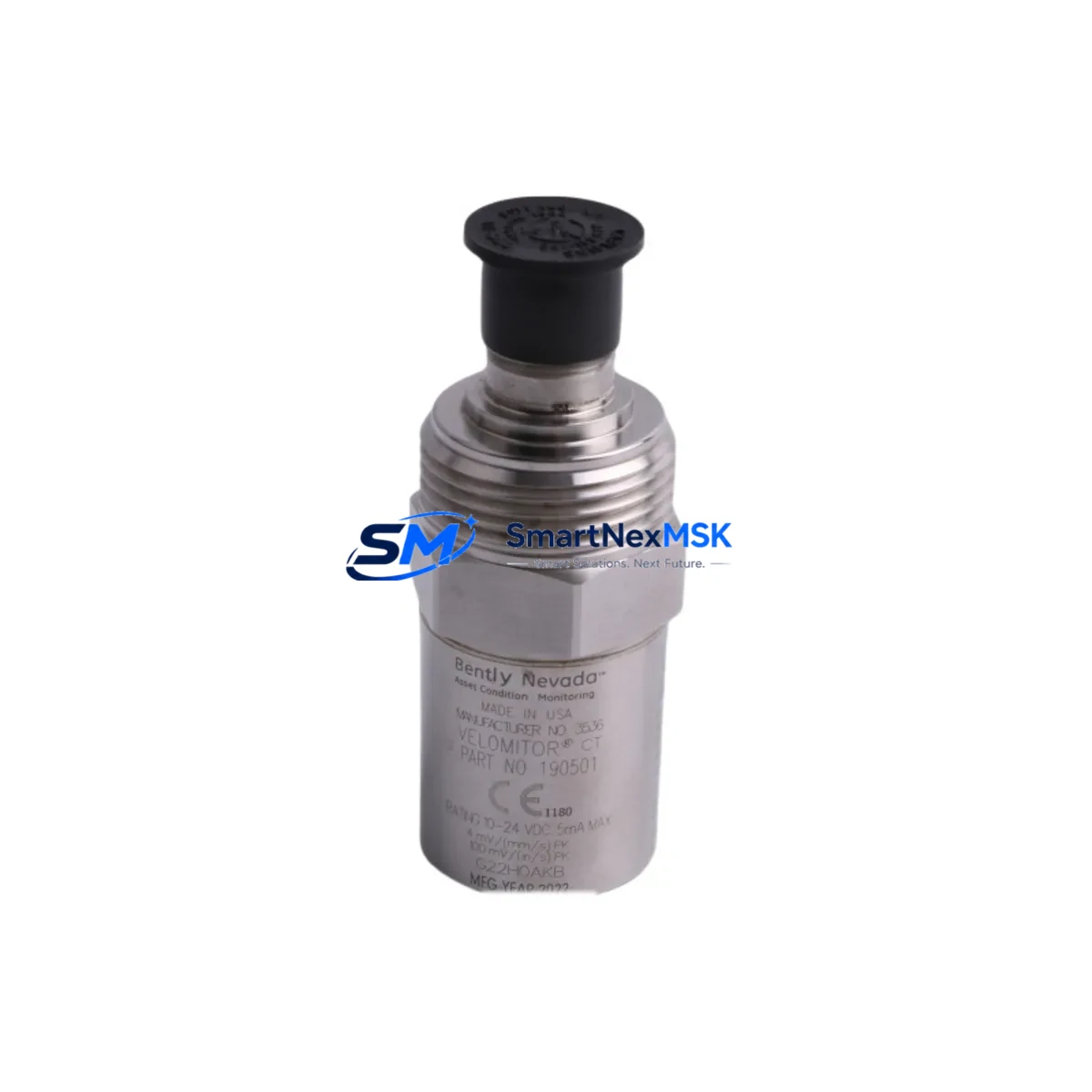

The Bently Nevada 190501-07-00-04 Velomitor Piezo-Velocity Sensor is a precision vibration measurement device engineered for continuous machinery protection in rotating equipment applications. As legacy Bently Nevada 3300 Series monitoring systems approach end-of-service life, plant engineers and reliability teams increasingly require a verified, drop-in compatible replacement that preserves existing wiring infrastructure, maintains signal chain integrity, and eliminates the need for full panel redesign. This retrofit-ready unit is sourced from authorized supply channels, fully tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and functional performance.

The 190501-07-00-04 outputs a standard 4–20mA velocity signal compatible with the Bently Nevada 3300/16 Monitor and 3300/20 Monitor rack-mounted modules. Its M8 connector interface and 5-metre integral cable match the original factory specification, allowing direct substitution without re-termination at the junction box or marshalling cabinet. The sensor’s frequency response of 2 Hz to 1,000 Hz covers the full operating range required for turbine, compressor, pump, and motor shaft vibration monitoring in accordance with API 670 machinery protection standards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 190501-07-00-04 in an operating plant requires a structured approach that accounts for the full signal chain from sensor to control room. Before scheduling a maintenance window, engineers should verify that the existing Bently Nevada 3300 Series rack has sufficient power supply headroom. The 3300/15 Power Supply module typically provides 24 VDC at up to 3A per rack; confirm that adding or swapping a Velomitor sensor does not push the rail beyond 80% capacity, particularly in racks that also host 3300/25 Keyphasor modules and 3300/46 Dual Voting Logic modules.

Terminal wiring at the field junction box should be documented before disconnection. The 190501-07-00-04 uses a two-wire loop-powered configuration: positive supply and signal return. Label each conductor with the channel number referenced in the 3300/16 Monitor configuration before removal. If the existing cable conduit is shared with proximity probe extension cables for 3300 XY shaft displacement channels, take care to avoid disturbing those circuits during sensor swap-out.

At the monitor module level, the 3300/16 channel configuration stored in the Bently Nevada System 1 software does not require modification when substituting a like-for-like Velomitor unit. However, if the retrofit is part of a broader migration from the 3300 Series to the newer 3500 Series platform — for example, replacing a 3300/16 with a 3500/42M Velocity Monitor — the channel configuration must be re-entered in the 3500 Rack Configuration Utility, and the associated System 1 database node must be updated to reflect the new rack address and slot assignment.

For plants upgrading their HMI from an older Wonderware InTouch or iFIX SCADA to a modern platform, the vibration trend tags associated with the 190501-07-00-04 channel should be remapped in the OPC DA or OPC UA server configuration. The Bently Nevada 3500 Series supports Modbus TCP and OPC UA natively, which simplifies integration with DCS platforms such as Emerson DeltaV or Honeywell Experion PKS without requiring a dedicated 3300 Gateway module.

When the retrofit also involves expanding I/O capacity — for example, adding a 3500/64M Process Variable Monitor to bring additional temperature or pressure inputs into the same rack — confirm that the 3500/20 Rack Interface Module firmware is current and that the rack’s backplane slot addressing does not conflict with existing module assignments. The 3500/92 Communication Gateway module, if present, should be reconfigured to include the new channel in its Modbus register map before the system goes live.

For sites still operating legacy Bently Nevada 7200 Series proximity systems alongside the 3300 Velomitor channels, a phased migration plan is recommended: replace the Velomitor sensors first, validate signal quality and alarm setpoints, then proceed with proximity probe and extension cable replacement in a subsequent outage window.

Downtime Control During System Migration

Minimizing unplanned downtime during a Velomitor sensor replacement begins with pre-staging. Before the maintenance window opens, verify that the replacement 190501-07-00-04 unit has been bench-tested against a calibrated signal source and that the output reads within ±2% of the expected full-scale value. Pre-cut and label the field cable if the existing integral cable is damaged, and confirm that the replacement M8 connector is correctly pinned before entering the field.

During the swap, the 3300/16 Monitor channel should be placed in bypass mode via the System 1 operator interface to suppress nuisance alarms and prevent spurious trips to the associated relay output or DCS interlock. Document the bypass action in the plant’s permit-to-work system and set a time limit consistent with your site’s alarm management procedure.

After mechanical installation and cable reconnection, restore the channel from bypass and observe the live velocity reading in System 1 or the local rack display. Compare the reading against the baseline trend stored in the historian — typically a 30-day rolling average for the monitored machine train. If the reading is within the normal operating band and the alarm setpoints are confirmed active, the channel can be returned to service without a full machinery run-up test, provided no other mechanical work was performed on the machine during the outage.

For critical machines where any sensor replacement triggers a mandatory functional test per your site’s safety instrumented system (SIS) procedures, coordinate with the SIS engineer to schedule a proof test of the associated 3300/46 voting logic output before returning the machine to automatic protection mode. This step is particularly important in applications where the Velomitor channel contributes to a 2oo3 or 2oo2 voting architecture.

Retrofit Support FAQ

Q1: Is the 190501-07-00-04 a direct drop-in replacement for the original Bently Nevada Velomitor without any wiring changes?
Yes. This unit replicates the original M8 4-pin connector, 5-metre integral cable, 4–20mA output, and 1/4–28 UNF mounting thread. No re-termination or panel modification is required for a like-for-like swap on a 3300 Series rack.

Q2: Has this unit been tested before shipment?
Yes. Every unit undergoes functional output verification against a calibrated load prior to dispatch. A test report confirming output linearity and frequency response is available upon request. The unit is covered by a 12-month warranty from the date of shipment.

Q3: Can this sensor be used with a Bently Nevada 3500 Series rack if we are migrating from 3300?
The 190501-07-00-04 is natively compatible with the 3300/16 and 3300/20 monitor modules. For 3500 Series integration, the 3500/42M Velocity Monitor accepts the same 4–20mA Velomitor input; however, the channel must be configured in the 3500 Rack Configuration Utility and the System 1 database updated accordingly. Contact our technical team for migration guidance.

Q4: What is the lead time and warranty coverage?
Units are dispatched from stock within 1–3 business days. A 12-month warranty covers manufacturing defects and functional performance from the date of shipment. Warranty claims are processed via our sales team with a replacement unit dispatched upon fault confirmation.
