Bently Nevada 190501-21-00-04 Maintenance Spare Velomitor CT

Bently Nevada 190501-21-00-04 Maintenance-Ready Spare for Velomitor CT Automation

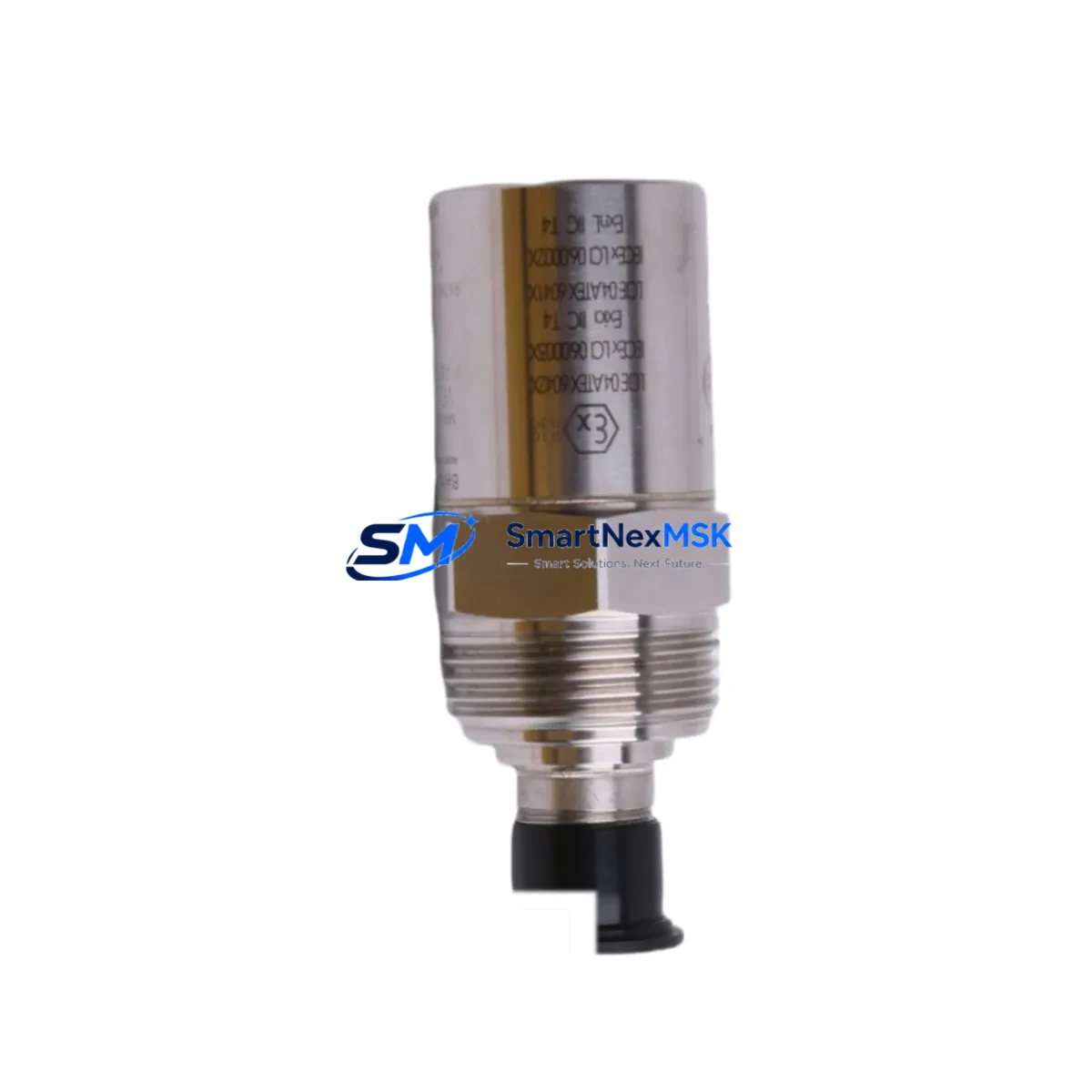

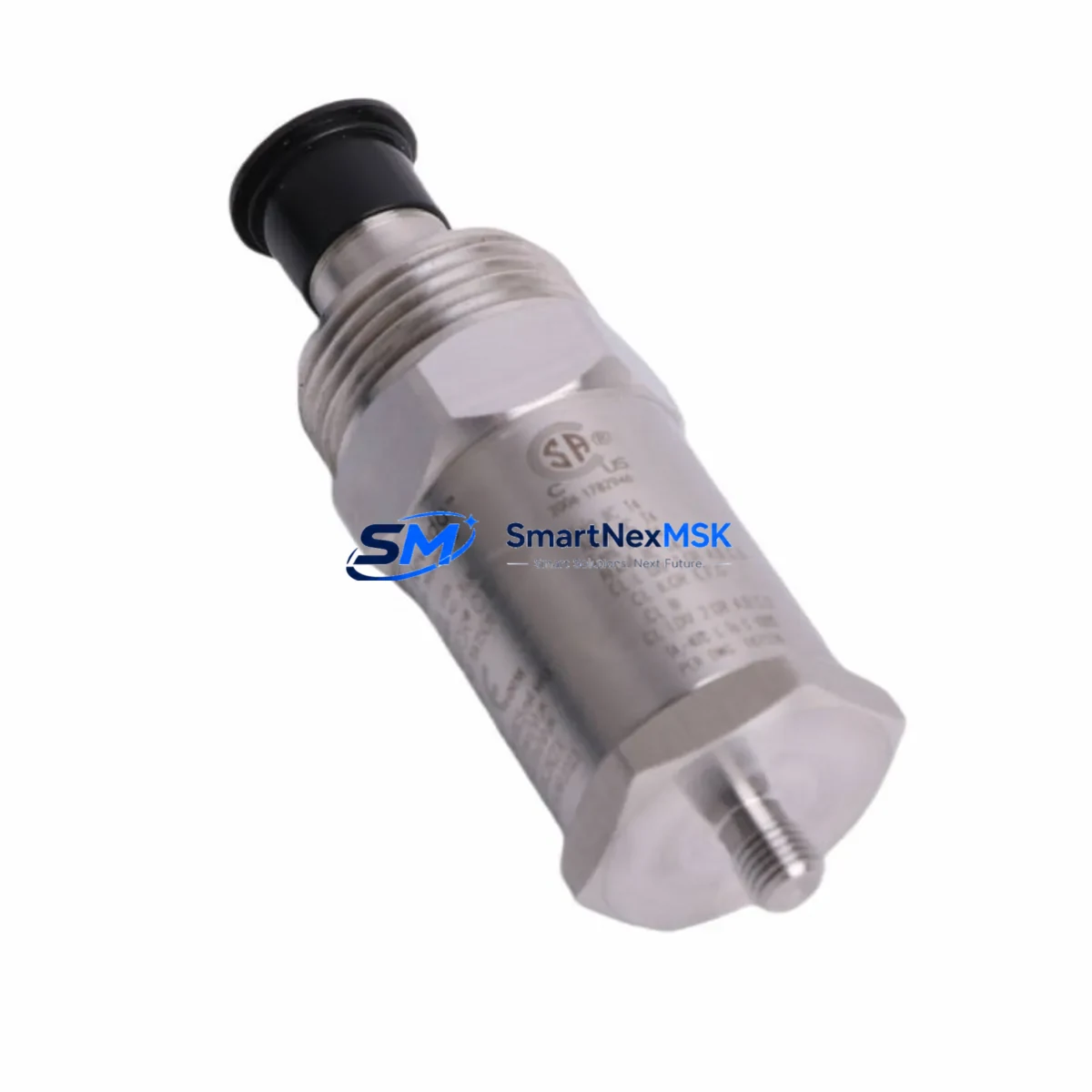

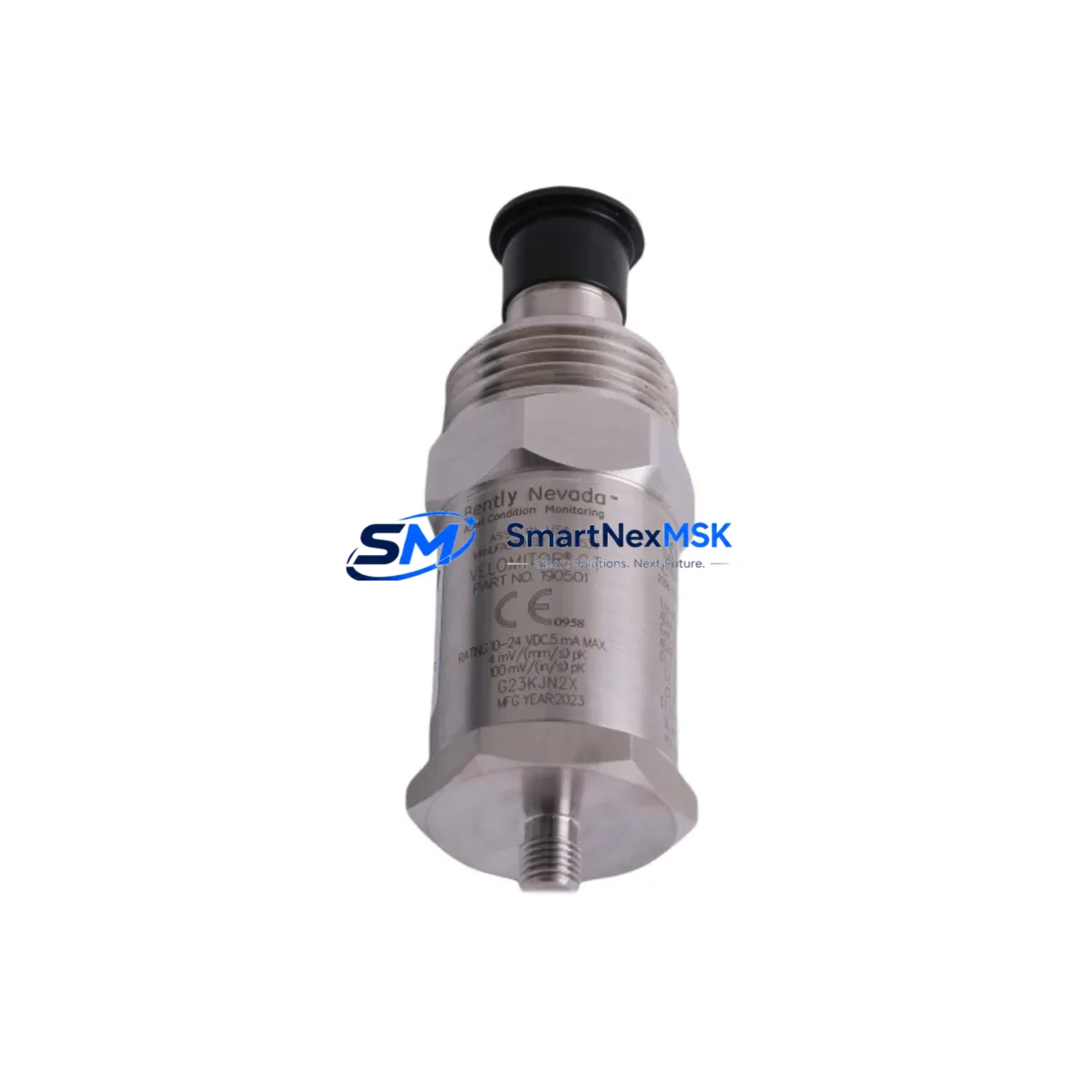

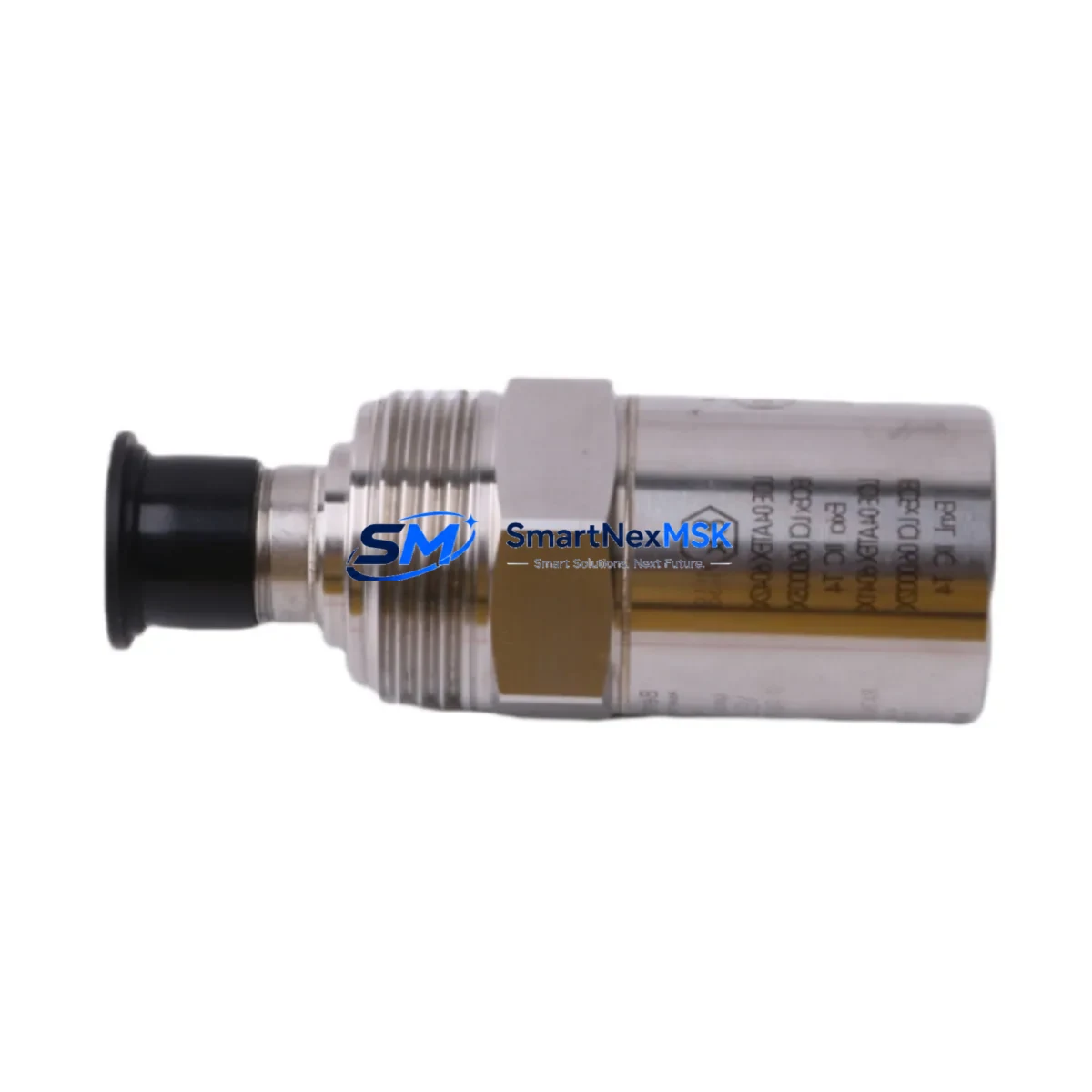

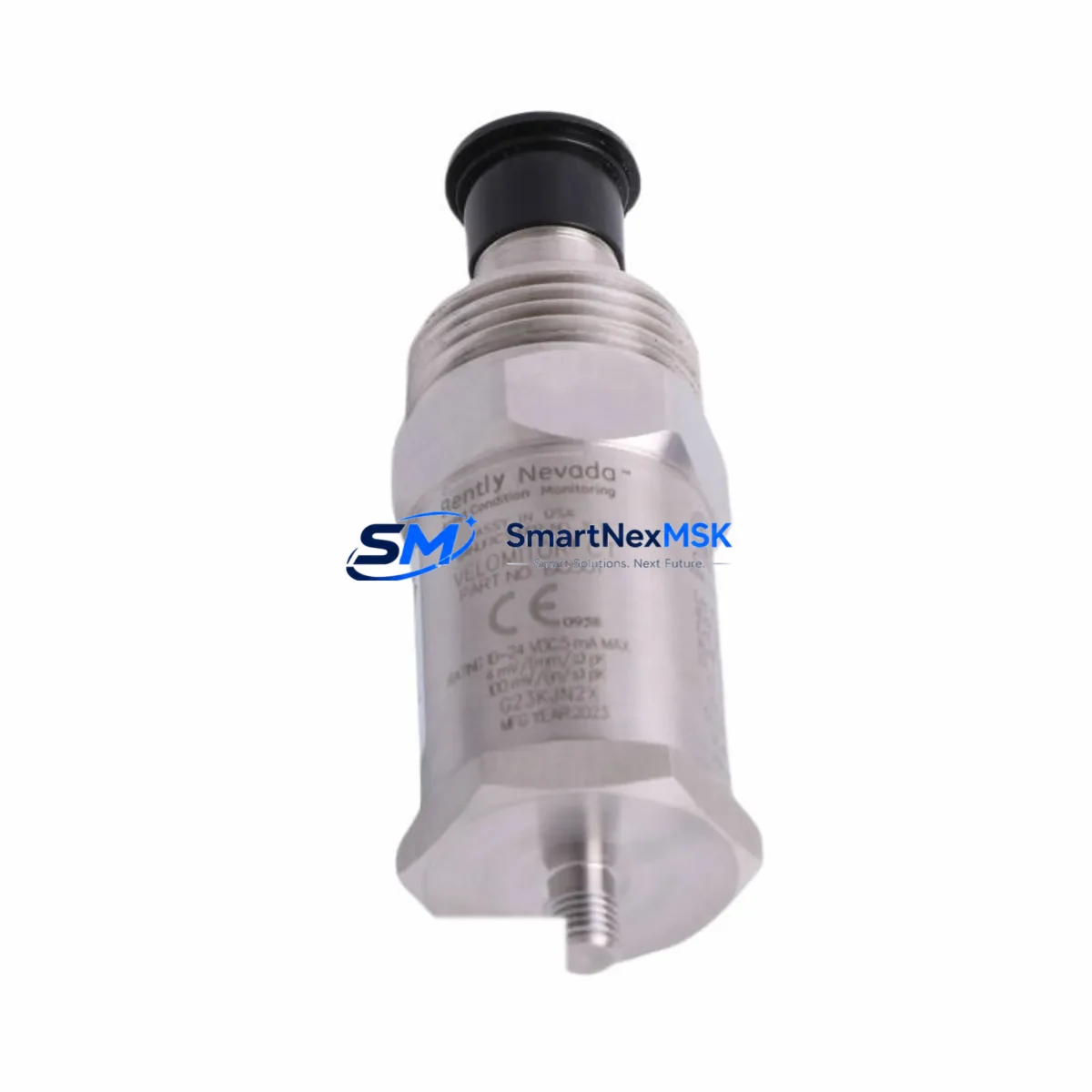

The Bently Nevada 190501-21-00-04 is an ICP®-powered Velomitor CT velocity transducer engineered for continuous vibration monitoring in rotating machinery protection systems. As a direct maintenance-ready spare, this unit supports rapid field replacement in Bently Nevada 3500 Series machinery protection racks and compatible monitoring architectures, minimizing unplanned downtime and restoring system integrity without requiring reconfiguration of existing signal chains.

For maintenance engineers managing aging turbomachinery, compressors, pumps, and motor-driven equipment, the 190501-21-00-04 represents a critical line-of-defense component. Its ICP signal conditioning eliminates the need for external power supplies in many installations, and its rugged stainless-steel housing ensures reliable performance in high-vibration, high-temperature industrial environments. Procurement engineers can stock this unit with confidence: it ships tested, carries a 12-month warranty, and is sourced as an original spare — not a counterfeit or grey-market substitute.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 190501-21-00-04 Velomitor CT transducer during a planned or emergency maintenance event, a thorough inspection of the surrounding signal chain is essential to prevent repeat failures and ensure measurement accuracy is restored. Maintenance engineers should begin by verifying the integrity of the Bently Nevada 3500/42M Velocity Monitor module, which processes the ICP signal from this transducer — a faulty monitor card can mask or misrepresent transducer output even after a successful replacement.

The interconnect cable assembly (typically a low-noise, shielded coaxial cable rated for ICP service) should be inspected for insulation damage, connector corrosion, and continuity. Damaged cables are a leading cause of signal noise and spurious trips that are often misattributed to transducer failure. Simultaneously, check the junction box terminal blocks and field wiring for loose connections, moisture ingress, or ground loops that could corrupt the velocity signal.

For installations integrated into a Bently Nevada 3500 Series rack, inspect the 3500/01 Rack Interface Module (RIM) and the 3500/22M Transient Data Interface if ADRE-based waveform capture is in use. These modules govern how transducer data is routed to the DCS or historian, and their health directly affects alarm reliability. If the machinery protection system interfaces with a DeltaV DCS or Ovation control system, verify that the I/O card receiving the 4–20 mA or relay output from the 3500 rack is functioning correctly.

During cabinet inspection, also assess the condition of the 3500/32 4-Channel Relay Module — relay contacts can degrade over time, leading to missed trip signals. The 3500/15 Power Supply Module should be checked for output voltage stability, as ICP transducers are sensitive to supply current fluctuations. Where applicable, inspect any signal isolators or barriers installed between the transducer loop and the control system to ensure they are not introducing impedance mismatches or signal attenuation.

For sites running legacy Bently Nevada 3300 Series monitors alongside newer 3500 racks, confirm that the replacement 190501-21-00-04 is compatible with the installed monitor’s input impedance and bias voltage requirements. Stocking a secondary spare of the 190501-21-00-00 (standard Velomitor CT variant) alongside the -04 suffix version is recommended for sites with mixed connector configurations.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the installed transducer SKU against the maintenance record. The 190501-21-00-04 uses a specific connector and cable termination; verify the replacement unit matches before de-energizing the loop. Cross-reference with the Bently Nevada 190500 Series datasheet to confirm sensitivity and frequency response alignment with the monitor’s configured full-scale range.

Step 2 — Safe Isolation: Place the associated 3500 Series monitor channel into bypass mode via the rack keyswitch or software inhibit to prevent spurious trips during transducer swap. Notify the control room and log the bypass in the maintenance management system.

Step 3 — Physical Replacement: Disconnect the field cable at the transducer connector. Remove the old unit using the correct torque specification for the 1/4-28 UNF mounting thread. Install the replacement 190501-21-00-04, applying anti-seize compound if required by site procedure. Reconnect the cable and verify connector seating.

Step 4 — Signal Verification: Re-energize the ICP loop and allow a 2-minute warm-up period. Verify the bias voltage at the monitor input (typically 8–12 VDC for a healthy ICP circuit). Confirm the velocity reading is within expected baseline range for the machine’s normal operating condition. Compare against historical trend data in the ADRE or DCS historian.

Step 5 — Return to Service: Remove the bypass inhibit, confirm alarm setpoints are active, and document the replacement in the CMMS. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical rotating equipment.

Spare Parts Support FAQ

Q1: Is the 190501-21-00-04 a direct drop-in replacement for other Velomitor CT variants?
The 190501-21-00-04 is part of the Bently Nevada 190500 Series Velomitor CT family. The suffix digits indicate connector type, cable length, and mounting configuration. While the core sensing element and ICP signal conditioning are consistent across the series, always verify the connector pinout and cable assembly compatibility with your installed wiring before ordering. The -04 suffix denotes a specific connector configuration; consult the Bently Nevada 190500 Series product specification for full variant cross-reference.

Q2: What pre-shipment testing is performed on this unit?
Every 190501-21-00-04 shipped from our inventory undergoes functional verification including ICP bias voltage check, sensitivity confirmation, and frequency response spot-check. Units are packaged in anti-static, shock-protected packaging with a test record. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: Can this transducer be used with non-Bently Nevada monitoring systems?
Yes. The 190501-21-00-04 outputs a standard ICP® (IEPE) signal compatible with any monitoring system designed to accept constant-current-powered piezoelectric velocity transducers. It has been used with systems from Emerson, Honeywell, Rockwell Automation, and third-party vibration analyzers. Confirm the monitor’s ICP input current (2–20 mA) and bias voltage range match the transducer’s requirements before installation.

Q4: What is your long-term supply commitment for this part?
We maintain dedicated stock of the 190501-21-00-04 and related Velomitor CT variants to support long-term maintenance programs, particularly for sites operating legacy Bently Nevada 3300 and 3500 Series systems where OEM supply may be constrained. Blanket purchase orders and consignment stocking arrangements are available for high-volume maintenance operations. Contact our team to discuss multi-unit pricing and scheduled delivery programs.
