Bently Nevada 190501-22-00-04 Spare for Velomitor CT Automation

Bently Nevada 190501-22-00-04 Spare for Velomitor CT Automation: Spare Replacement and Industrial Downtime Control

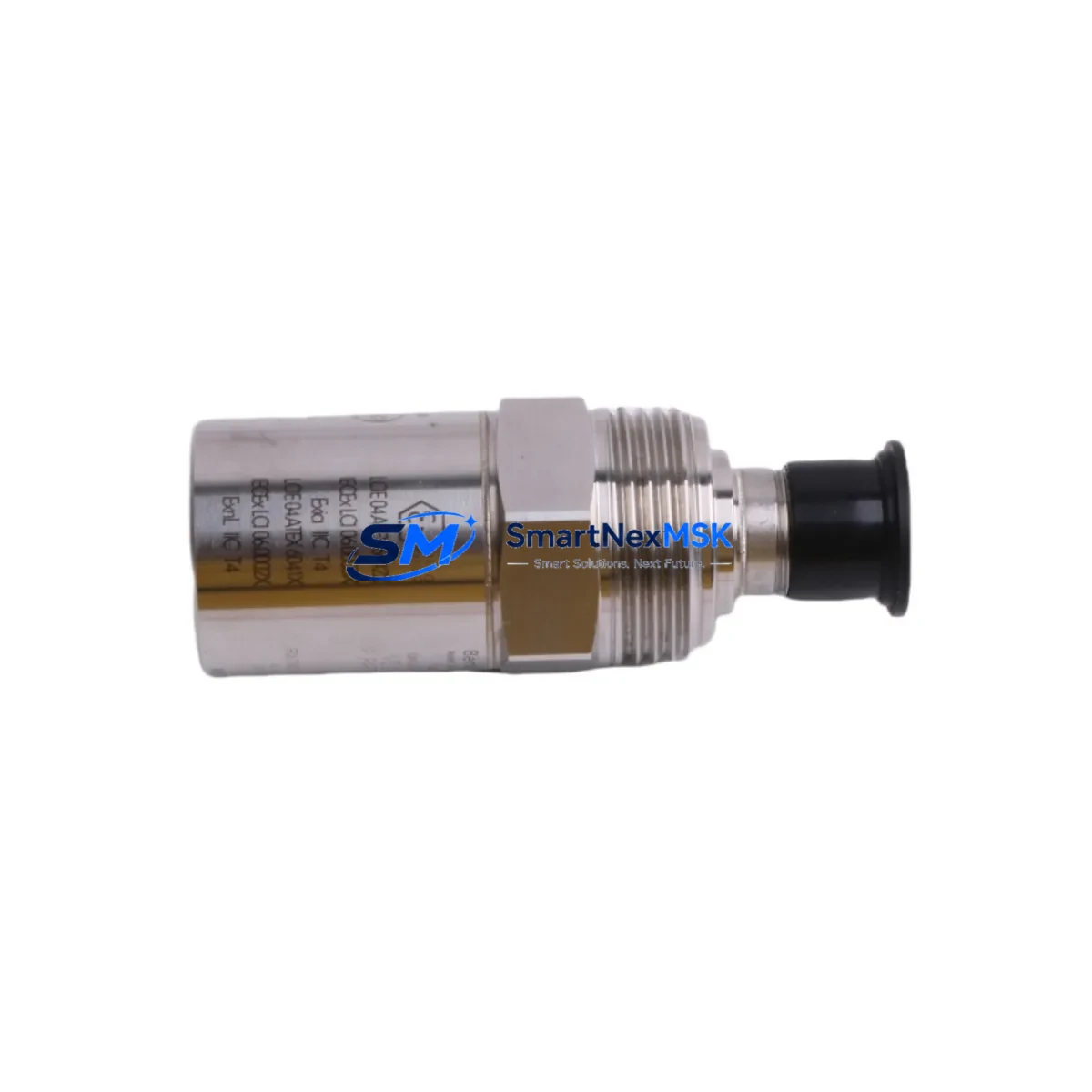

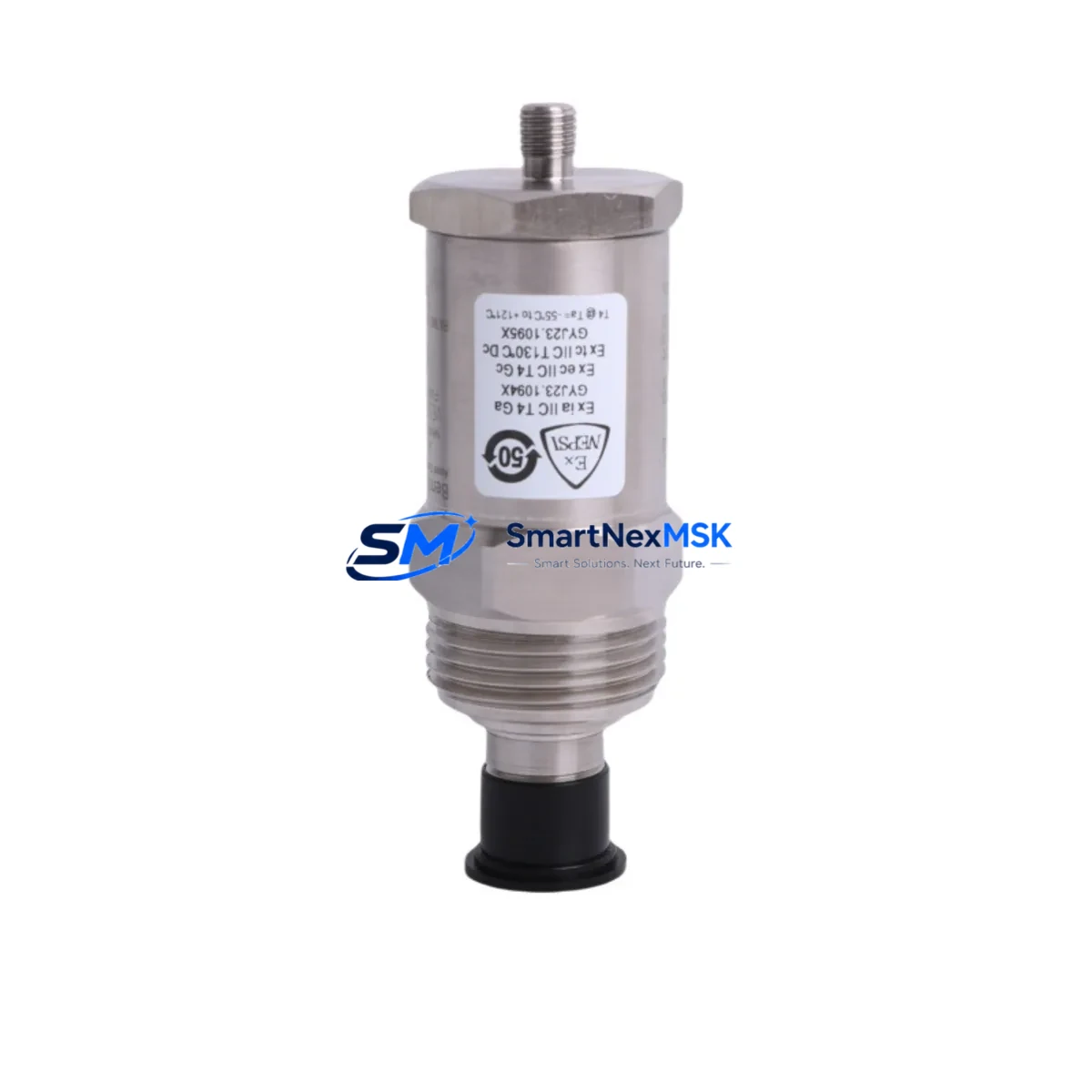

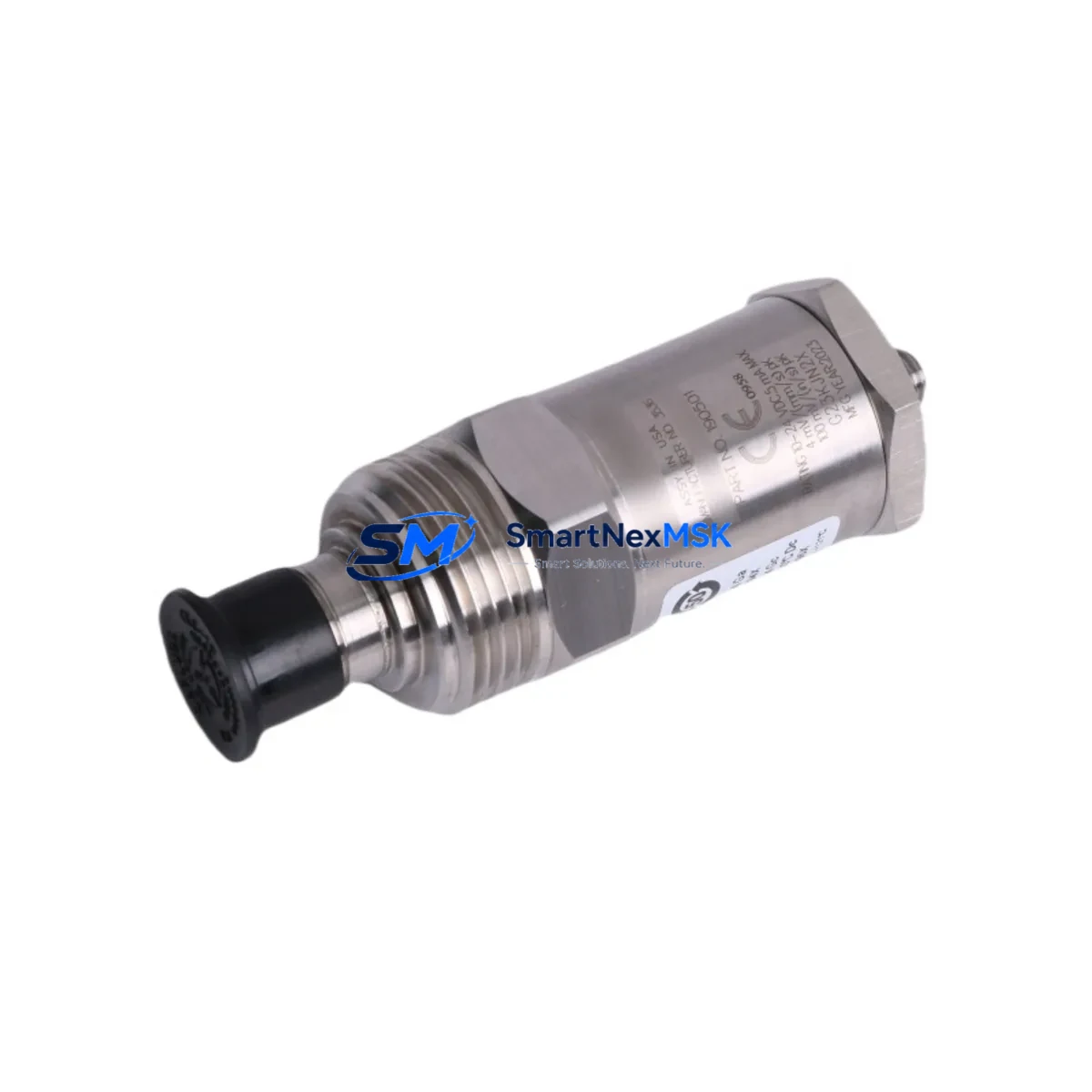

The Bently Nevada 190501-22-00-04 is an original Velomitor CT piezoelectric velocity transducer engineered for continuous vibration monitoring in rotating machinery environments. Designed for direct integration with the Bently Nevada 3500 Series and System 1 condition monitoring platforms, this maintenance-ready spare delivers reliable velocity signal output across a broad frequency range — making it a critical component in any maintenance engineer’s spare parts inventory for turbines, compressors, pumps, and motors.

When a Velomitor CT sensor fails or degrades in the field, the consequences extend beyond a single measurement point. Velocity transducers like the 190501-22-00-04 are typically wired into the 3500/42M Velocity Monitor module, and a faulty sensor can trigger false alarms, mask real machinery faults, or cause unplanned shutdowns. Stocking a verified original replacement ensures your maintenance team can execute a swap within a single shift window, restoring full monitoring capability without waiting on extended lead times.

This unit ships with a 4-meter integral armored cable, pre-terminated for direct connection to Bently Nevada junction boxes and field wiring terminals. Each unit undergoes functional output verification and sensitivity calibration checks prior to dispatch, ensuring it meets OEM specifications on arrival. A 12-month warranty is included from the date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 190501-22-00-04 Velomitor CT is rarely an isolated task. A structured maintenance approach requires inspecting the entire signal chain to prevent repeat failures and ensure measurement integrity after the swap.

Begin at the 3500/42M Velocity Monitor module — verify channel configuration, alarm setpoints, and that the OK relay output is functioning correctly. If the monitor card shows any sign of input circuit degradation, consider stocking a spare 3500/42M alongside the transducer. Next, inspect the field junction box and terminal strip connections: corroded terminals or loose ferrules are a common cause of intermittent velocity signal loss that is often misdiagnosed as sensor failure.

Check the 3500/20 Rack Interface Module (RIM) for communication integrity with the host System 1 software. A degraded RIM can cause data dropouts even when the sensor and monitor card are functioning correctly. For installations using 3500/92 Communication Gateway modules for Modbus or OPC output, verify that the gateway firmware is current and that the velocity channel mapping is intact after any module swap.

On the power side, inspect the 3500/15 Power Supply module for output voltage stability. Velocity transducers are sensitive to supply rail fluctuations, and an aging power supply can introduce noise into the velocity signal baseline. If the cabinet houses a redundant power supply pair, test the automatic switchover function during the maintenance window.

For installations where the Velomitor CT feeds into a signal isolator or signal conditioner before reaching the DCS analog input card, verify isolator output calibration and check for ground loop issues — particularly in older cabinets where cable shielding may have degraded. In multi-machine monitoring setups, also inspect nearby 3500/40M Proximitor Monitor modules and their associated proximity probes: velocity and proximity channels often share the same rack and power bus, and a fault in one channel can affect adjacent card performance.

Where the system includes a 3500/22M Transient Data Interface (TDI), confirm that the velocity channel is correctly mapped and that transient capture thresholds are still valid after the sensor replacement. Finally, review the System 1 software trend data for the replaced channel over the prior 30–90 days — gradual sensitivity drift before failure is a common Velomitor CT aging pattern and can indicate that other sensors in the same installation vintage may be approaching end of service life.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Notify the control room to place the affected channel in bypass mode on the 3500/42M monitor to prevent spurious shutdown trips during the swap.

Step 2 — Cable Disconnection: Disconnect the integral cable at the junction box terminal strip. Label the terminal positions before removal. Inspect the cable armor and connector for damage — if the cable shows abrasion or crush damage, replace the full assembly rather than only the sensor head.

Step 3 — Sensor Removal: Unscrew the transducer from the mounting stud. Inspect the stud threads and mounting surface for corrosion or mechanical damage. Clean the mounting surface and apply fresh anti-seize compound before installing the replacement 190501-22-00-04.

Step 4 — Installation and Wiring: Torque the replacement sensor to the manufacturer’s specified value. Reconnect the cable at the junction box, ensuring correct polarity and shield grounding per the Bently Nevada wiring diagram for the 3500/42M channel.

Step 5 — Channel Verification: Remove the bypass, observe the OK relay status, and confirm the velocity reading is within the expected baseline range for the machine at normal operating speed. Document the as-found and as-left readings in the maintenance management system.

This workflow supports direct replacement of legacy Velomitor models and maintains system continuity without requiring reconfiguration of the 3500 rack or System 1 database, provided the replacement unit matches the original sensitivity specification.

Spare Parts Support FAQ

Q1: Is the 190501-22-00-04 a direct drop-in replacement for older Velomitor models?
The Velomitor CT series was designed as a functional replacement for earlier Bently Nevada velocity transducer designs used with the 3500 platform. In most installations, the 190501-22-00-04 can be installed without changes to the monitor card configuration, provided the sensitivity range and cable length match the original specification. Always verify the channel sensitivity setting on the 3500/42M before returning the channel to service.

Q2: What pre-shipment testing is performed on each unit?
Each 190501-22-00-04 unit is tested for output signal integrity and sensitivity prior to dispatch. Units sourced as tested surplus are verified against OEM electrical specifications. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: How should this spare be stored if not immediately installed?
Store in the original packaging or an ESD-safe enclosure in a dry, temperature-controlled environment (10°C–35°C, <70% RH). Avoid storing near strong magnetic fields or vibration sources. Inspect the cable connector and sensor body for corrosion annually if held in long-term storage. Rotate stock on a first-in, first-out basis to maintain readiness.

Q4: Can you supply multiple units for a planned outage or fleet-wide spare parts program?
Yes. We support bulk orders for planned outages, turnaround maintenance, and fleet-wide spare parts standardization programs. Contact our team with your required quantity, delivery schedule, and any site-specific cable length or connector requirements. Long-term supply agreements with reserved stock allocation are available for critical asset operators.
