Bently Nevada 21000-16-05-00-096-00-02 3300 Spare Probe

Bently Nevada 21000-16-05-00-096-00-02 3300 Spare Probe: Maintenance-Ready Replacement for Industrial Downtime Control

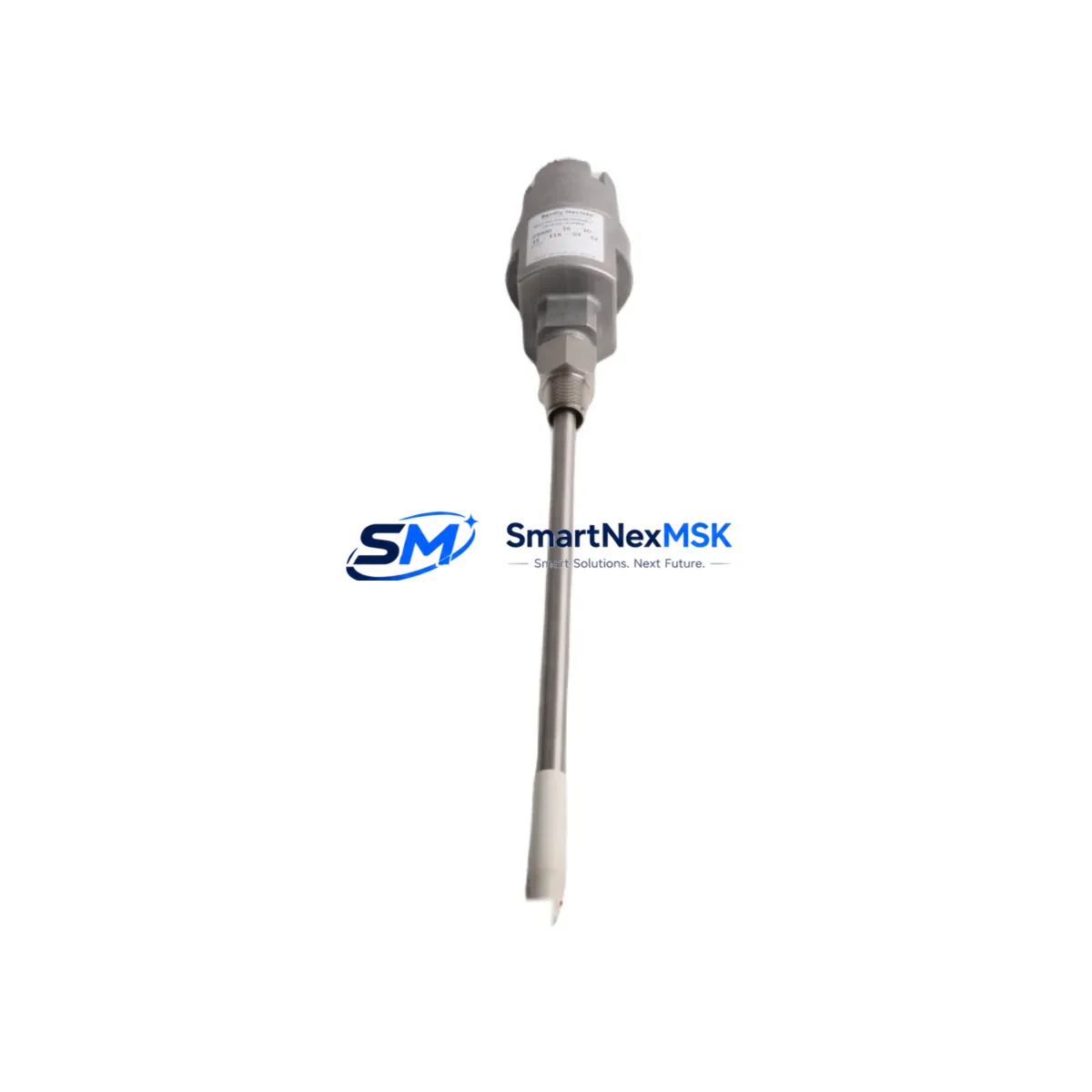

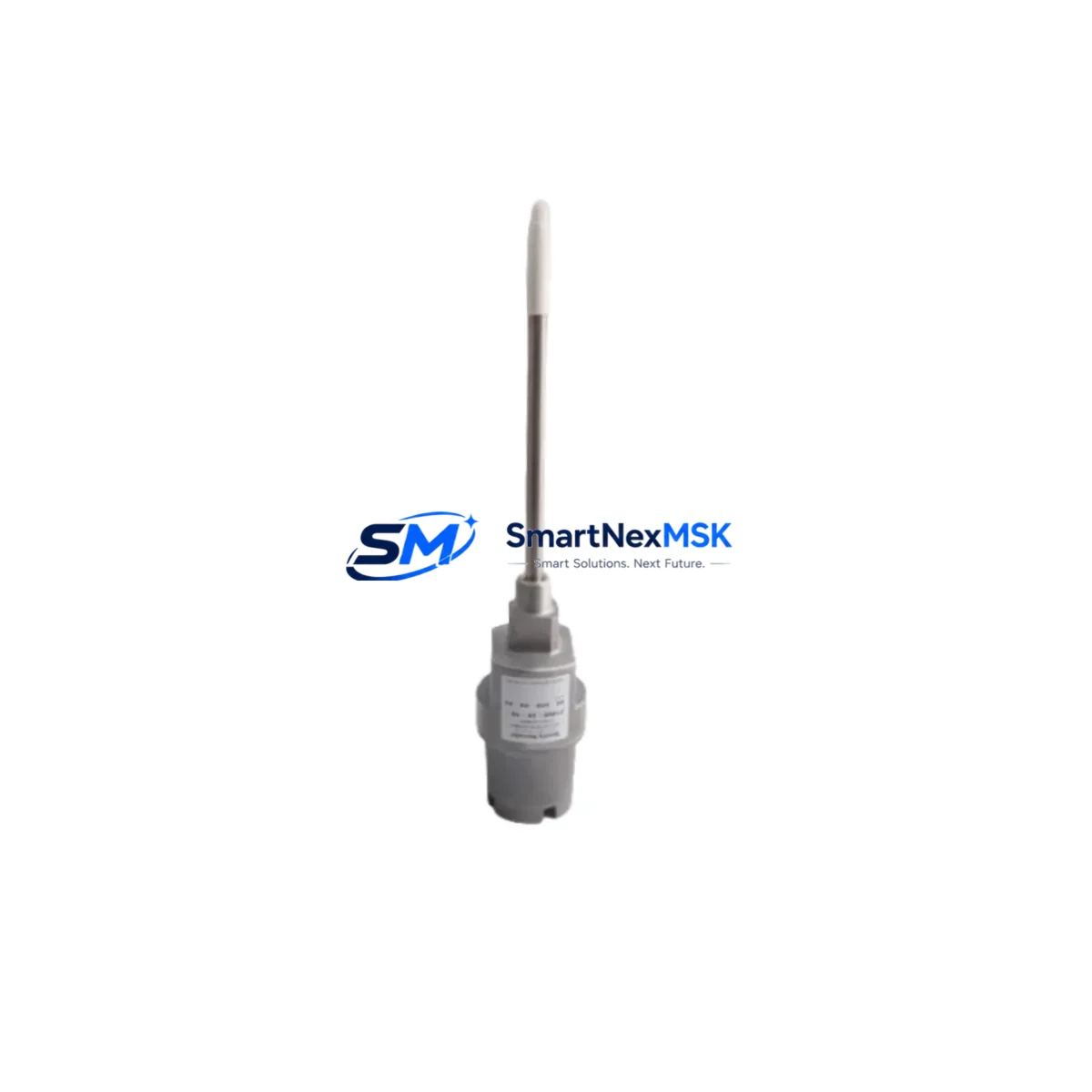

The Bently Nevada 21000-16-05-00-096-00-02 is an 8mm proximity probe housing designed for the 3300 Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. When this component fails or degrades, the entire vibration channel is compromised, leaving critical rotating machinery — turbines, compressors, pumps, and gearboxes — without reliable proximity measurement. Stocking a verified replacement spare is not optional; it is a fundamental requirement of any serious predictive maintenance program.

This unit ships as an original-specification spare, tested prior to dispatch, and backed by a 12-month warranty. It is suitable for direct field replacement in 3300 Series proximity systems without requiring recalibration of the full channel, provided the extension cable and Proximitor® sensor remain within specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21000-16-05-00-096-00-02 probe housing in a 3300 Series channel, a disciplined maintenance engineer will not stop at the probe alone. The proximity measurement chain is a system — and any weak link can invalidate the entire vibration reading or trigger nuisance trips.

Begin by inspecting the 3300 XL 8mm Proximitor® Sensor (e.g., 330180-X1-05 series) for gap voltage drift, output linearity, and connector integrity. A probe replacement paired with a degraded Proximitor® sensor will not restore channel accuracy. Next, verify the extension cable — typically a 330130-series armored cable — for continuity, insulation resistance, and connector pin condition; damaged extension cables are a leading cause of intermittent proximity faults that are misdiagnosed as probe failures.

At the rack level, confirm that the 3300/16 or 3300/20 monitor module is seated correctly and that its OK relay output is functioning. If the facility runs a 3500 Series machinery protection rack, verify that the associated 3500/42M Proximitor®/Seismic Monitor module has not accumulated alarm or trip events that indicate upstream signal degradation. Check the power supply module feeding the monitor rack — a sagging 24 VDC rail will cause false OK dropouts even with a new probe installed.

For facilities using System 1® condition monitoring software, confirm that the channel tag, gap voltage setpoint, and scale factor are correctly mapped after the replacement. If the control cabinet includes signal isolators or barriers (common in hazardous-area installations), inspect the isolator output for correct scaling — a failed isolator will corrupt the vibration signal regardless of probe condition. Also check terminal blocks and DIN rail connectors within the cabinet for corrosion or loose terminations, which are frequently overlooked during probe-focused maintenance events.

Finally, if the machine is part of a turbine or compressor train, cross-reference the replacement event with the keyphasor® probe channel (e.g., 330980-series) to ensure phase reference integrity is maintained — critical for vector-based vibration analysis and balancing operations.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the proximity channel at the monitor rack before disconnecting the probe. Record the existing gap voltage (typically –10 to –18 VDC for 8mm probes) as a baseline for post-installation verification.

Step 2 — Probe Removal: Unthread the 21000-16-05-00-096-00-02 housing from the probe mount. Inspect the mounting threads and bracket for wear or corrosion. Clean the target area and verify target surface condition — pitting or runout exceeding OEM limits will require separate remediation.

Step 3 — Replacement Installation: Install the new probe housing to OEM torque specification. Connect the extension cable and verify connector seating. Re-energize the channel and measure gap voltage at the Proximitor® sensor output. Adjust probe gap to achieve the nominal –12 VDC (or site-specific setpoint) before releasing the channel to service.

Step 4 — Functional Verification: Confirm OK relay status at the monitor module. Verify that System 1® or the DCS historian is receiving a clean, noise-free vibration signal. Log the replacement in the CMMS with the new part serial number and gap voltage reading.

Step 5 — Spare Replenishment: Immediately initiate a purchase order for a replacement spare to restore buffer stock. A single-unit spare strategy for critical proximity channels is insufficient for facilities with multiple identical machines.

Spare Parts Support FAQ

Q: Is the 21000-16-05-00-096-00-02 a direct drop-in replacement for older 3300 Series probe housings?
A: Yes, for standard 8mm 3300 Series installations. Verify the suffix codes on your existing probe to confirm cable length and connector configuration match your site requirements before ordering.

Q: What pre-shipment testing is performed on this spare?
A: Each unit undergoes functional verification and dimensional inspection prior to dispatch. A test report is available upon request. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q: How should this spare be stored in a maintenance inventory?
A: Store in original packaging in a dry, temperature-controlled environment away from strong magnetic fields. Proximity probes are sensitive to physical shock — avoid stacking heavy items on packaged spares. Recommended storage temperature: 0°C to 60°C.

Q: Can this probe be used with non-Bently Nevada Proximitor® sensors or third-party monitors?
A: The probe housing is mechanically compatible with standard 8mm proximity probe mounts. However, electrical compatibility with non-Bently Nevada signal conditioning electronics must be verified against the target system’s input impedance and scale factor requirements. For guaranteed performance, use within the Bently Nevada 3300 Series ecosystem.
