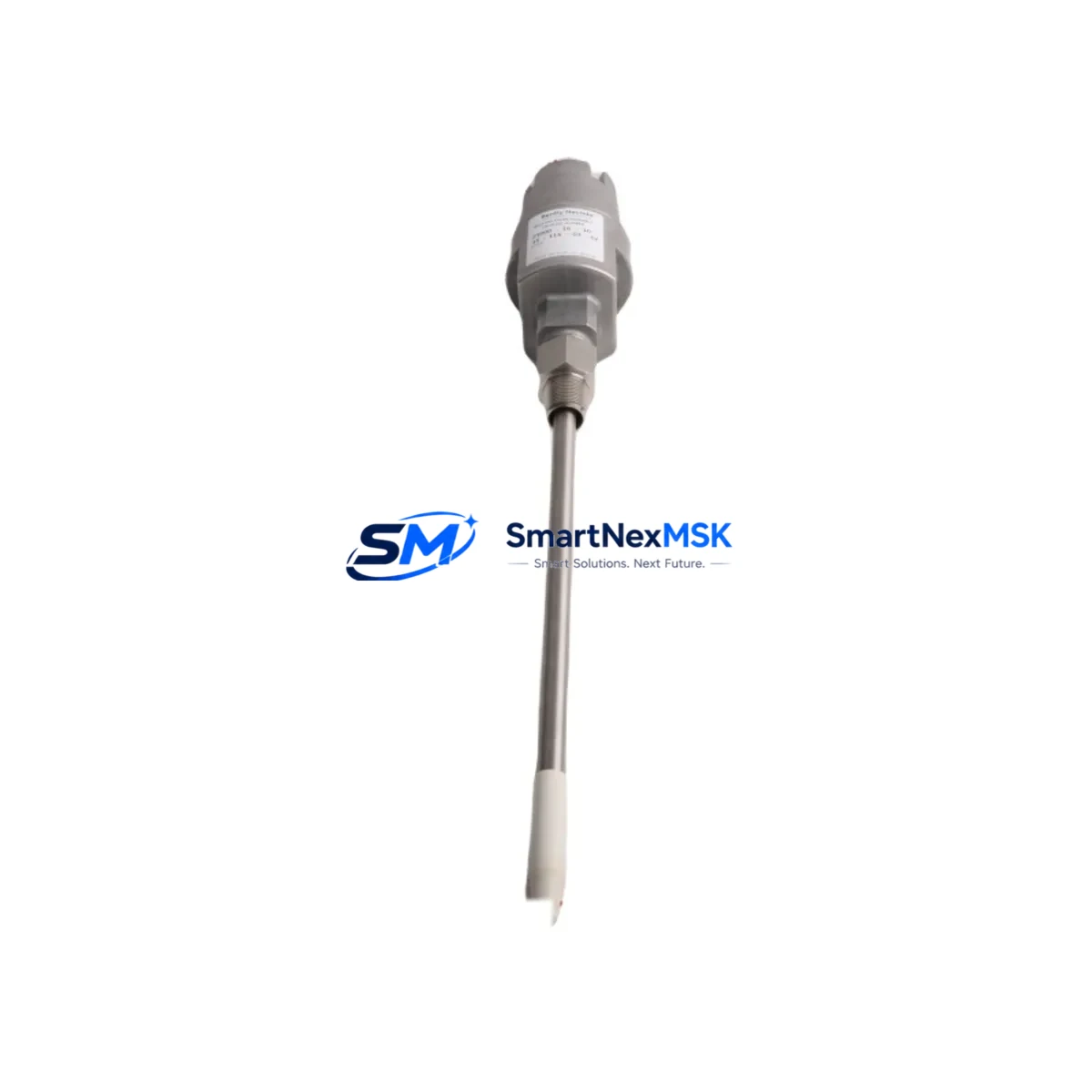

Bently Nevada 21000-16-05-00-103-03-02 Retrofit-Ready Proximity Probe

Bently Nevada 21000-16-05-00-103-03-02 Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems

The Bently Nevada 21000-16-05-00-103-03-02 is a precision-engineered proximity probe housing assembly designed for seamless integration into Bently Nevada 3300 XL series vibration monitoring systems. As legacy machinery protection platforms reach end-of-life or face discontinued spare parts availability, this unit serves as a verified drop-in replacement that preserves existing wiring infrastructure, signal conditioning chains, and monitor rack configurations without requiring full system redesign. Whether you are managing a planned outage, responding to an unplanned probe failure, or executing a phased modernization of your rotating machinery protection system, the 21000-16-05-00-103-03-02 delivers the dimensional accuracy, output linearity, and environmental sealing required for continuous industrial service.

This probe housing assembly is engineered to interface directly with the Bently Nevada 3300 XL monitor series, including the 3300/16 and 3300/20 rack-mounted monitor cards. The output signal range and sensitivity factor (typically 200 mV/mil or 7.87 V/mm) are factory-calibrated to match the input specifications of the 3300 XL proximitor/monitor modules, eliminating the need for recalibration of the monitor card upon replacement. Field engineers should confirm the existing proximitor extension cable length and connector type — typically the 330130 or 330180 series extension cables — to ensure the replacement probe assembly mates correctly without introducing additional signal attenuation or impedance mismatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-16-05-00-103-03-02 into an operating plant environment requires a structured pre-replacement assessment. Begin by documenting the current probe gap voltage reading from the 3300 XL monitor front panel or the System 1 condition monitoring software interface. This baseline reading confirms whether the existing proximitor — typically a 3300 XL 8 mm proximitor or a 3300 XL 5 mm proximitor depending on shaft material and target geometry — is still within its linear operating range or has drifted beyond acceptable limits.

Before removing the existing probe assembly, isolate the relevant monitor channel and verify that the 3300 XL rack power supply module is delivering stable ±24 VDC to the proximitor circuit. Power supply instability is a common root cause of false probe failures in aging 3300 XL installations, and replacing the probe without addressing power supply degradation will result in repeat failures. If the rack power supply is original equipment from the initial installation, consider scheduling a concurrent replacement of the 3300 XL power supply module as part of the same maintenance window.

The probe housing thread engagement depth must be verified against the original installation record. Improper thread engagement — even by a fraction of a turn — will shift the probe tip-to-target gap outside the linear range of the proximitor, producing erroneous vibration readings that can trigger spurious machinery trips. Use the original installation gap setting procedure: energize the proximitor, connect a calibrated voltmeter to the OK/Voltage output terminals on the 3300 XL monitor card, and adjust the probe depth until the output reads within the specified gap voltage window.

For plants operating Bently Nevada System 1 software for condition monitoring and trend analysis, the replacement probe does not require a new database entry provided the channel configuration — including sensitivity, full-scale range, and alarm setpoints — remains unchanged. However, if the plant has migrated from System 1 Evolution to System 1 Online, verify that the channel tag mapping in the new software environment correctly references the physical rack slot and channel address of the replaced probe. Incorrect tag mapping will result in the new probe’s data being logged under the wrong asset or not logged at all.

In installations where the 3300 XL system interfaces with a DCS or safety instrumented system via a 3500/92 communication gateway or a Modbus TCP/IP interface module, confirm that the probe replacement does not interrupt the communication link. The gateway module continuously polls the 3300 XL rack for channel status; a brief power interruption during probe replacement may cause the gateway to log a communication fault that requires manual acknowledgment at the DCS operator station. Coordinate with the control room operator before beginning the replacement to prevent nuisance alarms from propagating to the safety system.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity probe replacement on a 3300 XL system requires pre-staging all replacement components before the maintenance window opens. Confirm that the 21000-16-05-00-103-03-02 probe assembly, the appropriate extension cable, and any required thread sealant or anti-seize compound are on-site and inspected before the machine is taken offline. A pre-replacement bench test — connecting the new probe to a spare proximitor and verifying the gap voltage curve against the calibration chart — eliminates the risk of discovering a defective replacement unit after the machine has already been shut down.

During the replacement, maintain the original program logic in the 3300 XL monitor by placing the affected channel in bypass mode rather than powering down the entire rack. Bypassing a single channel allows the remaining channels — including Keyphasor® reference probes, axial position probes, and temperature inputs — to continue monitoring the machine train and reporting to System 1 without interruption. Document the bypass activation and deactivation times in the maintenance log to satisfy audit requirements under your plant’s machinery protection management procedure.

After reinstalling the new probe and verifying the gap voltage, perform a functional test by slowly rotating the shaft by hand (if accessible) or by observing the vibration reading during a controlled startup at reduced speed. Compare the vibration amplitude and phase angle readings from the replaced channel against the adjacent channel on the same shaft plane to confirm that the new probe is tracking correctly. Any significant deviation in amplitude or phase — beyond normal shaft asymmetry — indicates a gap setting error or a wiring fault that must be resolved before returning the machine to full-speed operation.

All units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm output linearity, insulation resistance, and connector integrity before dispatch. Expedited shipping options are available for urgent breakdown situations, with same-day dispatch available for in-stock units upon order confirmation before 14:00 CST.

Retrofit Support FAQ

Q1: Is the 21000-16-05-00-103-03-02 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
Yes. The 21000-16-05-00-103-03-02 is dimensionally and electrically compatible with the original Bently Nevada 3300 XL proximity probe housing assembly. It uses the same thread specification, tip geometry, and output sensitivity, allowing direct installation without modifications to the existing extension cable, proximitor, or monitor card configuration. Verify the gap voltage after installation per the standard 3300 XL commissioning procedure.

Q2: What wiring checks are required before and after replacement?
Before removal, record the OK/Voltage output reading from the 3300 XL monitor channel. After installation, verify that the coaxial cable connections at both the probe body and the proximitor input are fully seated and that the cable shield is grounded at one end only (typically at the proximitor end) to prevent ground loop interference. Check the monitor channel for OK status and confirm that the gap voltage is within the specified linear range before releasing the channel from bypass.

Q3: Can this probe be used with Bently Nevada 3500 series monitors?
The 21000-16-05-00-103-03-02 is optimized for the 3300 XL series. While the 3500 series uses the same eddy-current sensing principle, the 3500 system’s proximitor modules (such as the 3500/42M or 3500/45 position monitor) have different input impedance and OK threshold specifications. Compatibility with 3500 series hardware should be verified against the specific 3500 monitor card datasheet before installation. Contact SMARTNEXMSK technical support for application-specific guidance.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects, output calibration drift beyond factory specification, and connector or housing integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or chemical exposure. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. SMARTNEXMSK will arrange return shipping and provide a replacement or repair within the agreed lead time.
