Bently Nevada 21000-16-10-15-105-03-02 Maintenance-Ready Spare for 3300 XL Automation

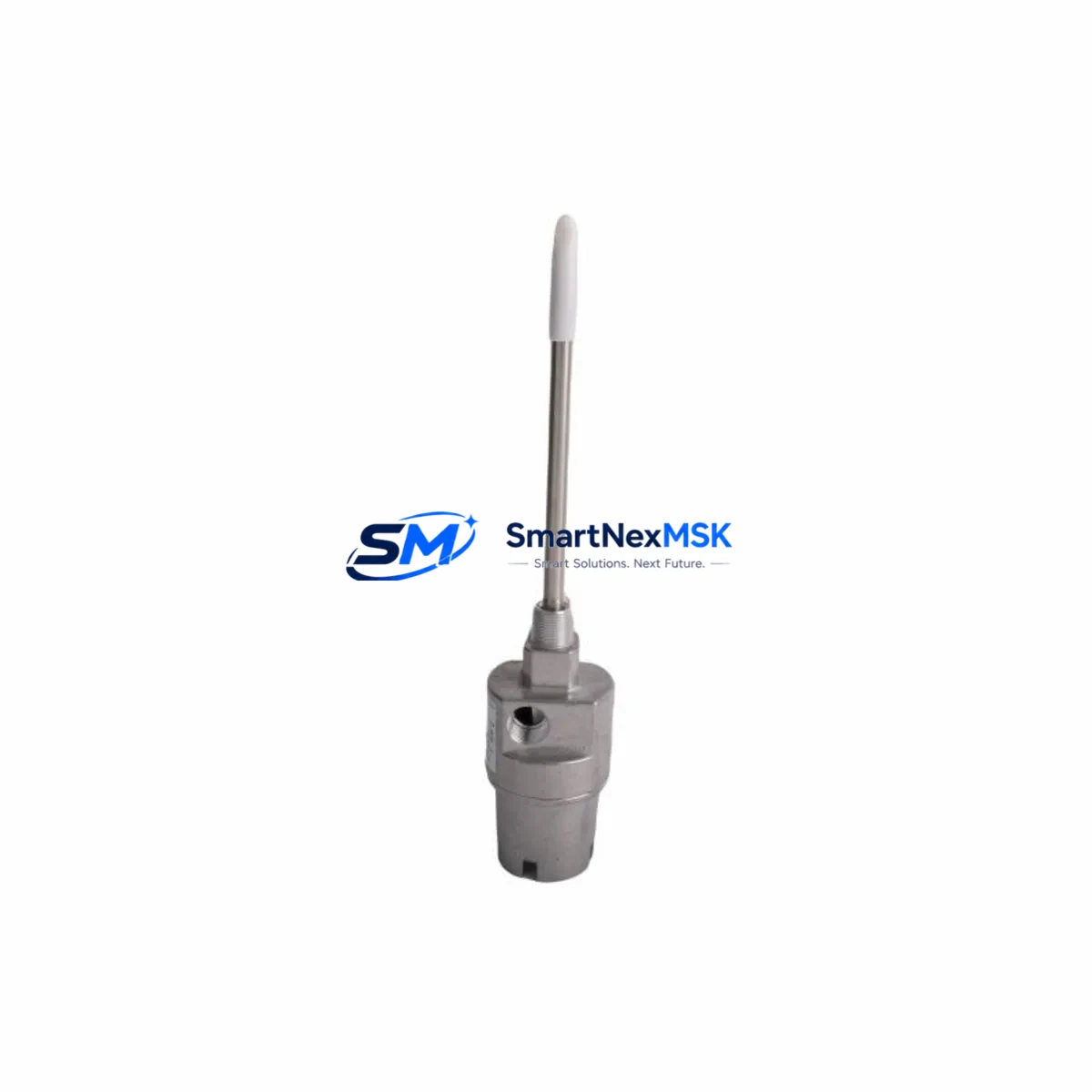

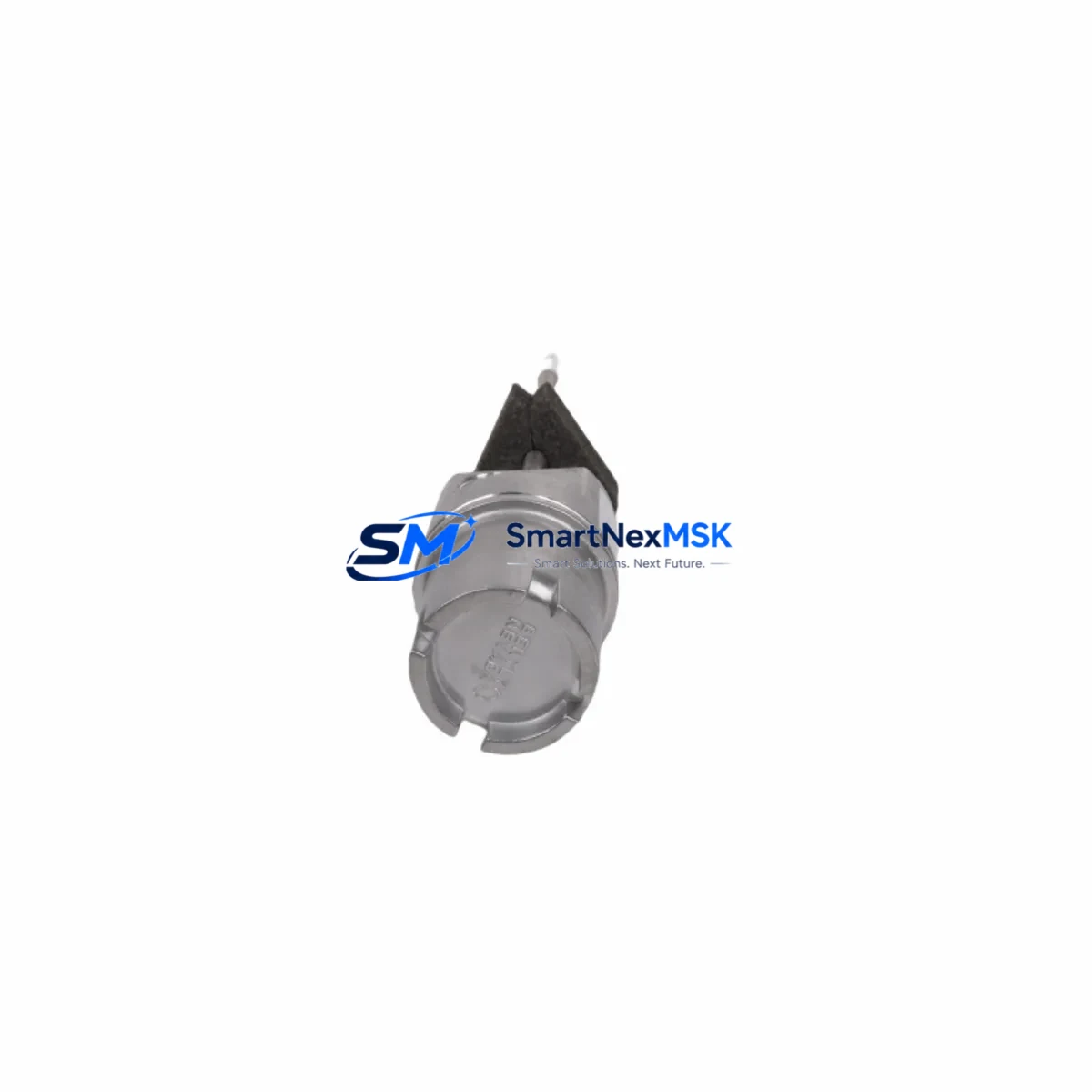

The Bently Nevada 21000-16-10-15-105-03-02 is an original 16mm proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and generators, this spare part is a critical component in any maintenance engineer’s inventory strategy. Whether you are executing a planned shutdown, responding to a vibration alarm, or conducting a routine control cabinet inspection, having a verified replacement on hand eliminates unplanned downtime and accelerates system restoration.
At SMARTNEXMSK, every unit of the 21000-16-10-15-105-03-02 is sourced from authorized supply chains, inspected against OEM specifications, and dispatched with a 12-month warranty. We support maintenance teams and procurement engineers who require fast, reliable access to original Bently Nevada spare parts without compromising on traceability or compatibility.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 21000-16-10-15-105-03-02 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Probe Diameter | 16 mm |
| Cable Length | 10 ft (approx. 3 m) |
| Extension Cable Length | 15 ft (approx. 4.5 m) |
| Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Operating Temperature | -35°C to +177°C |
| Gap Voltage Range | -2 VDC to -18 VDC |
| Supply Voltage | -24 VDC (via 3300 XL Proximitor) |
| Compatibility | 3300 XL Proximitor / Seismic Monitor, 3300 NSv, 3500 Series monitors |
| Installation Type | Threaded housing, radial or axial mounting |
| Application Environment | Turbines, compressors, pumps, gearboxes, motors |
| Maintenance Recommendation | Replace probe and extension cable as a matched set; re-calibrate gap voltage after installation |
| Origin | USA |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When a 3300 XL proximity probe reaches end-of-life or triggers a fault condition, experienced maintenance engineers know that replacing the probe alone is rarely sufficient for a complete and reliable restoration. A thorough inspection of the surrounding measurement chain and control cabinet is essential to prevent repeat failures and ensure signal integrity.
Begin by verifying the condition of the 3300 XL Proximitor sensor (such as the 330180 or 330130 series), which conditions the probe signal and provides the -24 VDC bias supply. A degraded Proximitor can cause erratic gap voltage readings even with a new probe installed. Simultaneously, inspect the extension cable assembly — the 21000-16-10-15-105-03-02 system uses a matched cable set, and any damage to the armored extension cable will compromise sensitivity calibration.
Check the 3300 XL monitor rack input card and verify that the I/O module terminals show no signs of corrosion or loose wiring. In multi-channel installations, the 3500/22M Transient Data Interface or equivalent communication module should be confirmed operational, as vibration data loss can cascade into false machinery protection trips. Review the terminal strip and field wiring for continuity — corroded terminals are a common root cause of intermittent probe faults in humid or offshore environments.
For plants running legacy 3300 Series monitors alongside newer 3500 racks, confirm that the signal conditioner and any galvanic isolation barriers in the measurement loop are within calibration. Isolation barriers protect the monitor from ground loops and are frequently overlooked during probe replacements. If the installation includes a Bently Nevada 3500/42M Proximitor I/O module, verify its channel configuration matches the new probe’s sensitivity factor.
During cabinet inspection, also assess the 24 VDC power supply module feeding the Proximitor rack — voltage sag under load is a known cause of proximity system instability. Where applicable, check the 3300 XL Seismic Monitor for any latched alarms that may need manual reset after probe replacement. Finally, document the as-found and as-left gap voltage readings to support your maintenance records and future predictive maintenance scheduling.
Site Replacement Workflow
Replacing the 21000-16-10-15-105-03-02 on-site follows a structured sequence to minimize downtime and maintain system compatibility:
1. Pre-Replacement Verification: Confirm the replacement SKU matches the installed probe diameter (16 mm), cable length, and connector type. Cross-reference with the 3300 XL system documentation to validate sensitivity and gap range requirements. Do not substitute with non-matched probe and extension cable combinations, as this will require full recalibration.
2. Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the Proximitor supply and confirm zero voltage at the probe connector before removal. Record the existing gap voltage reading as a baseline.
3. Physical Replacement: Remove the probe from its mounting bracket, noting the thread engagement depth. Install the new 21000-16-10-15-105-03-02 to the same depth and secure the locknut. Route the extension cable along the original cable path, avoiding sharp bends near the connector.
4. Gap Setting and Calibration: Re-energize the Proximitor and adjust the probe gap to achieve the nominal gap voltage specified for your shaft material and target area. Typical gap voltage for steel targets is -10 VDC ± 1 VDC. Use a calibrated gap-setting tool or feeler gauge.
5. System Verification: Confirm the monitor displays a valid OK status and that vibration readings are within expected baseline values. Clear any latched alarms and document the completed replacement in your CMMS.
This workflow supports rapid restoration of machinery protection coverage, reducing mean time to repair (MTTR) and maintaining compliance with API 670 vibration monitoring standards.
Spare Parts Support FAQ
Q1: Is the 21000-16-10-15-105-03-02 compatible with both 3300 XL and 3500 Series monitors?
Yes. The 3300 XL proximity probe system is designed for use with 3300 XL Proximitor sensors, but the probe and extension cable assembly is also compatible with 3500 Series monitor racks when paired with the appropriate 3500 Proximitor I/O module. Always verify the Proximitor model and sensitivity configuration before installation.
Q2: What is included in the 12-month warranty and how does it apply to spare parts?
Every 21000-16-10-15-105-03-02 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment inspection and functional testing. Warranty claims are supported with full traceability documentation.
Q3: Should the probe and extension cable be replaced as a matched set?
Yes. Bently Nevada 3300 XL proximity systems are calibrated as a three-component set: probe, extension cable, and Proximitor. Replacing only the probe without replacing the extension cable — or vice versa — will result in a sensitivity shift that requires full recalibration. SMARTNEXMSK supplies matched sets to ensure plug-and-play compatibility and minimize calibration time on-site.
Q4: How quickly can the 21000-16-10-15-105-03-02 be dispatched for emergency maintenance?
In-stock units are available for same-day or next-business-day dispatch. For emergency maintenance situations, contact our sales team directly to confirm stock availability and arrange priority shipping. We support both planned procurement and urgent breakdown supply for industrial maintenance teams globally.
