Bently Nevada 21000-16-10-20-035-03-02 Retrofit-Ready Proximity Probe

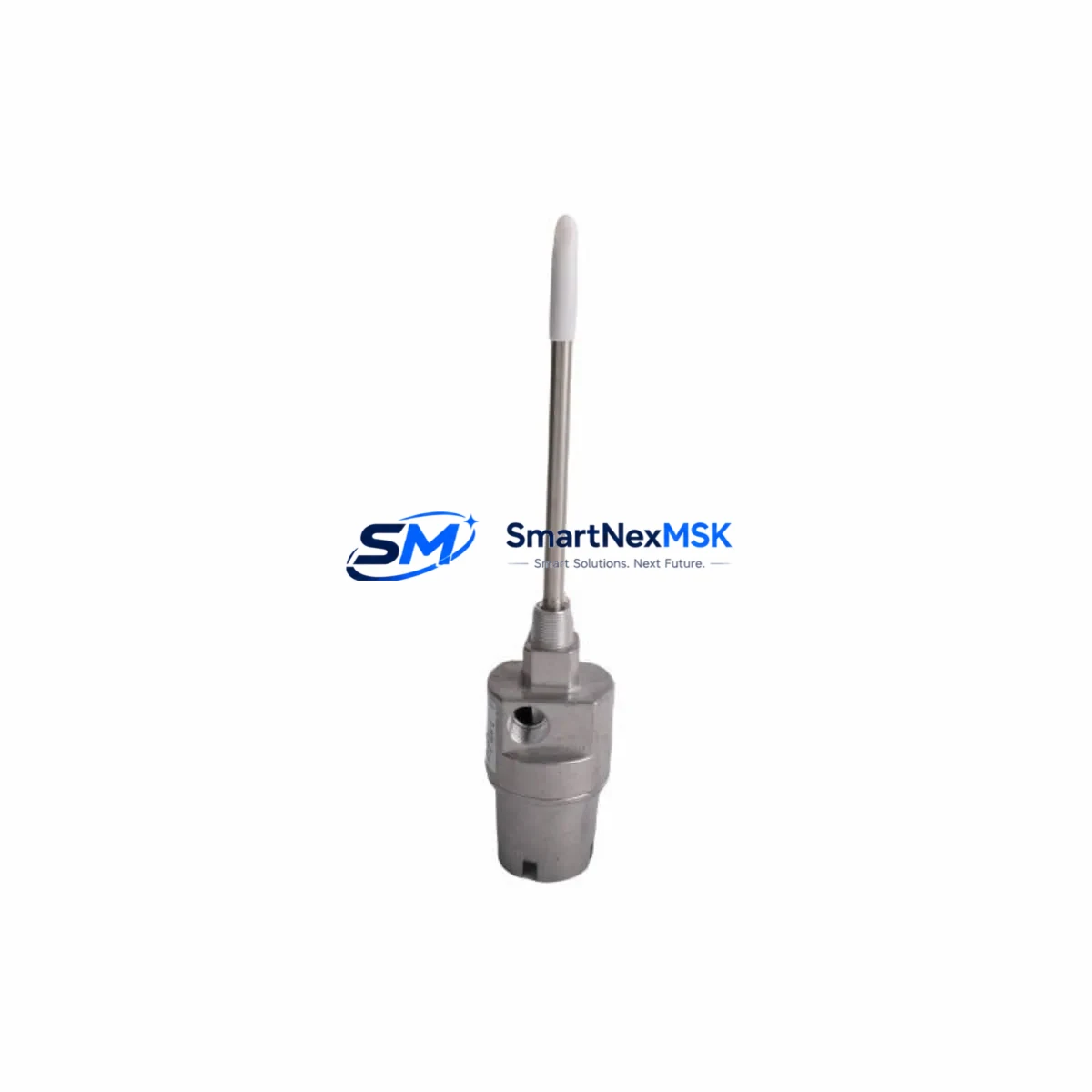

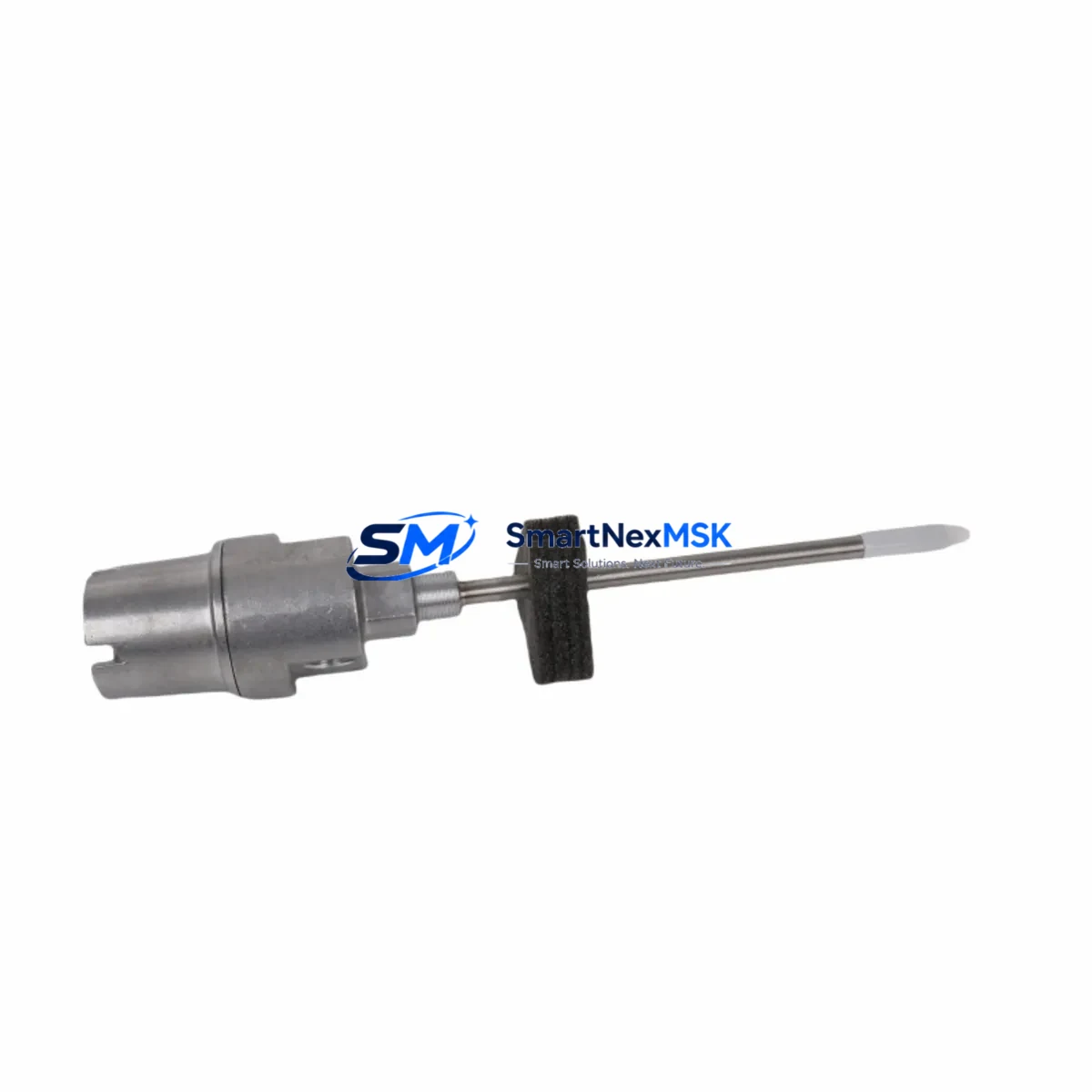

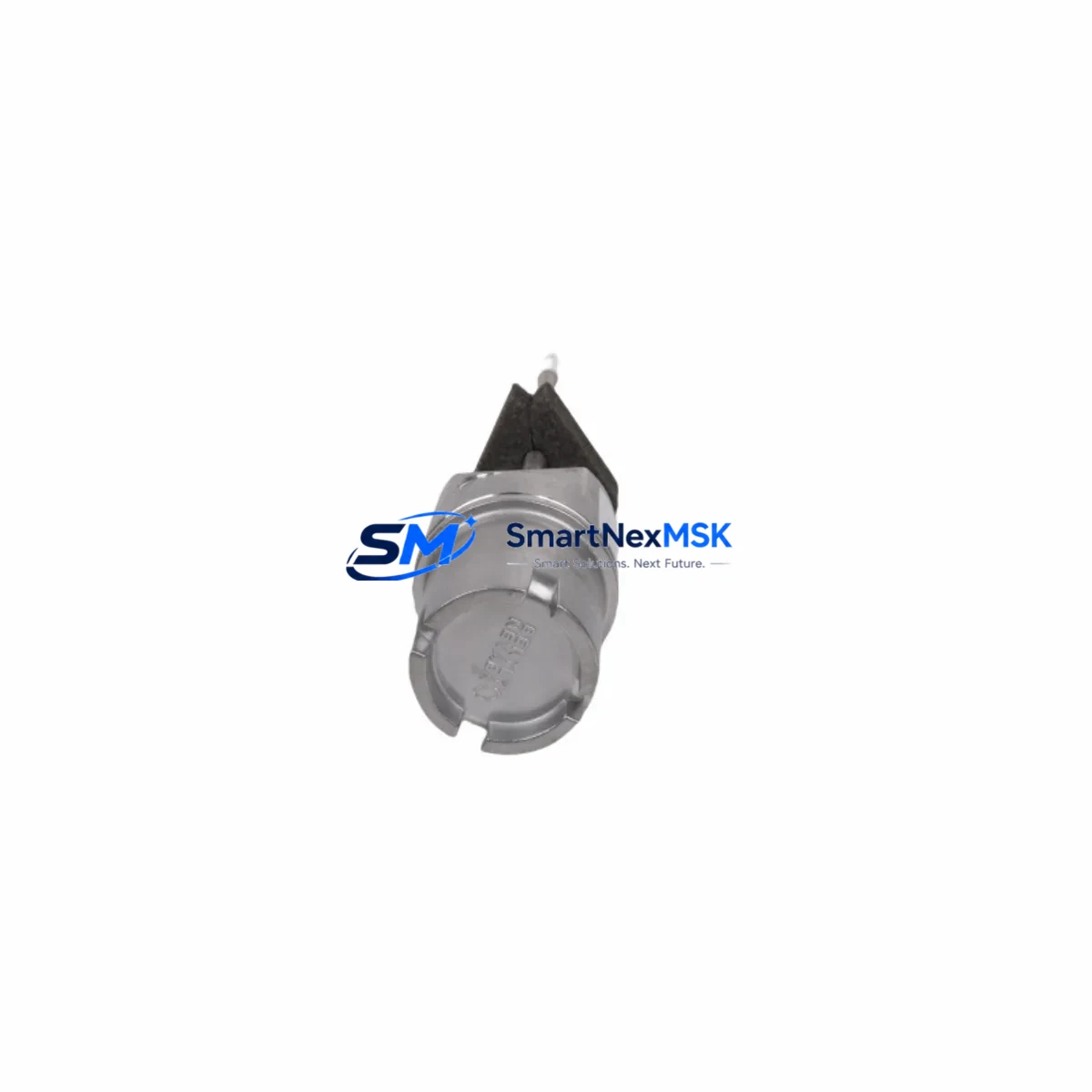

Bently Nevada 21000-16-10-20-035-03-02 Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems

The Bently Nevada 21000-16-10-20-035-03-02 is a precision proximity probe housing engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As legacy installations age and OEM support windows close, this unit serves as a verified retrofit-ready replacement that enables smooth migration from discontinued configurations without requiring full system redesign or extended downtime.

Whether you are replacing a failed probe housing in a critical turbine protection loop, upgrading an aging 3300 Series rack to the 3300 XL standard, or consolidating spare parts inventory across multiple plant sites, the 21000-16-10-20-035-03-02 delivers the dimensional accuracy, signal integrity, and installation compatibility that industrial maintenance teams require. The housing is designed to interface directly with the 3300 XL proximitor/extension cable assemblies, maintaining the 200 mV/mil output sensitivity standard that downstream monitors and DCS inputs are calibrated to receive.

This unit is stocked and available for immediate dispatch, supported by a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 21000-16-10-20-035-03-02 into an existing machinery protection architecture requires a structured approach that accounts for both the mechanical and signal-chain elements of the 3300 XL platform. The probe housing does not operate in isolation — it forms part of a measurement chain that includes the extension cable (typically a 3300 XL Series armored cable assembly), the proximitor module (such as the 3300 XL 8mm proximitor), and the monitor card housed within the 3300 XL rack.

Before committing to a replacement, maintenance engineers should verify the rack configuration. The 3300 XL system uses a modular rack architecture where individual monitor cards — including radial vibration monitors, axial position monitors, and speed/phase reference monitors — are seated in a common backplane. Confirming that the existing rack backplane and power supply module (typically a 3300 XL power supply card) can support the replacement probe’s signal requirements is a prerequisite step that is often overlooked during emergency replacements.

Terminal wiring is another critical checkpoint. The 3300 XL proximitor outputs a DC voltage signal that is wired to the monitor card’s input terminals. When replacing the probe housing, technicians must confirm that the extension cable termination remains intact and that the connector at the proximitor end has not been damaged. In installations where the original cable has been spliced or repaired, a full cable continuity check using a dedicated proximitor calibration kit is strongly recommended before energizing the new probe.

For plants running integrated condition monitoring platforms — where the 3300 XL rack feeds vibration data into a System 1 software environment or a third-party DCS via a 4–20 mA or Modbus interface card — the replacement process should also include a verification step at the DCS input module level. Confirming that the analog input channel is reading within the expected millivolt range after re-gapping the probe will prevent nuisance trips and false NOT OK conditions from propagating to the control room HMI display.

In multi-machine installations — such as compressor trains where a single 3300 XL rack monitors multiple bearing positions — it is advisable to have spare probe housings, extension cables, and proximitor modules on hand simultaneously. This avoids a scenario where a secondary probe failure during the primary replacement window extends the overall shutdown duration. Stocking a matched set of 3300 XL monitor cards alongside the probe housing is a best practice for sites with aging infrastructure and limited OEM support access.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement on a live machinery protection system requires careful pre-planning. The 21000-16-10-20-035-03-02 is designed as a direct mechanical replacement, which means that — in most installations — the replacement can be completed within a planned maintenance window without requiring changes to the monitor card configuration, DCS tag mapping, or HMI alarm setpoints.

The recommended sequence is: (1) document the existing probe gap measurement and OK voltage reading before removal; (2) de-energize the proximitor loop at the rack terminal strip rather than at the field junction box, to preserve cable integrity; (3) install the replacement housing and re-gap to the manufacturer’s specified gap voltage; (4) re-energize and confirm the OK relay status on the monitor card front panel; (5) verify the DCS analog input reading matches the expected gap voltage; and (6) clear any latched alarms at the System 1 or DCS operator station before returning the machine to service.

For sites where the 3300 XL rack is integrated with a safety instrumented system (SIS) or emergency shutdown (ESD) logic, the replacement should be coordinated with the safety team to ensure that the probe channel is placed in bypass mode at the SIS level before work begins. Bypassing the channel at the monitor card alone may not be sufficient if the SIS logic reads the OK relay contact directly. Maintaining a written bypass log and restoring the bypass within the agreed maintenance window is essential for compliance with IEC 61511 requirements.

Original program logic stored in the DCS or PLC — including vibration alarm setpoints, danger thresholds, and trip delay timers — does not need to be modified during a like-for-like probe housing replacement. This is one of the key advantages of using a verified replacement part: the signal chain characteristics are preserved, and the existing calibration data remains valid, provided the new probe is gapped correctly.

Retrofit Support FAQ

Q1: Is the 21000-16-10-20-035-03-02 a direct drop-in replacement for my existing 3300 XL probe housing?
In most cases, yes. The 21000-16-10-20-035-03-02 is dimensionally and electrically compatible with standard 3300 XL probe housing positions. However, you should confirm the thread size, housing length, and target material before installation, as some machine-specific installations use non-standard probe lengths or custom mounting adapters.

Q2: Do I need to recalibrate the monitor card after replacing the probe housing?
The monitor card calibration (scale factor, gap voltage setpoints, alarm thresholds) does not need to be changed if the replacement probe uses the same sensitivity specification (200 mV/mil) as the original. You will need to re-gap the probe mechanically and verify the OK voltage reading at the monitor card, but no software or card-level recalibration is required for a like-for-like replacement.

Q3: What should I check regarding wiring and terminal connections during the replacement?
Verify the extension cable continuity and connector condition at both the probe end and the proximitor end. Check the terminal strip wiring at the 3300 XL rack for correct polarity and secure termination. If the installation uses a field junction box, inspect the junction box terminals for corrosion or loose connections that may have contributed to the original probe failure.

Q4: What does the 12-month warranty cover, and how is it handled?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, over-voltage conditions, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, installation date, and a description of the failure mode. Replacement units are dispatched after fault verification.
