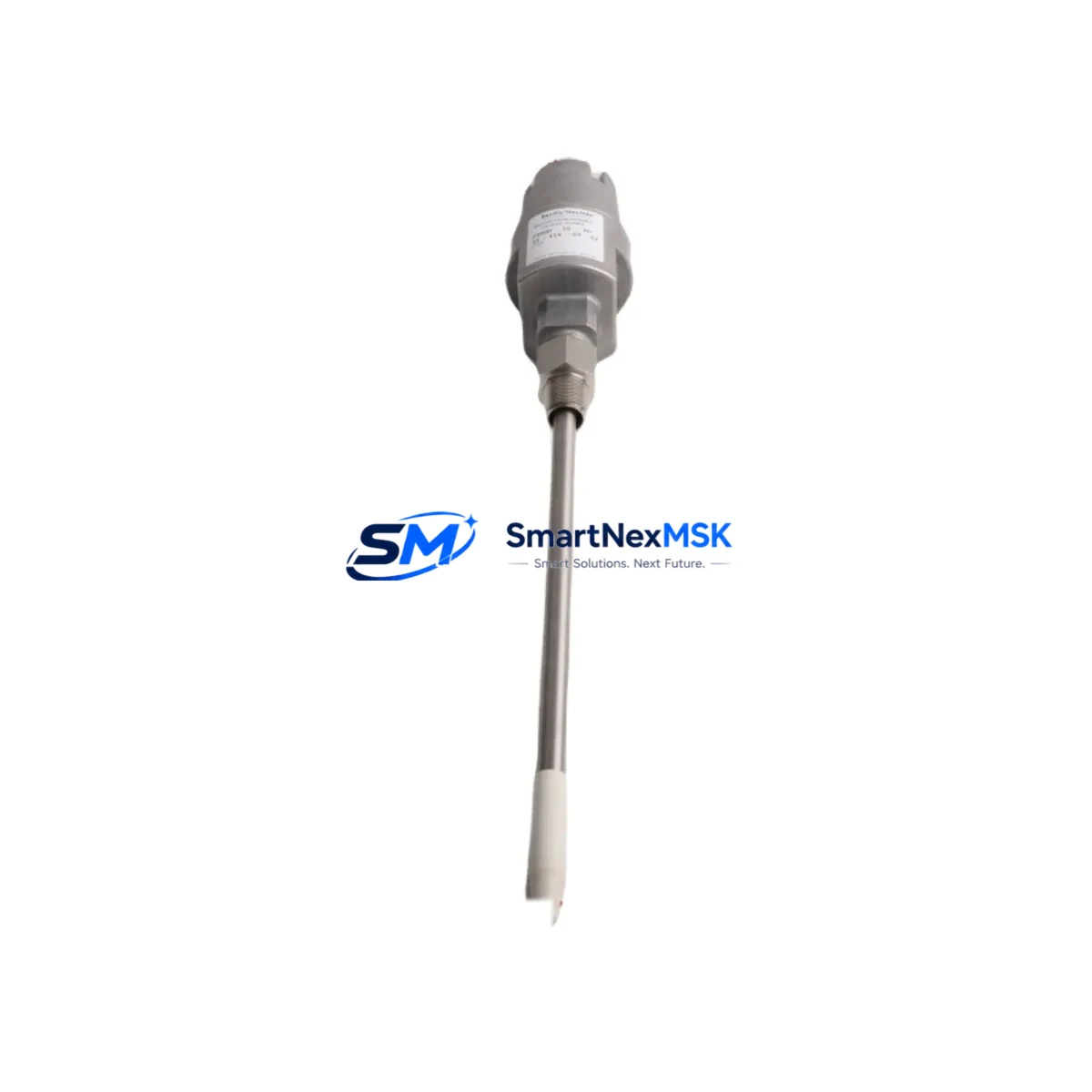

Bently Nevada 21000-28-05-00-070-01-02 Retrofit-Ready Proximity Probe Housing for 3300 XL

Bently Nevada 21000-28-05-00-070-01-02 Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems

The Bently Nevada 21000-28-05-00-070-01-02 is a retrofit-ready proximity probe housing engineered for seamless integration into legacy 3300 XL Eddy Current measurement systems. As aging 3300 XL installations approach end-of-support cycles, plant engineers and reliability teams increasingly require verified drop-in replacements that preserve existing wiring, signal conditioning chains, and vibration monitoring logic without triggering full-system redesigns. This housing is purpose-built to meet that requirement — delivering dimensional compatibility, electrical equivalence, and field-proven performance in rotating machinery protection applications including turbines, compressors, pumps, and gearboxes.

Whether you are replacing a failed probe housing on a critical asset, restocking spare parts for a planned outage, or executing a phased modernization of your condition monitoring infrastructure, the 21000-28-05-00-070-01-02 provides a reliable, cost-effective path forward. Each unit ships fully tested, with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-28-05-00-070-01-02 into an operating plant environment requires systematic pre-installation planning. Begin by auditing the existing 3300 XL proximitor driver — typically a 3300 XL 8mm or 5mm driver module mounted in the 3300 XL rack — to confirm it remains functional and that its output voltage range matches the replacement probe’s sensitivity specification. If the driver is also degraded, sourcing a matched Bently Nevada 3300 XL proximitor driver as part of the same retrofit order eliminates a second unplanned outage.

Next, inspect the extension cable connecting the probe housing to the proximitor. The Bently Nevada 3300 XL system uses a three-component measurement chain: probe, extension cable, and driver. Substituting only the probe housing while retaining a worn or mismatched extension cable can introduce signal errors that mimic mechanical faults. Confirm cable part number, length, and connector integrity before closing out the work order.

At the rack level, verify that the 3300 XL I/O module receiving the vibration signal is correctly configured for the probe’s output range. In systems where the 3300 XL rack feeds a DCS or safety system — such as a Bently Nevada 3500 series rack, a Honeywell Experion controller, or an Emerson DeltaV I/O card — confirm that the analog input scaling in the DCS program matches the new probe’s mV/mil sensitivity. Failure to update this parameter will result in incorrect vibration readings at the operator HMI, potentially masking real machinery faults.

For plants running a Bently Nevada System 1 condition monitoring platform, the probe channel configuration in System 1 software must be reviewed after replacement. Update the transducer type, gap voltage setpoint, and alarm thresholds to reflect the installed probe’s calibration data. If the plant uses a Bently Nevada TK-3 or TK-81 portable calibrator, perform a bench calibration of the new probe-cable-driver chain before installation to establish a baseline gap curve.

In control cabinets where the 3300 XL rack shares a backplane with other Bently Nevada modules — such as a 3300 XL temperature monitor, a 3300 XL speed monitor, or a 3300 XL keyphasor module — ensure that the rack power supply (typically a 3300 XL power supply module) has sufficient capacity to support the full complement of installed modules after the retrofit. Overloaded rack power supplies are a common but overlooked cause of intermittent signal faults following maintenance interventions.

Finally, document the as-found and as-left gap voltage readings, probe serial number, and installation torque in the plant’s maintenance management system. This record supports future troubleshooting, warranty claims, and regulatory compliance audits.

Downtime Control During System Migration

Minimizing production impact during a proximity probe replacement requires a structured outage management approach. Where process conditions permit, schedule the probe swap during a planned maintenance window rather than responding reactively to a probe failure. Pre-stage the 21000-28-05-00-070-01-02, the required extension cable, and any associated tools — including a non-contact gap-setting tool and a calibrated voltmeter — at the work site before the equipment is taken offline.

Before de-energizing the measurement loop, capture a screenshot or data export of the current vibration trend from the operator HMI or System 1 platform. This baseline record allows you to verify that the replacement probe is producing a consistent signal after installation and that no new mechanical issues have developed during the outage period.

During installation, protect the existing wiring terminations at the junction box and proximitor driver. Label each conductor before disconnection to eliminate re-wiring errors that could reverse polarity or introduce ground loops. After reconnection, power up the measurement chain and verify gap voltage before restarting the machine. A gap voltage outside the OEM-specified window — typically between -10 VDC and -18 VDC for standard 3300 XL probes — indicates a mounting or cable issue that must be resolved before the machine is returned to service.

For critical assets where continuous monitoring is mandatory, consider deploying a temporary portable vibration monitor — such as a Bently Nevada SCOUT 100 or equivalent — to maintain surveillance on the bearing during the brief period when the permanent system is offline. This approach preserves control continuity and satisfies safety system requirements without extending the outage window.

Retrofit Support FAQ

Q: Is the 21000-28-05-00-070-01-02 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit is dimensionally and electrically equivalent to the original 3300 XL proximity probe housing specification. Re-gapping is required after installation, as with any probe replacement. Confirm thread pitch and cable connector type against your existing installation before ordering.

Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to the OEM-specified target (typically 1.0–1.5 mm for 8mm probes) and verify gap voltage using a calibrated voltmeter. Confirm signal output at the proximitor driver and check for noise or signal dropout. Update the transducer configuration in System 1 or your DCS if sensitivity parameters have changed.

Q: Can this probe housing be used with a Bently Nevada 3500 series system?
A: The 21000-28-05-00-070-01-02 is specified for 3300 XL applications. Compatibility with 3500 series racks depends on the specific driver module and I/O card configuration. Contact our technical team with your 3500 series rack part number for a compatibility assessment before ordering.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional performance failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental range. Warranty claims are supported with proof of purchase and a fault description.
