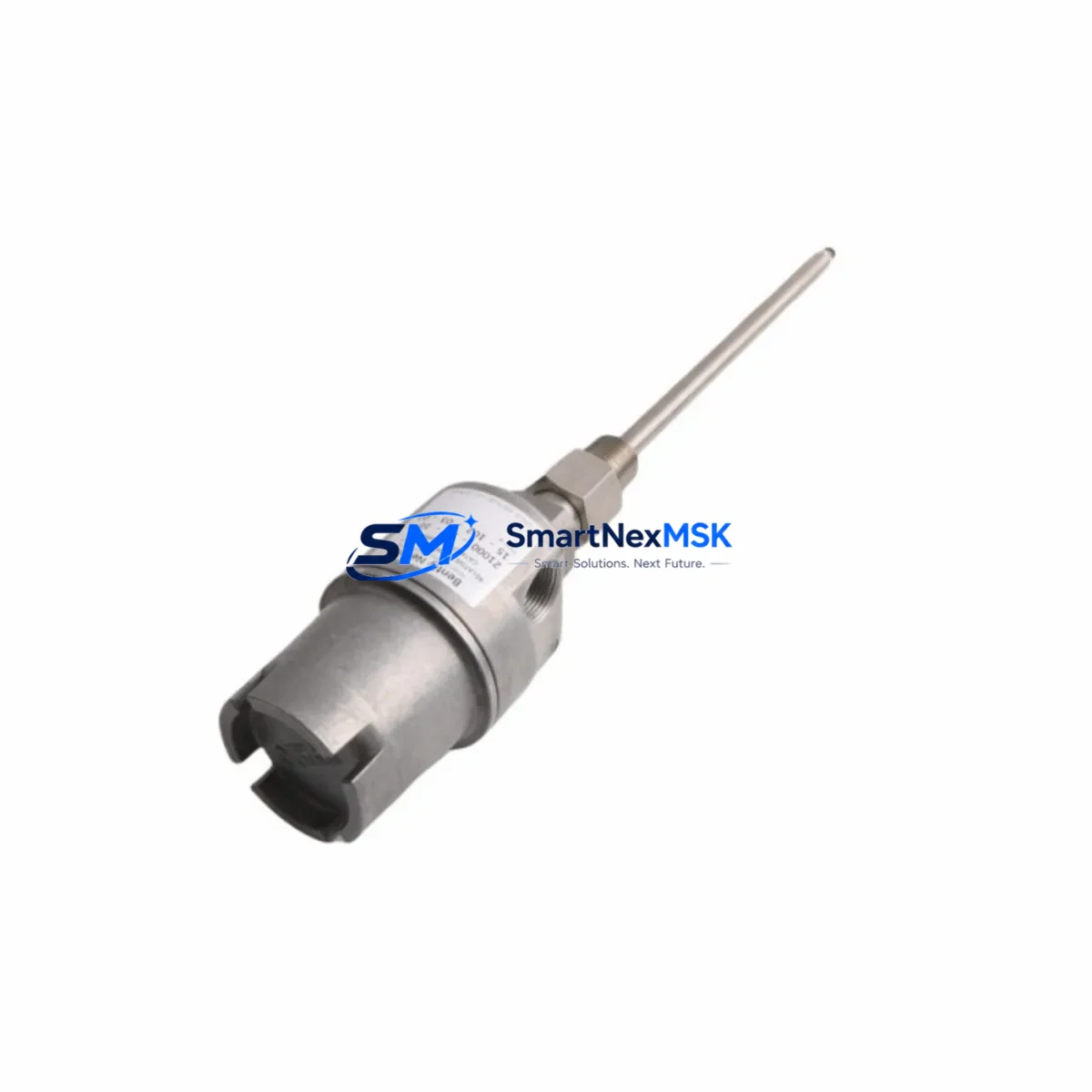

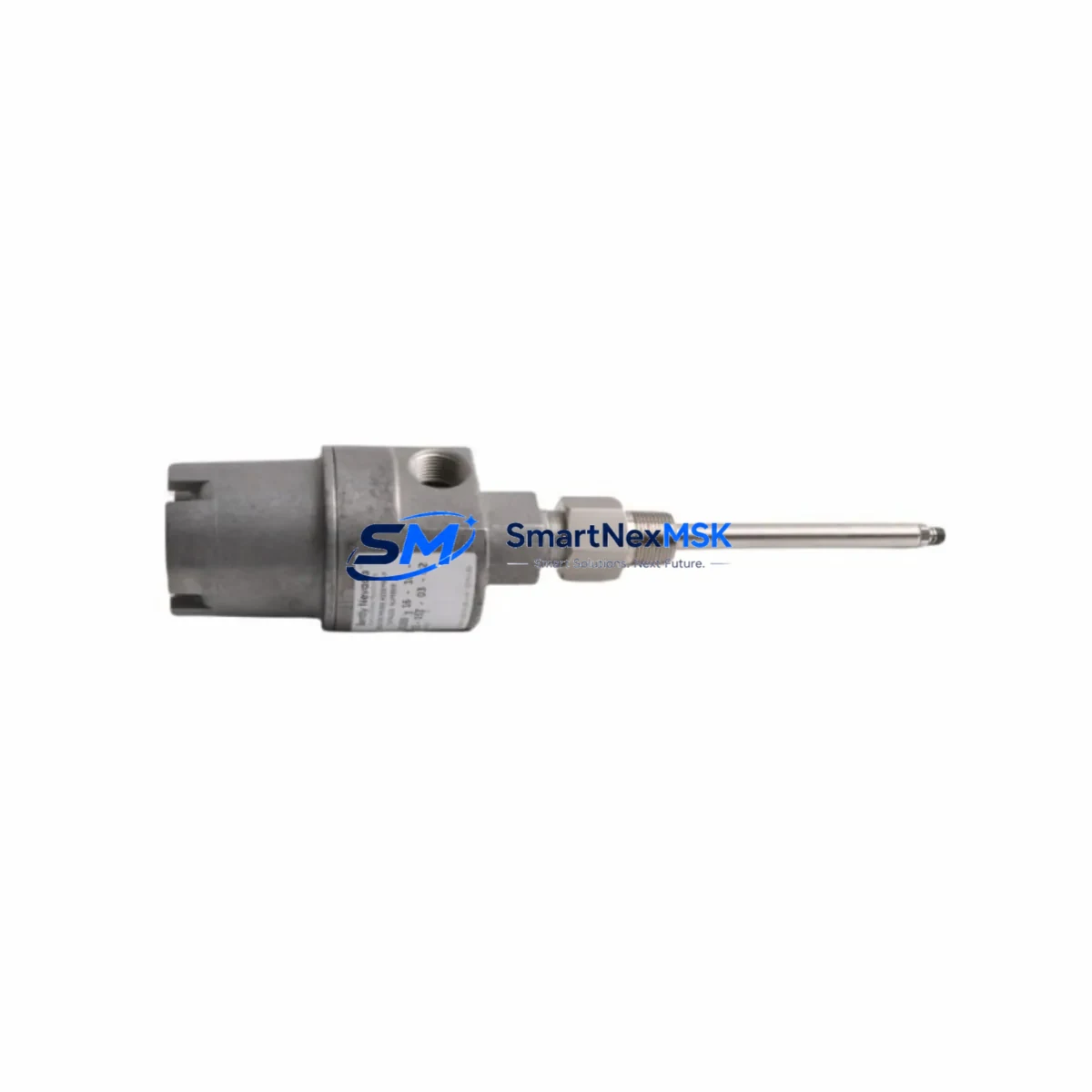

Bently Nevada 21000-28-05-35-028-00-02 Spare 3300 XL Probe

Bently Nevada 21000-28-05-35-028-00-02 Spare 3300 XL Probe: Precision Spare for Vibration Monitoring Continuity

The Bently Nevada 21000-28-05-35-028-00-02 is an original proximity probe assembly engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed platforms in rotating machinery protection across oil & gas, power generation, petrochemical, and heavy industrial facilities. When this probe fails or degrades, the entire vibration channel goes blind, exposing critical rotating assets — turbines, compressors, pumps, and gearboxes — to undetected shaft displacement anomalies that can escalate into catastrophic mechanical failure and unplanned downtime.

Sourced as an original spare, this unit is tested prior to shipment and backed by a 12-month warranty. It is designed for direct replacement in 3300 XL monitoring loops without requiring recalibration of the full channel, provided the extension cable and proximitor module remain within specification. Maintenance engineers and reliability teams can deploy this spare with confidence in both planned turnaround scenarios and emergency breakdown recovery situations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 21000-28-05-35-028-00-02 probe in isolation is rarely sufficient for a complete vibration channel restoration. A disciplined maintenance engineer will treat this replacement as an opportunity to audit the entire measurement loop. The 3300 XL extension cable (typically 5 m or 9 m, matched to the probe cable to achieve the correct combined length) must be inspected for jacket damage, connector corrosion, and continuity — a degraded extension cable will introduce gap voltage errors even with a new probe installed.

The 3300 XL Proximitor® module (such as the 330180 series) should be verified for output voltage stability and supply rail integrity. These modules are powered by –24 VDC from the monitor rack’s power supply module, and any ripple or voltage sag on that rail will directly affect probe gap voltage and alarm setpoints. If the rack houses a 3300/16 or 3300/20 monitor card, confirm that the channel configuration — gap voltage, direct vibration, and 1X/2X vector setpoints — remains intact after the probe swap.

During the same maintenance window, inspect the terminal strip and field wiring within the junction box for loose terminations, moisture ingress, and shield grounding continuity. Proximity probe systems are highly sensitive to ground loops; a single improper shield connection can introduce 50/60 Hz noise that masks real vibration signatures. If the machine also uses Keyphasor® probes (e.g., 330980 series) for phase reference, verify that the Keyphasor gap and signal are within specification, as phase-referenced measurements depend on a clean trigger signal.

For facilities running extended maintenance intervals, it is advisable to stock a matched set: probe, extension cable, and Proximitor module as a complete channel spare. Additionally, review the condition of barrier isolators or Zener barriers in hazardous-area installations, as these components age independently and can introduce impedance that shifts the probe’s operating point. Signal conditioners or isolators downstream of the monitor should also be checked if the vibration signal feeds a DCS historian or safety system.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the monitor channel at the rack. Note the existing gap voltage (typically –10 to –18 VDC for 3300 XL probes) before disconnection — this is your baseline for post-installation verification.

Step 2 — Probe removal: Loosen the locknut at the bearing housing bracket. Carefully back out the probe, noting the thread count from the bracket face to document the original gap setting. Disconnect the probe from the extension cable at the junction box.

Step 3 — New probe installation: Thread the 21000-28-05-35-028-00-02 into the bracket to the same thread count as the removed unit. Connect to the extension cable. Apply the locknut finger-tight, then torque to specification.

Step 4 — Gap verification: Restore power to the Proximitor module. Measure the output voltage at the monitor terminal. Adjust probe gap until the output falls within the linear range (typically –12 VDC ±1 V for a 1 mm gap on 8 mm probes). Tighten locknut and re-verify gap voltage.

Step 5 — Functional check: Confirm that the monitor card displays a valid vibration reading with no fault or not-OK indication. Verify alarm setpoints are active. Document the as-left gap voltage and vibration baseline for the maintenance record.

This workflow minimizes downtime by eliminating iterative troubleshooting and ensures the replacement probe is operating correctly before the machine is returned to service.

Spare Parts Support FAQ

Q1: Is the 21000-28-05-35-028-00-02 a direct drop-in replacement for older 3300 series probes?
The 3300 XL series probes are backward-compatible with earlier 3300 series Proximitor modules in most installations, provided the combined cable length (probe + extension) matches the system’s calibrated length. Always verify the Proximitor module part number and confirm the combined cable length before ordering.

Q2: How should this spare be stored before installation?
Store in the original packaging in a dry, temperature-controlled environment (0°C to +40°C). Avoid coiling the cable tightly or exposing the probe tip to impact. Inspect the connector and tip for damage before installation. Shelf life under proper storage conditions exceeds 5 years.

Q3: What pre-shipment testing is performed on this unit?
Each unit undergoes electrical continuity verification, insulation resistance check, and output sensitivity confirmation against Bently Nevada factory specifications before dispatch. A test report is available upon request.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover physical damage from improper installation, over-torquing, or exposure to conditions outside the rated specification. Warranty claims are processed with return of the defective unit and a fault description.
