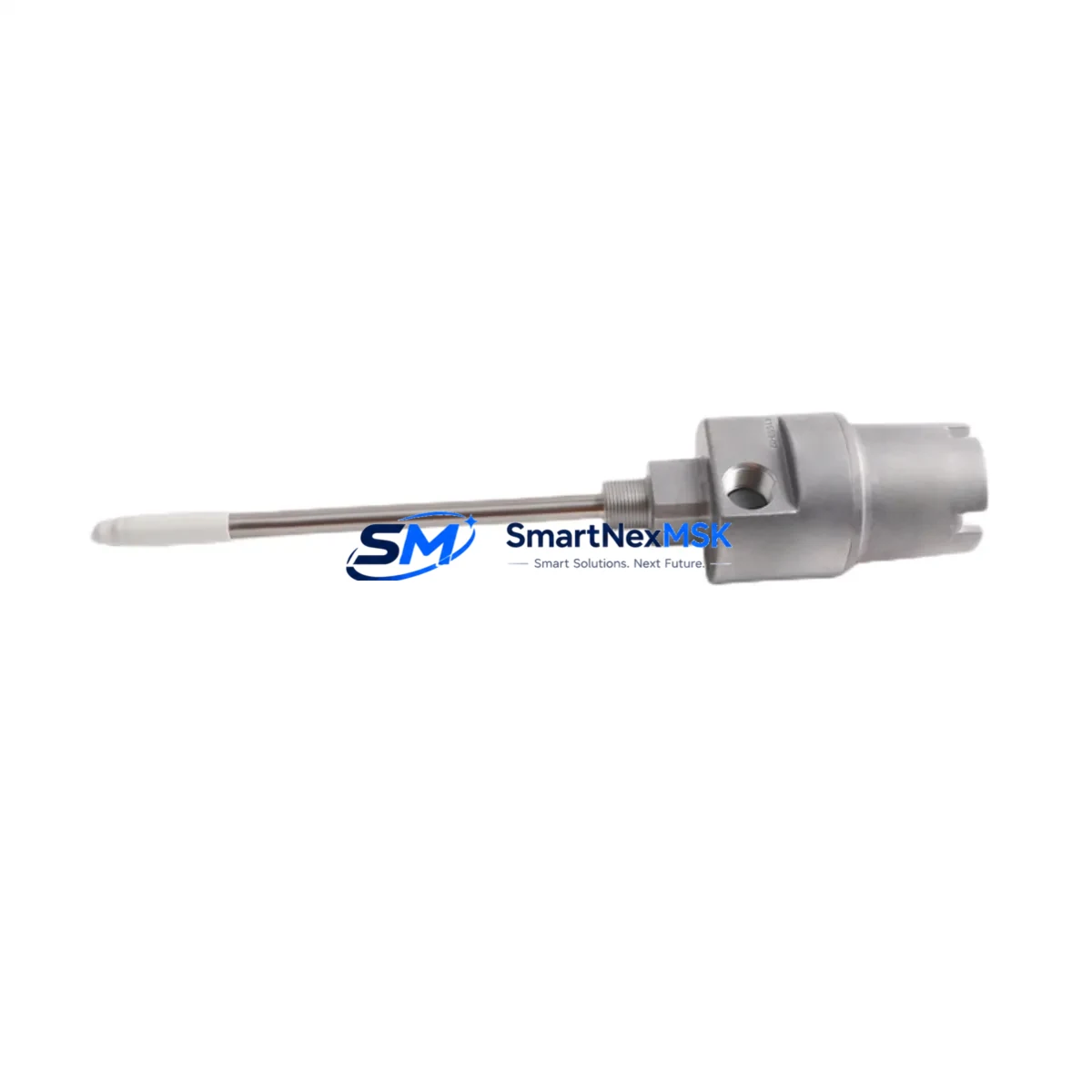

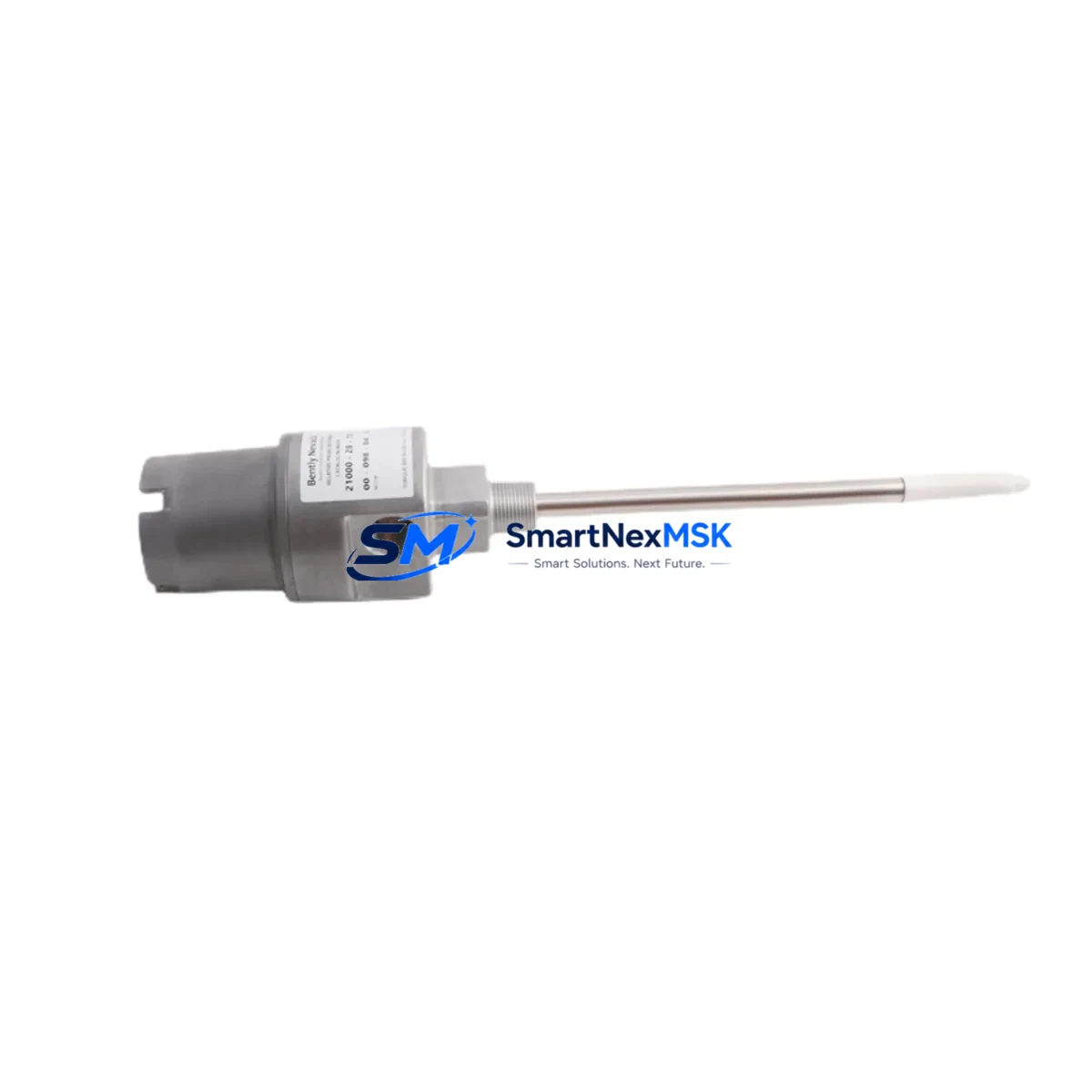

Bently Nevada 21000-28-10-00-098-04-02 Retrofit-Ready Proximity Probe Housing for 3300 XL

Bently Nevada 21000-28-10-00-098-04-02: Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems

The Bently Nevada 21000-28-10-00-098-04-02 is a precision-engineered proximity probe housing assembly purpose-built for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems age and OEM support windows close, this component serves as a verified drop-in replacement that enables plant engineers to extend the operational life of existing 3300 XL installations without committing to a full system overhaul. Whether you are managing a scheduled turnaround, responding to an unplanned probe failure, or executing a phased modernization of your rotating equipment monitoring infrastructure, this housing assembly delivers the dimensional accuracy, material integrity, and signal-path consistency required for reliable eddy-current proximity measurement.

The 21000-28-10-00-098-04-02 is compatible with standard 3300 XL probe driver cards and integrates directly with the 3300/16 and 3300/20 rack-mounted monitor chassis. Engineers replacing worn or damaged probe housings in the field will find that terminal block pinouts, cable routing dimensions, and thread specifications match the original Bently Nevada factory configuration, eliminating the need for custom adapters or field-fabricated brackets. This compatibility extends to the 3300 XL 8mm and 11mm probe families, making it suitable for both radial vibration and axial position measurement applications on turbines, compressors, pumps, and gearboxes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 21000-28-10-00-098-04-02 into an operating plant begins with a thorough pre-installation audit of the existing monitoring loop. Engineers should document the current gap voltage reading at the probe driver card — typically between −10 VDC and −18 VDC for a properly gapped 3300 XL probe — and record the baseline vibration amplitude and phase reference values from the connected 3300/20 monitor before any mechanical work begins. This baseline serves as the acceptance criterion during post-installation commissioning.

On the rack side, confirm that the 3300 XL probe driver card is seated correctly in the monitor chassis and that the I/O terminal block wiring follows the original Bently Nevada cable schedule. The coaxial extension cable — commonly the 330130 series armored cable — must be inspected for continuity and shield integrity before reuse. If the extension cable shows signs of insulation degradation or connector wear, replacement with a new 330130-series cable is recommended to avoid introducing noise into the measurement chain.

For plants running the System 1 condition monitoring software, the channel configuration database should be exported and backed up before the housing swap. After reinstallation, re-enter the probe sensitivity coefficient (typically 7.87 V/mm for 8mm probes) and verify that the System 1 trend data resumes without gap or discontinuity. Plants using the older 3500 Series rack alongside 3300 XL monitors should note that while the 3500/42M position monitor uses a different backplane architecture, the probe housing thread dimensions are compatible, simplifying mixed-fleet maintenance logistics.

In control cabinets where the 3300 XL monitor is integrated with a DCS — such as a Honeywell Experion PKS or an Emerson DeltaV system — the 4–20 mA vibration output signal should be verified at the DCS analog input card after probe replacement. Any drift exceeding ±0.5% of span warrants recalibration of the transmitter scaling in the DCS tag database. Similarly, if the monitor’s relay outputs are wired to a safety instrumented system (SIS) logic solver, the relay contact continuity and trip setpoints must be confirmed before returning the machine to service.

For facilities managing a broader modernization program, the 21000-28-10-00-098-04-02 is frequently deployed alongside the Bently Nevada 3300 XL 8mm Proximity Probe, the 330130 Armored Extension Cable, the 3300/16 Dual Vibration Monitor, and the 3300/20 Proximitor Monitor. In multi-machine installations, the 3500/22M Transient Data Interface and the 3500/42M Position Monitor are common companions in the same control cabinet, sharing the same rack power supply and Ethernet gateway to System 1. Procurement teams consolidating a single purchase order for a turnaround outage often include the 3300 XL Proximitor Sensor and the 3300/55 Temperature Monitor to cover all measurement channels in a single shipment.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe housing replacement requires a structured hot-swap protocol. Where process conditions permit, the machine should be brought to a controlled stop rather than an emergency trip, allowing the control system to execute a normal shutdown sequence and preserve the last-known vibration trend data in the System 1 historian. The 3300 XL monitor’s OK relay should be inhibited at the SIS logic solver before disconnecting the probe cable to prevent a spurious trip signal from propagating to the emergency shutdown system.

With the machine at rest, the replacement housing can be installed, gapped, and torqued to specification in under 30 minutes by a trained instrumentation technician. The gap voltage should be set to the value recorded during the pre-installation audit — typically −12.0 VDC ± 0.5 VDC at the nominal air gap — using a calibrated digital voltmeter at the driver card terminal. Once the gap is confirmed, the OK relay inhibit is released, the System 1 channel is returned to normal monitoring mode, and the machine can be restarted under standard startup procedures.

For critical machines where even a brief monitoring gap is unacceptable, a temporary portable vibration analyzer can be connected to the probe cable during the housing swap to maintain continuous vibration surveillance. This approach is particularly valuable on high-speed compressors and steam turbines where bearing condition monitoring is a permit-to-operate requirement under the plant’s machinery protection philosophy.

Retrofit Support FAQ

Q1: Is the 21000-28-10-00-098-04-02 a direct replacement for the original Bently Nevada housing, or are adapters required?
A: This is a direct drop-in replacement. Thread dimensions, cable entry geometry, and terminal block pinouts match the original OEM specification for the 3300 XL series. No adapters, custom brackets, or field modifications are required.

Q2: What commissioning checks are required after installation?
A: After mechanical installation, verify the probe gap voltage at the driver card (target: −10 to −18 VDC depending on probe type and gap distance), confirm the OK relay status in the 3300 XL monitor, check the 4–20 mA output signal at the DCS or SIS input card, and validate vibration amplitude and phase readings against the pre-installation baseline in System 1 or your plant historian.

Q3: Can this housing be used with both 8mm and 11mm 3300 XL proximity probes?
A: Yes. The 21000-28-10-00-098-04-02 housing is compatible with both the 3300 XL 8mm and 3300 XL 11mm probe families. Confirm the correct probe sensitivity coefficient is entered in the monitor configuration after installation, as the two probe sizes have different V/mm ratings.

Q4: What warranty coverage is provided, and is pre-shipment testing performed?
A: Every unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each housing assembly undergoes dimensional inspection and continuity verification to confirm it meets the original Bently Nevada specification. Expedited shipping is available for urgent turnaround and breakdown requirements.
