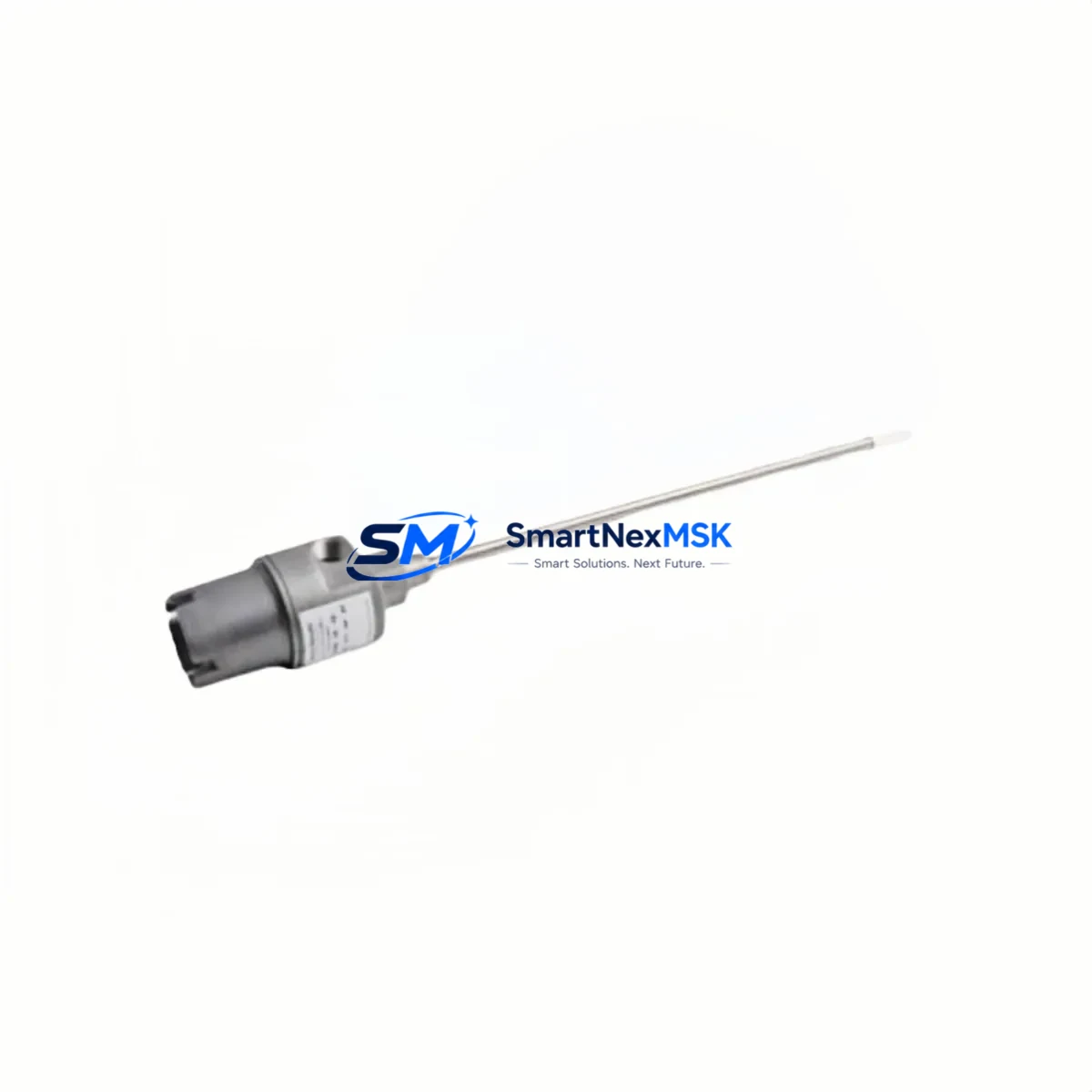

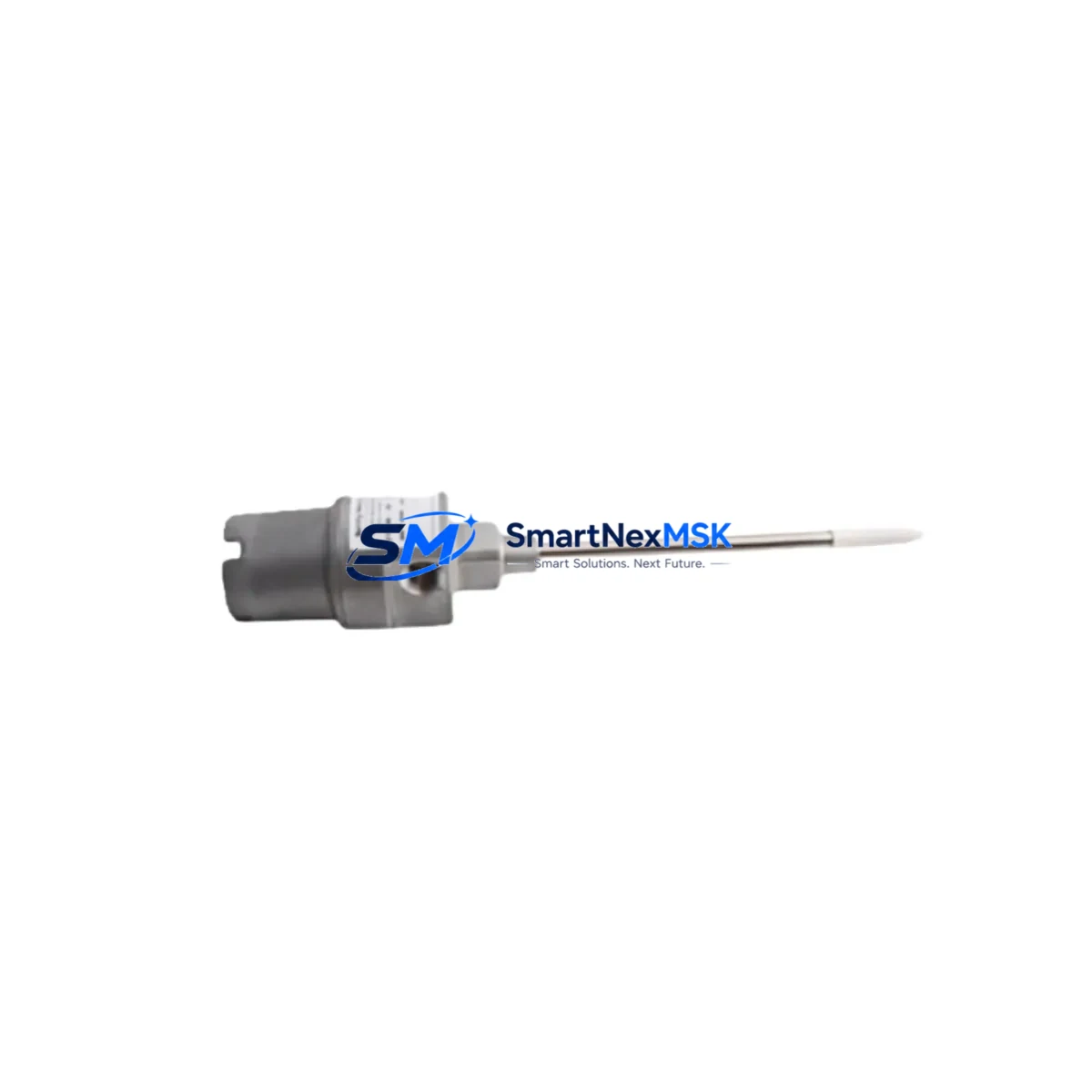

Bently Nevada 21000-34-05-15-029-04-02 Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems
The Bently Nevada 21000-34-05-15-029-04-02 is a precision proximity probe housing engineered for seamless integration into Bently Nevada 3300 XL Series vibration monitoring systems. As legacy 3300 Series installations approach end-of-life and OEM support for discontinued probe assemblies becomes increasingly limited, this retrofit-ready replacement provides a validated, drop-in upgrade path that preserves existing wiring infrastructure, signal conditioning chains, and machinery protection logic without requiring a full system overhaul.
Industrial facilities operating rotating machinery — including turbines, compressors, pumps, and motors — rely on the 3300 XL platform for continuous shaft displacement and vibration measurement. When original probe housings degrade, corrode, or become mechanically damaged, unplanned downtime and emergency procurement create significant operational risk. The 21000-34-05-15-029-04-02 is stocked to support rapid replacement cycles, with verified dimensional compatibility against the original Bently Nevada specification to ensure correct installation depth, thread engagement, and cable routing within existing conduit and junction box layouts.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Platform | Bently Nevada 3300 XL Series Vibration Monitoring System |
| Replaces | Original Bently Nevada 21000-34-05-15-029-04-02 (discontinued / end-of-life) |
| Mounting Interface | Standard 3300 XL probe bracket and conduit fitting — no machining required |
| Signal Compatibility | Compatible with 3300 XL proximitor / signal conditioner modules |
| Communication Protocol | Analog 4–20 mA / voltage output; compatible with existing DCS and PLC I/O cards |
| Installation Requirement | Verify air gap per OEM specification; re-calibrate after installation |
| Commissioning Note | Confirm probe tip clearance, cable extension length, and driver module pairing |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 21000-34-05-15-029-04-02 into an operating plant begins with a structured pre-replacement audit. Engineers should first document the existing probe cable extension — typically a Bently Nevada 330130 or 330180 series extension cable — and confirm that the total system length (probe + extension) matches the calibrated range of the installed 3300 XL proximitor module, such as the 3300/16 or 3300/20 signal conditioner card. Mismatched cable lengths are a leading cause of calibration drift after probe replacement and must be resolved before the system is returned to service.
Terminal wiring at the junction box should be photographed and labeled before disconnection. The 3300 XL system uses a standard three-conductor shielded cable arrangement; verify shield grounding continuity at the proximitor end to prevent common-mode noise from corrupting the vibration signal. If the existing cable shows signs of insulation breakdown or moisture ingress — common in high-temperature or outdoor installations — replacement with a new Bently Nevada 330130-XX-CN extension cable is recommended as part of the same maintenance window.
At the rack level, confirm that the 3300/05-01-00-00 rack power supply or equivalent is delivering stable ±24 VDC to the proximitor card. Voltage sag under load can cause false high-vibration trips during the commissioning phase. If the installation includes a 3500 Series rack alongside legacy 3300 XL hardware, verify that the 3500/22M transient data interface is not sharing a common ground path with the 3300 XL signal return, as ground loops between platforms are a known source of measurement error in mixed-generation installations.
For facilities migrating from the 3300 XL to the Bently Nevada 3500 Series as part of a broader control system modernization, the 21000-34-05-15-029-04-02 can serve as an interim replacement to maintain machinery protection coverage while the 3500/42M velocity and acceleration monitor cards are being configured and loop-checked. This staged approach avoids simultaneous loss of both the probe hardware and the monitoring platform, which is critical for continuous-process industries where a full protection system outage is not permissible.
Where the plant DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system — receives vibration data via a Modbus RTU or FOUNDATION Fieldbus gateway from the 3300 XL rack, the gateway configuration should be verified after probe replacement to confirm that the channel address mapping and engineering unit scaling remain intact. Changes to the proximitor gain setting during recalibration can shift the output voltage range and cause the DCS historian to log out-of-range values until the scaling is updated.
Downtime Control During System Migration
Minimizing unplanned downtime during probe replacement requires pre-staging all replacement components — including the 21000-34-05-15-029-04-02 housing, extension cable, and any required conduit fittings — at the work site before the maintenance window begins. A pre-tested spare proximitor module, such as a 3300/16-14-01-01-00-00, should be available on-site to allow rapid substitution if the existing signal conditioner is found to be out of calibration or damaged during the probe swap.
Before de-energizing the probe circuit, capture a baseline vibration trend from the DCS or the System 1 condition monitoring software to establish a pre-outage reference. This baseline is essential for post-commissioning acceptance testing and provides documented evidence that the replacement probe is performing within the original calibration envelope. After installation, perform a static air gap measurement using a calibrated DC voltmeter at the proximitor output terminals, adjust the probe position to achieve the target gap voltage specified on the original calibration sheet, and verify that the OK relay output on the 3300 XL rack is energized before returning the machine to service.
For critical machinery where even a brief protection gap is unacceptable, a temporary portable vibration monitor — such as a CSI 2140 or equivalent — can be clamped to the bearing housing to provide continuous vibration surveillance during the probe replacement interval, ensuring that the machinery protection function is never fully interrupted.
Retrofit Support FAQ
Q: Is the 21000-34-05-15-029-04-02 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. The replacement housing is dimensionally and electrically compatible with the original 3300 XL installation. Standard air gap calibration is required after installation, as with any probe replacement.
Q: What commissioning steps are required after installation?
A: Verify probe-to-target air gap voltage at the proximitor output, confirm OK relay status, check cable extension length compatibility, and validate the vibration channel reading against the pre-outage baseline in the DCS or System 1 software.
Q: Can this probe housing be used with both 3300 XL and 3500 Series racks?
A: The housing is specified for 3300 XL Series applications. Compatibility with 3500 Series proximitor cards depends on the specific driver module and cable system configuration — consult the Bently Nevada 3500 Series installation manual for cross-platform guidance.
Q: What warranty coverage is provided?
A: All units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify dimensional integrity and electrical continuity before dispatch.
