Bently Nevada 21504-00-52-10-02 Retrofit Probe for 3300 XL

Bently Nevada 21504-00-52-10-02 Retrofit-Ready Eddy Current Probe for 3300 XL Control Systems

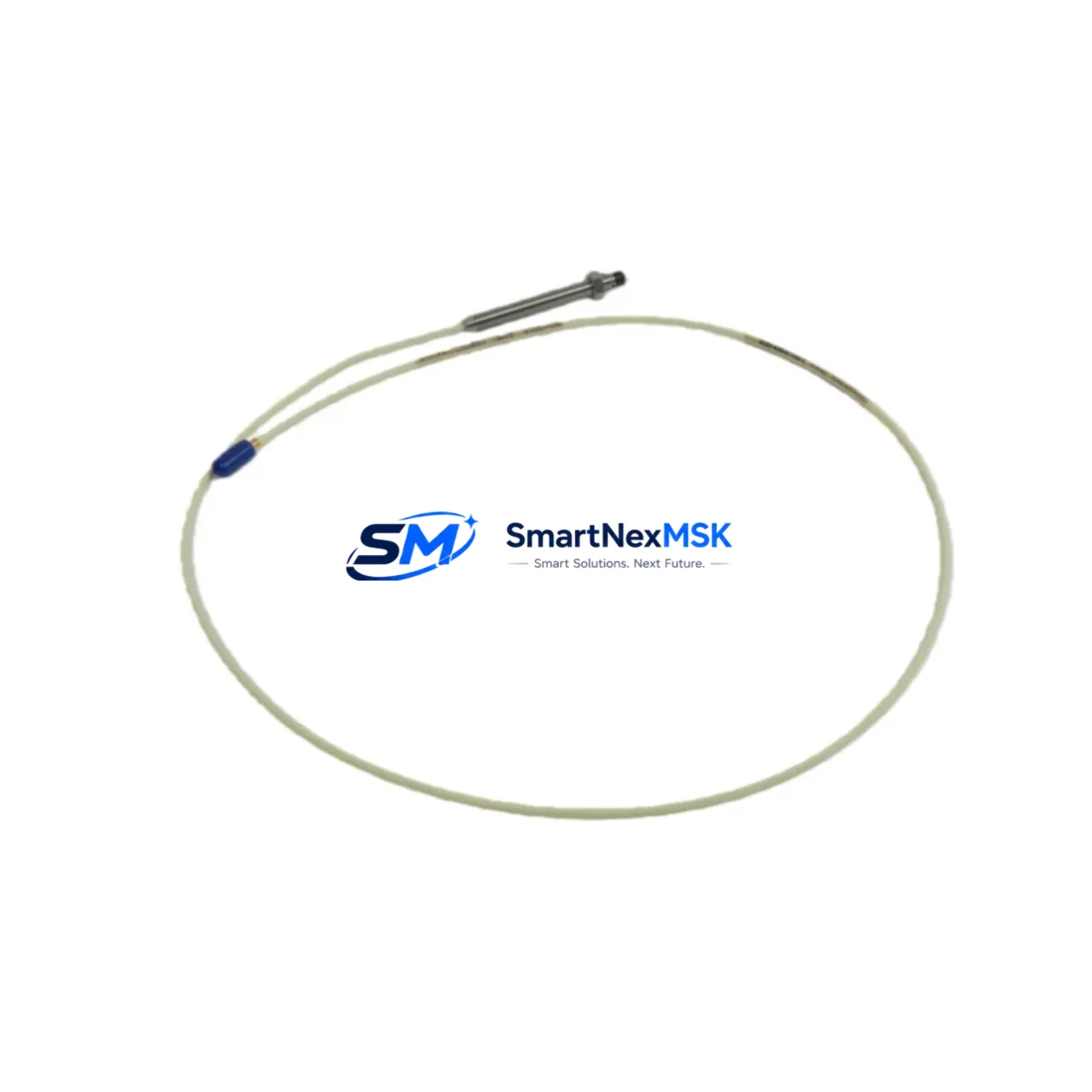

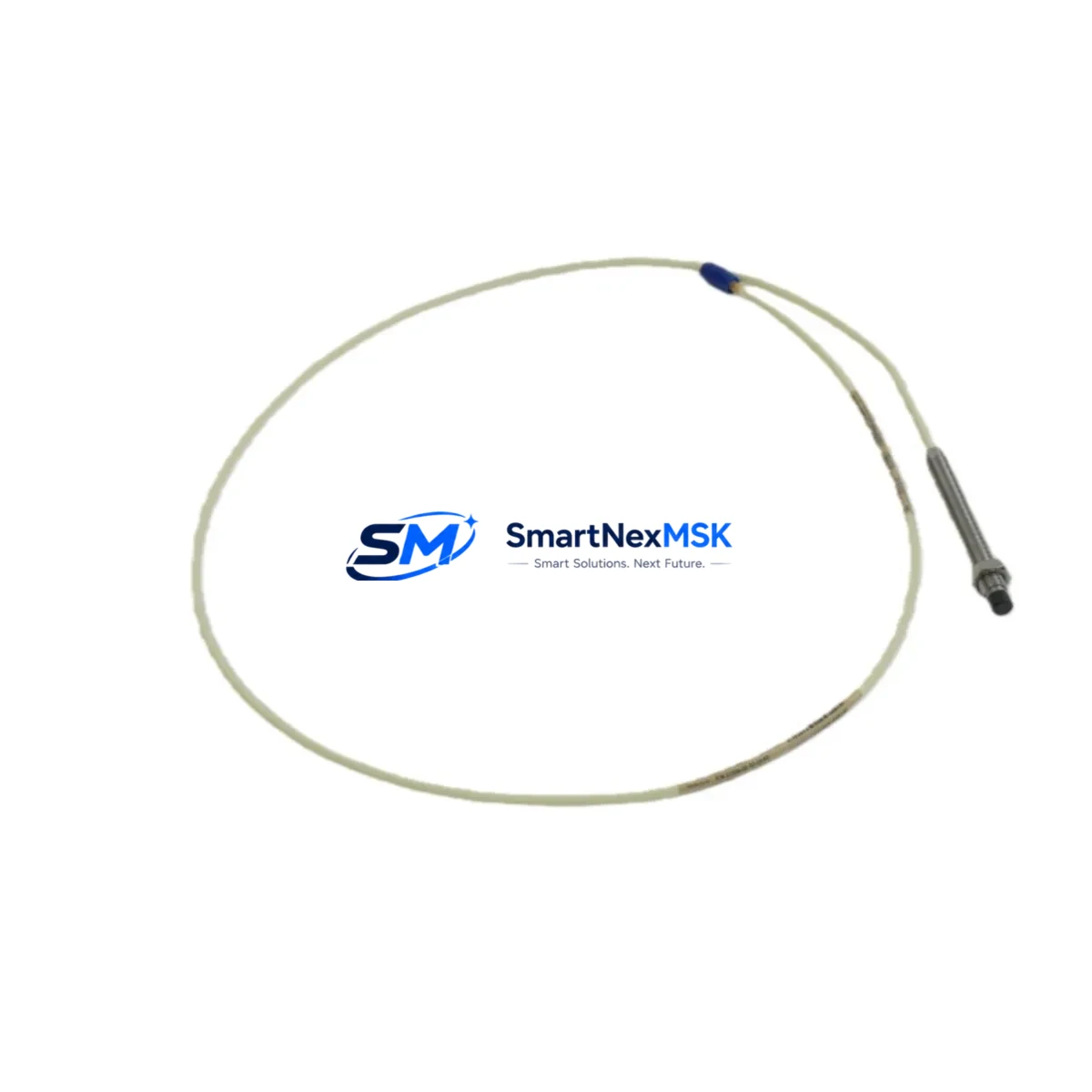

The Bently Nevada 21504-00-52-10-02 is an 8mm eddy current proximity probe engineered for seamless retrofit and drop-in replacement within Bently Nevada 3300 XL continuous vibration monitoring systems. As legacy 3300 Series probes reach end-of-life or become increasingly difficult to source, the 21504-00-52-10-02 provides a verified, compatible upgrade path that preserves existing wiring infrastructure, monitor calibration, and system logic — minimizing downtime and protecting capital investment in installed machinery protection systems.

Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers precise shaft displacement and position measurements critical to API 670-compliant monitoring. Its 8mm sensing tip, standard 5-metre integral cable, and TipLoc construction ensure direct compatibility with 3300 XL monitor inputs without requiring recalibration of the full channel. Maintenance engineers and reliability teams operating aging DCS or safety instrumented systems can deploy this probe as a like-for-like replacement with confidence.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 21504-00-52-10-02 requires a systematic review of the entire measurement channel, not just the probe itself. The probe operates as part of a three-component system: the probe, the extension cable (such as the 330130-045-00-00 or 330130-080-00-00 series), and the proximitor/driver (typically the 3300 XL 8mm Proximitor, model 330180-X1-05). All three components must be matched and verified for the channel to function correctly within the 3300 XL monitor.

When planning the retrofit, engineers should inspect the 3300 XL monitor rack for available channel slots and confirm that the installed monitor module — whether a 3300/16 Dual Voting, 3300/20 Radial Vibration, or 3300/55 Keyphasor module — is configured for 8mm probe input. If the existing monitor was previously calibrated for a different probe diameter or cable length, recalibration of the OK voltage window and gap voltage setpoints will be required using the 3300 XL System Monitor configuration software.

Power supply integrity is a critical pre-retrofit checkpoint. The 3300 XL system typically operates on –24 VDC supplied through the I/O module backplane. Verify that the rack power supply — often a 3300/05 Power Supply module — is delivering stable voltage within specification before installing the new probe. A degraded power supply can cause false OK/NOT OK alarms even with a correctly installed probe.

Wiring adaptation is straightforward if the existing coaxial cable run is intact. Inspect the BNC connectors and coaxial cable shielding for corrosion or mechanical damage, particularly in high-vibration or high-temperature environments. If the extension cable is being replaced simultaneously, ensure the new cable length matches the proximitor calibration range. The 3300 XL Proximitor is factory-calibrated for specific cable lengths, and mismatches will introduce measurement error.

For sites integrating the 3300 XL system with a DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — confirm that the analogue input card receiving the 4–20 mA or voltage signal from the proximitor is correctly scaled. If the DCS historian or alarm management system references the old probe’s calibration curve, update the engineering unit conversion in the DCS configuration to reflect the new probe’s output characteristics. HMI faceplates displaying shaft position or vibration trend data should also be reviewed to confirm correct tag mapping after the retrofit.

Sites running older Bently Nevada 3500 Series racks alongside 3300 XL systems should note that the 21504-00-52-10-02 is not directly compatible with 3500/42 Proximitor I/O modules without a signal conditioning adaptor. In mixed-platform environments, consult the system architecture drawing before ordering replacement probes to avoid cross-series compatibility issues.

Downtime Control During System Migration

Minimizing production downtime during a probe retrofit requires pre-staging all replacement components before the maintenance window opens. For the 21504-00-52-10-02, this means having the matched extension cable, proximitor, and any required mounting hardware on-site and verified before the machine is taken offline. A pre-installation bench test — connecting the probe, extension cable, and proximitor to a portable oscillator and verifying the OK voltage output — eliminates the risk of discovering a component fault after the machine is already shut down.

During the replacement, follow a structured isolation sequence: inhibit the 3300 XL monitor channel to suppress spurious alarms, remove the old probe and extension cable, install the new 21504-00-52-10-02 with correct gap setting (typically 1.0–2.0 mm, confirmed with a feeler gauge or gap voltage measurement), reconnect the extension cable and proximitor, and restore the channel inhibit only after confirming a stable OK voltage reading. Document the as-found and as-left gap voltage values for the maintenance record.

If the retrofit is being performed as part of a broader control system upgrade — for example, migrating from a legacy 3300 Series rack to a 3300 XL rack — plan the migration in phases. Maintain the old rack in service on non-critical measurement points while the new rack is commissioned on critical channels. This parallel-run approach allows the operations team to validate new channel readings against historical baselines before full cutover, protecting both the machinery and the production schedule.

All units are pre-tested and shipped with a 12-month warranty. Fast global shipping ensures that emergency replacement orders can be fulfilled within 24–72 hours, supporting unplanned maintenance scenarios where extended lead times are not acceptable.

Retrofit Support FAQ

Q: Is the 21504-00-52-10-02 a direct drop-in replacement for older 3300 Series 8mm probes?
A: Yes, for most 3300 XL monitor configurations. The probe uses the same M10×1 thread, BNC coaxial interface, and 8mm sensing diameter. However, if the existing system uses a non-XL 3300 Series proximitor, the proximitor should also be upgraded to the 3300 XL 8mm Proximitor to ensure correct calibration and OK voltage output.

Q: Do I need to recalibrate the 3300 XL monitor after installing this probe?
A: If the replacement probe and extension cable are the same model and length as the originals, recalibration of the monitor’s alert and danger setpoints is not required. However, the probe gap must be re-set and verified on-site, and the OK voltage window should be confirmed within the monitor’s configuration. If cable length changes, full channel recalibration is required.

Q: How is the probe tested before shipment?
A: Each 21504-00-52-10-02 unit undergoes functional verification including output voltage linearity check, OK/NOT OK threshold confirmation, and physical inspection of the probe tip, cable, and connector. A test report is available upon request. All units carry a 12-month warranty from the date of shipment.

Q: Can this probe be used in hazardous area (ATEX/IECEx) installations?
A: The standard 21504-00-52-10-02 is not ATEX/IECEx certified. For hazardous area installations, consult the Bently Nevada 3300 XL hazardous area probe variants and confirm the appropriate certification with your site safety engineer before ordering.
