Bently Nevada 21504-000-012-10-02 Spare for 3300 XL Automation

Bently Nevada 21504-000-012-10-02 Spare for 3300 XL Automation: Precision Spare Parts for Downtime Recovery

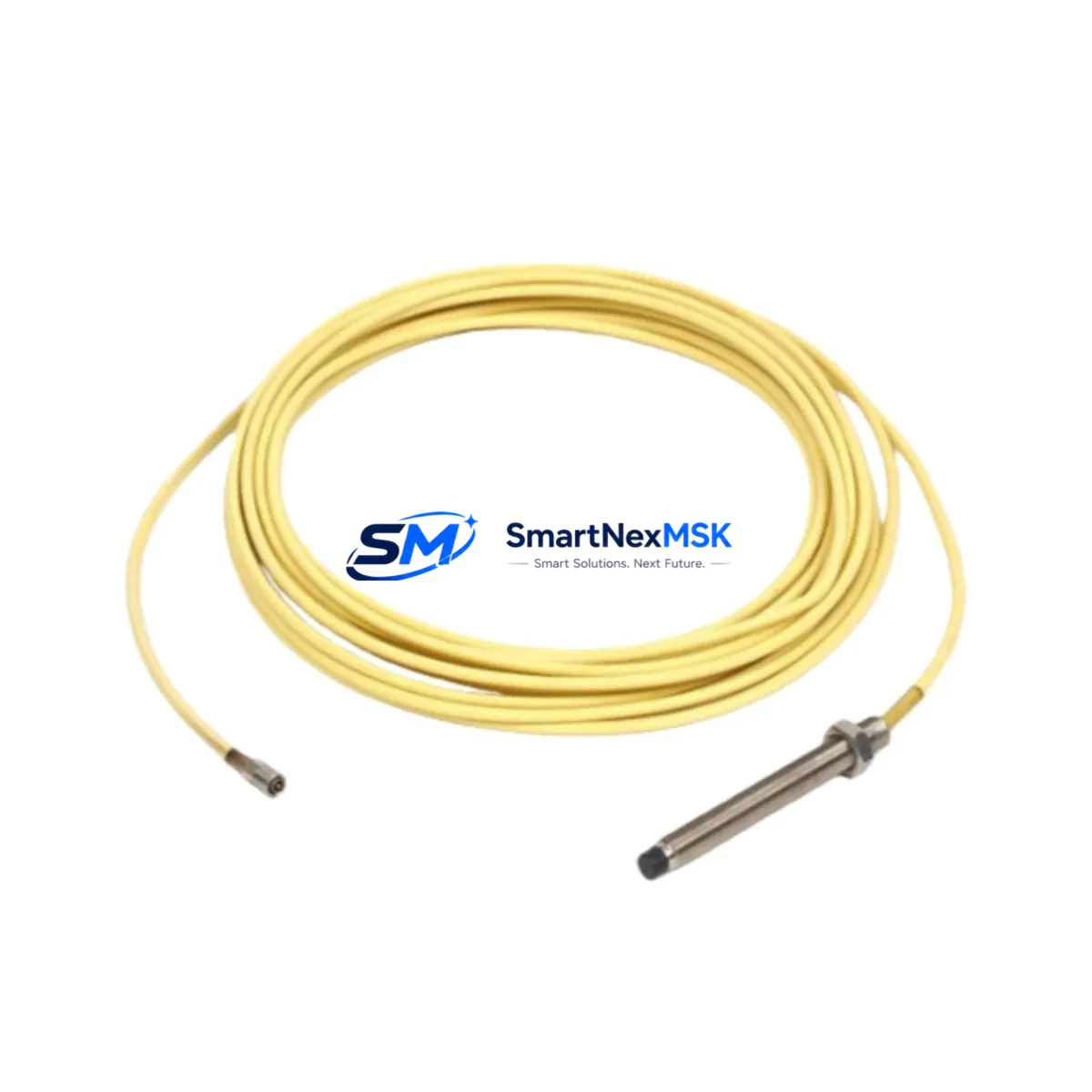

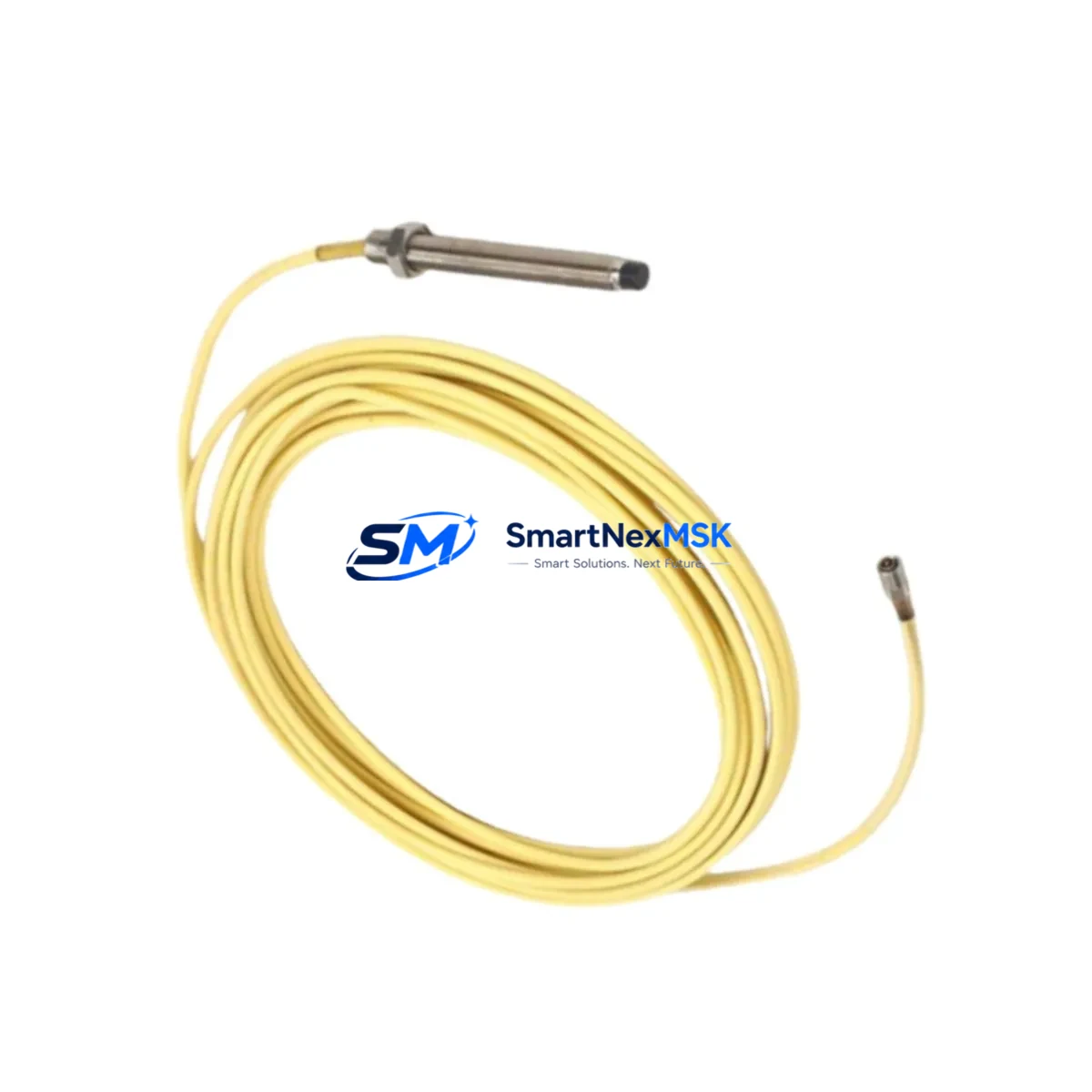

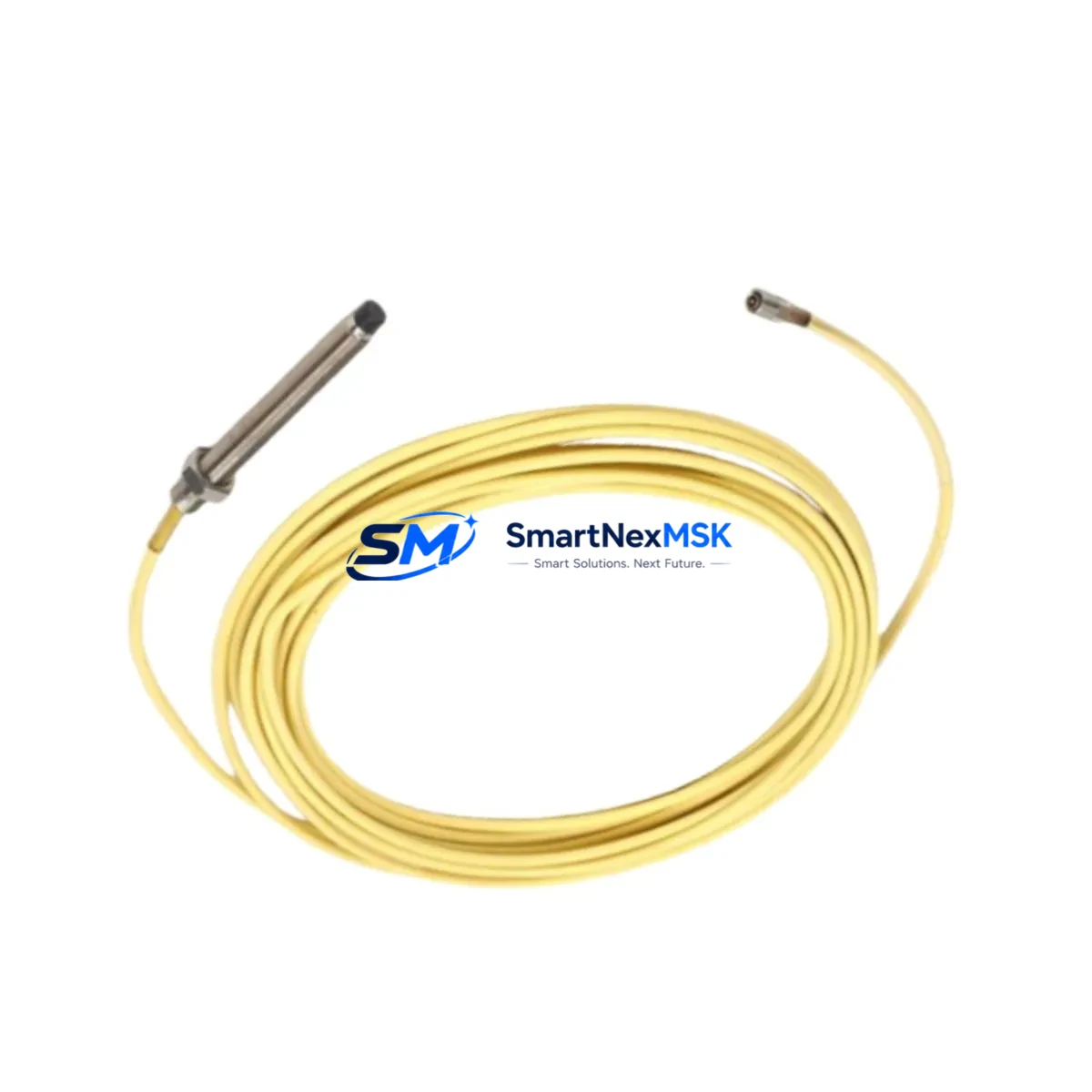

The Bently Nevada 21504-000-012-10-02 is an original armored proximity probe extension cable engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this extension cable is a critical link in the signal chain between the proximity probe and the Proximitor sensor. A failed or degraded extension cable can cause false vibration alarms, loss of shaft position monitoring, or complete channel dropout — all of which translate directly into unplanned downtime and production loss.

Sourced as an original Bently Nevada component, the 21504-000-012-10-02 maintains the precise electrical characteristics required by the 3300 XL system: controlled impedance, low signal attenuation, and full compatibility with the system’s -24 VDC bias voltage and gap voltage calibration range. The armored jacket provides mechanical protection in harsh industrial environments including high-temperature zones, oil mist atmospheres, and areas with significant mechanical vibration or cable routing constraints.

This spare is stocked, tested, and ready for immediate dispatch — supporting both planned maintenance shutdowns and emergency replacement scenarios where every hour of downtime carries significant operational cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 21504-000-012-10-02 extension cable during a planned or emergency maintenance window, experienced maintenance engineers treat this as an opportunity to inspect the entire proximity measurement loop — not just the cable itself. A systematic approach significantly reduces the risk of repeat failures and callback maintenance events.

Begin with the 3300 XL 8mm Proximity Probe at the machine end. Inspect the probe tip for mechanical damage, contamination, or thread wear. Even if the probe appears functional, a probe that has been in service for several years in a high-temperature or oil-contaminated environment may exhibit drift in its sensitivity factor, which will affect vibration amplitude readings after the new extension cable is installed.

At the rack end, verify the condition of the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 or 330130 series). The Proximitor converts the eddy-current signal into a voltage output proportional to gap distance. A degraded Proximitor can mask the improvement achieved by replacing the extension cable, leading to continued alarm conditions or inaccurate readings.

Within the 3300 XL monitoring rack, check the associated 3300/20 Rack Interface Module (RIM) and any installed 3300/55 or 3300/65 I/O modules for signs of corrosion on backplane connectors or loose seating. Vibration monitoring racks in turbine halls are subject to significant ambient vibration, and connector integrity should be verified at every outage.

For the power supply feeding the monitoring system, inspect the 3300/05 Power Supply module or equivalent rack power unit. An unstable or out-of-tolerance power supply will introduce noise into the proximity signal chain and can cause nuisance trips even after a successful cable replacement. If the power supply has not been replaced within its recommended service interval, this is an appropriate time to do so.

Review the signal cable routing from the junction box to the rack. In many installations, the extension cable passes through conduit shared with power cables or high-frequency drive cables. Induced electrical noise from variable frequency drives (VFDs) or motor starters can corrupt the proximity signal. Ensure proper separation and grounding of the signal cable conduit.

If the machine is equipped with a Keyphasor transducer (such as the Bently Nevada 330180 Keyphasor Proximitor), verify its gap voltage and signal output simultaneously. The Keyphasor reference signal is used for phase measurements and balancing — a degraded Keyphasor will affect the quality of all phase-referenced vibration data collected after the maintenance event.

For facilities running System 1 Evolution or legacy ADRE data acquisition systems connected to the 3300 XL rack, confirm that the channel configuration in the software matches the replacement cable’s sensitivity and scale factor. Incorrect software configuration after a hardware replacement is a common source of post-maintenance alarm events.

Finally, if the installation includes thrust position monitoring using a dual-probe axial arrangement, replace both extension cables as a matched pair when one is found to be defective. Mismatched cable ages or connector conditions in a dual-probe thrust arrangement can introduce differential measurement errors that are difficult to diagnose remotely.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the monitoring rack channel associated with the 21504-000-012-10-02 before disconnecting any connectors. Note the existing gap voltage reading before disconnection — this serves as your baseline for post-installation verification.

Step 2 — Connector Inspection: Before installing the new extension cable, clean the probe-end and Proximitor-end connectors with appropriate contact cleaner. Inspect the mating connectors on the probe and Proximitor for pin damage, corrosion, or thread wear. A new cable installed into a damaged connector will not restore system performance.

Step 3 — Cable Routing: Route the new 21504-000-012-10-02 following the original cable path. Avoid sharp bends at the probe end — maintain the minimum bend radius specified by Bently Nevada to prevent signal degradation. Secure the cable at all original support points to prevent mechanical fatigue from ambient vibration.

Step 4 — Gap Voltage Verification: After connection, power up the channel and measure the gap voltage at the Proximitor output. The gap voltage should fall within the linear range specified for the probe/extension/Proximitor combination (typically -10 VDC ± 2 VDC for standard 8mm systems). Adjust the probe gap if necessary to bring the reading within specification.

Step 5 — System Verification: Confirm that the monitoring system is reading correctly by comparing the static gap voltage and any available slow-roll vibration data against historical baseline values. Document the post-replacement readings in the maintenance record for future reference.

Step 6 — Return to Service: Re-enable the monitoring channel, confirm alarm setpoints are active, and notify the control room that the channel has been restored. Update the spare parts inventory to reflect the consumed cable and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q: Is the 21504-000-012-10-02 a direct drop-in replacement for older Bently Nevada extension cables used in 3300 XL systems?
A: Yes. The 21504-000-012-10-02 is designed as a direct replacement within the 3300 XL proximity transducer system. It maintains the same electrical characteristics and connector interface as the original factory-installed cable. No recalibration of the monitoring system is required, provided the probe gap voltage is verified and adjusted within specification after installation.

Q: How is the 21504-000-012-10-02 tested before shipment?
A: Each unit undergoes electrical continuity and insulation resistance testing prior to dispatch. Connector integrity is visually inspected and mechanically verified. Units are packaged to prevent connector damage during transit. A test report is available upon request for critical applications.

Q: What is the recommended spare parts inventory strategy for this cable?
A: For facilities operating multiple machines with 3300 XL monitoring systems, we recommend maintaining a minimum of two 21504-000-012-10-02 cables per machine train in the site spare parts store. Extension cables are consumable items subject to mechanical wear, connector fatigue, and environmental degradation. A two-unit minimum ensures immediate availability for both planned outage replacement and emergency breakdown recovery without waiting for procurement lead times.

Q: What warranty coverage applies to this spare part?
A: The 21504-000-012-10-02 carries a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. Warranty claims are supported with replacement or credit. The warranty does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified system configuration. Our technical team is available to support installation verification and post-replacement commissioning queries.
