Bently Nevada 24765-03-01 Spare for 3500 Series Automation

Bently Nevada 24765-03-01 Spare for 3500 Series Automation: Spare Replacement & Downtime Risk Control

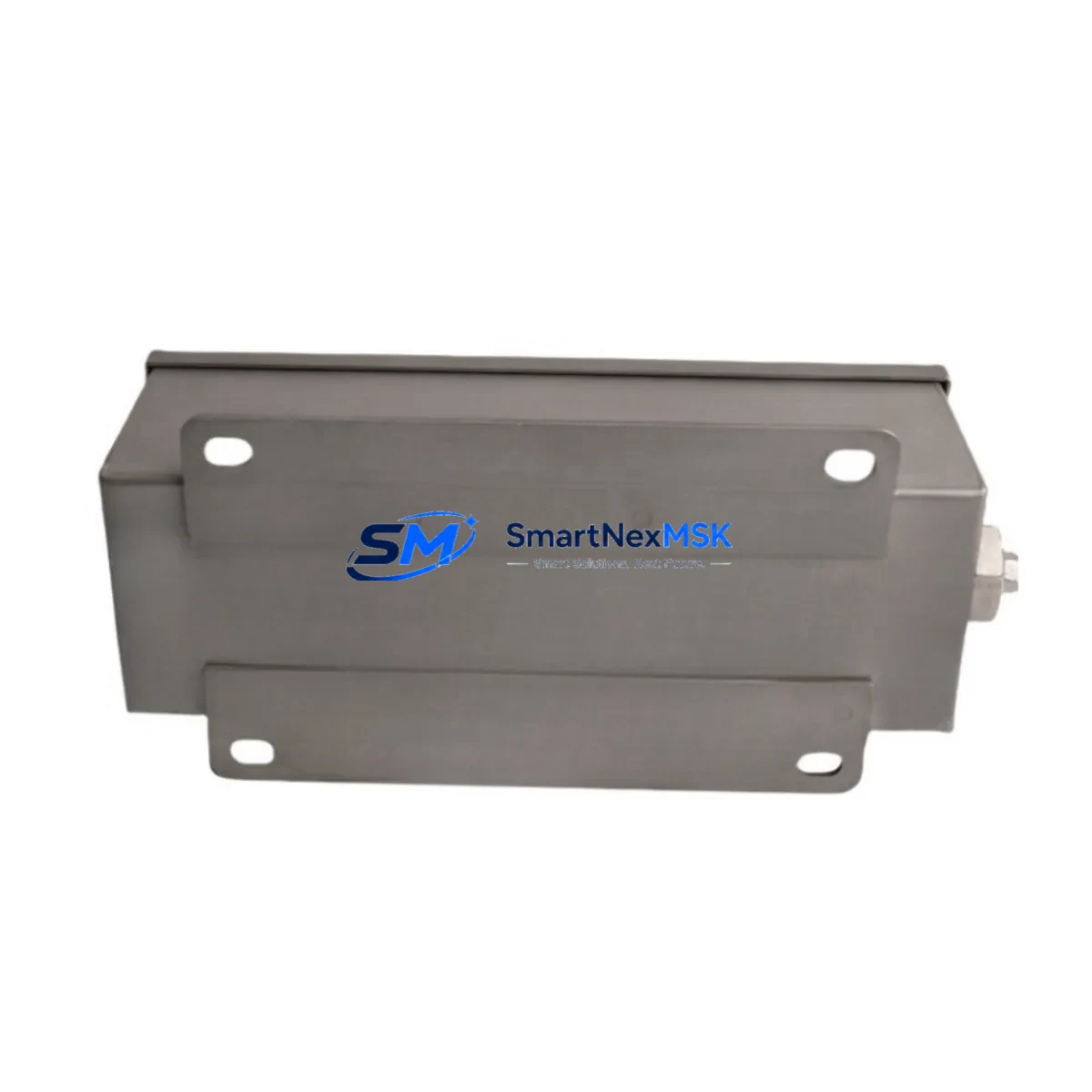

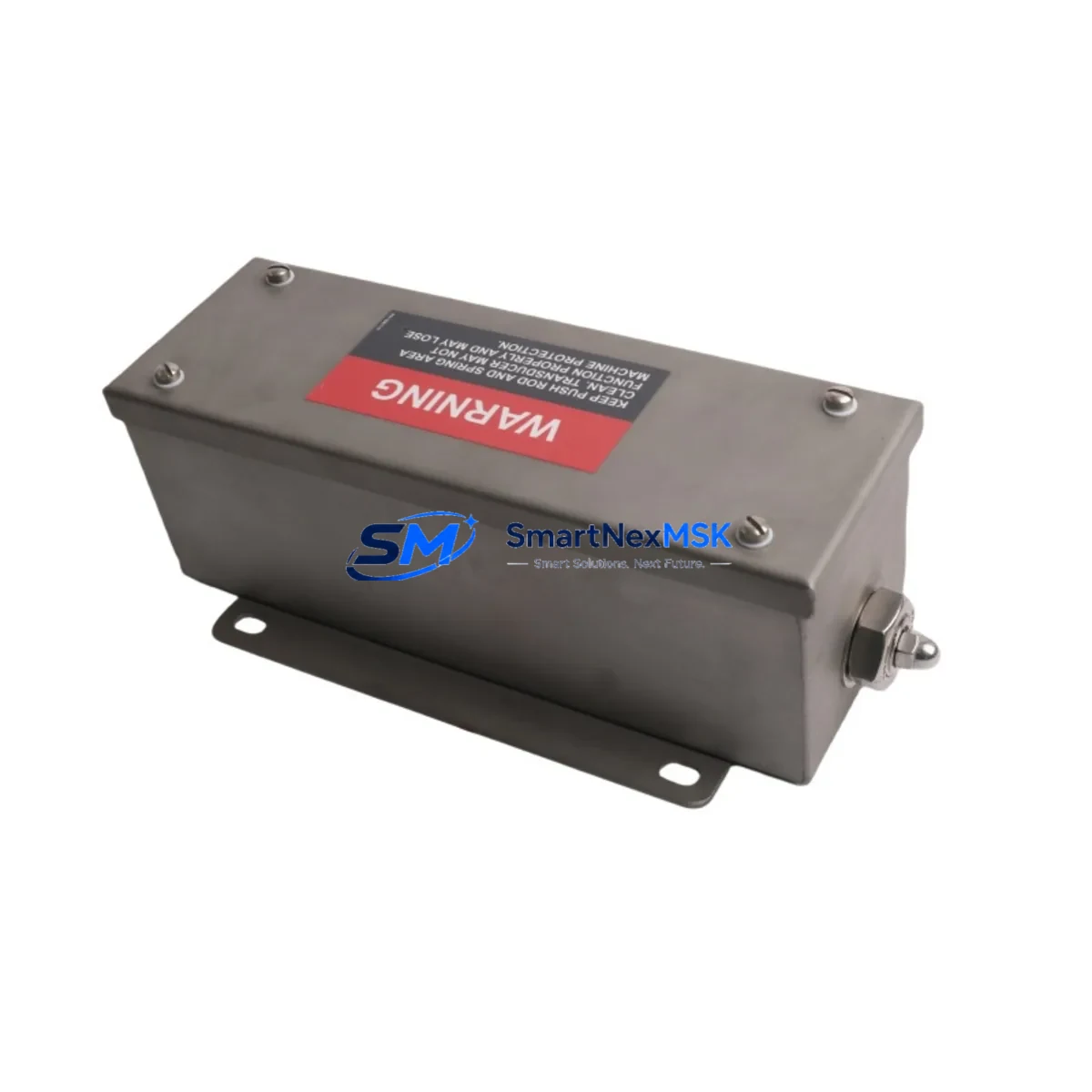

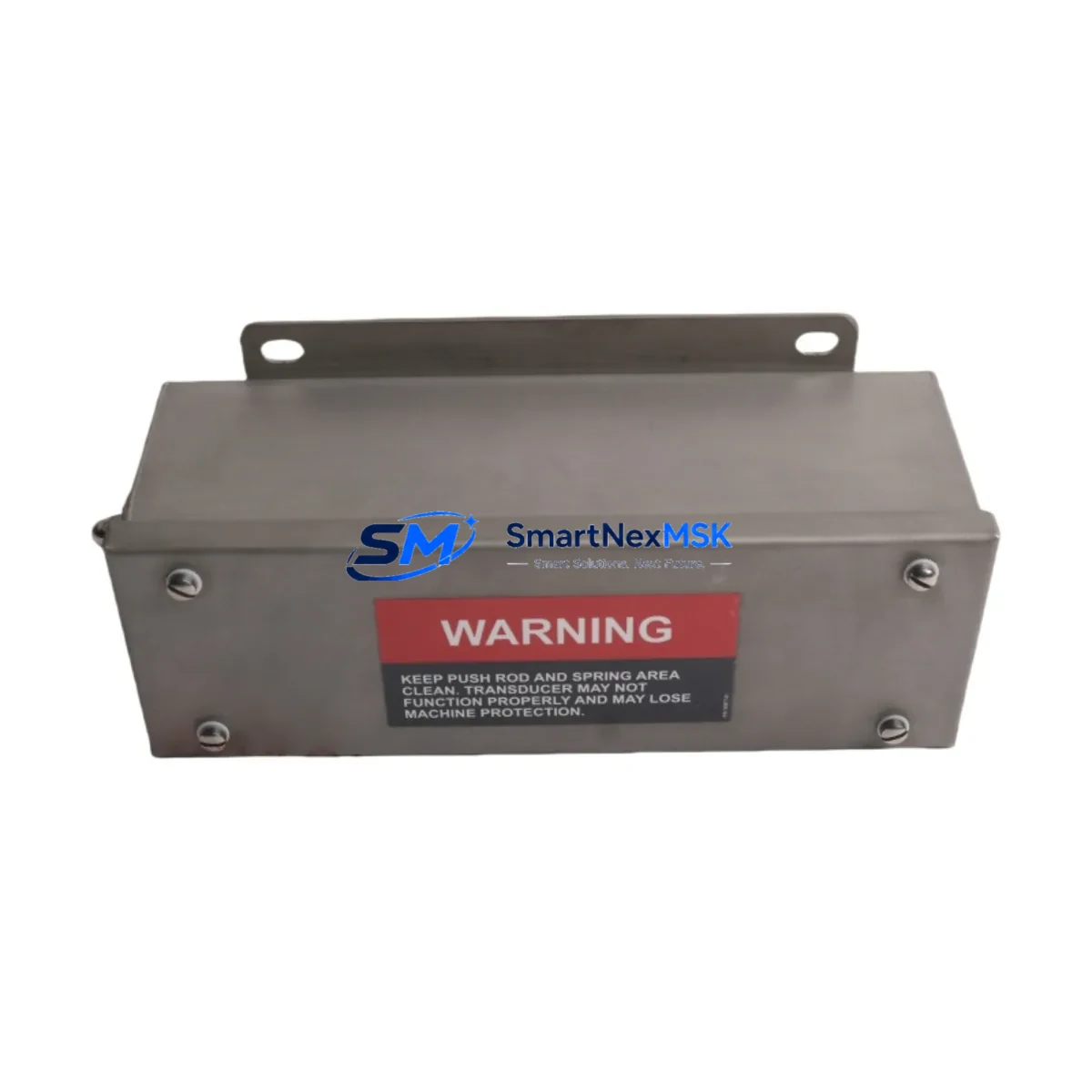

The Bently Nevada 24765-03-01 is an original displacement transducer assembly designed for the 3500 Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment facilities worldwide. When this transducer reaches end-of-life, exhibits signal drift, or fails during a scheduled inspection, rapid like-for-like replacement is critical to restoring full protection coverage and avoiding unplanned shutdown extensions.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes under 3500 Series protection, the 24765-03-01 is a precision-matched spare that eliminates the compatibility guesswork associated with aftermarket alternatives. Its original Bently Nevada specification ensures direct interoperability with the 3500/42M Proximitor I/O Module, 3500/22M Transient Data Interface, and the broader 3500 rack infrastructure without requiring recalibration of system sensitivity or gap voltage thresholds.

Procurement engineers sourcing this part for planned maintenance windows or emergency stock replenishment can rely on pre-shipment functional testing, documented traceability, and a 12-month warranty covering defects in materials and workmanship from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 24765-03-01 transducer in a live 3500 rack environment is rarely an isolated task. A thorough site inspection during the same maintenance window significantly reduces the risk of repeat callouts and secondary failures. Maintenance engineers should treat this replacement as a trigger for a broader control cabinet audit.

Begin by verifying the condition of the Bently Nevada 3500/20 Power Supply Module — transducer signal anomalies are frequently caused by power rail instability rather than the transducer itself. Inspect the 3500/42M Proximitor I/O Module for corrosion on the BNC connectors and confirm that the channel’s OK relay output is functioning correctly. If the system includes a 3500/22M Transient Data Interface, verify that waveform capture is active and that the channel is not masked in the system configuration.

Check the extension cable routing between the transducer and the proximitor driver — cable damage, improper bend radius, or connector oxidation are common causes of intermittent gap voltage errors. Inspect terminal blocks and cable glands for moisture ingress, particularly in outdoor or wash-down environments. If the installation uses a 3500/25 Enhanced Keyphasor Module for phase reference, confirm that the Keyphasor transducer gap is within specification, as a drifting phase reference will corrupt vibration vector data across all channels.

For facilities running legacy 3300 Series infrastructure alongside 3500 racks, verify that any 3300/16 Proximitor Sensor units in adjacent cabinets are also within calibration. Signal isolators — such as a Bently Nevada 3500/92 Communication Gateway or third-party 4–20 mA signal conditioners — should be inspected for output accuracy if the vibration data feeds a DCS historian or safety instrumented system. Fuse holders and terminal fuses on the I/O backplane should be checked for continuity and replaced preventively if the system has been in service for more than three years without a fuse audit.

Where the 3500 rack feeds a System 1 Evolution software platform, confirm that the channel configuration in the software matches the physical transducer sensitivity and that alarm setpoints have not drifted from the baseline established during commissioning. HMI displays connected via Modbus or OPC-DA should be verified for correct tag mapping after any hardware replacement.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the 24765-03-01, record the existing gap voltage reading from the 3500/42M channel display or System 1 interface. This baseline value is essential for post-installation verification. Isolate the channel in the rack software to suppress nuisance alarms during the swap.

Step 2 — Physical removal: Disconnect the extension cable at the proximitor driver end first, then at the transducer body. Note the cable routing and any tie-wrap positions for reinstallation. Remove the transducer from the mounting bracket, taking care not to disturb adjacent transducers on the same shaft measurement plane.

Step 3 — Installation of replacement unit: Install the 24765-03-01 replacement into the original mounting position. Set the air gap to the manufacturer-specified nominal distance using a feeler gauge or the gap voltage method. Reconnect the extension cable, ensuring the connector is fully seated and the locking collar is secure.

Step 4 — Verification: Re-enable the channel in the rack software and confirm that the gap voltage returns to the documented baseline (typically −10 VDC ± 0.5 VDC). Verify that the OK relay is energized and that the channel is reporting valid vibration amplitude and phase data. Compare the live waveform against the pre-replacement baseline in System 1 to confirm signal integrity.

Step 5 — Documentation and stock replenishment: Update the maintenance log with the replacement date, technician ID, and post-installation gap voltage. Immediately initiate a purchase order for a replacement spare to restore the on-hand buffer — a single-unit spare strategy for critical transducer positions is a recognized risk in high-availability facilities.

Spare Parts Support FAQ

Q: What is the recommended spare parts lifecycle strategy for the 24765-03-01?
A: For critical rotating equipment under continuous 3500 Series protection, industry best practice recommends maintaining a minimum of one on-hand spare per monitored machine train, with a replenishment trigger set at the point of use. Given the lead times associated with OEM procurement channels, sourcing from a stocking distributor with pre-tested inventory significantly reduces exposure during unplanned outages.

Q: How is compatibility with the existing 3500 rack confirmed before installation?
A: Compatibility is confirmed by matching the transducer’s scale factor (mV/mil or V/mm) and cable length to the channel configuration in the 3500/42M Proximitor I/O Module. The system’s existing gap voltage setpoints and OK limits must align with the replacement transducer’s output characteristics. If the original installation records are unavailable, the channel configuration can be read directly from the rack using the Rack Configuration Software (RCS).

Q: What pre-shipment testing is performed on the 24765-03-01?
A: Each unit undergoes functional output verification and continuity testing prior to dispatch. Units are shipped in ESD-safe packaging with individual test documentation. The 12-month warranty covers defects in materials and workmanship and applies from the confirmed delivery date.

Q: Can the 24765-03-01 replace older Bently Nevada transducer assemblies in legacy installations?
A: In many cases, yes — provided the mounting thread, body diameter, cable connector type, and scale factor are compatible with the existing installation. For legacy 3300 Series or 7200 Series installations, a direct dimensional and electrical comparison is required before substitution. Our technical team can assist with compatibility verification based on the original part number and installation drawings.
