Bently Nevada 31000-00-00-00-031-01-02 Spare 3300 XL Automation: Precision Spare Parts for Vibration Monitoring Downtime Recovery

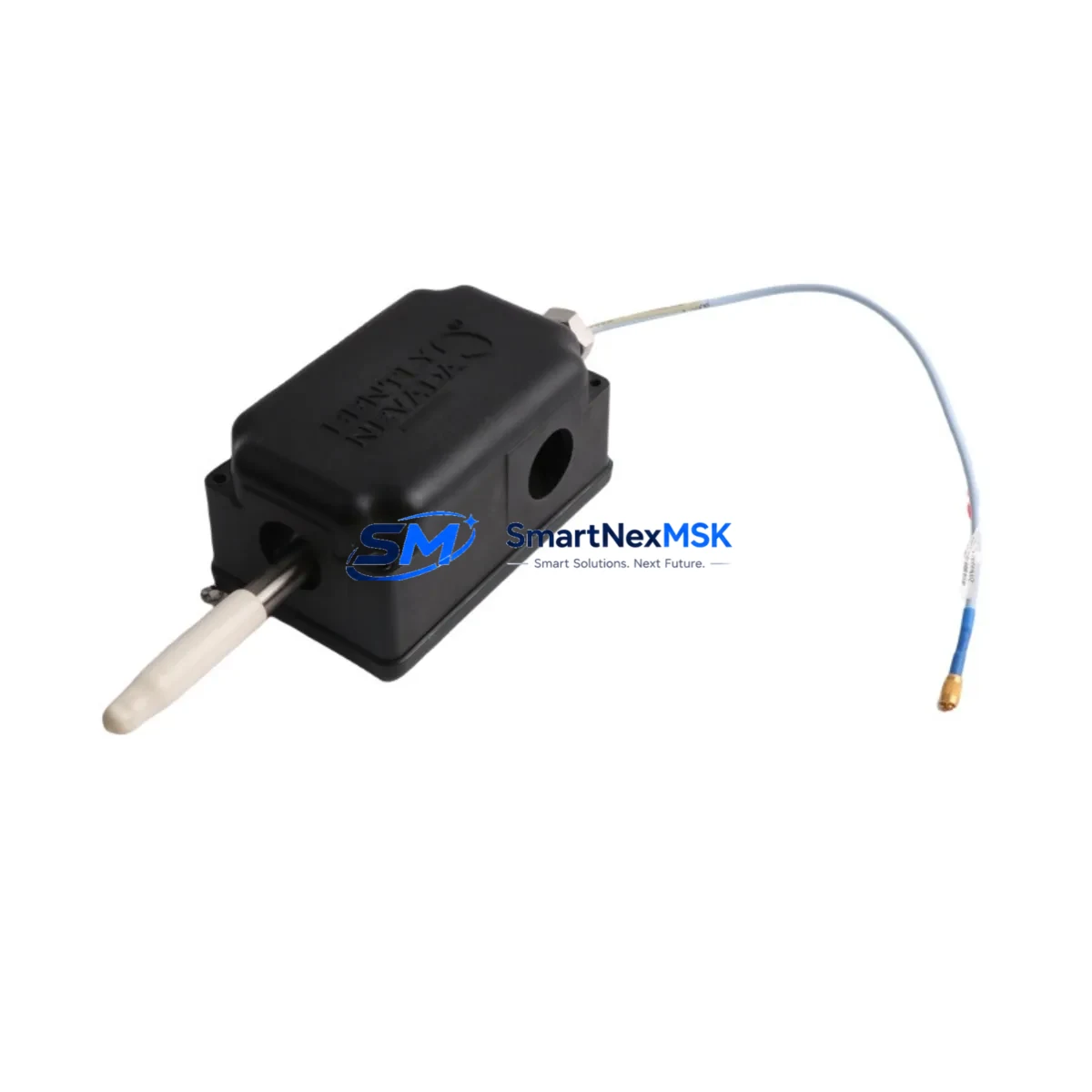

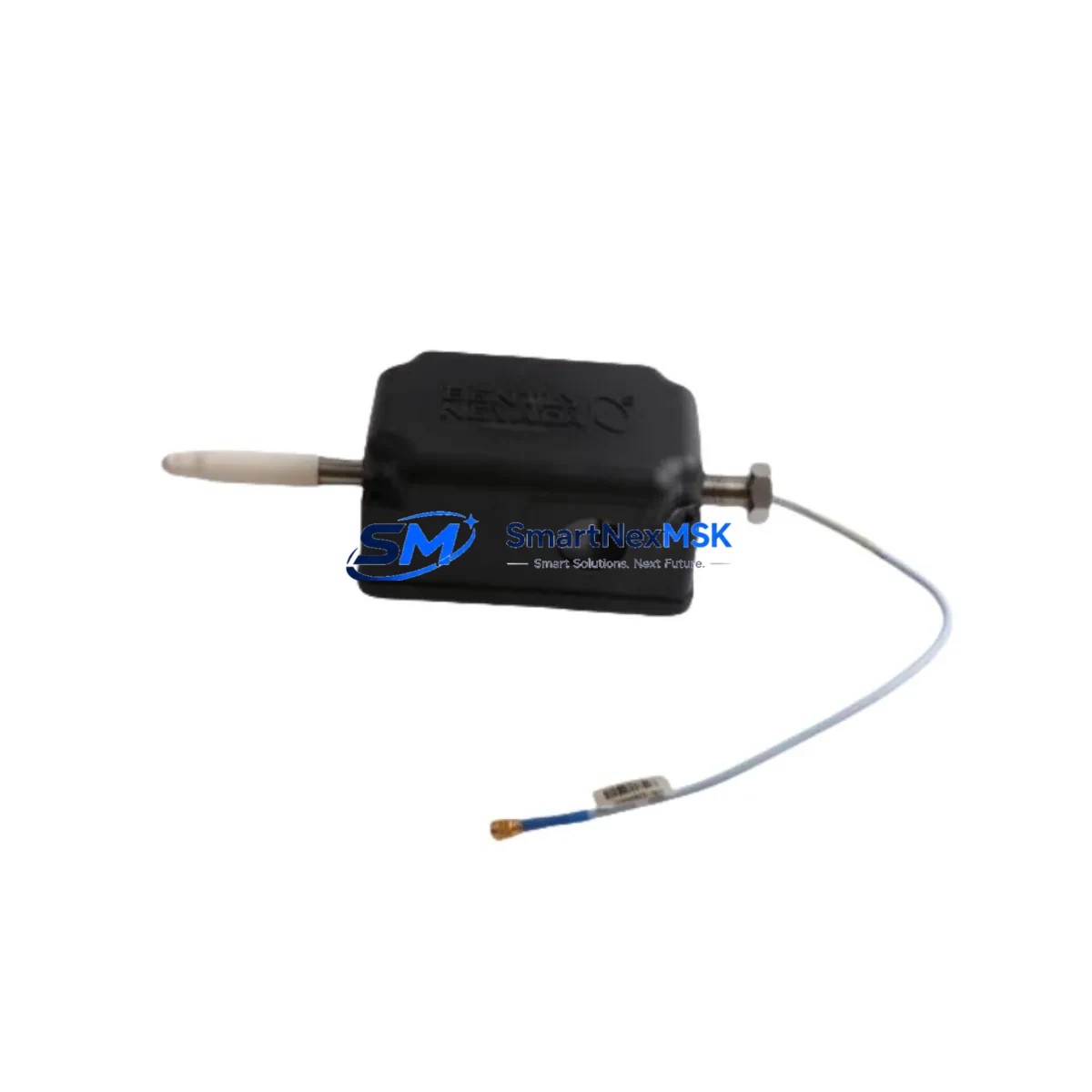

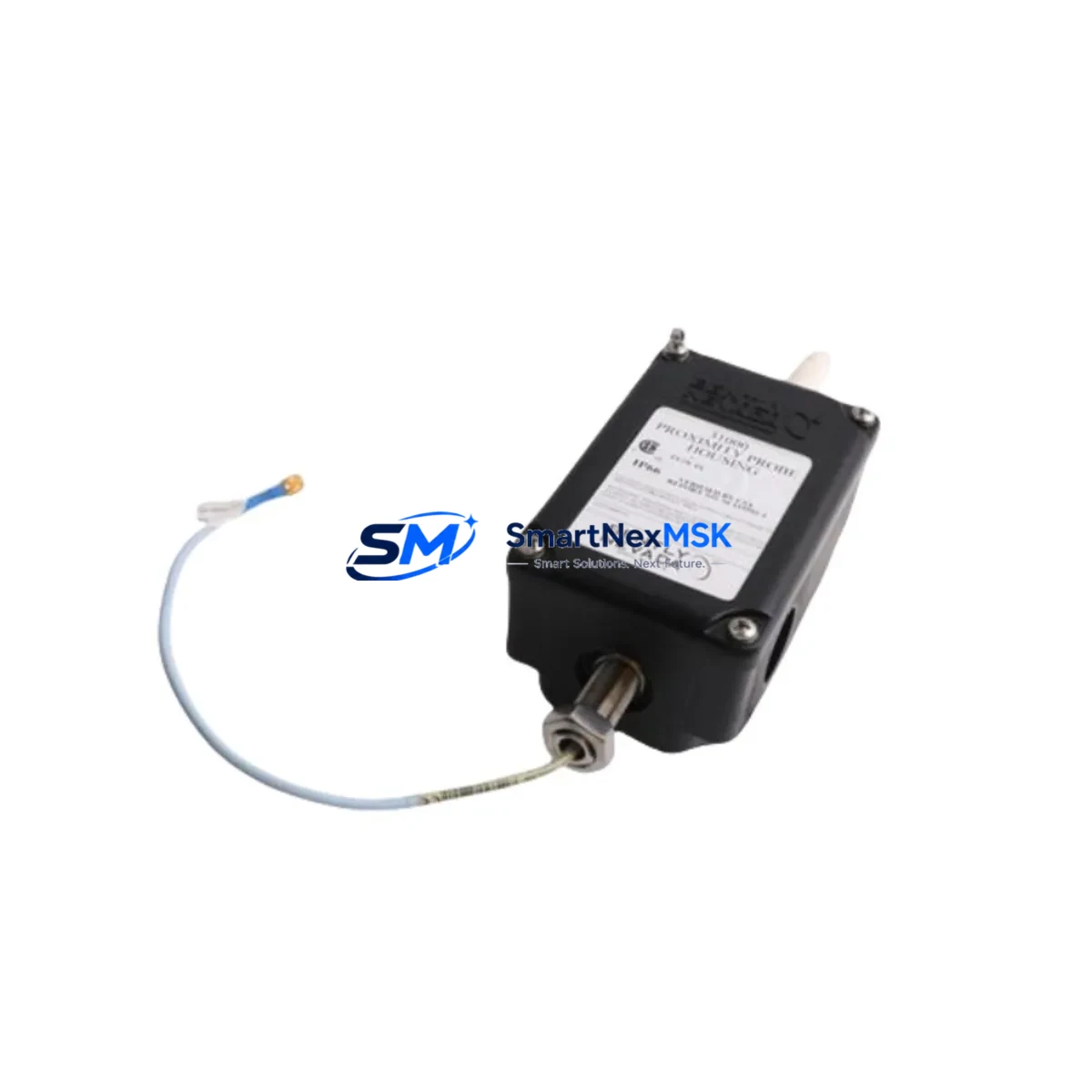

The Bently Nevada 31000-00-00-00-031-01-02 is a proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring system. Designed for industrial rotating machinery protection, this component serves as a critical interface between the proximity probe tip and the monitored shaft surface. When this housing assembly degrades, becomes mechanically damaged, or fails calibration during scheduled inspection, immediate replacement is essential to maintain uninterrupted machinery protection and avoid unplanned downtime in turbines, compressors, pumps, and gearboxes.

At SMARTNEXMSK, every 31000-00-00-00-031-01-02 unit is sourced as an original Bently Nevada spare, individually inspected, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who require fast, reliable access to 3300 XL system components — whether for planned turnaround, emergency replacement, or long-term spare parts stocking.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-00-00-00-031-01-02 housing assembly during a planned or emergency maintenance event, experienced maintenance engineers treat this as an opportunity to inspect the entire vibration monitoring loop. The probe housing does not operate in isolation — its performance depends on the integrity of every upstream and downstream component in the measurement chain.

Begin by verifying the condition of the Bently Nevada 3300 XL proximitor/extension cable assembly (typically the 330130 or 330180 series). Cable jacket abrasion, connector corrosion, or impedance mismatch will cause erratic gap voltage readings even after a new housing is installed. Simultaneously, inspect the 3300 XL signal conditioning module mounted in the monitor rack — if the module has accumulated operating hours comparable to the failed housing, proactive replacement reduces the risk of a second unplanned outage.

Check the 3500/22M Transient Data Interface or equivalent rack communication module for firmware currency and connector seating. In systems where the 3300 XL feeds a Bently Nevada 3500 Series rack, confirm that the I/O module terminal assignments and channel configuration remain consistent after the housing swap. Loose terminal block connections on the 3500/20 rack power supply module are a common source of intermittent faults that surface only after a probe replacement disturbs the wiring harness.

For control cabinet inspections, review the condition of DIN rail terminal strips and signal isolators in the vibration signal routing path. If the plant uses a Pepperl+Fuchs or MTL signal isolator between the proximitor output and the DCS analog input card, verify that the isolator’s input impedance is compatible with the 3300 XL output specification. Aging isolators can introduce offset errors that mimic probe gap drift.

Where the vibration signal feeds a Honeywell, Emerson DeltaV, or ABB 800xA DCS analog input module, confirm that the AI channel scaling and alarm setpoints are correctly configured after the replacement. Finally, inspect the 24 VDC power supply feeding the proximitor — voltage sag or ripple exceeding the proximitor’s input tolerance will degrade measurement accuracy regardless of housing condition. A Phoenix Contact or Weidmüller DIN rail power supply with output monitoring is recommended for critical vibration loops.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 31000-00-00-00-031-01-02 matches the installed probe tip model and cable assembly. Cross-reference the Bently Nevada system drawing and the existing proximitor label to verify the gap voltage range (typically –10 VDC at calibrated gap). Document the as-found gap voltage before disassembly.

Step 2 — Safe isolation: Follow plant LOTO (Lockout/Tagout) procedures. Isolate the 24 VDC supply to the proximitor at the field junction box or the rack power distribution terminal. Do not rely solely on the monitor rack’s channel inhibit function for personnel safety.

Step 3 — Housing removal and inspection: Remove the damaged housing assembly. Inspect the probe tip for wear, pitting, or contamination. If the probe tip shows wear beyond manufacturer tolerance, replace the complete probe assembly rather than the housing alone. Clean the shaft target area and verify surface finish is within specification.

Step 4 — Installation and gap setting: Install the new 31000-00-00-00-031-01-02 housing. Set the probe gap per the Bently Nevada installation drawing — typically 1.0 mm (–10.0 VDC) for standard 3300 XL configurations. Use a calibrated gap-setting tool and verify with a digital voltmeter at the proximitor output before reconnecting to the monitor rack.

Step 5 — System verification and return to service: Restore power, clear channel inhibit, and verify that the monitor displays a stable gap voltage within the OK band. Confirm that no alarms or danger trips are active. Log the as-left gap voltage, date, and technician ID in the plant maintenance management system (CMMS). Update the spare parts inventory to reflect consumption of the 31000-00-00-00-031-01-02 unit.

Spare Parts Support FAQ

Q1: Is the 31000-00-00-00-031-01-02 compatible with both the 3300 XL and 3500 Series systems?
The 31000-00-00-00-031-01-02 is a 3300 XL Series housing assembly. Compatibility with 3500 Series probes depends on the specific probe tip and cable assembly in use. Contact our technical team with your complete system drawing reference before ordering for a 3500 Series application. We will confirm compatibility and, if required, identify the correct 3500-compatible housing part number.

Q2: What is included in the 12-month warranty, and what does the pre-shipment test cover?
Every 31000-00-00-00-031-01-02 unit shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure under normal operating conditions. Pre-shipment testing includes dimensional verification of the probe seat, thread integrity check, and visual inspection for corrosion or mechanical damage. Units that do not pass inspection are not shipped.

Q3: How should I manage 3300 XL spare parts inventory to minimize downtime risk?
For critical rotating machinery applications, we recommend maintaining a minimum of one 31000-00-00-00-031-01-02 housing assembly per monitored machine train in your on-site spare parts store. For plants with multiple 3300 XL-monitored trains, a pooled inventory of 2–3 units is typically sufficient. Pair this with at least one spare proximitor/extension cable assembly and one spare signal conditioning module to cover the most common failure modes in a single maintenance event.

Q4: Can SMARTNEXMSK supply 31000-00-00-00-031-01-02 units on a long-term supply agreement?
Yes. We support procurement engineers with blanket purchase orders and scheduled delivery programs for 3300 XL spare parts. Long-term supply agreements ensure price stability, guaranteed stock reservation, and priority shipment for emergency orders. Contact sales@smartnexmsk.com to discuss your annual consumption requirements and establish a supply agreement.
