Bently Nevada 31000-00-00-00-059-03-02 3300 XL Probe Housing: Retrofit-Ready Replacement for Legacy Vibration Monitoring Systems

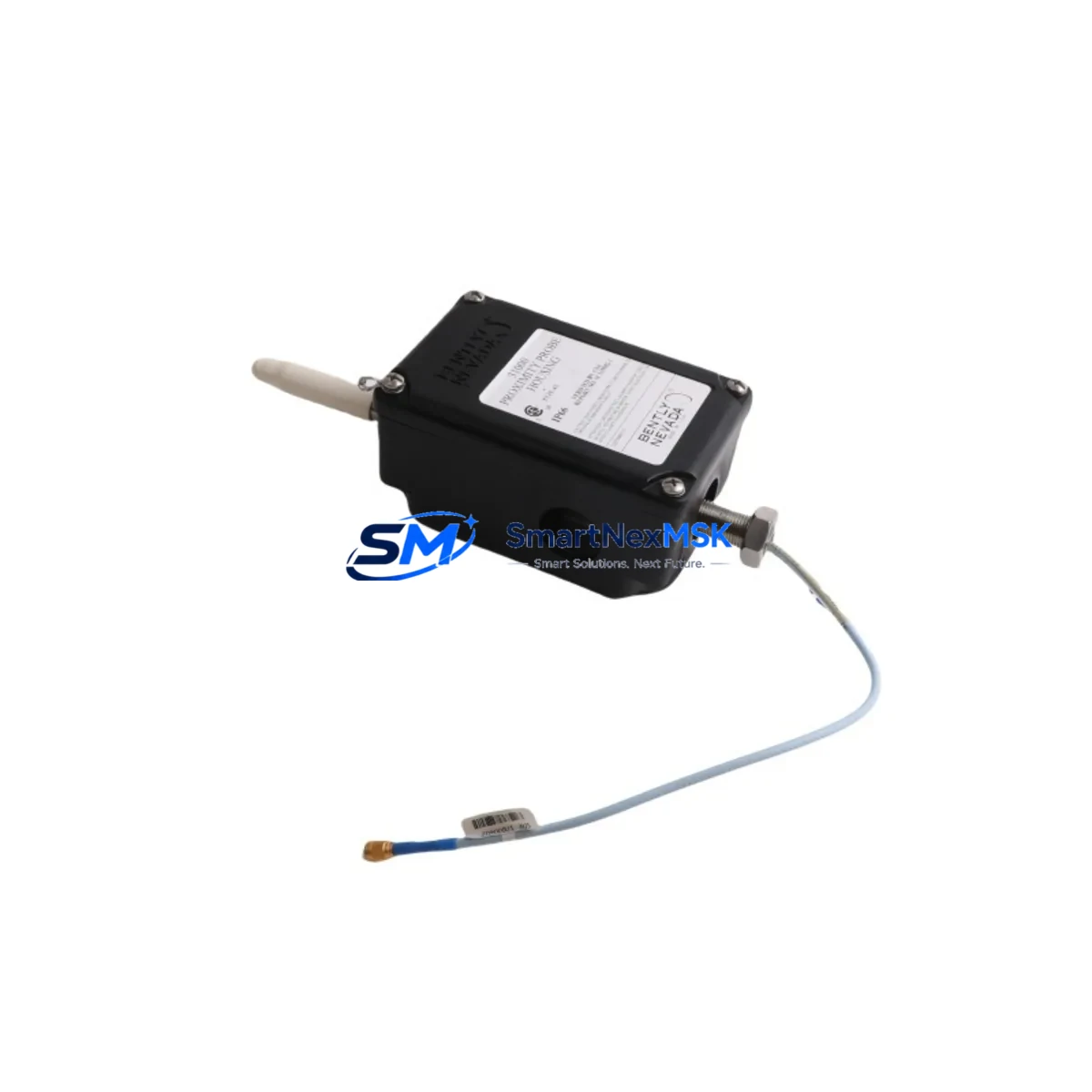

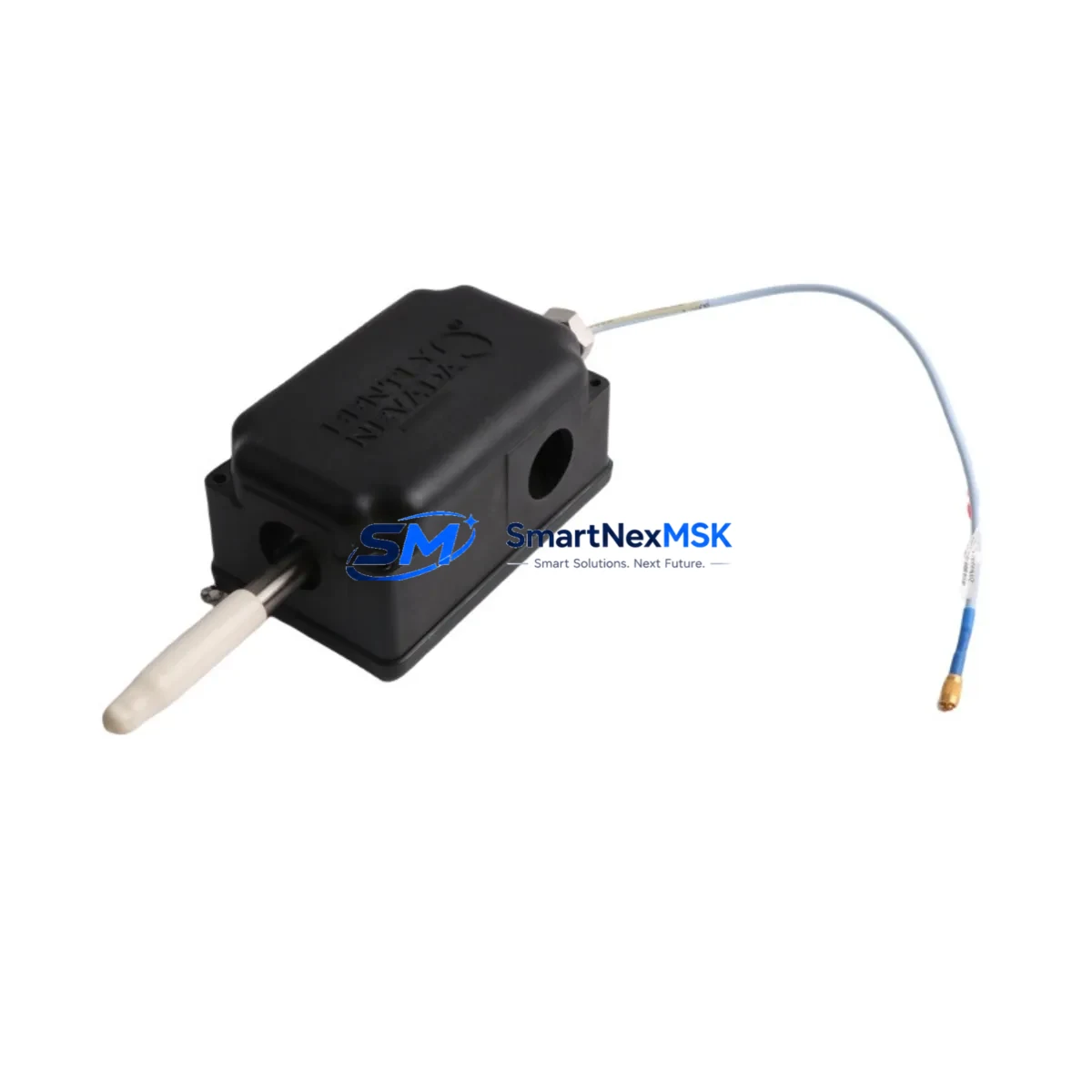

The Bently Nevada 31000-00-00-00-059-03-02 is a proximity probe housing assembly engineered for the 3300 XL series continuous vibration monitoring platform. As legacy installations age and OEM support windows close, this unit serves as a verified drop-in replacement for facilities operating rotating machinery protection systems built around Bently Nevada’s 3300 XL architecture. Whether you are managing a planned upgrade cycle or responding to an unplanned failure, this housing assembly is stocked, tested, and ready to ship with a 12-month warranty.
The 3300 XL platform remains one of the most widely deployed vibration monitoring systems in turbomachinery, compressor trains, and critical rotating equipment across petrochemical, power generation, and heavy industrial facilities. When a proximity probe housing fails or reaches end-of-service life, the replacement process requires careful attention to mechanical fit, cable routing, connector compatibility, and signal chain integrity. The 31000-00-00-00-059-03-02 housing is dimensionally matched to original installation footprints, allowing technicians to complete the swap without modifying existing conduit runs, junction boxes, or probe driver wiring.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 31000-00-00-00-059-03-02 |
| Brand | Bently Nevada |
| Compatible Series | 3300 XL Vibration Monitoring System |
| Component Type | Proximity Probe Housing Assembly |
| Mounting Interface | Standard 3300 XL probe driver rack interface; no bracket modification required |
| Connector Compatibility | Compatible with standard Bently Nevada coaxial extension cable assemblies used in 3300 XL installations |
| Signal Chain | Maintains eddy-current proximity sensing signal path; compatible with 3300 XL proximitor/driver modules |
| Communication Protocol | Passive analog signal; integrates with 4–20 mA and voltage output monitoring loops |
| Replacement Recommendation | Direct replacement for worn, damaged, or discontinued 31000-series housings in 3300 XL racks |
| Commissioning Notes | Verify gap voltage after installation; re-confirm probe driver output within 3300 XL system monitor thresholds |
| Warranty | 12 months from date of shipment |
| Origin | United States |
Retrofit Planning for Existing Automation Systems
Replacing a proximity probe housing in an operating facility requires a structured approach that accounts for the full signal chain from the probe tip to the monitoring rack. In a typical 3300 XL installation, the 31000-00-00-00-059-03-02 housing interfaces with a Bently Nevada 330130 or 330180 series extension cable, which routes the signal back to a 3300 XL proximitor module mounted in the rack. Before removing the existing housing, technicians should document the current gap voltage reading displayed on the proximitor, typically in the range of −10 VDC for a correctly gapped eddy-current probe, and record the alarm and danger setpoints configured in the 3300 XL monitor card.
The rack itself — commonly a Bently Nevada 3300/05 or 3300/10 series rack — should remain powered during the swap if the process safety plan permits hot-swap maintenance. If the rack must be de-energized, coordinate with the control room to place the associated channel in bypass mode within the plant DCS or safety instrumented system before breaking the signal loop. Facilities running a Bently Nevada System 1 software platform should note the channel tag and historian point associated with this probe position so that data continuity can be verified after recommissioning.
During installation, inspect the existing extension cable connector for corrosion or mechanical damage. If the 330130 extension cable shows wear at the armored jacket or connector body, this is an appropriate time to replace it alongside the housing. Similarly, check the condition of the proximitor driver module — a Bently Nevada 3300 XL proximitor such as the 330180-51-05 — for any indication of drift or calibration offset that may have contributed to the original housing failure. If the proximitor is also due for replacement, sourcing it concurrently with the housing minimizes future downtime.
For facilities migrating from older Bently Nevada 7200 series or 3500 series architectures to the 3300 XL platform, the 31000-00-00-00-059-03-02 housing is compatible with the 3300 XL probe driver ecosystem and does not require a separate signal conditioner. However, if the existing installation uses a Bently Nevada 3500/42M or 3500/44M monitor card in a 3500 series rack, the probe housing and extension cable assembly must be verified against the 3500 series proximitor specifications before substitution. In mixed-platform control cabinets where both 3300 XL and 3500 series modules coexist, label each cable run clearly to prevent cross-connection during maintenance.
HMI screens tied to the vibration monitoring loop — whether running on a Wonderware, FactoryTalk, or Ignition SCADA platform — should be reviewed to confirm that the channel tag, engineering units, and alarm limits remain correctly mapped after the housing replacement. If the plant historian is logging raw gap voltage alongside vibration amplitude, verify that the new probe’s sensitivity factor matches the value entered in the 3300 XL monitor configuration. A mismatch here will cause the historian to record incorrect vibration amplitude values without triggering any system fault.
Downtime Control During System Migration
Minimizing downtime during a proximity probe housing replacement on a 3300 XL system begins with pre-staging all replacement components before the maintenance window opens. Have the 31000-00-00-00-059-03-02 housing, the appropriate extension cable, and any required installation tooling ready at the work site. If the machine cannot be taken offline, confirm with the operations team whether the monitoring channel can be placed in bypass for the duration of the swap. Most 3300 XL monitor cards support individual channel bypass without affecting adjacent channels in the same rack, which allows the replacement to proceed without interrupting protection coverage on other measurement points.
Before disconnecting the existing housing, photograph the cable routing, connector orientation, and any tie-wrap or conduit clamp positions. This documentation accelerates reinstallation and reduces the risk of incorrect cable routing that could introduce mechanical stress on the new housing. After installing the 31000-00-00-00-059-03-02, set the probe gap using a calibrated gap tool or by monitoring the proximitor output voltage directly. Restore the channel from bypass only after confirming that the gap voltage is within the specified linear range and that the vibration amplitude reading is stable and consistent with adjacent measurement points on the same machine train.
For planned outages involving multiple probe replacements across a machine train, consider replacing all housings in the same rack simultaneously to consolidate downtime. Batch replacement of proximity probe housings, extension cables, and proximitor modules during a scheduled turnaround is a proven strategy for extending the maintenance interval and reducing the frequency of unplanned outages caused by aging sensor components.
Retrofit Support FAQ
Q: Is the 31000-00-00-00-059-03-02 a direct replacement for the original Bently Nevada part?
A: Yes. This housing assembly is dimensionally and functionally equivalent to the original 31000-00-00-00-059-03-02 specification. It is compatible with standard 3300 XL extension cables and proximitor modules without requiring any mechanical or electrical modification to the existing installation.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to achieve the target gap voltage specified for your proximitor model — typically −10 VDC at the midpoint of the linear range. Verify the output at the proximitor terminal and confirm that the 3300 XL monitor card is reading within normal operating limits before removing the channel from bypass. Document the final gap voltage and vibration baseline for the maintenance record.
Q: Can this housing be used with Bently Nevada 3500 series monitor cards?
A: The 31000-00-00-00-059-03-02 is designed for the 3300 XL platform. Compatibility with 3500 series monitor cards depends on the specific proximitor and extension cable configuration in your installation. Contact our technical team with your full system configuration for a compatibility assessment before ordering.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes functional testing prior to dispatch. Warranty claims are supported by our technical team with replacement or repair at no additional cost within the warranty period.
